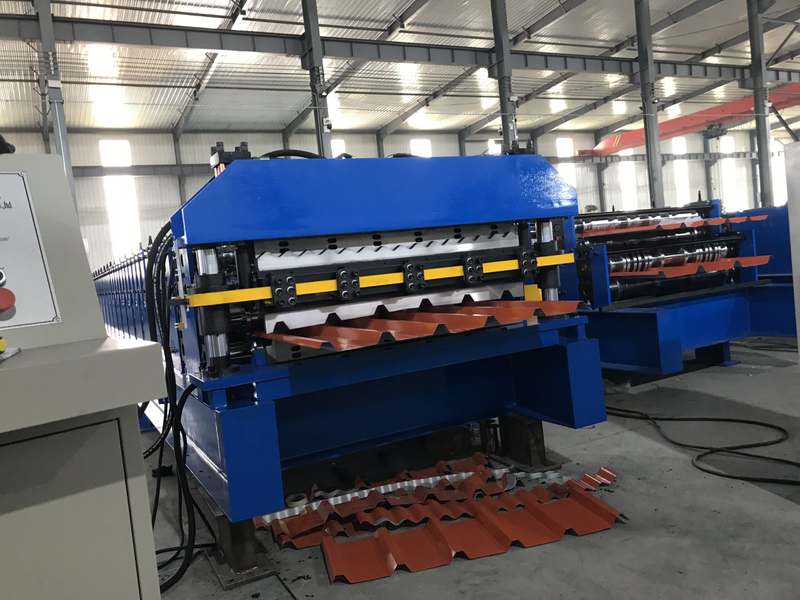

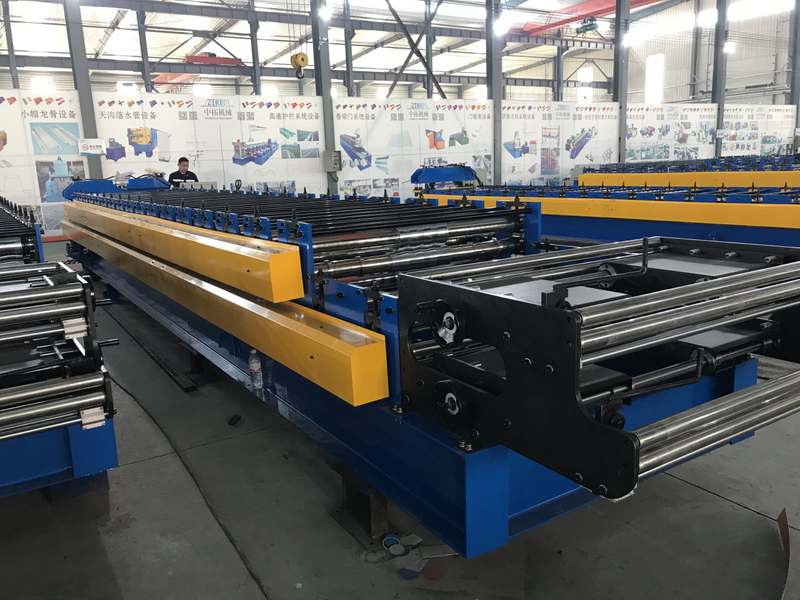

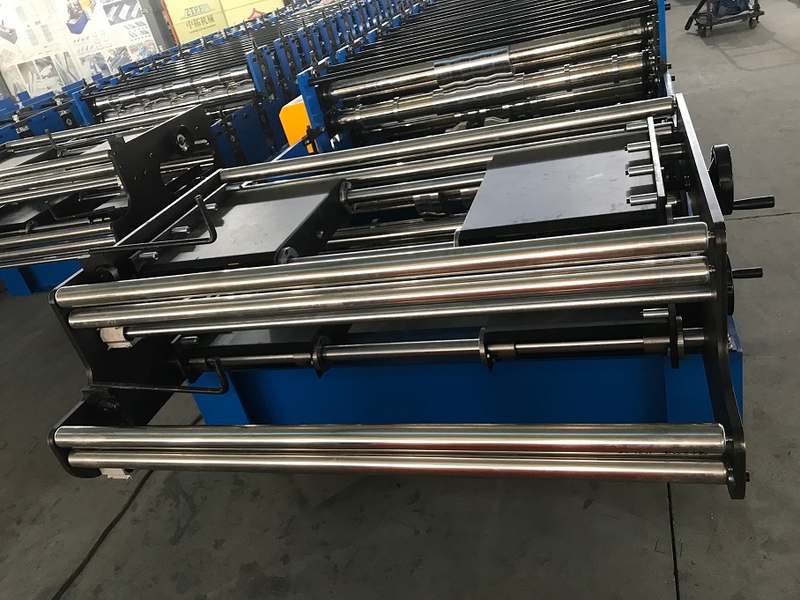

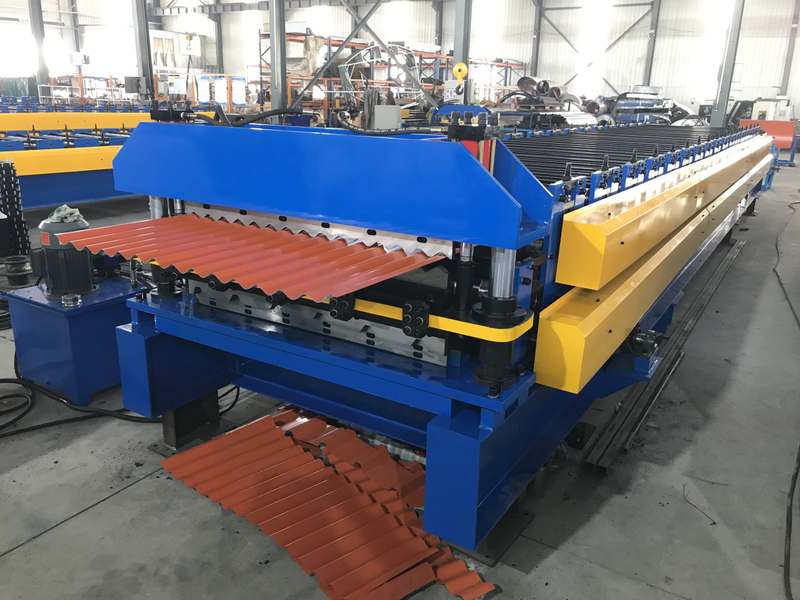

Our roof sheet roll forming machine is a professional automated production equipment designed for the continuous cold roll forming of various metal roof sheet profiles. It takes metal coils (such as galvanized steel, aluminum alloy, color steel plate) as raw materials and integrates multiple processes including uncoiling, precision leveling, servo feeding, progressive roll forming, precision cutting, and finished product stacking into a single automated workflow. The core function of this machine is to transform flat metal coils into preset roof sheet profiles (such as trapezoidal roof sheets, corrugated roof sheets, standing seam roof sheets) with high precision, ensuring the final products have excellent structural stability, waterproof performance, and decorative effects.

The roof sheets produced by this machine are widely used in various construction scenarios. In industrial buildings, they are used for the roofing of factories, warehouses, and workshops, providing reliable protection against wind, rain, and corrosion; in commercial buildings, they are applied to shopping malls, office buildings, and logistics centers, meeting the requirements of aesthetic appearance and long-term durability; in agricultural buildings, they are used for greenhouses, barns, and farmhouses, adapting to the harsh agricultural environment; in residential buildings, they are used for villas, low-rise houses, and residential communities, combining practicality and decorative properties.

Core Advantages: Core Advantages of Our Roof Sheet Roll Forming Machine

High Precision Forming, Reliable Product Quality

Adopting advanced servo feeding technology and high-precision forming molds, our roof sheet roll forming machine achieves exceptional forming accuracy. The dimensional error of the roof sheet profile is controlled within ±0.15mm, and the straightness error is ≤0.5mm/m, ensuring the tight fit between roof sheets during installation and excellent waterproof performance. The forming rollers are made of high-quality alloy steel,through special heat treatment and surface hardening treatment, which ensures the surface of the produced roof sheets is smooth and free of scratches. All products meet international quality standards such as ISO and CE, winning wide recognition from global customers.

High Efficiency & Full Automation, Significant Cost Savings

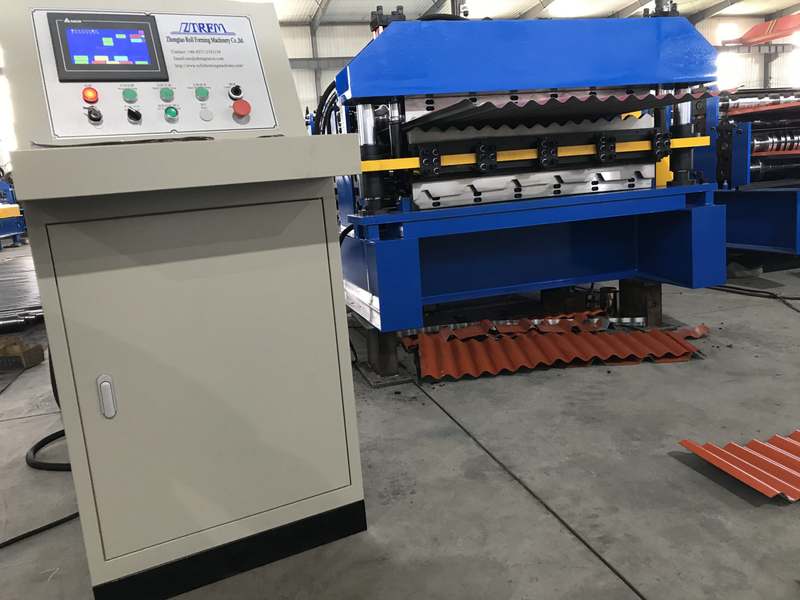

The machine adopts a fully automated production line, integrating uncoiling, leveling, forming, cutting, and stacking. The entire production process is controlled by the PLC system, requiring only 1-2 operators for supervision, greatly reducing labor costs. The maximum production speed can reach 15-60 meters per minute, and the daily output of roof sheets can reach thousands of square meters, which is 6-10 times higher than traditional production methods. The continuous production mode minimizes material waste, with a material utilization rate of over 98%, effectively reducing raw material costs for customers. The high efficiency and low cost of the machine help customers improve their market competitiveness and quickly respond to large-order demand.

Strong Adaptability, Meeting Diverse Production Needs

We fully understand that global customers have diverse needs for roof sheets due to differences in architectural styles, climate conditions, and local standards. Our roof sheet roll forming machine has strong adaptability to meet various production requirements. In terms of materials, it can process galvanized steel, aluminum alloy, color steel plate, and other metal materials, with a sheet thickness range of 0.3-1.2mm and a sheet width range of 300-1200mm. In terms of product specifications, it can produce various standard roof sheet profiles such as trapezoidal, corrugated, and standing seam, and also support the customization of non-standard profiles according to customer drawings and samples.

The machine is equipped with a quick mold change system, which allows mold replacement within 20-30 minutes, realizing efficient switching between different product types and specifications. In addition, the PLC control system supports parameter storage for multiple product types, enabling one-click switching of production parameters, providing maximum production flexibility for customers.

Stable & Durable, Low Operation & Maintenance Costs

We adhere to strict quality control standards in the manufacturing of the roof sheet roll forming machine. The machine body is made of high-strength steel through precision welding and heat treatment, ensuring strong rigidity and stability, and can withstand long-term high-intensity production operations. Key components such as servo motors, reducers, bearings, and hydraulic systems are sourced from internationally renowned brands (such as Siemens, Schneider, SKF), ensuring high reliability and long service life. The machine is also equipped with a centralized lubrication system, which automatically lubricates key components, reducing wear and extending the service life of the equipment.

In addition, the machine is equipped with an intelligent fault diagnosis system, which can real-time monitor the operating status of each component. When an abnormality occurs, it will immediately issue an alarm and display the fault location and cause, facilitating quick maintenance by technicians. The stable performance and easy maintenance of the machine effectively reduce the long-term operation and maintenance costs for customers.

Detailed Technical Parameters

Our roof sheet roll forming machine is equipped with advanced and reliable technical parameters, providing clear references for global customers to choose the right equipment:
