In modern architecture, exterior wall panels have become a pivotal element in shaping building aesthetics and enhancing structural performance. They not only impart distinctive aesthetic appeal to structures but also serve as indispensable safeguards for structural integrity and thermal insulation. From skyscrapers in bustling metropolises to cozy residential communities, these panels are ubiquitous, their diverse materials, vibrant colors, and intricate textures adding boundless charm to architectural designs.

As the core equipment for producing high-quality exterior wall panels, the panel forming machine is gaining increasing attention in the construction industry. Like a master craftsman, it precisely transforms various raw materials into diverse exterior wall panels with superior performance, meeting the varied demands of different construction projects.

Innovative structure, efficient operation

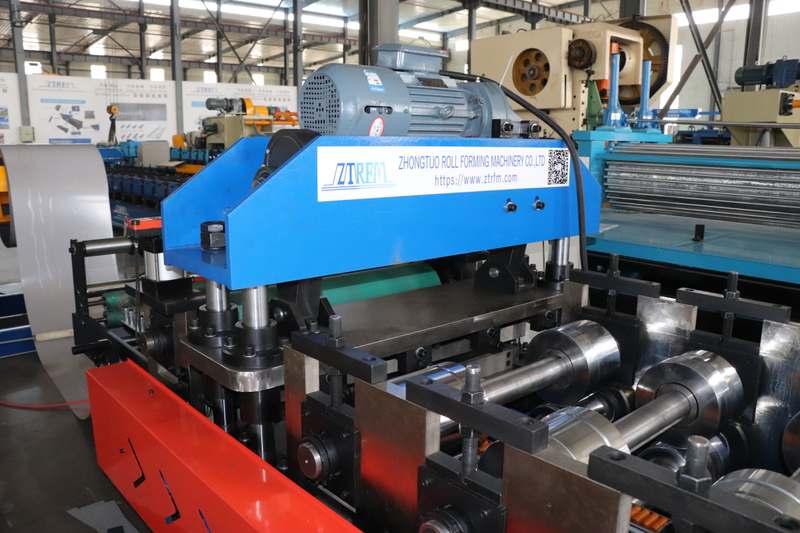

Our exterior wall panel forming machine features a unique structural design. The frame is meticulously organized into five functional zones: film-coating, feeding, cutting, forming, and discharging. These zones work in perfect harmony, like precision-engineered gears, ensuring the production process runs efficiently and smoothly.

In the film-coating zone, the coating roller continuously supplies protective film to the sheets. The flattening roller assembly acts like a meticulous ironer, evenly distributing the film across the sheet surface. Subsequently, the cutting assembly performs precise trimming to prepare for subsequent processes. The feeding zone receives the trimmed sheets and smoothly feeds them into the cutting zone. The pressing roller assembly in the cutting zone securely holds the sheets in place. Under the controller’s guidance, the second cutting assembly performs precise cutting according to preset dimensions, while the counter tracks the number of cuts in real time, providing accurate data for production management.

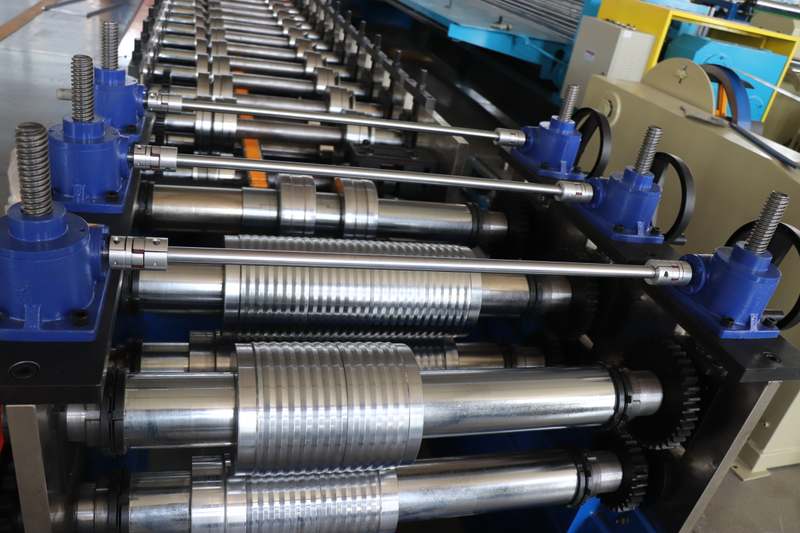

The forming zone serves as the core area of the entire equipment, where three sets of forming rollers are arranged sequentially: the central set, the side sets, and the outer set. Like a skilled artisan team, they meticulously sculpt the sheet metal. Multiple forming roller sets work in concert, utilizing precisely engineered forming wheels to achieve step-by-step bending of the color-coated steel sheet. The bending angles of these wheels are precisely calibrated according to process requirements, starting with minimal initial bends and gradually increasing in magnitude. This coordinated motion resembles a choreographed dance, ensuring the sheet metal consistently achieves the desired shape through repeated rolling. This method effectively prevents dimensional instability, sheet wrinkling, and shape distortion caused by excessive deformation in a single pass, guaranteeing that every exterior wall panel maintains high precision and outstanding stability.

Intelligent control, easy operation

To further enhance production efficiency and operational convenience, the exterior wall panel forming machine is equipped with an advanced intelligent control system. The controller, serving as the “brain” of the equipment, establishes tight electrical connections with critical components such as the cutting assembly and counter, thereby forming an efficient intelligent control network.

Operators simply input parameters like plate dimensions, cutting lengths, and forming shapes on the control interface, enabling the controller to instantly respond and precisely manage component operations. During cutting, the controller automatically directs the second cutting assembly to execute precise, preset-length cuts, eliminating human measurement errors and significantly improving both cutting accuracy and production efficiency. A real-time counter feeds the controller with cutting counts, automatically halting the machine when the set production target is reached. This mechanism effectively prevents overproduction and reduces manufacturing costs.

Furthermore, this molding machine features a touch-screen interface with a clean and intuitive design, enabling even first-time operators to quickly master the equipment’s operation. The system also includes a self-diagnostic function that promptly detects and locates faults when abnormalities occur. It immediately triggers alerts and displays detailed fault information on the screen, providing maintenance personnel with precise troubleshooting guidance. This significantly reduces repair time and ensures the equipment’s continuous stable operation.

Excellence in quality with minimal error

Our exterior wall panel forming machine sets an industry benchmark in quality control. The multi-component forming roller assembly in the forming zone is pivotal to ensuring product precision. The intermediate wave forming roller assembly, bilateral wave forming roller assembly, and outer wave forming roller assembly are meticulously arranged, akin to a team of master craftsmen progressively sculpting the color-coated steel plate.

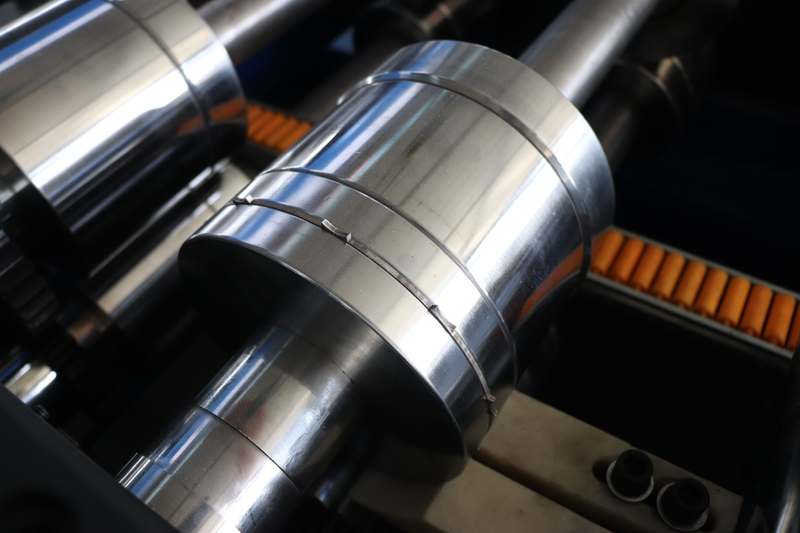

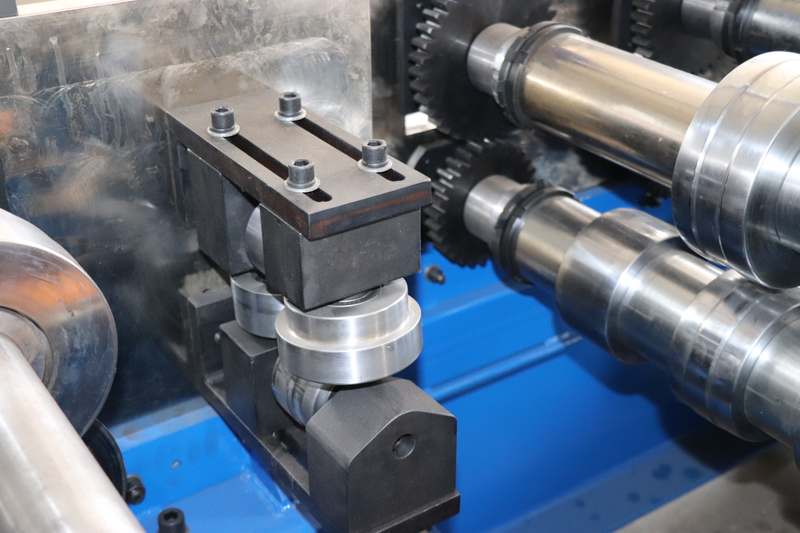

In the intermediate wave-forming roller assembly, the upper and lower forming rollers engage with the central forming wheel, where the bending angle progressively increases from an initial minimal angle during rolling to shape the color-coated steel plate. The central forming wheel in the side wave-forming roller assembly serves as the core component, while the two side forming wheels not only interlock with the central wheel but also gradually increase their bending angles to refine the plate’s profile. The outer wave-forming roller assembly then enhances this process through coordinated operation of the central forming wheel, side forming wheels, and outermost forming wheel, enabling comprehensive precision machining to achieve high-precision edge and surface shaping.

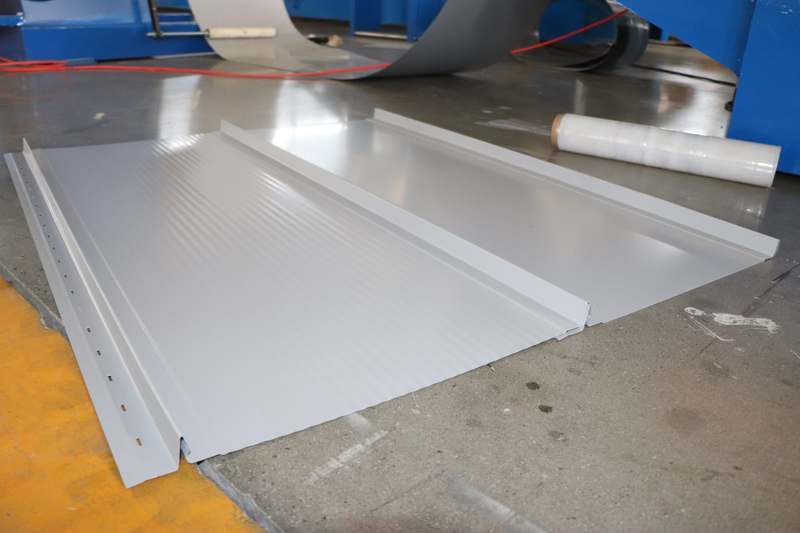

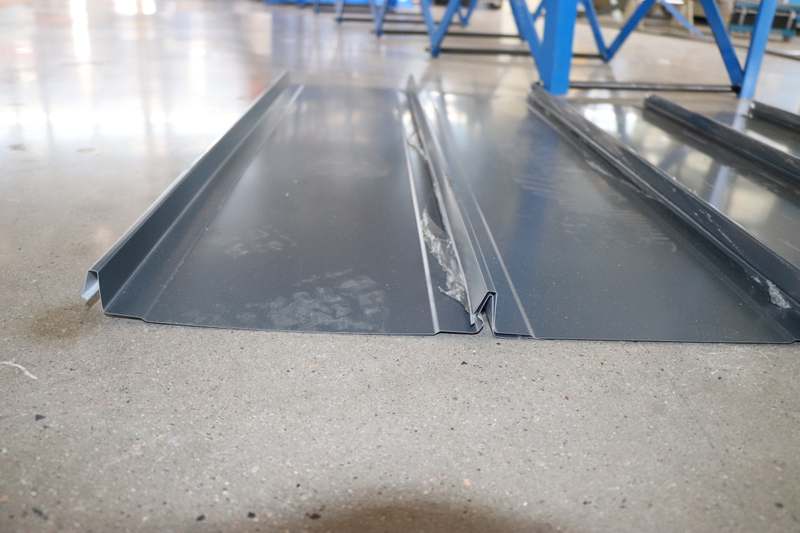

This step-by-step forming method ensures that the single deformation of color steel plates is strictly controlled within an extremely small range throughout the entire processing procedure. It effectively prevents issues such as dimensional instability, material wrinkling, and shape distortion caused by excessive single deformation. This guarantees that each exterior wall panel maintains exceptional dimensional accuracy and shape stability, providing high-quality raw materials for construction projects.

High efficiency production, cost saving

While pursuing high quality, our exterior wall panel forming machines excel in both production efficiency and cost control. The highly automated equipment seamlessly integrates the entire production process from raw material feeding to finished product output. Through the application of intelligent control systems, the machines operate automatically based on preset parameters, significantly reducing manual intervention and lowering labor costs.

In the cutting process, precision cutting technology combined with intelligent control systems enables automated length-cutting. This not only enhances cutting accuracy but also prevents material waste, improving raw material utilization. The equipment’s high-speed operation and efficient production capacity significantly increase output per unit time, meeting the demands of large-scale construction projects. This advancement has helped enterprises secure greater market share and profit margins.

Reliable and secure, with simple maintenance

Safety is the paramount prerequisite for production. Our exterior wall panel forming machines are designed with operational safety in mind throughout their development. The equipment features a robust structure with tightly integrated components, effectively preventing operational vibrations and misalignment. The user-friendly operation process is complemented by comprehensive safety features including emergency brake buttons, guardrails, and light curtain sensors, ensuring all-around protection for operators.

Furthermore, the equipment features a streamlined and rational structural design, with all critical components crafted from premium materials that ensure exceptional durability and stability, significantly reducing the likelihood of malfunctions. Its modular architecture also streamlines maintenance and part replacement, lowering both costs and complexity. When issues arise, the intelligent control system’s self-diagnostic function swiftly identifies problems, providing technicians with precise fault data. This approach dramatically cuts down repair time while guaranteeing swift restoration of normal operations.
