Máquina Perfiladora de Tarima

01.Classification of Floor Deck Roll Forming Machine

The floor bearing plate, also known as profiled steel plate or steel bearing plate, is the core material for floor construction in steel structure buildings. The industry primarily classifies it based on "plate configuration and forming process," dividing it into three main types: open-type, concave (swallow-tail) type, and closed-type. Each type exhibits significant differences in performance and application scenarios. The specific classifications and characteristics are as follows:

Máquina Perfiladora de Tarima

Máquina Perfiladora de Tarima

02. Classification of Floor Deck Roll Forming Machine

The floor bearing plate, also known as profiled steel plate or steel bearing plate, is the core material for floor construction in steel structure buildings. The industry primarily classifies it based on "plate configuration and forming process," dividing it into three main types: open-type, concave (swallow-tail) type, and closed-type. Each type exhibits significant differences in performance and application scenarios. The specific classifications and characteristics are as follows:

Máquina Perfiladora de Tarima

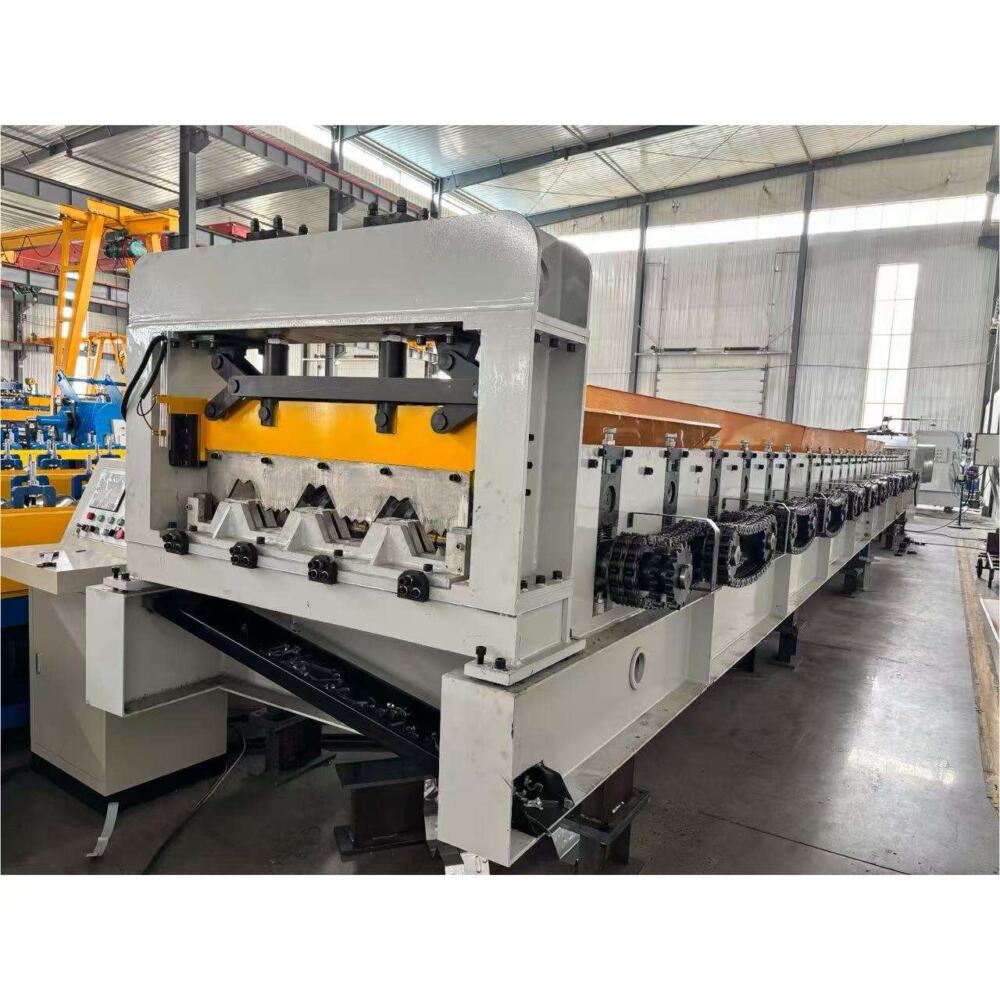

Description:Floor deck roll forming machine is a specialized cold roll forming equipment for manufacturing steel floor decking sheets widely used in high-rise buildings, steel structure workshops, commercial plazas, and industrial construction projects. The fully automatic production line completes decoiling, feeding, precise roll forming, hydraulic cutting, and finished output in one continuous process, ensuring high precision, high efficiency, and stable floor deck panel production.

Compared with traditional manual or semi-automatic forming equipment, our floor deck forming machine features adjustable forming speed, customizable profile sizes, strict dimensional tolerance control, and durable mechanical structures. All core components adopt international standard configurations, fully meeting the mass production demands of overseas construction material manufacturers and steel structure engineering companies. This article provides comprehensive technical parameters, process data, equipment configuration comparison, precision indicators and practical application standards for global buyers’ reference.

Core Overview & Main Application Scenarios

Steel floor deck panels produced by this equipment serve as permanent concrete formwork and structural bearing layers, effectively improving construction efficiency, reducing on-site formwork costs, and enhancing building floor seismic performance. The machine supports processing galvanized steel coils, PPGI coils, and carbon steel coils, compatible with mainstream floor deck types in European, American, Southeast Asian, and Middle Eastern markets, including open-type, closed-type, and dovetail-type floor decks.

Core application scenarios: high-rise residential buildings, steel structure factory buildings, shopping malls, office buildings, parking garages, and prefabricated steel structure construction projects.

Complete Machine Series & General Technical Parameters Table

We have standardized three mainstream floor deck machine models to adapt to different plate thicknesses, forming widths, and production efficiency requirements. The following table shows the full general technical parameters of the equipment series, covering core production indicators and basic configuration data.

Product Profile Precision Tolerance Data Table

Floor deck panels belong to structural building materials with extremely strict dimensional precision requirements. Our equipment adopts CNC integrated processing and multi-group rolling calibration technology, and the finished product tolerance fully complies with international construction steel structure standards. The detailed precision indicators are shown in the table below:

Core Component Material & Configuration Parameter Table

The service life and forming stability of floor deck roll forming machines depend entirely on core component materials and processing technology. All key wearing parts and load-bearing parts of our equipment adopt high-strength alloy materials with heat treatment process, which effectively reduces wear and deformation and extends the equipment service life to more than 15 years. The core component configuration data is as follows:

Automatic Control System Configuration Table

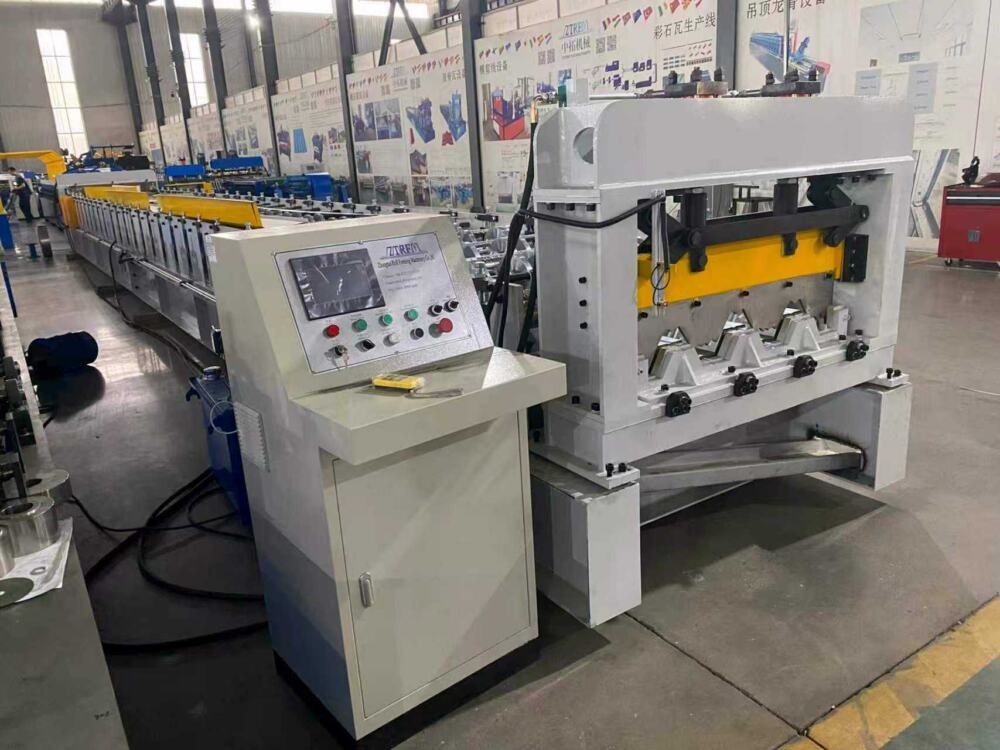

The equipment is equipped with an intelligent fully automatic control system, supporting multi-language switching, fixed-length automatic cutting, batch production setting, fault self-diagnosis, and data storage functions. It realizes unattended continuous production and effectively improves production efficiency. The detailed control system configuration is shown below:

Standard Production Process Flow & Time Cycle Data

The floor deck roll forming machine adopts a one-piece continuous production process with standardized and streamlined operation. Each process link has fixed time cycle parameters to ensure stable and efficient production. The complete process and cycle data are as follows:

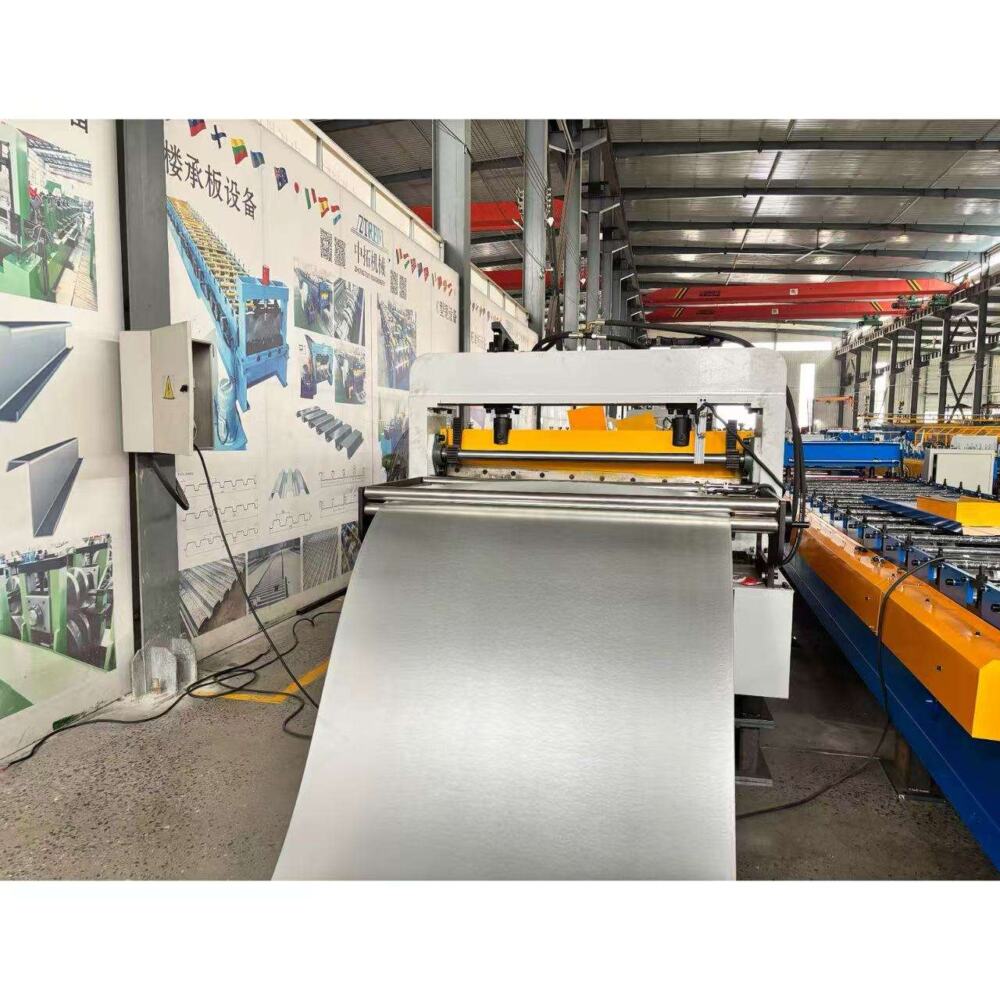

Standard Process Flow: Decoiling → Material Feeding & Calibration → Multi-pass Roll Forming → Precision Shaping → Hydraulic Fixed-length Cutting → Finished Product Output & Stacking

Equipment Advantage & Market Competitive Data

Compared with ordinary low-end forming machines on the market, our floor deck roll forming machines have obvious advantages in production efficiency, precision stability, energy consumption, and service life. The core competitive data comparison is as follows:

Customization & After-Sales Service Standard

We support full personalized customization of floor deck forming machines, including special profile sizes, non-standard material thickness, voltage adaptation, multi-language system, and automated stacking equipment matching. All equipment complies with CE, ISO9001 international certifications, meeting the import standards of Europe, America, Southeast Asia, Africa, and other regions.

Standard after-sales service: 12-month full machine warranty, lifelong free technical consultation, overseas on-site installation and commissioning, free operation training, and long-term supply of spare parts. We provide 24-hour online after-sales support to solve equipment operation problems for global users in a timely manner.

Conclusión

Our fully automatic floor deck roll forming machine integrates high precision, high efficiency, energy saving, and durability, with complete parameter standards and stable performance. Rich production data and strict precision control ensure that the produced floor deck panels fully meet international construction engineering standards. Whether for small-scale factory trial production or large-scale mass production orders, the equipment can provide stable and reliable production support. It is the preferred processing equipment for global steel structure building material manufacturers.
