In the global building decoration and construction industry, keels are the core load-bearing and supporting components, widely used in suspended ceilings, partition walls, wall cladding, flooring, and curtain wall systems. With their excellent load-bearing capacity, stable structure, easy installation, and cost-effectiveness, high-quality keels have become an indispensable part of modern building projects—from residential buildings, commercial complexes, and office buildings to industrial workshops, hospitals, and schools. As the key equipment for mass production of high-standard keels, the high-quality keel roll forming machine directly determines the precision, strength, and production efficiency of keel products. With the continuous upgrading of global building quality standards and the increasing demand for energy-saving, environmentally friendly, and durable building materials, the market’s requirements for keel roll forming machines are constantly improving—pursuing higher forming precision, stronger structural stability, more versatile specifications, and better adaptability to different raw materials. Our high-quality keel roll forming machine, relying on advanced cold roll forming technology, more than 10 years of foreign trade experience, and strict quality control systems, provides reliable, precise, and efficient production solutions for global customers, helping them produce high-quality keels that meet international standards, reduce production costs, and gain a competitive edge in the global building materials market. Next, let us deeply explore the professional strength and practical value of this core equipment in the global building decoration and construction field.

Core Structure

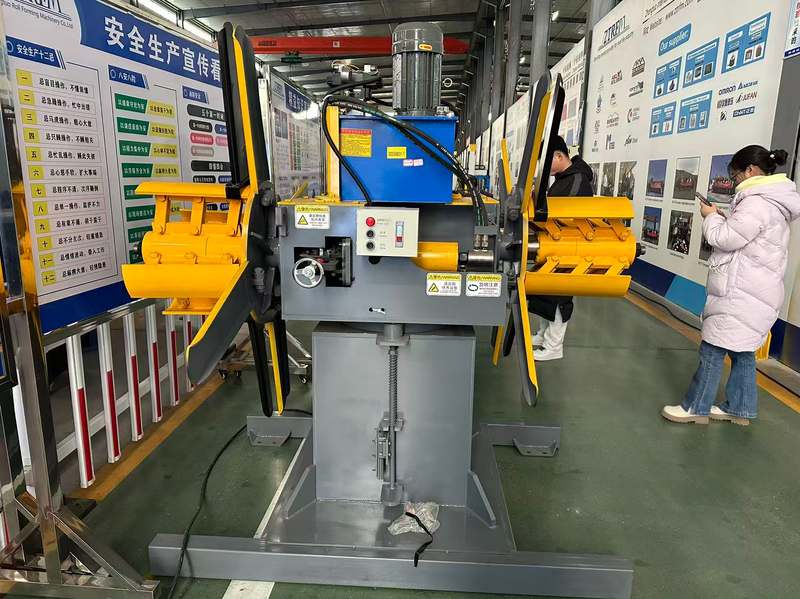

Uncoiler: As the starting link of the keel production line, the uncoiler is mainly responsible for supporting and stably releasing the metal coil. It is made of high-strength steel plate through integral welding and tempering treatment, which effectively eliminates internal stress, avoids body deformation, and has a stable structure and strong load-bearing capacity. It can adapt to metal coils of different weights (1-6 tons) and widths (500-1000mm), fully meeting the production needs of various types and specifications of keels. The equipped automatic tension control system can intelligently adjust the unwinding tension and speed according to the thickness of the coil and the forming speed, ensuring that the sheet enters the leveling device smoothly and continuously, avoiding production interruptions caused by coil loosening, jamming, or deviation. The uncoiler is also equipped with a coil centering device, which can automatically adjust the position of the coil to ensure that the sheet is aligned with the forming host, further improving the forming precision and avoiding edge deviation of the keel.

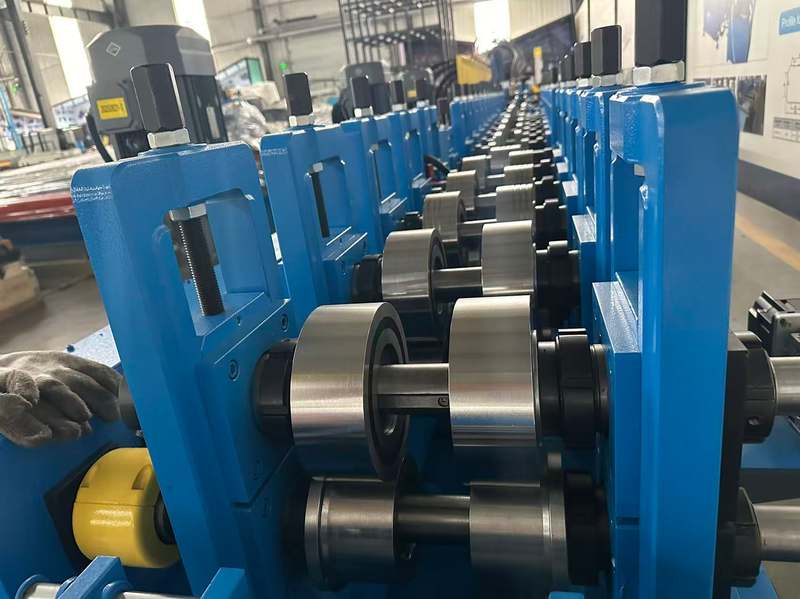

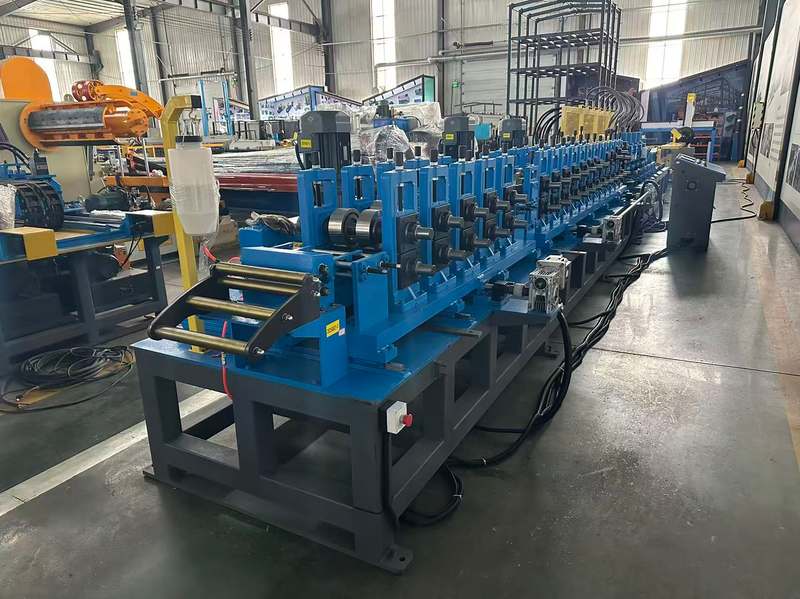

Forming Host: The forming host is the “heart” of the high-quality keel roll forming machine, and its performance directly determines the shape precision, size consistency, and structural strength of the keel. The forming host adopts a heavy-duty cast iron frame structure, which is tempered to enhance rigidity and stability, effectively reducing vibration during high-speed operation and ensuring long-term stable use. The internal forming rollers are made of high-quality GCr15 alloy steel, which is processed by precision machining, quenching, and tempering treatment, with a hardness of HRC58-63℃, featuring high hardness, wear resistance, and corrosion resistance, which can withstand long-term high-speed friction and pressure and maintain stable forming precision. The roller shaft is made of 40Cr alloy steel, which is quenched and tempered to a hardness of HB280-300, ensuring strong load-bearing capacity and stable power transmission. Different models of forming hosts are equipped with corresponding adjustable roller groups, which can be flexibly adjusted according to the type (U-shaped, C-shaped, L-shaped, T-shaped), width (50-200mm), thickness (0.5-2.0mm), and height (30-100mm) of the keel, realizing the production of various types and specifications of high-quality keels. The transmission system adopts advanced gearbox and servo drive technology, ensuring stable power transmission, high transmission efficiency, and precise control of the forming speed (8-15 meters per minute), realizing high-speed and high-precision forming of keels.

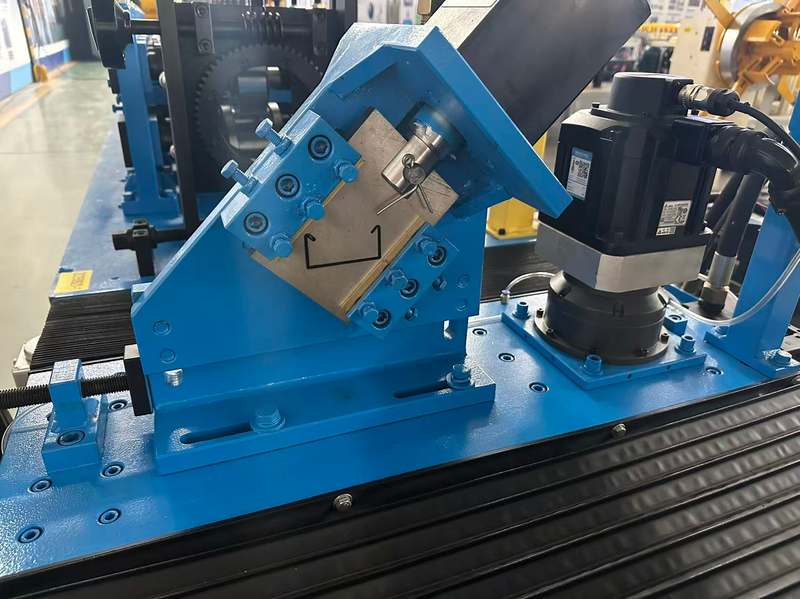

Shearing Device: The shearing device is an important component to ensure the standardization and qualification of keel products, responsible for precisely cutting the formed continuous keel into the required length. We adopt two advanced shearing methods—hydraulic shearing and mechanical shearing—to meet the different production needs of global customers. Hydraulic shearing has the advantages of large shearing force, flat incision, no burr, low noise, and no damage to the surface of the keel, which is suitable for high-precision cutting needs of high-end building projects; mechanical shearing is efficient and fast, with a shearing speed of up to 16 times per minute, which can meet the needs of large-scale mass production. The shearing device is equipped with a high-precision length measurement and positioning system, which can real-time monitor the running length of the keel through high-sensitivity sensors, and the length error is strictly controlled within ±0.15mm, fully complying with international building standards (such as ISO, CE), ensuring that the keels can be closely matched during installation, improving the overall structural stability of suspended ceilings, partition walls, and other systems.

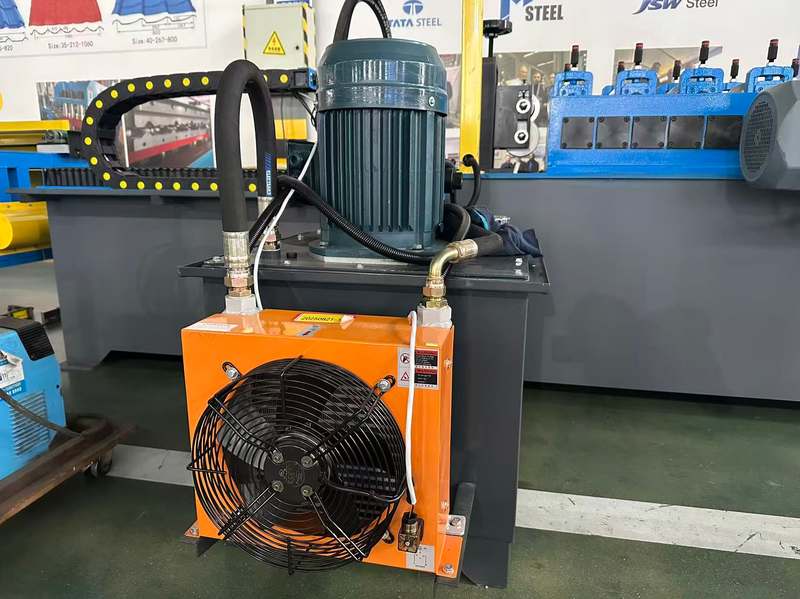

Hydraulic Station: The hydraulic station is the power source of the hydraulic system of the high-quality keel roll forming machine, mainly composed of a high-efficiency motor, precision oil pump, sealed oil tank, intelligent control valve, oil filtration system, and cooling system. The motor drives the oil pump to pressurize the hydraulic oil in the oil tank and deliver it to various hydraulic execution components (such as hydraulic cylinders, hydraulic motors) to provide powerful and stable power support for the shearing, forming adjustment, and emergency stop of the equipment. The hydraulic system adopts intelligent pressure and flow control technology, which can precisely adjust the hydraulic parameters according to the working needs, ensuring stable and reliable operation of the equipment, reducing energy consumption while improving work efficiency. The equipped high-precision oil filtration system can effectively filter impurities in the hydraulic oil, and the cooling system can quickly reduce the temperature of the hydraulic oil, extending the service life of hydraulic components and ensuring the long-term stable operation of the equipment.

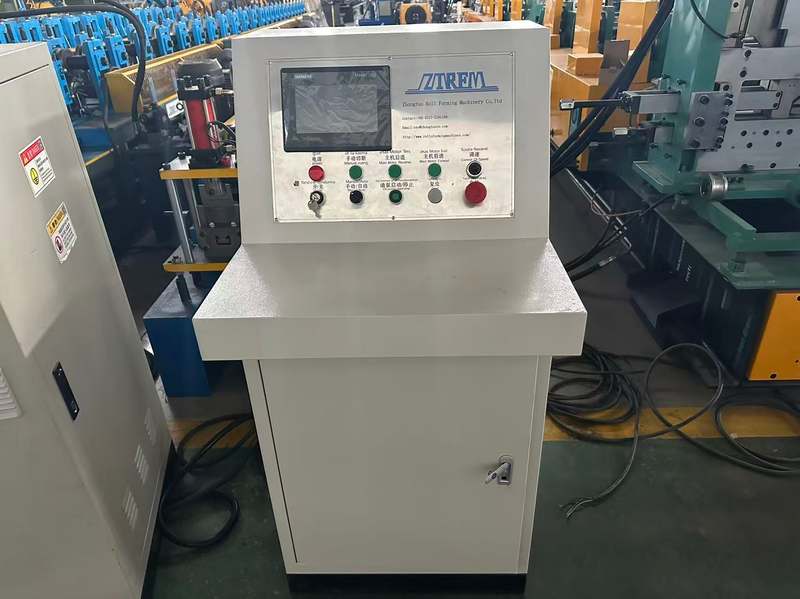

Control System: The control system is the “brain” of the high-quality keel roll forming machine, adopting advanced PLC (Programmable Logic Controller) and humanized touch screen operation interface, realizing full automation and intelligent control of the entire production process. The total installed capacity of the equipment is about 8kw, which is energy-saving and environment-friendly, meeting the energy conservation and emission reduction requirements of various countries. The touch screen interface is clear and easy to operate, with a Chinese-English bilingual design, suitable for operators of different countries and regions. Operators only need to input relevant parameters (such as keel type, width, thickness, height, forming speed, cutting length) on the touch screen, and the system will automatically control the coordinated operation of the uncoiler, leveling device, forming host, shearing device, and other components, with no manual intervention throughout the production process. The control system is equipped with a full-range fault diagnosis and alarm function, which can real-time monitor the operation status of each component of the equipment. When a fault occurs (such as coil jamming, hydraulic pressure abnormality, roller wear, or length deviation), it will immediately issue an alarm and display the detailed fault information, facilitating operators to quickly troubleshoot and solve problems, improving equipment maintenance efficiency and production safety. In addition, the system supports parameter storage and call function, which can store the parameters of various types and specifications of keels, and can be directly called during batch production, saving time and improving production efficiency. The equipment is also equipped with multiple safety protection devices (such as emergency stop button, protective cover, and overload protection) to fully ensure the safety of operators during production.
