High Quality Floor Deck Roll Forming Machine: Ultimate Guide for Modern Construction
verschiedene Arten von Kaltwalzmaschinen. Wir sind eine Fabrik mit einer langen Geschichte, die sich seit 2006 mit der Entwicklung und Herstellung von Walzprofiliermaschinen beschäftigt. Die Maschinen, die wir produzieren können, umfassen: Dachziegel machen Maschine, cz Pfette machen Maschine, leichte Stahl Kiel machen Maschine, Metallprägung Maschine, Tür System bilden Maschine, Decke System bilden Maschine, Hochfrequenz-Rohr-Schweißmaschine, Schlitz Linie, auf Länge geschnitten Linie, Regal System bilden Maschine, Bodenbelag bilden Maschine, Farbe Stein Fliese Produktionslinie, heiße Laminierung gefilmt Maschine, etc.
Discover high-performance floor deck forming machines that deliver precision, speed, and durability for commercial and industrial construction. Get reliable steel deck production solutions with CE certification.
Introduction to Floor Deck Forming Machines
In today’s fast-paced construction industry, floor deck forming machines have become essential equipment for manufacturing high-quality steel floor decking panels. These advanced roll forming systems transform flat galvanized steel coils into precisely profiled composite floor decking sheets used in high-rise buildings, industrial plants, commercial complexes, and parking structures.
A floor deck roll forming machine operates through an efficient cold roll-forming process. A continuous coil of sheet steel, typically galvanized, is fed into the machine and passes through a series of precisely engineered roller dies. Each station incrementally bends the steel until it emerges as a finished deck profile with specific ribs, embossments, and edge details, automatically cut to your required length.
Key Features of Our Floor Deck Machines
High-Precision Forming System

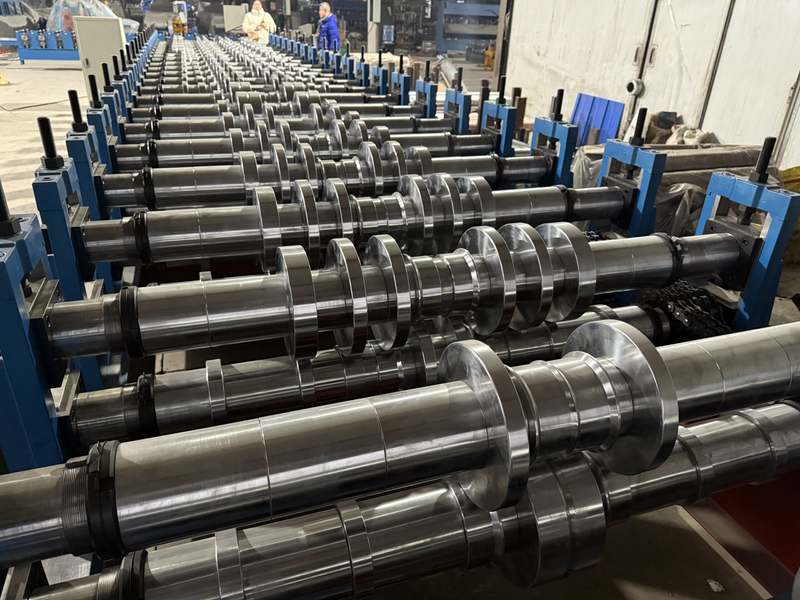

Premium Roll Material: Forming rolls manufactured from GCr15 bearing steel or Cr12MoV alloy steel, quenched and tempered to HRC58-62 with hard chrome plating for exceptional wear and corrosion resistance

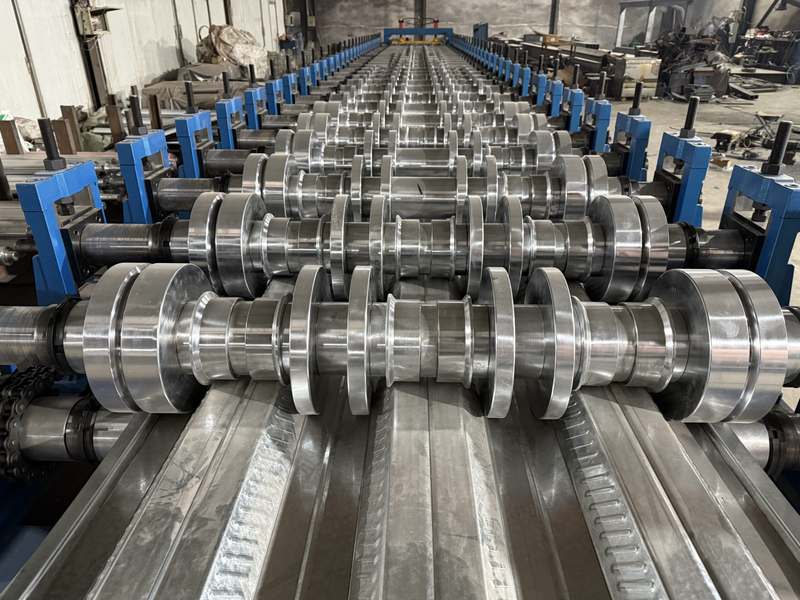

28-32 Forming Stations: Gradual forming process ensures full wave crests and uniform wave spacing across all finished plates
Anti-Slip Embossing: Special surface embossing enhances bonding force with concrete, significantly improving structural integrity
Advanced Automation Technology

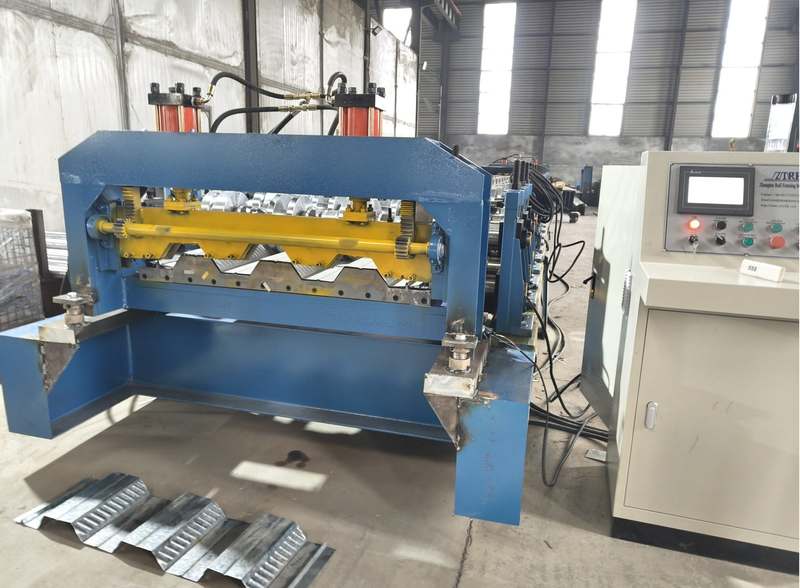

PLC Control System: Fully automated operation with touch-screen HMI, supporting parameter memory and fault self-diagnosis
Servo Drive System: Enables precise length control and smooth, continuous production
Production Speed: 8-30 meters per minute, with daily output exceeding 5,000 square meters
Material Waste: Less than 1.5% material loss during production
Heavy-Duty Construction
Robust Machine Frame: Full structure milled by large CNC machines for maximum stability and precision
Long Service Life: Designed for 20+ years of continuous operation with minimal maintenance
CE Certified: Meets European quality standards with multiple patents
Core Advantages for Your Business
Enhanced Production Efficiency
Our floor deck forming machine delivers unmatched productivity:
Single operator can manage the entire production line
Continuous, uninterrupted processing of steel coils
3-5 times faster than traditional prefabrication methods
Ideal for large-scale construction projects with tight deadlines
Superior Quality & Consistency
Every meter of deck produced has identical geometrical and mechanical properties:
Predictable structural performance guaranteed
Perfect fit for stud welding during installation
Faster concrete pouring with reduced crane time
Uniform quality eliminates on-site rework
Significant Cost Savings
Labor Reduction: Automated operation cuts labor costs by 60%
Material Efficiency: Precision forming minimizes steel waste
Energy Saving: 35% lower power consumption than traditional equipment
Fast ROI: Typical return on investment within 12-18 months
Technical Specifications
| Parameter | Standard Configuration |
| Suitable Material | Galvanized steel, colored steel, stainless steel, aluminum |
| Material Thickness | 0.8mm – 1.5mm |
| Forming Speed | 10-25 m/min |
| Roller Material | GCr15 Bearing Steel |
| Kontrollsystem | PLC with Touch Screen |

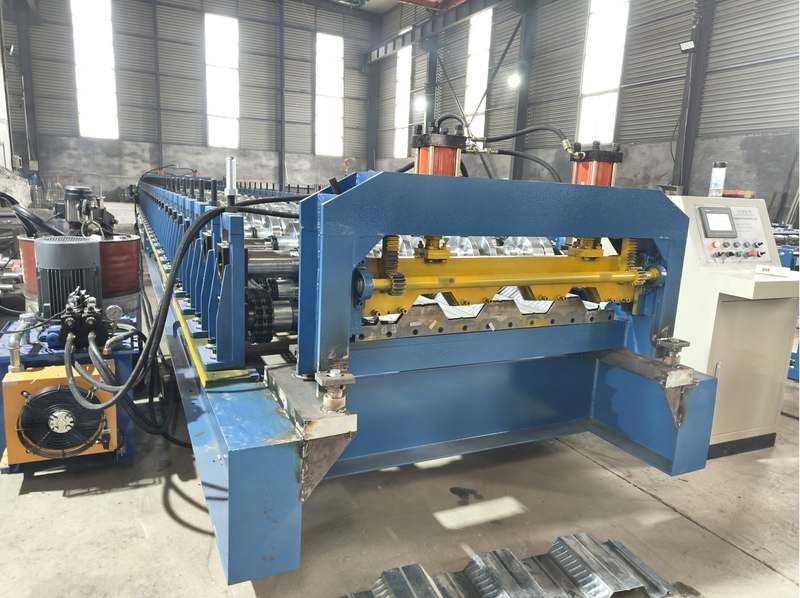

| Cutting System | Hydraulic Automatic Cutting |
| Drive System | Chain & Gear Transmission |
| Power Supply | 380V/50Hz, 3 Phase (Customizable) |
Why Choose Our Floor Deck Forming Machines?
Customization Capability
We offer fully customizable solutions:
Multiple profile designs available (Type A, Type B, composite decks)
Cassette-type structure for fast profile changes
Rib height options from 20mm to 100mm
Custom dimensions to match your project requirements
Quality Assurance
Every machine undergoes rigorous testing before delivery
12-month comprehensive warranty
Lifetime technical support and spare parts supply
Factory inspection welcome before shipment
Global Service Network
Professional installation and training at your facility
Remote troubleshooting support
Multilingual technical team
Fast spare parts delivery worldwide
Ready Stock Availability
Standard models in stock for prompt delivery
Sea/air freight arrangements handled
Complete documentation for customs clearance
Frequently Asked Questions
Q: What profile types can your machine produce?
A: Our machines can produce all standard floor deck profiles including 1.0B, 2.0B, 3.0B, N type, and custom profiles according to your drawings.
Q: How long does installation and training take?
A: Typically 5-7 days for complete installation, commissioning, and operator training at your facility.
Q: Do you provide after-sales service?
A: Yes, we offer 24/7 technical support, online troubleshooting, and on-site service when needed.
Q: Can the machine handle different material thicknesses?
A: Yes, our machines are designed to process 0.8-1.5mm galvanized steel with quick adjustment capabilities.
