High Precision Floor Deck Rolling Forming Machine is a professional high-end roll forming solution engineered for manufacturing ultra-precise steel floor deck panels. Unlike standard forming machines that allow minor dimensional deviations, our precision floor deck production line focuses on strict dimensional tolerance, flat surface finish, consistent punching spacing, and zero-twist profiles. It is specially built for high-standard steel structure projects, overseas prefabricated construction, and high-value building material export markets.

In modern international construction engineering, high-rise buildings, large industrial parks, and commercial complexes require extremely high assembly accuracy for steel floor decks. Poor flatness, uneven punching holes, or inconsistent profile height will cause installation gaps, concrete leakage, and reduced structural bearing performance. Our high-precision floor deck forming machine perfectly solves these pain points, delivering certified, project-grade floor deck sheets for global contractors and manufacturers.

Core Advantages of High Precision Floor Deck Forming Machine

Ultra-Strict Forming Tolerance & Consistent Profile Accuracy

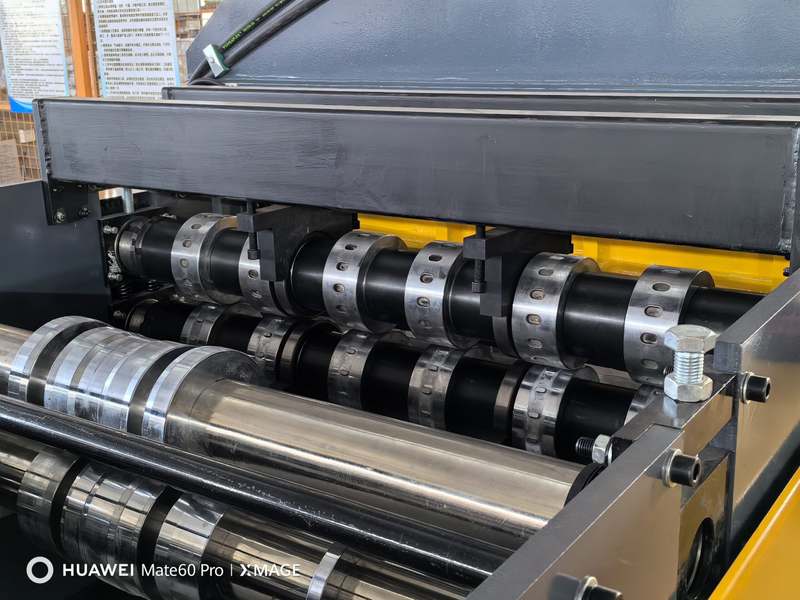

This precision floor deck machine adopts CNC one-piece machined forming rollers and integral heavy-duty steel frame, effectively eliminating frame vibration and roller runout during operation. The overall profile dimensional tolerance is controlled within ±0.3mm, far exceeding the standard ±0.5mm industry tolerance. All deck rib heights, groove widths, and bending angles remain highly consistent for every finished panel. The zero-twist and zero-warpage forming effect ensures perfect on-site assembly without secondary correction.

High-Precision Servo Punching & Synchronous Cutting System

Equipped with independent high-precision servo punching and flying shear synchronous cutting system, the equipment realizes fully synchronized feeding, punching, and fixed-length cutting. The punching position error is controlled within ±0.2mm, with neat hole edges and no burrs. The servo follow-up cutting technology avoids length deviation caused by high-speed operation, ensuring every batch of floor deck products has unified specifications and meets strict international engineering acceptance standards.

Reinforced Structural Design for Long-Term Precision Stability

Most ordinary floor deck machines suffer from accuracy attenuation after long-term operation due to frame deformation and roller wear. Our high-precision model adopts thickened welded main frame and heat-treated alloy steel rollers, with anti-wear and anti-deformation processing. The precision calibration system ensures the equipment maintains stable high accuracy even after years of continuous operation, avoiding frequent precision debugging and greatly reducing product defective rate.

Intelligent Closed-Loop Control System

Different from ordinary open-loop PLC control, this precision production line adopts closed-loop servo control system. It can real-time monitor feeding speed, forming pressure and dimensional data, automatically compensate tiny errors during operation, and realize intelligent precision correction. The system supports storing multiple precision parameter templates for different floor deck models, enabling one-switch model change without repeated manual calibration.

Excellent Finished Product Appearance & High Market Competitiveness

The optimized multi-pass gradual forming process avoids plate stretching, indentation, and scratch problems. The finished floor deck surface is smooth and flat with uniform bending radian, no material distortion or edge curling. High-precision and high-appearance products are more suitable for high-end overseas engineering projects, premium building material wholesale and export sales, helping customers win more high-value orders.

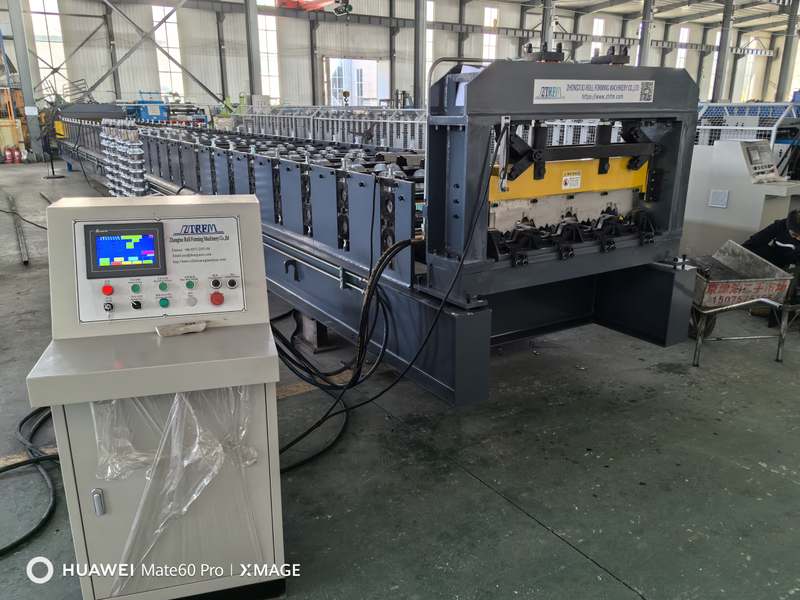

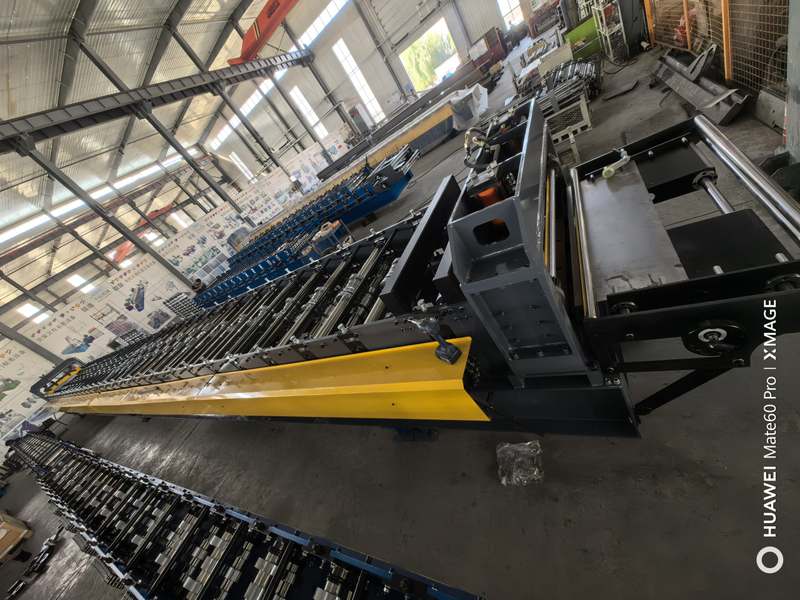

Full Production Line Standard Configuration

Our high-precision floor deck rolling forming line adopts modular integrated design, with complete and precision-matched supporting equipment, ensuring overall operational accuracy and stability. The full line includes:

Automatic hydraulic decoiler with stable tension control

Precision leveling & guiding device to correct material deviation

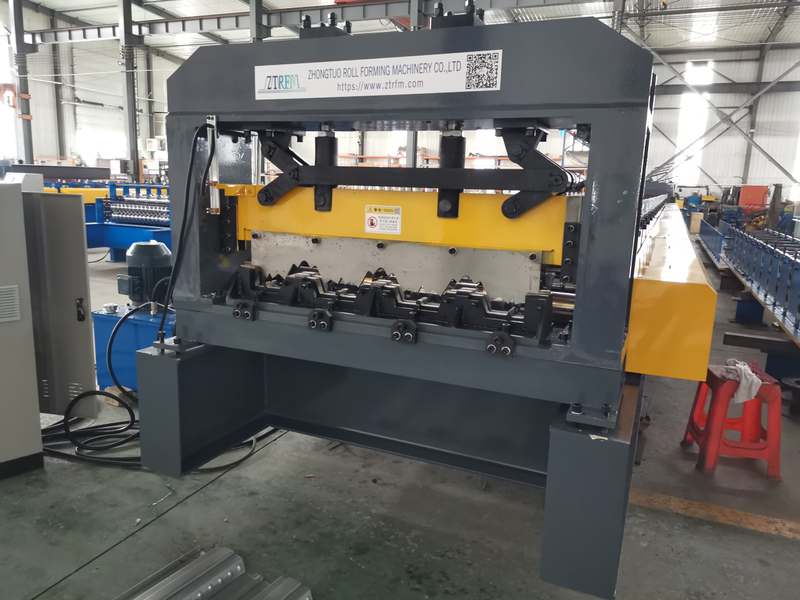

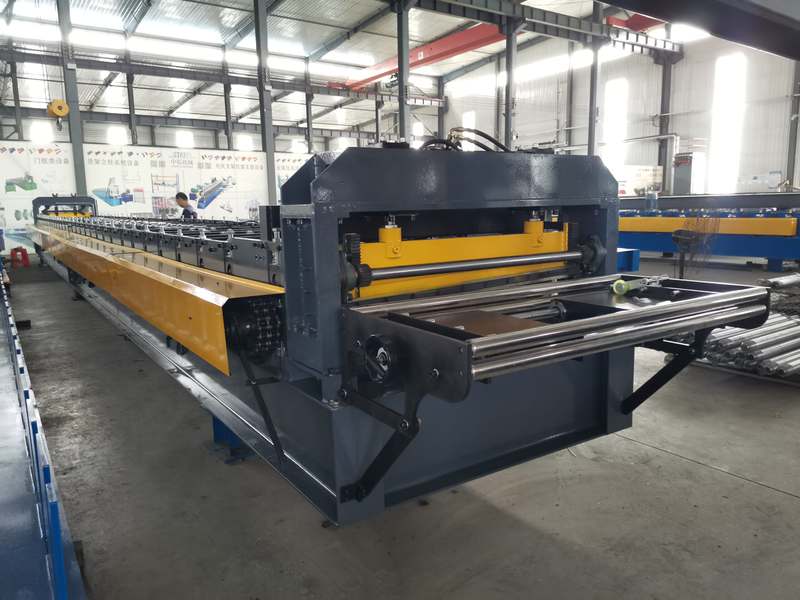

Heavy-duty high-precision forming main machine

High-precision servo punching unit

Servo synchronous flying shear cutting system

Intelligent closed-loop PLC control cabinet

Precision finished product stacking table

Technical Parameters of High Precision Floor Deck Machine

Applicable materials: Galvanized steel coil, hot-dip galvanized coil, color steel coil

Material thickness range: 0.7mm – 1.8mm

Forming tolerance: ±0.3mm (Ultra-high precision)

Punching position tolerance: ±0,2mm

Cutting length tolerance: ±0.5mm

Operation system: Closed-loop servo PLC automatic control

Applicable models: 510, 720, 750, 910, 915 type floor decks

Production speed: 12–20m/min (Stable precision operation)

Application of High-Precision Steel Floor Decks

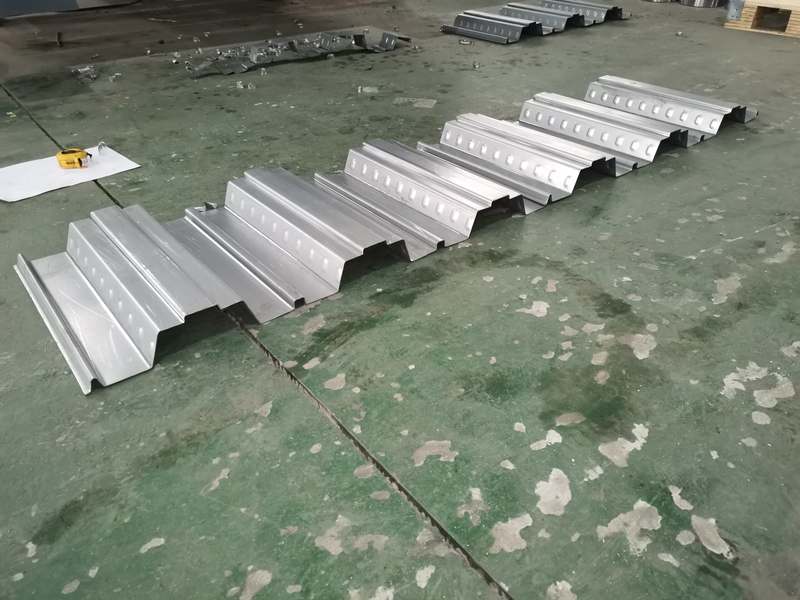

Floor decks produced by our high-precision forming machine feature high assembly accuracy, stable structural performance and beautiful appearance, which are widely recognized in high-standard global construction fields:

High-rise office buildings and luxury residential projects

Large-scale industrial workshops and logistics warehouses

Prefabricated steel structure engineering projects

Municipal engineering, parking lots and comprehensive plazas

High-standard overseas construction and export building materials
