In the global light steel keel industry, hat-shaped keels have become a core building material for interior partition walls, suspended ceiling systems, drywall framing and light steel structure support, thanks to their unique cross-section structure, strong load-bearing capacity, convenient installation and cost-effective advantages. As global construction projects shift towards modularity, high efficiency and standardization, the demand for stable, high-precision hat-shaped keel forming equipment is growing rapidly.

For manufacturers struggling with uneven keel forming, frequent mold adjustments, low batch consistency and high post-processing waste, ordinary forming equipment simply cannot meet modern production demands. We are a professional foreign trade manufacturer focusing on metal cold bending forming machinery, specializing in the R&D and export of hat-shaped keel forming machines, with a focus on solving actual production pain points and delivering long-term value to global building material manufacturers. Our machine is specially designed for hat-shaped keel production, with targeted optimization for forming stability, size accuracy and production continuity, fully matching the construction standards of Europe, North America, Southeast Asia, the Middle East and other major markets.

Core Product Strengths: Built for Hat-Shaped Keel Mass Production

Unlike general-purpose keel forming machines, our equipment is customized around the unique cross-section of hat-shaped keels, eliminating common defects such as edge warping, inconsistent top width, unstable leg height and surface scratches. Every design detail focuses on improving production efficiency and product qualification rate, making it the ideal choice for standardized and large-scale hat-shaped keel production.

Targeted Forming Design, Zero Defect for Hat-Shaped Profile

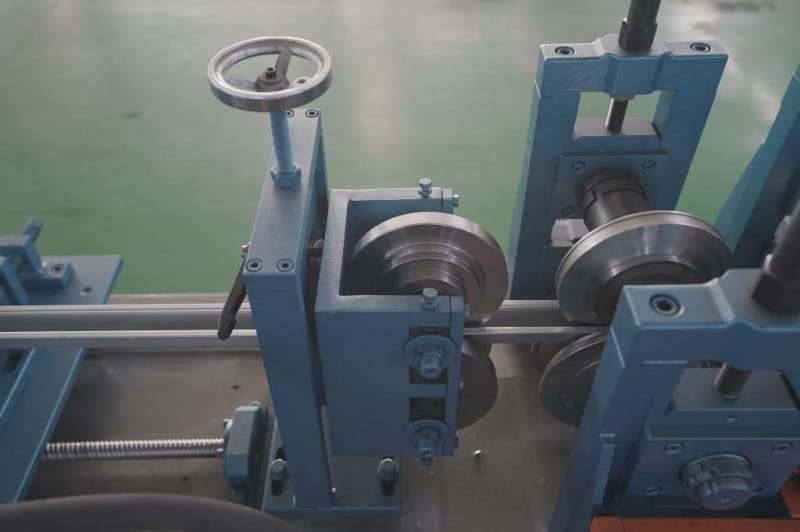

The biggest advantage of this machine lies in its professional hat-shaped keel forming process, adopting a gradual multi-roller bending forming route that is scientifically calculated to avoid material stress concentration and deformation during the forming process. The forming rollers are individually CNC machined and matched perfectly to the hat-shaped profile curve, ensuring that the top flatness, side verticality and bottom fold angle of each keel are highly consistent.

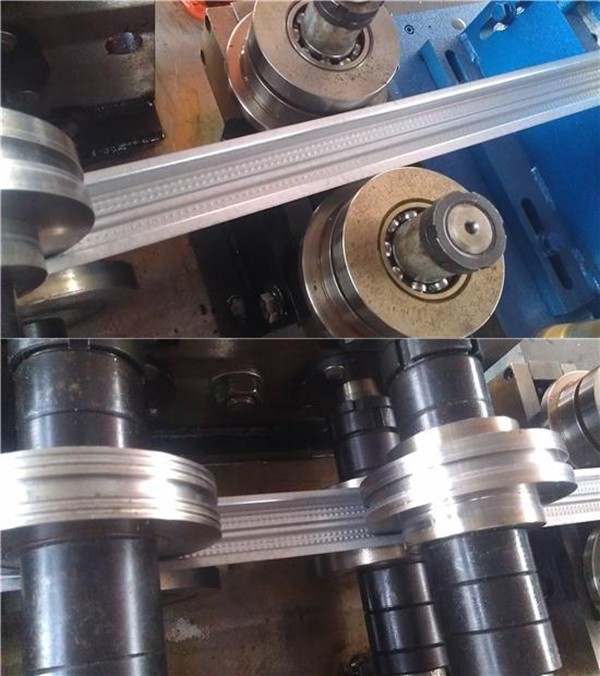

We use high-hardness, wear-resistant alloy steel for the roller set, with integral quenching and precision grinding treatment, which maintains long-term forming accuracy without frequent replacement or calibration. The finished hat-shaped keel has a smooth surface, no scratches or burrs, accurate cross-section size, and tight fit during on-site installation, fully meeting the construction acceptance standards of various countries. The size error is controlled within ±0.1mm, completely eliminating the need for secondary trimming and polishing, directly reducing production waste and labor costs.

Fully Automatic Continuous Production, Maximize Output & Reduce Labor

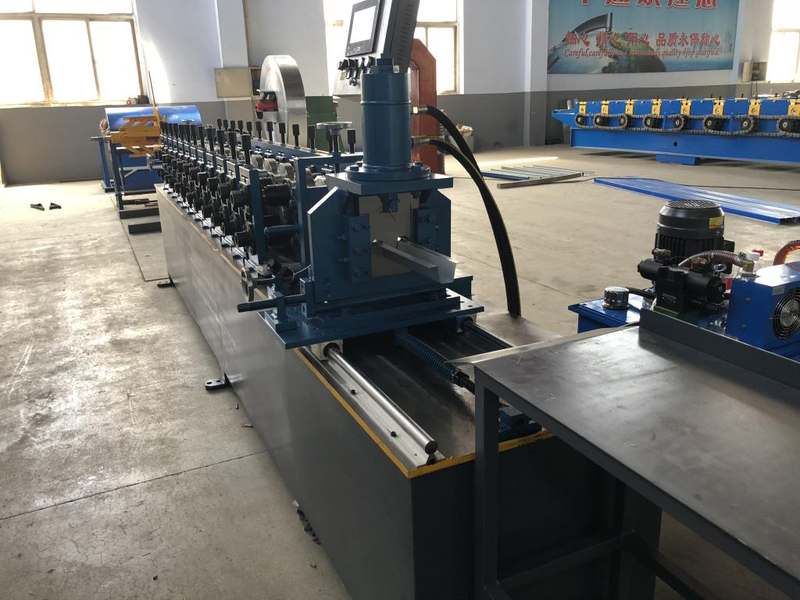

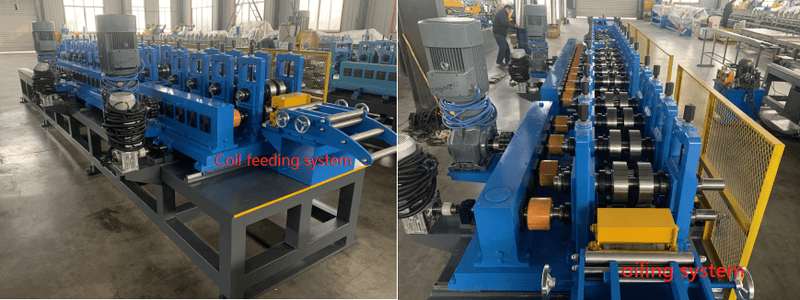

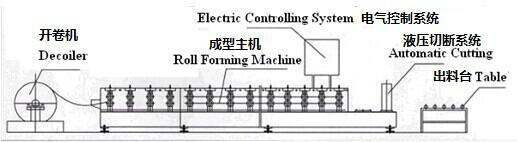

This machine realizes a fully automated production line from coil loading, automatic uncoiling, leveling feeding, constant speed forming, fixed-length cutting to finished product stacking, with a smooth and coherent process and no manual handling required in the middle. The whole line is controlled by a stable PLC control system (supports Siemens, Omron and other brand configurations), with a user-friendly touch screen operation panel, allowing operators to set length, speed and production quantity with one key.

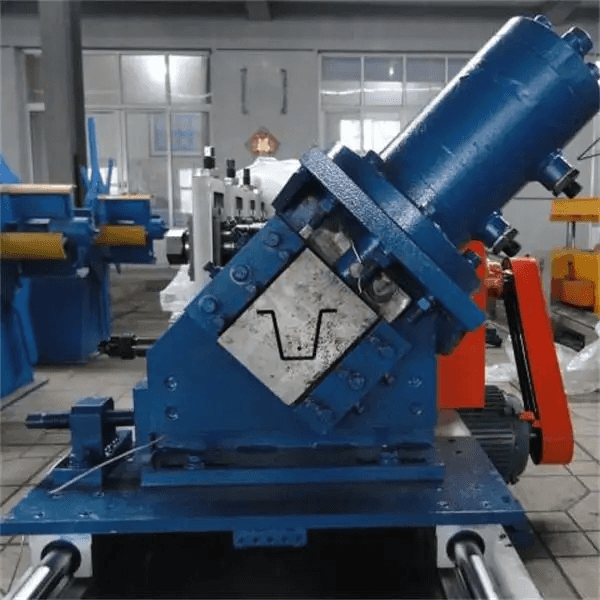

The forming speed can be flexibly adjusted between 8-24m/min, adapting to both small-batch customized production and large-order continuous production, with a daily output of up to 7000-9000 meters. The automatic fixed-length cutting system adopts a non-stop flying cutting design, which does not affect the production speed while ensuring cutting accuracy, greatly improving overall production efficiency compared with traditional stop-cutting equipment. Only 1-2 workers are needed for simple operation and monitoring, cutting daily labor input by more than 70% and effectively solving the problem of labor shortage and high labor costs.

Stable & Robust Frame, Long Service Life with Low Maintenance

The whole machine adopts a thickened heavy-duty steel frame, with integral welding and stress relief treatment, which has strong rigidity and shock resistance, and will not deform after long-term high-load operation. The transmission system adopts a high-precision gear and chain drive, with stable power transmission, low noise and low failure rate, suitable for long hours of continuous production.

Key electrical components, bearings and hydraulic parts are all selected from international well-known brands, ensuring stable operation and long service life. The modular structure design makes daily maintenance and vulnerable parts replacement extremely convenient, without professional maintenance personnel. Under normal daily maintenance, the service life of the whole machine can reach more than 12 years, with an annual maintenance cost far lower than that of ordinary equipment, bringing long-term stable returns for manufacturers.

Wide Compatibility & Quick Specification Switch

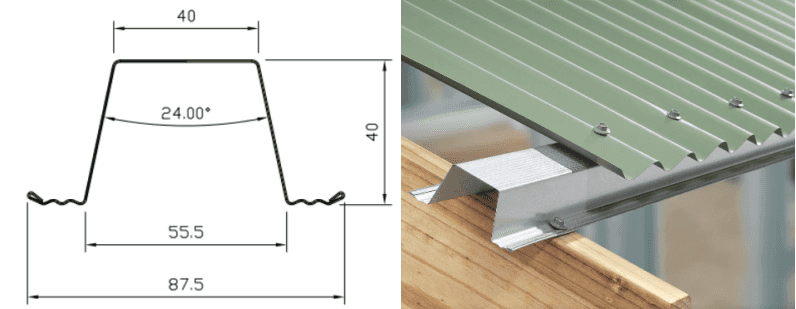

To adapt to the diverse needs of the global market, our hat-shaped keel forming machine supports flexible customization of various conventional and non-standard specifications, covering common sizes such as 50mm, 75mm, 100mm height and 0.5-2.0mm thickness, and can be adjusted according to customer-specific size requirements. It is compatible with galvanized steel coil, cold-rolled steel coil and other commonly used keel materials, meeting the production needs of different project grades.

Equipped with a quick mold adjustment system, it can switch between different keel specifications in a short time without disassembling the entire roller set, greatly reducing mold adjustment time and improving production flexibility. This design is especially suitable for manufacturers who need to produce multiple specifications of hat-shaped keels to respond quickly to market order changes.

Energy Saving & Safe Operation, Comply with Global Standards

The machine is equipped with a variable frequency energy-saving control system, which automatically adjusts power output according to production load, reducing power consumption by 20%-25% compared with ordinary forming machines, in line with global green production requirements. The full closed safety protection cover is designed with safety interlock devices, which effectively reduces noise and dust while ensuring operator safety, and the running noise is controlled below 70dB, complying with EU and US occupational safety and environmental protection standards.
