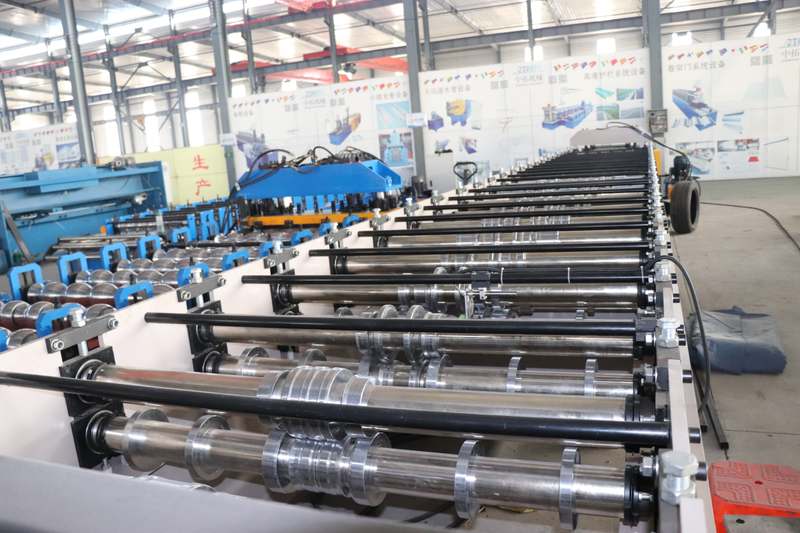

The Floor Deck Roll Forming Machine is a fully automatic, high-precision cold roll forming equipment specifically designed for manufacturing metal floor decks (also known as steel decking, composite floor slabs), the core load-bearing and formwork component of modern steel structure buildings. As a pivotal production tool in the global steel structure construction, commercial building, and industrial plant industries, it adopts advanced servo control, high-speed progressive roll forming, and on-line flying punching/cutting technology to process high-quality metal coils (hot-dip galvanized steel, cold-rolled steel, color-coated steel) into high-strength, lightweight, and dimensionally accurate floor decks. These floor decks serve as permanent formwork for concrete slabs and bear the weight of concrete, construction workers, and construction materials during construction, directly determining the structural stability, construction efficiency, and service life of steel structure buildings, and are widely used in high-rise buildings, commercial complexes, industrial workshops, warehouses, and bridge projects worldwide.

Core Advantages of Our Floor Deck Roll Forming Machine

Multi-Typ-Kompatibilität, eine Maschine für mehrere Verwendungszwecke

Our Floor Deck Roll Forming Machine supports the production of all core floor deck types, including composite floor decks (suitable for high-rise buildings and commercial complexes), non-composite floor decks (suitable for industrial workshops and warehouses), and cellular floor decks (suitable for sound insulation and heat preservation projects), eliminating the need for separate equipment for different deck types. It can quickly switch between types by adjusting parameters via the PLC touch screen or replacing partial roller modules, with automatic adjustment reducing changeover time to 5-15 minutes, reducing customers’ early equipment investment costs, saving workshop space, and improving production flexibility. This multi-purpose design meets diverse project needs of the global steel structure industry, from light-duty residential buildings to heavy-duty industrial plants and large-scale commercial complexes, covering the common floor deck types in global markets, including models like TF70-320-921 that can be produced by adding forming units.

Ultrahohe Produktionseffizienz, große Kapazität

Equipped with a high-performance servo drive system (11-30kw main motor) and optimized progressive forming process, our floor deck machine offers three tiers of production speed to meet different needs: high-speed lines reaching up to 40 m/min (perfect for high-volume industrial suppliers and large steel structure projects), medium-speed lines operating at 10-20 m/min (balancing cost and output), and entry-level lines with reliable production at 5-10 m/min for smaller operations — covering the speed range of mainstream floor deck forming equipment in the industry. The fully automatic workflow (uncoiling, leveling, punching, forming, cutting, stacking) eliminates manual intervention in all links, significantly reducing labor costs and shortening production cycles. Similar to the high-efficiency production lines used in leading steel structure equipment manufacturers, our machine can increase daily output by 70% compared with traditional semi-automatic models, even improving efficiency by 300% for multi-model production, easily meeting the mass production demands of large steel structure manufacturers, bulk export orders, and construction project supporting. The integrated production process of punching, roll forming and cutting in one pass further improves production efficiency, while the frequency conversion drive technology reduces energy consumption by 30% compared with traditional equipment.

Hohe Präzision und stabile Qualität, Übereinstimmung mit internationalen Normen

Adopting precision servo control technology, CNC-machined roller sets, and automatic deviation correction system, the machine strictly controls the dimensional error (±0.3mm), punching accuracy (±0.1mm), and straightness of finished floor decks within international high-standard ranges — consistent with the precision requirements of high-quality floor decks. The high-strength forming process, combined with load-bearing rib design, ensures the decks have excellent load-bearing capacity and stability, complying with international steel structure industry standards such as ASTM, CE, and ISO 9001. The finished products fully comply with EU MD 2006/42/EC mechanical directive and LVD 2014/35/EU low voltage directive, and the machine itself meets EU safety standards with overall protection and safety光幕, helping customers pass project acceptance smoothly and enhance market competitiveness in global markets such as Europe, North America, Southeast Asia, and the Middle East. The machine also operates with a noise level below 75 decibels, complying with global environmental standards.

Hohe Festigkeit und Langlebigkeit, lange Nutzungsdauer

Floor decks need to bear long-term heavy loads (concrete, equipment, personnel) and resist harsh construction and service environments (humidity, rain, dust, corrosion), so their strength and durability are critical. Our machine adopts high-strength forming technology and uses high-quality wear-resistant forming rollers (40Cr material, HRC 55-60), which can fully exert the mechanical properties of raw materials, making the finished decks have strong impact resistance and deformation resistance. The machine’s forming process minimizes friction between the material and rollers, effectively protecting the anti-corrosion coating of galvanized or color-coated steel materials, ensuring the decks have excellent anti-rust and anti-corrosion performance, with a service life of up to 25-30 years, even in humid outdoor construction sites and coastal areas. The key wearing parts (forming rollers, punching dies, cutting blades) have a long service life, reducing the frequency of replacement and maintenance costs, and laser welding technology for rollers further extends their service life, ensuring long-term stable production. The cutting blades, made of Cr12MoV, have a service life exceeding 1 million times, further reducing maintenance costs.

Vielseitige Kompatibilität, Anpassung an verschiedene Materialien und Spezifikationen

This machine supports processing a variety of high-quality metal materials for floor decks, including hot-dip galvanized steel (excellent corrosion resistance, suitable for outdoor and humid environments), cold-rolled steel (cost-effective, suitable for general indoor steel structure buildings), color-coated steel (aesthetically pleasing, suitable for commercial buildings and residential buildings), and Q355B high-strength steel (high load-bearing capacity, suitable for heavy-duty industrial plants and high-rise buildings). The applicable material thickness ranges from 0.8-3.0mm — covering the common thickness range of floor decks in the industry — and it can produce standard floor deck sizes (width 600-1500mm, height 5-30mm, including standard profiles like TF70-320-921) and customized specifications, adapting to different project requirements and budget needs worldwide. It is compatible with all common steel beam sizes and types, ensuring seamless integration with steel structure systems. The machine also supports plate widths up to 1500mm, meeting the size requirements of most global floor deck projects, and can produce floor decks that require less concrete or even no concrete as steel platforms.

Robuste und langlebige Struktur, geringe Ausfall- und Wartungskosten

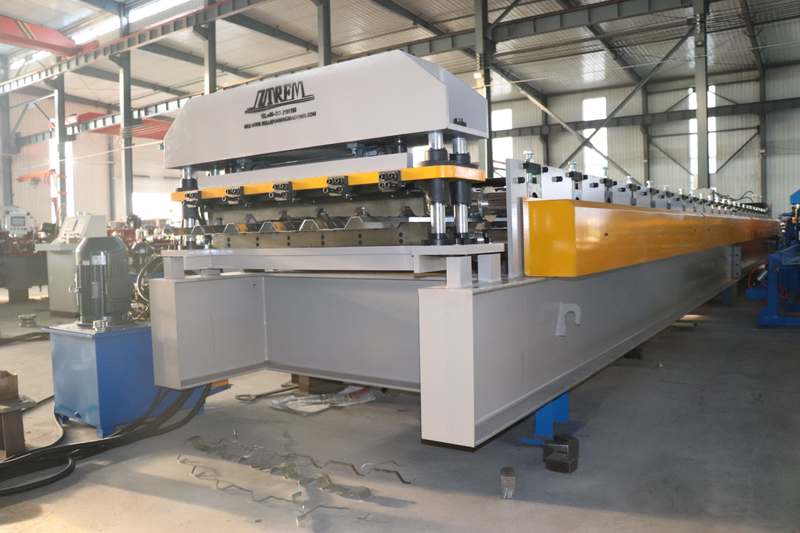

The machine’s main frame is made of thick-walled high-strength steel with integrated welding and overall stress relief treatment, ensuring no vibration or deformation during long-term high-intensity operation. All key wearing parts, such as forming rollers (40Cr), punching dies, and cutting blades (Cr12 steel, HRC 58-62), are made of top-grade wear-resistant alloy materials — laser welding technology is adopted for rollers, extending their service life to over 2000 hours, reducing equipment downtime by 60%. The equipment features a simple daily maintenance process, with clear lubrication points and easily accessible components, lowering downtime and overall maintenance costs, making it suitable for continuous large-scale production. Similar to high-quality steel structure production equipment, our machine has a low failure rate, ensuring stable production for customers, even for customized orders for global clients. The gearbox transmission system further enhances the stability and durability of the machine, while the integral stress relief treatment of the main frame ensures long-term operation without deformation. The machine’s overall protection design also reduces the risk of failure and extends service life.

Einfache Installation und Bedienung, geringer Arbeitsaufwand

Our Floor Deck Roll Forming Machine features a user-friendly PLC control system with a large touch screen, allowing operators to complete parameter setting, type switching, and start-stop control with simple operations — no professional technical skills are required. The system’s fault self-diagnosis function can quickly locate and prompt equipment faults, reducing maintenance time and difficulty. The fully automatic production line requires only 1-2 workers to monitor, and even a single worker can operate the entire line with the intuitive human-machine interface, significantly reducing labor costs and training costs for customers. Additionally, the machine has a compact and optimized layout, with a footprint of about 15m×3m, suitable for small and medium-sized workshops, making it accessible for manufacturers of all sizes, from small-scale local suppliers to large export-oriented enterprises. The simple operation design also ensures that enterprises can quickly put the machine into production without complex training, and the touch screen operation panel makes parameter adjustment intuitive and efficient. The machine can also be remotely controlled, further improving operational convenience and safety.
