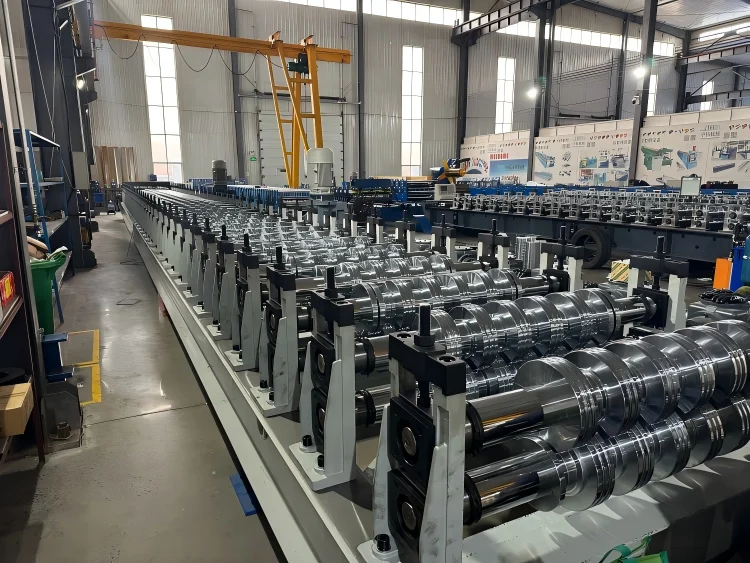

Floor Deck Forming Machine：High-Speed & Custom Metal Deck Roll Former

Description:A floor deck forming machine is a specialized roll forming equipment designed to manufacture high-precision metal floor deck panels for modern steel structure buildings, commercial construction, high-rise apartments, and industrial factories. As a core piece of construction machinery, our floor deck roll former integrates automatic feeding, leveling, punching, forming, cutting, and stacking into one continuous production line, delivering stable, high-efficiency, and low-cost metal decking solutions for global construction material manufacturers.

With the rapid development of prefabricated construction worldwide, standardized metal floor decks have become indispensable building materials for lightweight steel buildings. A high-quality floor deck forming machine directly determines the flatness, load-bearing capacity, dimensional accuracy, and production efficiency of finished deck panels. Our equipment is fully optimized for international construction standards, supporting customized profiling and mass production to meet diverse project requirements across Europe, Southeast Asia, the Middle East, Africa, and South America.

Core Advantages of Our Floor Deck Forming Machine

Different from ordinary cold roll forming machines, our floor deck forming equipment is professionally tailored for metal deck production, with prominent advantages in stability, automation, and compatibility, fully complying with global industrial production standards.

Fully Automatic Intelligent Production

Equipped with a PLC intelligent control system and touch screen operation panel, the entire production process requires only one worker for monitoring and parameter adjustment. The machine realizes automatic feeding, precise leveling, fixed-length punching, continuous roll forming, hydraulic automatic cutting, and finished product stacking. It effectively solves the problems of low manual efficiency, large dimensional errors, and unstable product quality in traditional production lines, greatly improving overall production capacity.

High Precision & Stable Performance

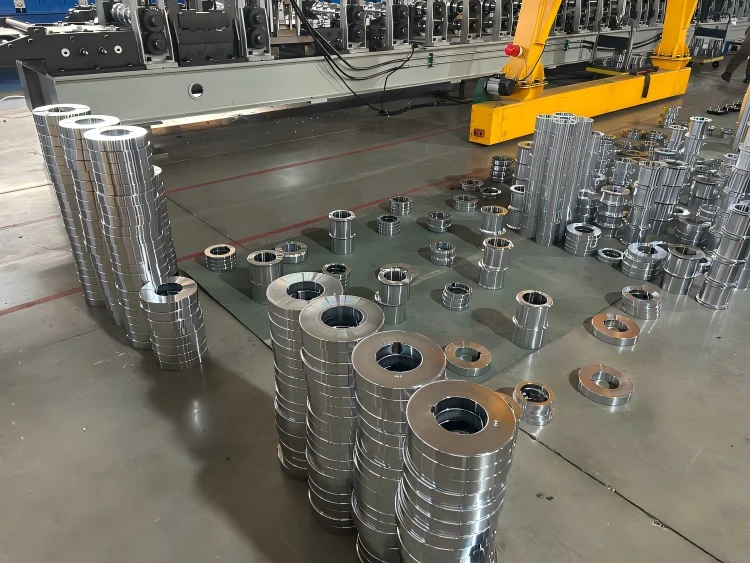

The forming rollers are made of high-quality Cr12MoV alloy steel with vacuum heat treatment, featuring high hardness, wear resistance, and long service life. All machine frames adopt thickened steel plate welding and integral aging treatment, effectively avoiding equipment deformation during long-term high-speed operation. The finished floor deck panels have uniform specifications, neat edges, and consistent bending angles, with a dimensional error controlled within ±0.5mm, fully meeting the strict requirements of high-end construction projects.

Strong Customization Compatibility

Our floor deck forming machine supports the production of various mainstream floor deck models, including YX51-250-750, YX76-344-688, YX50-200-1000, and closed-type floor decks. We can customize roller molds according to customers’ local building standards, drawing requirements, and market demands, realizing one machine with multiple functions. It is compatible with raw materials such as galvanized steel coils, color steel coils, and stainless steel coils, adapting to different weather and construction environments worldwide.

High Production Efficiency & Energy Saving

The equipment runs stably at a forming speed of 15-25m/min, with continuous uninterrupted production. Compared with traditional processing equipment, it increases production efficiency by more than 40%. Meanwhile, it adopts an optimized hydraulic power system and frequency conversion speed regulation device, which reduces idle power consumption, lowers production energy consumption, and helps customers reduce long-term production costs and improve market competitiveness.

Complete Machine Configuration & Working Principle

Our floor deck roll forming production line adopts a modular integrated design, with complete supporting configurations and a scientific working process, ensuring standardized and streamlined production of metal floor decks.

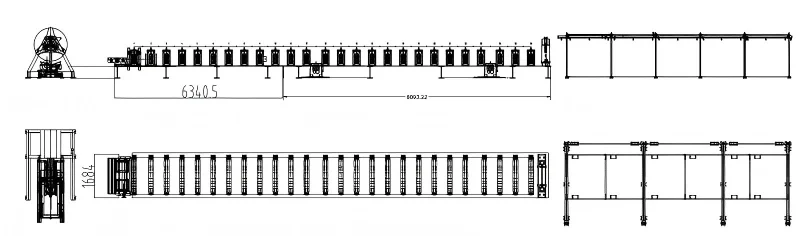

Standard Machine Configuration

Automatic uncoiler: Hydraulic full-automatic uncoiling, supporting steel coil weight up to 5 tons, stable feeding without deviation

Leveling device: Multi-group leveling rollers to eliminate raw material bending and deformation, ensuring flat raw material feeding

Punching mechanism: Pre-punching equipment for customized hole spacing and hole diameter, meeting floor deck reinforcement and fixing requirements

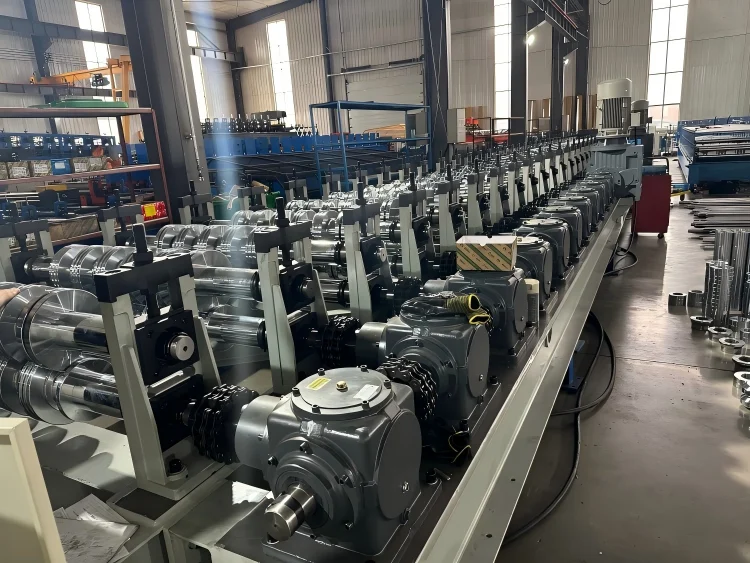

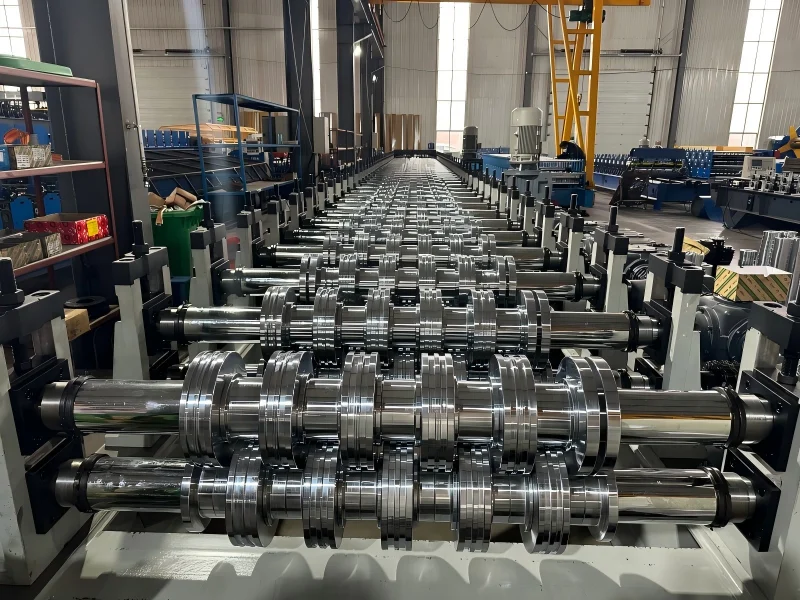

Roll forming system: 18-24 groups of forming rollers, gradual bending and forming, no material damage

Hydraulic cutting system: Full-automatic fixed-length cutting, no burrs on the cutting surface, smooth and neat

PLC control cabinet: Siemens electrical components, stable operation, support for parameter memory and one-key start

Finished product stacking table: Automatic stacking, reducing manual handling labor intensity

Working Process

Steel coil raw materials are placed on the automatic uncoiler, and the equipment automatically feeds materials after parameter setting. The raw materials are leveled by the leveling device to remove surface stress, then punched according to the set parameters, and enter the multi-group roller forming system for gradual bending and profiling. After the forming is completed, the hydraulic system automatically cuts according to the set length, and the finished floor deck panels are transported to the stacking table for automatic stacking, completing the entire production process. The whole process is automated, with simple operation and stable operation.

Breite Anwendungsszenarien

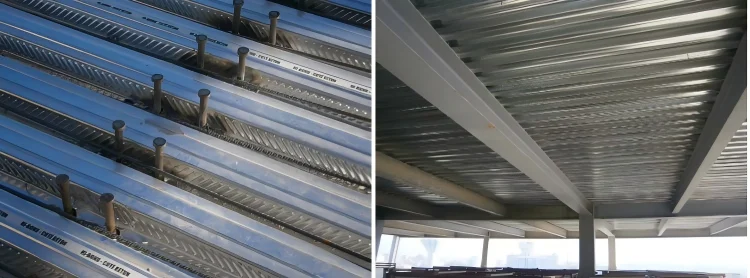

The metal floor decks produced by our floor deck forming machine have excellent load-bearing performance, seismic resistance, and fire resistance, and are widely used in various steel structure construction projects worldwide:

High-rise commercial buildings, office buildings, and shopping malls

Industrial workshops, factory buildings, and logistics warehouses

Prefabricated steel structure residential buildings and apartments

Bridge engineering, municipal construction, and stadium projects

Large-span public buildings and temporary construction projects

Why Choose Our Floor Deck Roll Forming Machine?

As a professional manufacturer of roll forming machinery with more than 20 years of export experience, we focus on R&D, production, and customization of floor deck forming equipment, serving hundreds of construction machinery distributors and building material manufacturers worldwide.

We adhere to strict quality control standards, with every piece of equipment undergoing strict debugging, testing, and inspection before delivery to ensure zero failure rate of factory operation. All machines support CE certification, meeting European and international export standards. We provide one-stop services including customized design, equipment production, factory debugging, overseas installation guidance, technical training, and long-term after-sales maintenance.

Compared with peer products, our equipment has lower failure rate, longer service life, and higher cost performance. The wearing parts are supplied in sufficient quantities, with convenient replacement and low later maintenance costs, helping customers create stable and long-term economic benefits.

FAQ About Floor Deck Forming Machine

Q1: Can the machine produce different types of floor decks?

Yes. Our floor deck forming machine supports customized molds, which can produce open-type, closed-type, and profiled floor decks of various specifications. We can customize production according to your local market mainstream models and project drawings.

Q2: What is the delivery time of the equipment?

The delivery time of standard models is 7-15 working days, and the delivery time of customized non-standard equipment is 15-25 working days. We support urgent order production and global fast shipping.

Q3: Do you provide overseas after-sales service?

Absolutely. We provide global one-stop after-sales service, including online technical guidance, remote debugging, overseas engineer installation and training services, and lifelong after-sales maintenance support.

Q4: What raw materials are suitable for this machine?

The equipment is suitable for galvanized steel coils, hot-dip galvanized coils, color-coated steel coils, and stainless steel coils with a thickness of 0.8-1.5mm, meeting the production needs of different engineering standards.
