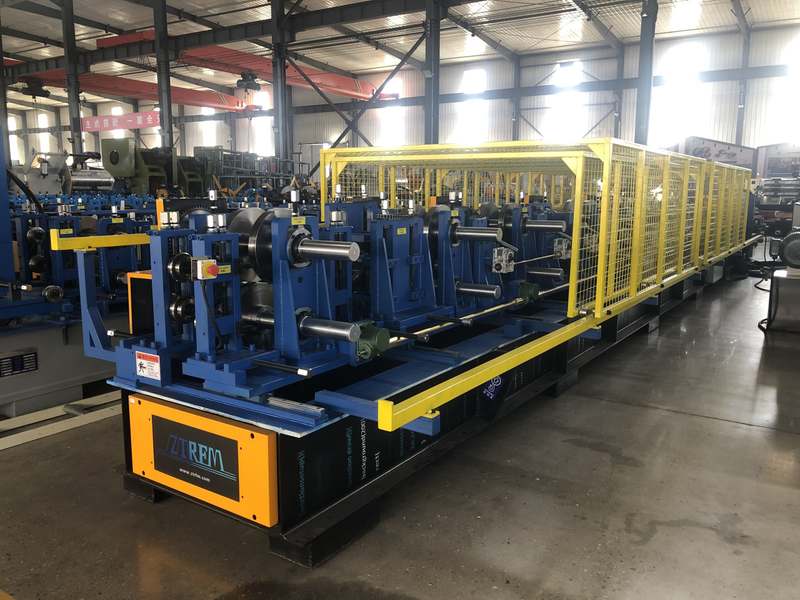

The CZ Purlin Roll Forming Machine is a fully automatic, high-efficiency integrated production equipment specially designed for manufacturing high-strength C-shaped and Z-shaped steel purlins, which are core load-bearing and supporting components widely used in the global steel structure construction industry. As a key equipment in the metal cold roll forming and building materials processing sector, it adopts advanced servo-controlled cold roll forming technology to process high-quality metal coils including hot-dip galvanized steel coils, Q235/Q355 carbon steel coils, weather-resistant steel coils and zinc-aluminum-magnesium coils into standard, dimensionally precise C/Z purlins with strong structural rigidity, excellent load-bearing performance and uniform specifications.

Unlike single-function C purlin or Z purlin machines, this integrated model features a unique quick-size and quick-profile change design, supporting seamless switching between C-shaped and Z-shaped purlins in a short time without replacing the entire forming roller set. It can also automatically adjust different sizes and specifications within a certain range, making it the most cost-effective and practical production equipment for steel structure manufacturers, building material suppliers, engineering contractors and export-oriented processing enterprises worldwide, perfectly matching the large-scale, flexible and diversified production demands of the global steel structure market.

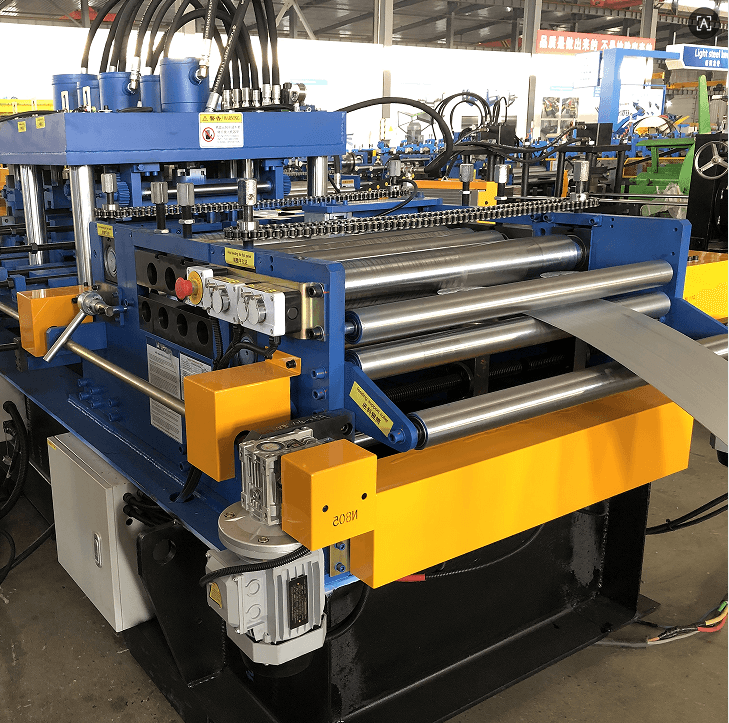

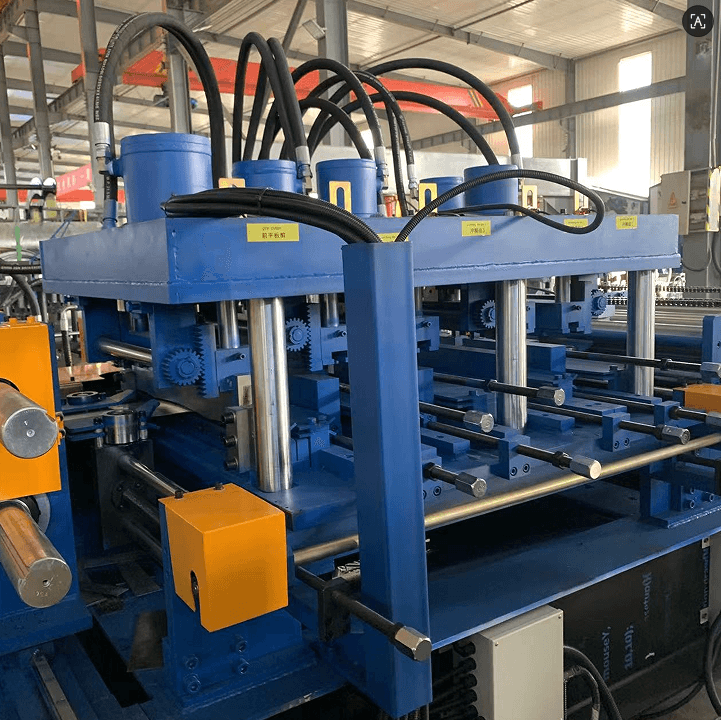

Adopting continuous cold roll forming technology without high-temperature heat treatment, this machine retains the original mechanical properties and corrosion resistance of raw steel materials, avoiding material deformation, performance attenuation and coating damage caused by thermal processing. The entire production line runs a fully automated workflow: starting from heavy-duty hydraulic uncoiling, precision leveling, servo feeding, multi-stage continuous roll forming, synchronous punching for installation holes, fixed-length flying saw cutting, to final automatic discharging and stacking of finished C/Z purlins. This integrated and intelligent production mode ensures consistent product quality, zero manual errors, ultra-high production efficiency and full compliance with international steel structure standards and export quality requirements.

Core Advantages of Our CZ Purlin Roll Forming Machine

C/Z Integrated Quick Switching, Maximum Production Flexibility

The biggest highlight of our CZ purlin machine is its integrated dual-profile design, breaking the limitation of single-function purlin equipment. It supports fast switching between C and Z purlin profiles in just 10-15 minutes via one-key operation on the touch screen, without replacing the entire forming roller set or adjusting a large number of components. It also supports automatic adjustment of purlin width, height and thickness within a specified range, meeting diverse project needs with a single machine. This flexibility reduces early equipment investment costs, saves workshop space, and allows manufacturers to quickly respond to market order changes, covering both C and Z purlin market demands at the same time.

Vollautomatischer intelligenter Betrieb, ultrahohe Produktionseffizienz

The entire production line realizes full automation from raw material loading to finished product stacking, with no manual intervention required in the middle process. The production speed can reach 15-30 meters per minute, adjustable according to material thickness and product specifications, with stable and efficient output. Compared with traditional single-function or semi-automatic purlin machines, its production efficiency is increased by more than 50%, reducing labor input by over 60% and greatly shortening production cycles. It can fully meet the large-scale, urgent order demands of steel structure projects, helping customers seize market opportunities quickly.

High Forming Precision, Compliance with International Standards

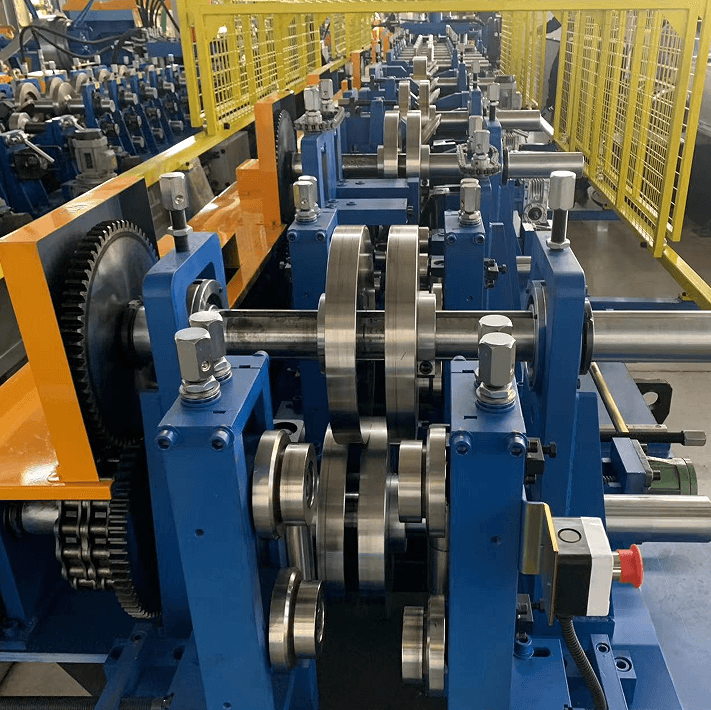

Adopting precision servo control technology and high-strength forming rollers, the machine strictly controls the dimensional error, straightness and cross-section consistency of finished C/Z purlins within international standard ranges, ensuring each purlin has uniform size, stable structure and strong load-bearing capacity. The finished products fully comply with major global steel structure standards, with excellent bending resistance, torsional rigidity and corrosion resistance. Stable and reliable product quality helps customers pass project acceptance smoothly, meet export inspection requirements, and build a good brand reputation in the international steel structure market.

Sturdy & Durable Structure, Low Failure Rate & Maintenance Cost

The machine frame is made of thick-walled heavy-duty steel with overall tempering treatment and precision welding, ensuring no deformation, no vibration and stable operation during long-term high-intensity production. All key wearing parts such as forming rollers, punching dies and cutting blades are made of high-grade wear-resistant materials, with a service life of more than 800,000 meters. The equipment is designed for easy daily maintenance, with clear lubrication points and accessible components, reducing downtime and maintenance costs. The intelligent control system has a high stable operation rate, ensuring continuous and uninterrupted production for large-scale projects.

Wide Material & Specification Compatibility, Strong Market Adaptability

Our machine supports processing various steel materials suitable for C/Z purlins, including hot-dip galvanized steel (for outdoor anti-corrosion), Q235/Q355 high-strength carbon steel, weather-resistant steel and zinc-aluminum-magnesium steel, with a material thickness range of 1.5-3.5mm and purlin width range of 80-300mm. It can adapt to different raw material specifications and quality requirements of global markets, producing purlins suitable for different climate environments — from coastal high-humidity areas to cold northern regions. This wide compatibility makes the equipment suitable for global markets in Asia, Africa, Europe, South America, Oceania and the Middle East.
