2.0" Composite Floor Deck for Mid-Range Spanning Roll Forming Machine: Engineered Production for Reliable Steel-Concrete Floors

Description:When contractors and steel fabricators need a floor deck profile that performs between short-span 1.5" deck and heavy long-span 3" deck, the 2.0" composite floor deck​ is often the most balanced choice. It delivers deeper rib height, stronger composite action with concrete, and better mid-range spanning capacity—without the material cost and slab depth of deeper profiles.

A mid-range spanning roll forming machine​ built for this deck must do more than bend steel. It must hold embossment geometry, side-lap accuracy, flatness, and repeatable length tolerance under continuous production. This article explains what the 2.0" composite floor deck is, where it is used, and how to specify the right roll forming line for export markets.

What Is a 2.0" Composite Floor Deck?

A 2.0" composite floor deck is a cold-formed steel panel, usually galvanized or galvalume, designed to act together with poured concrete. The deck serves as:

Permanent formwork​ during concrete placement

Positive reinforcement​ in the completed composite slab

Working platform​ for erection crews

Shear-transfer surface​ through embossments, re-entrant ribs, or mechanical indentations

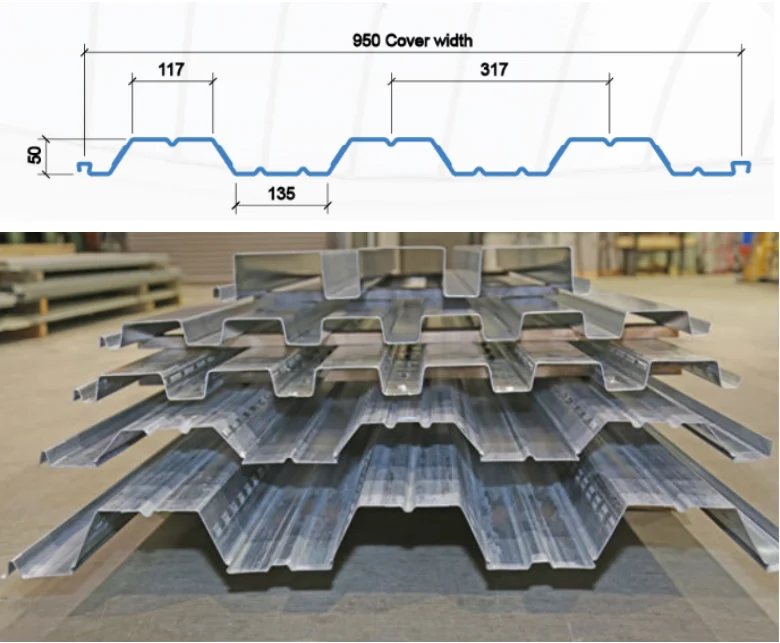

Typical rib height is approximately 51 mm / 2.0". Cover widths and rib pitches vary by market—common export profiles include 600–1020 mm cover width depending on the drawing. The profile is widely used in commercial, industrial, residential high-rise, warehouse mezzanine, and parking-structure floors.

Why “Mid-Range Spanning” Matters

Shallow 1.5" deck is economical for shorter spans. Deep 3" deck is specified when spans are long or live loads are high. The 2.0" deck sits in the practical middle:

Greater load capacity than 1.5" deck

Longer unsupported span than shallow deck

Lower concrete slab build-up than 3" deck

Better cost-to-performance ratio for typical multi-story frames

For fabricators, this means steady demand from builders who want faster slab cycles and reduced temporary formwork, without over-specifying steel.

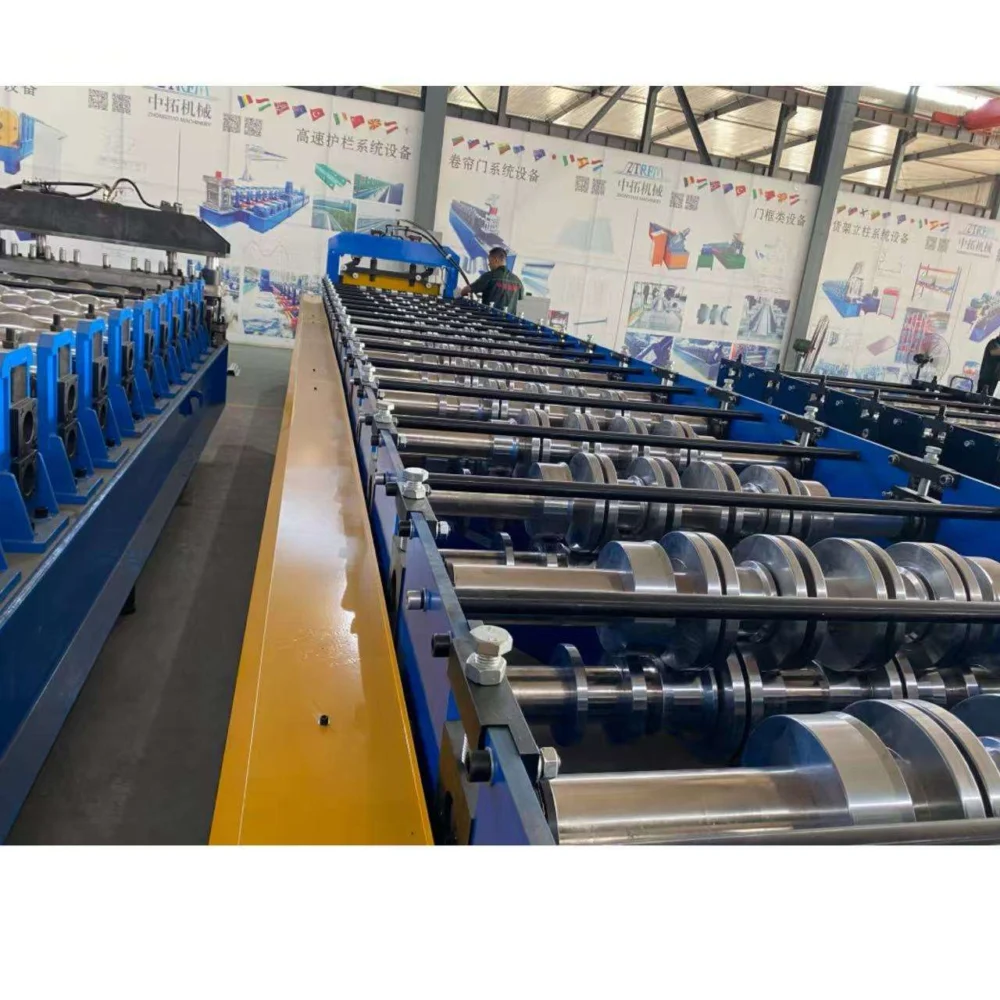

Roll Forming Machine Overview

A 2.0" composite floor deck roll forming machine for mid-range spanning profiles​ is a complete line, not a single stand. It processes galvanized steel coil into finished embossed deck panels with controlled cutting length.

Core production flow

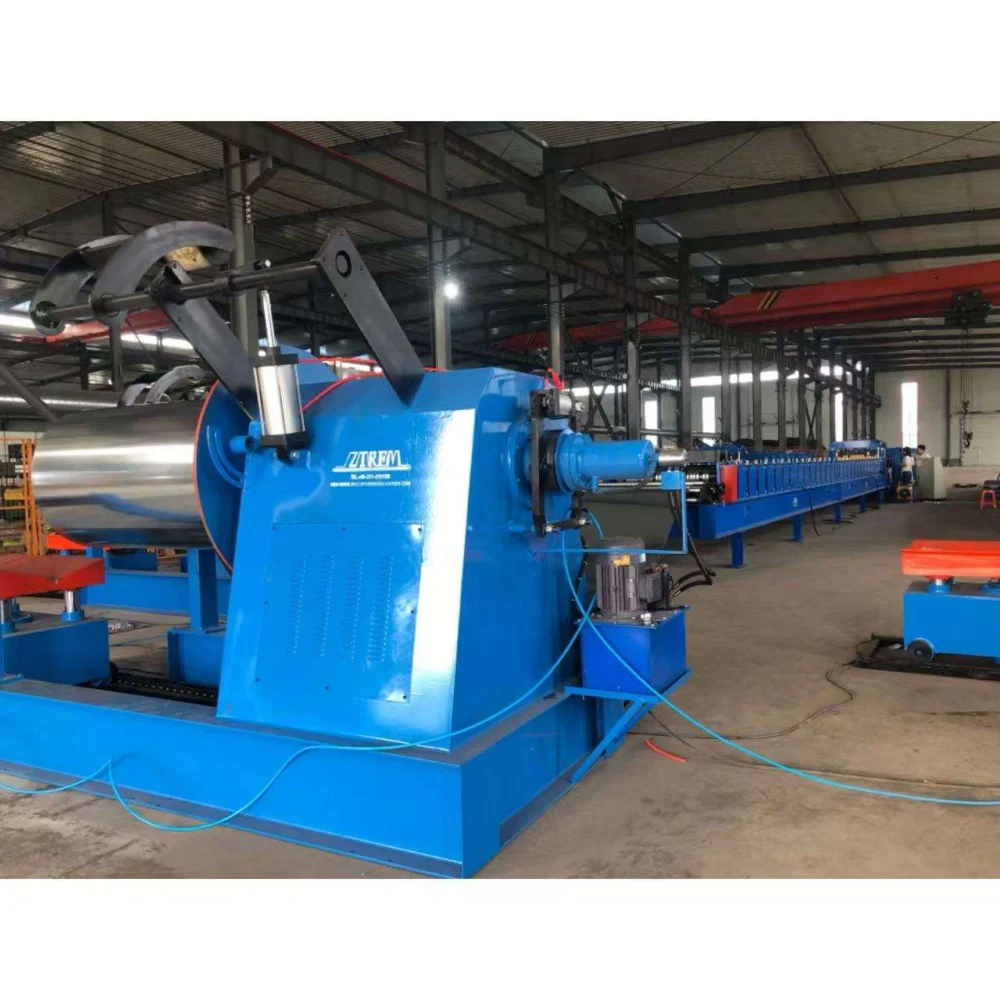

Hydraulic or manual decoiler​ with coil car

Entry guide and leveling​ for strip alignment

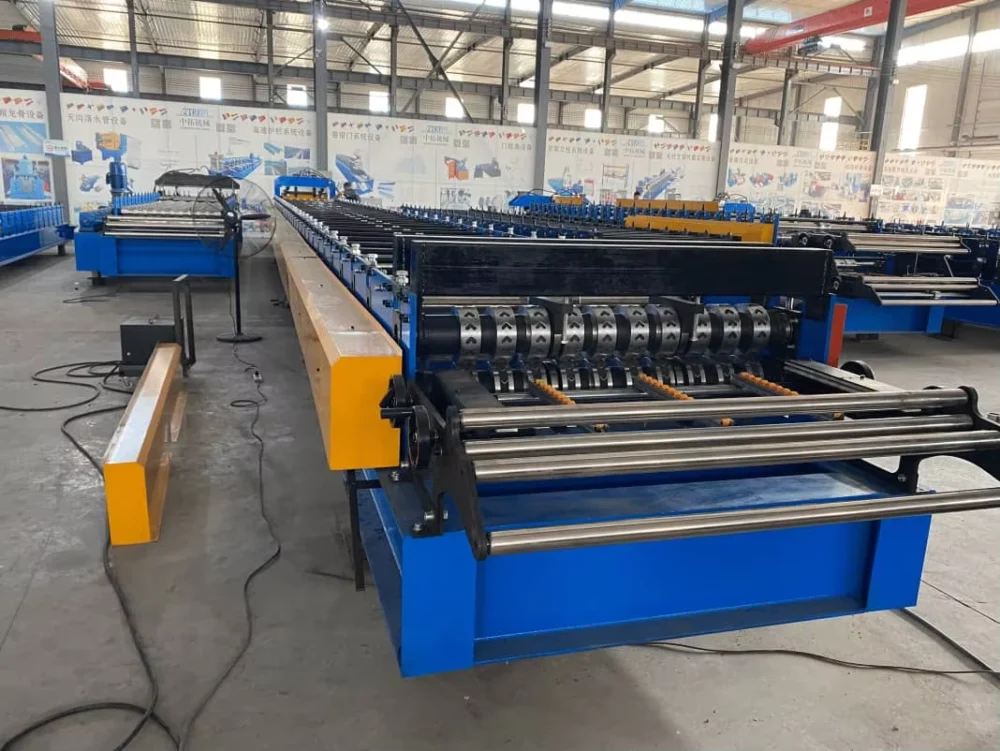

Main roll forming stations​ with progressive rib shaping

Embossing station​ for concrete shear interlock

Punching/notching station​ optional for end laps, hangar holes, or web openings

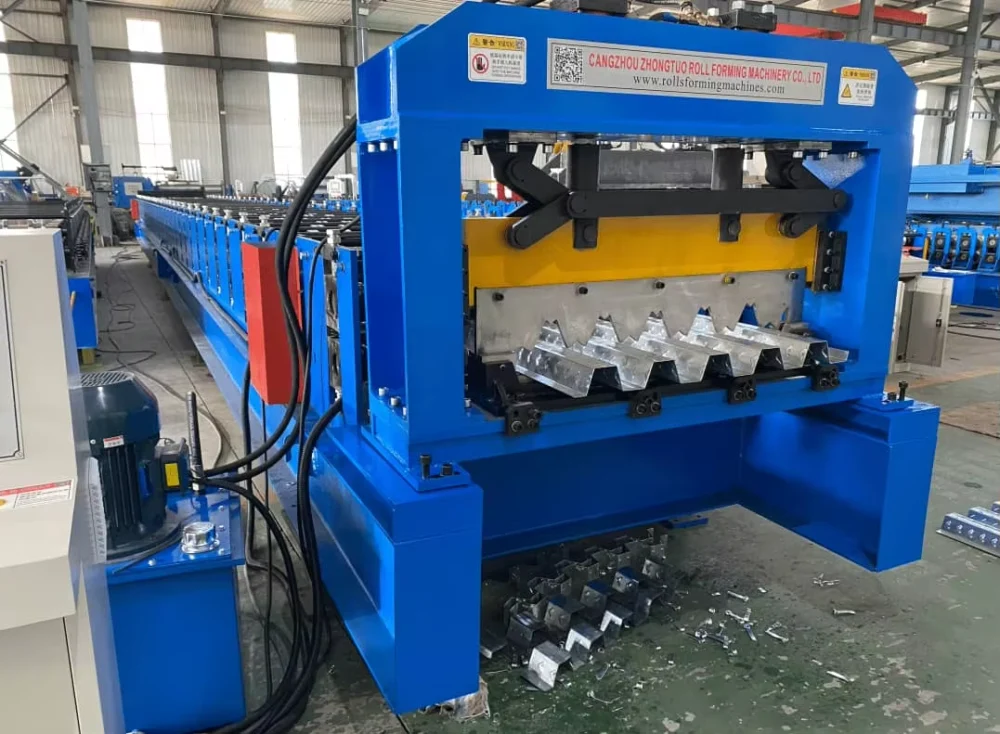

Hydraulic flying shear or post-cut shear

Run-out table and auto stacker​ optional

Typical technical specifications

These values are configurable. The correct machine is defined by your profile drawing, coil thickness, daily output, and destination-market electrical standard.

Profile Accuracy Determines Field Performance

Composite deck is not just a sheet. If the embossment depth varies, the side lap does not match, or the panel twists, the slab loses composite efficiency and installation slows.

A mid-range spanning roll former should guarantee:

Consistent rib height and pitch

Symmetric side seams for nesting and overlapping

Controlled embossment depth for concrete bond

Minimal camber and twist

Clean shear cut without cracking the galvanized coating

Repeatable length setting from PLC

This is why rollers are usually machined, heat-treated, and chrome-plated, while the frame uses heavy H-beam construction to absorb forming loads.

Applications of 2.0" Composite Floor Deck

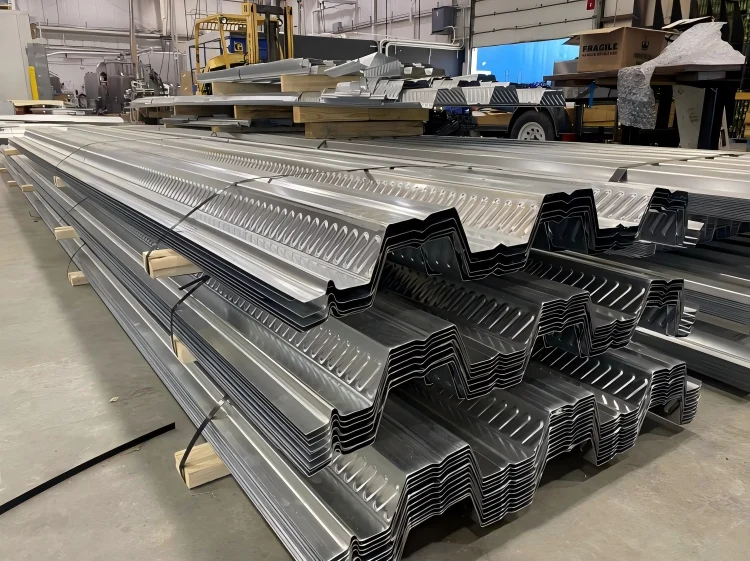

The machine-produced panels are used in:

Commercial office buildings

Hotels and hospitals

Industrial plants and logistics warehouses

High-rise residential towers

Mezzanine floor systems

Parking garages and deck slabs

Bridge and infrastructure walkway decks

Institutional buildings such as schools and labs
