A High-Quality M-Steel Profile Machine is a specialized industrial equipment engineered for the precise cold-forming of raw steel coils or sheets into M-shaped steel profiles. Leveraging advanced mechanical transmission and intelligent control systems, this machine enables continuous, high-precision processing of M-steel, which is widely recognized for its unique cross-sectional structure that provides exceptional bending resistance and load-bearing performance.

The working process of the M-Steel Profile Machine follows a streamlined and automated workflow. First, raw steel coils are securely loaded onto the uncoiling device, which ensures smooth and stable unwinding of the material. The steel sheet is then fed into the leveling unit, where precision rollers eliminate any warping or unevenness, laying the foundation for accurate forming. Next, the flattened steel passes through a series of custom-designed forming rollers, each calibrated to gradually bend the steel into the characteristic M-shaped profile. Finally, the continuous M-steel profile is cut into pre-set lengths by the high-precision cutting device, completing the fabrication process. Throughout the entire workflow, the machine maintains strict control over dimensional accuracy and surface quality, ensuring each finished M-steel product meets high-quality standards.

Unlike generic steel forming equipment, our High-Quality M-Steel Profile Machine is specifically optimized for the unique forming requirements of M-steel, with specialized roller designs and pressure control systems that ensure the integrity of the profile’s structure. This specialization makes it an essential equipment for industries that demand high-performance M-steel components.

Structure and Composition

Main Components

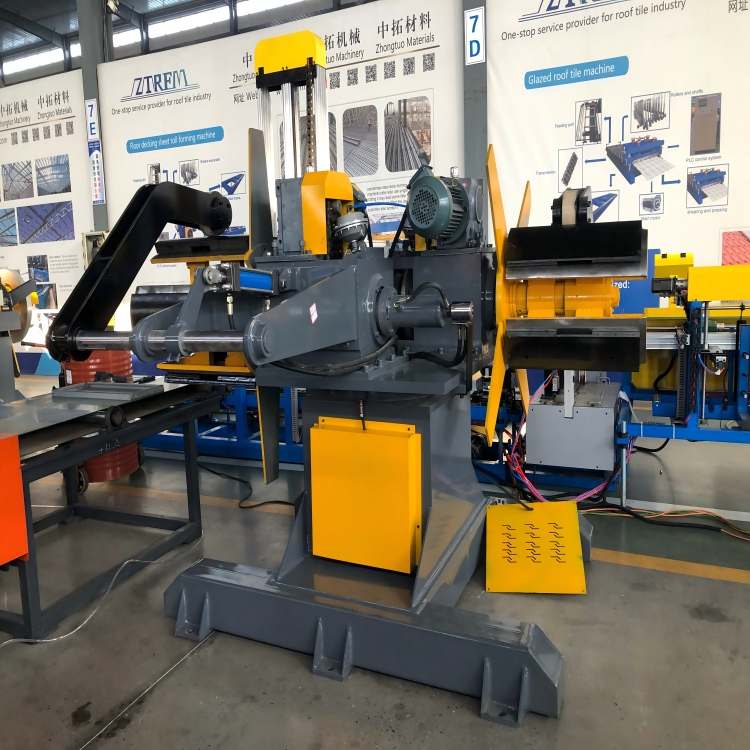

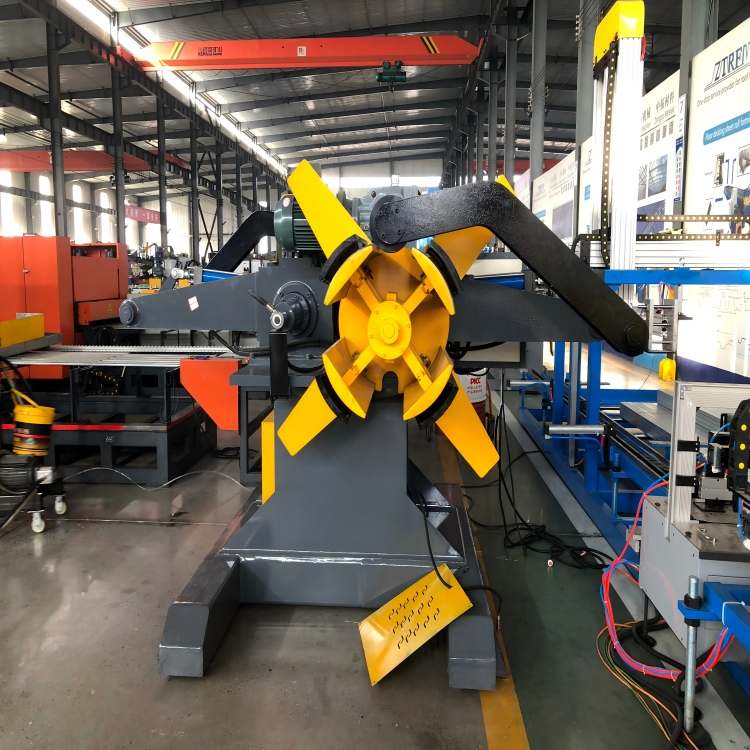

Passive Uncoiler: As the starting point of the production line, the passive uncoiler is designed to securely hold large-diameter steel coils. Its anti-slip and adjustable clamping mechanism ensures stable unwinding of the steel coil, preventing material deviation and ensuring a continuous supply of raw materials to subsequent processing units. The uncoiler’s robust structure can accommodate a wide range of coil weights and diameters, enhancing the machine’s versatility.

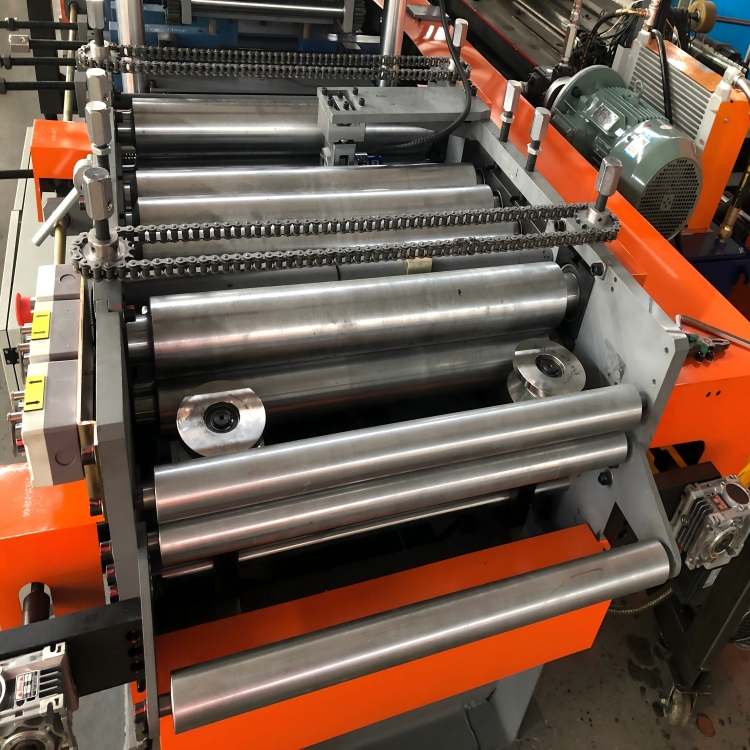

Precision Leveling Device: The precision leveling device is a critical component for ensuring the quality of the final M-steel product. Equipped with multiple sets of hardened and ground leveling rollers, this device effectively eliminates any unevenness, warping, or internal stress in the steel sheet. The roller gap and pressure can be precisely adjusted according to the thickness and material of the steel, ensuring a flat and smooth surface that is essential for accurate forming. Poor leveling can lead to dimensional errors and structural defects in the M-steel profile, making this device a key factor in maintaining product quality.

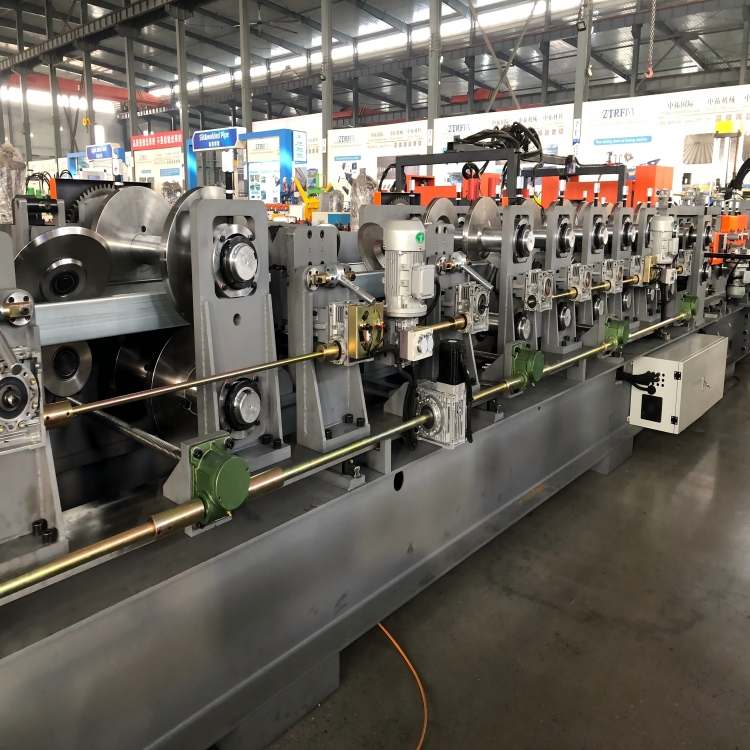

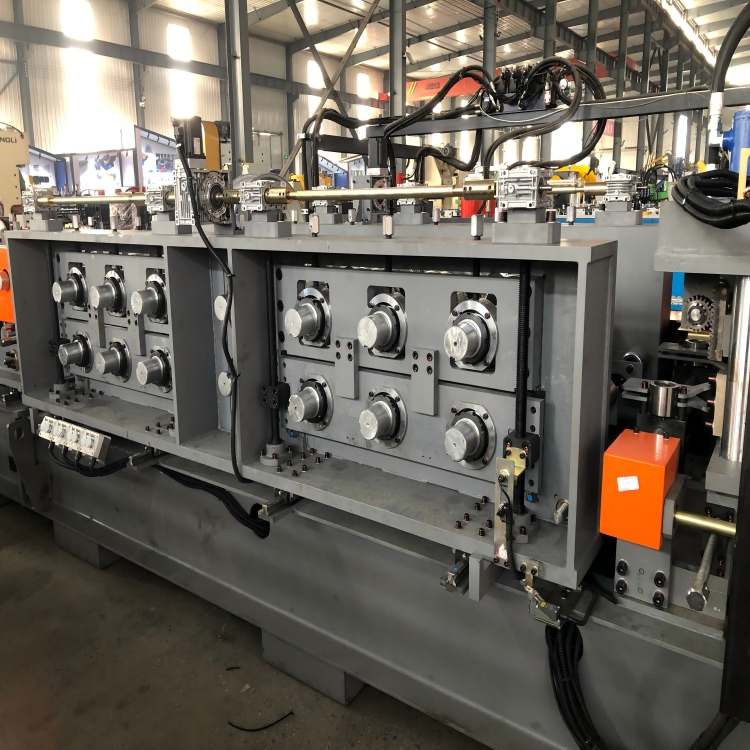

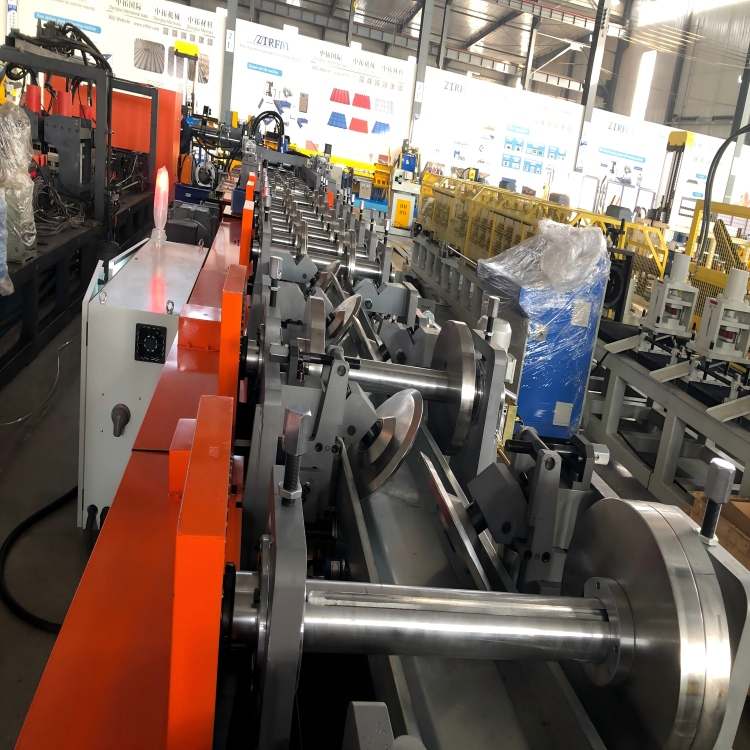

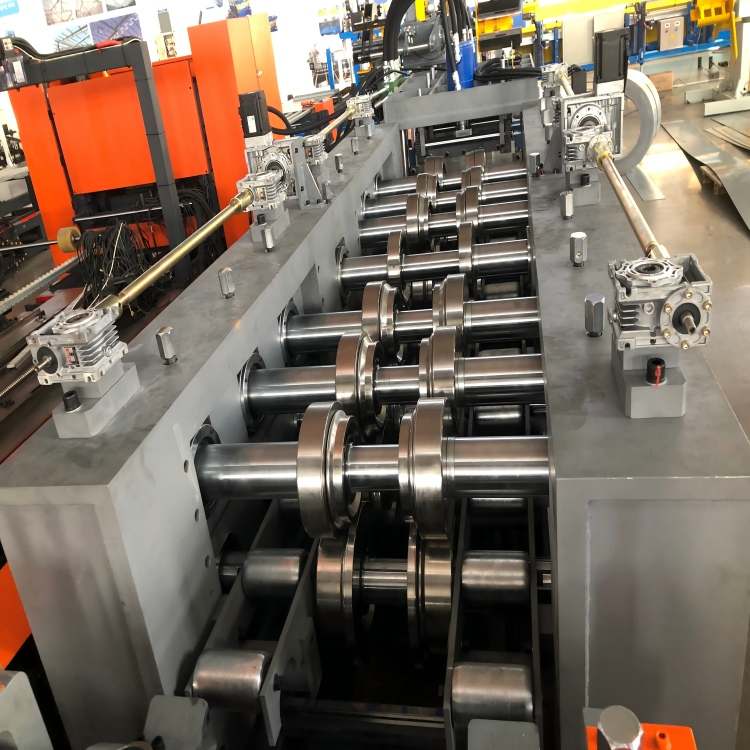

Forming Main Machine: The forming main machine is the core of the M-Steel Profile Machine, consisting of a series of custom-designed forming rollers arranged in a specific sequence. Each set of rollers is precision-machined to exact specifications, ensuring that the steel is gradually bent into the M-shaped profile without damaging the material’s surface or structural integrity. The rollers are made from high-wear-resistant alloy steel and undergo strict heat treatment, ensuring long service life and consistent forming precision. The forming main machine’s transmission system is designed for smooth and stable operation, providing uniform pressure throughout the forming process.

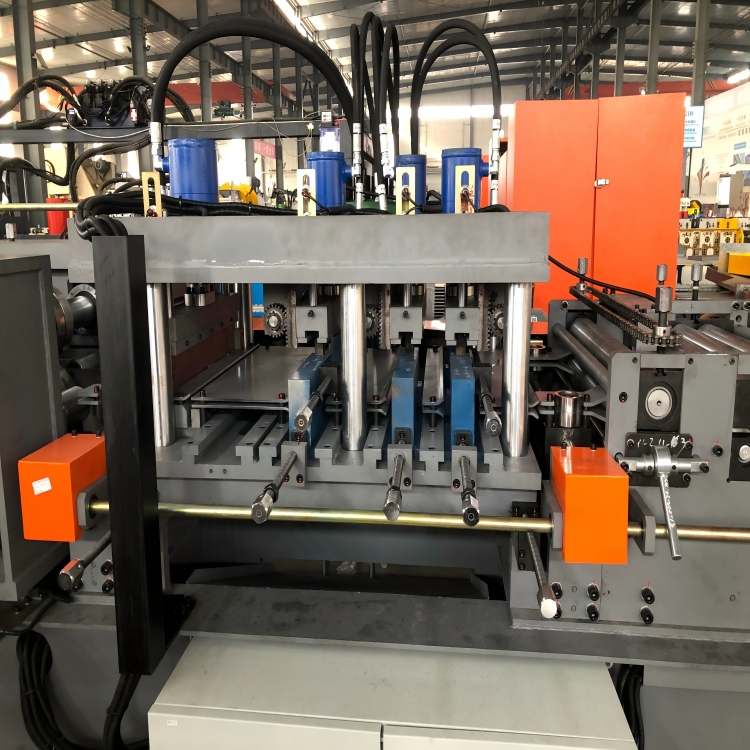

High-Precision Punching Device: Tailored to the needs of M-steel applications, the high-precision punching device is equipped with interchangeable dies and a servo-driven punching mechanism. It can accurately punch holes of various sizes and shapes at pre-set positions on the M-steel profile, with a punching accuracy of up to ±0.1mm. The punching process is fully integrated with the machine’s control system, ensuring synchronization with the forming and cutting processes, and eliminating the need for secondary processing.

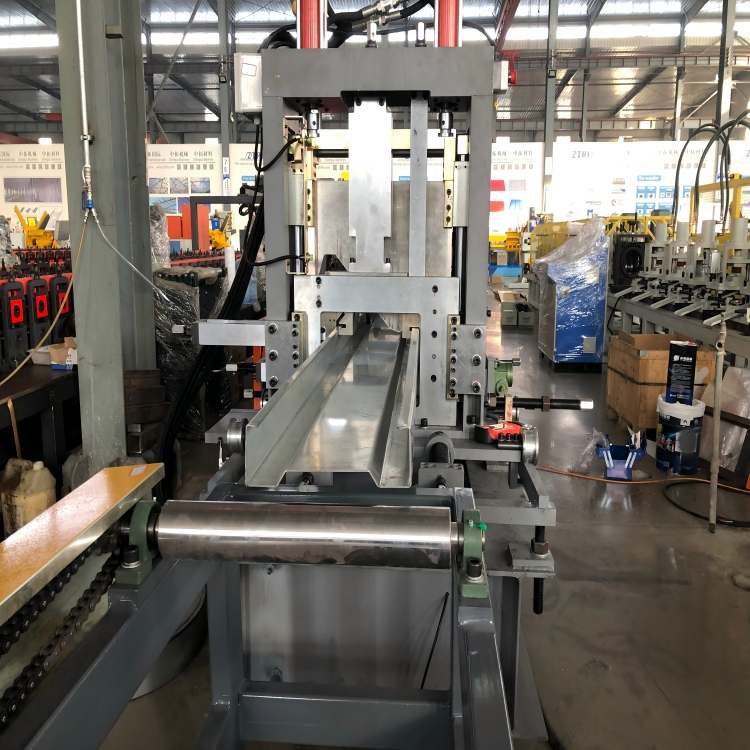

Forming and Cutting Device: Responsible for cutting the continuous M-steel profile into precise lengths, the forming and cutting device adopts high-speed shear cutting or laser cutting technology. The servo-driven cutting mechanism ensures fast and accurate cutting, with a length tolerance of ±0.5mm. The device is equipped with an automatic waste collection system, reducing material waste and keeping the work area clean. The cutting parameters can be easily adjusted via the control panel, accommodating different length requirements.

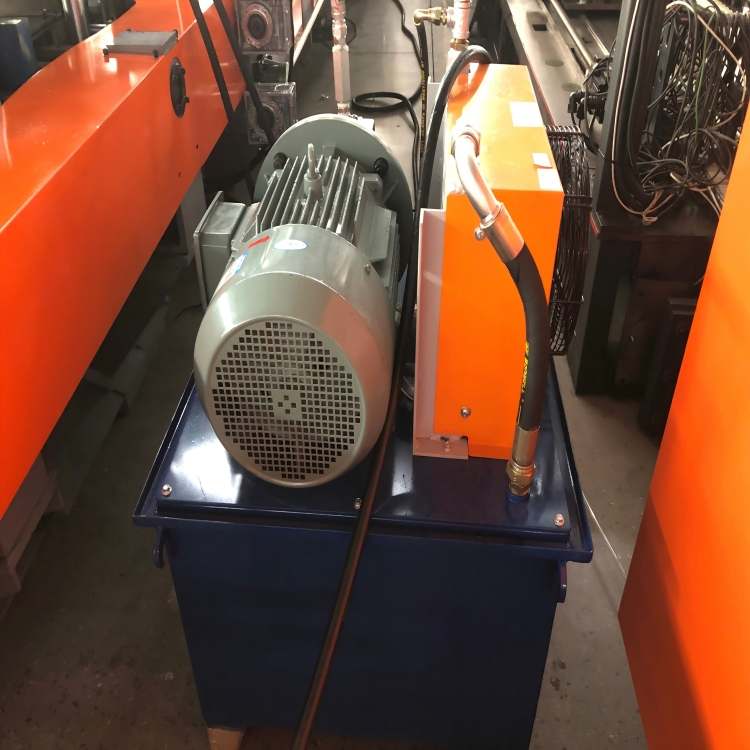

Hydraulic Station: The hydraulic station provides stable and powerful hydraulic power for the punching and cutting devices. It consists of high-pressure hydraulic pumps, precision valves, and a large-capacity oil tank. The hydraulic system is designed with pressure compensation and overload protection functions, ensuring stable operation and preventing equipment damage due to excessive pressure. The oil cooling system maintains the hydraulic oil at an optimal operating temperature, extending the service life of hydraulic components.

Intelligent Control Cabinet: Serving as the “brain” of the machine, the intelligent control cabinet is equipped with a high-performance industrial computer and user-friendly HMI (Human-Machine Interface). Operators can easily input and adjust production parameters such as profile dimensions, punching positions, and cutting lengths. The control system features real-time monitoring of equipment status, automatic fault diagnosis, and production data recording (including output, operating time, and fault logs). This facilitates efficient production management and predictive maintenance, minimizing downtime.

Features and Advantages

Superior Product Quality and Precision

Our High-Quality M-Steel Profile Machine is engineered to deliver exceptional product quality. The precision leveling device and custom-designed forming rollers ensure that the M-steel profiles have consistent dimensions, flat surfaces, and no surface defects such as scratches or burrs. The specialized forming process optimizes the internal structure of the steel, enhancing its bending resistance and load-bearing capacity—key properties that make M-steel ideal for critical structural applications.

Compared to traditional M-steel fabrication methods, our machine eliminates human errors caused by manual operation, ensuring that each batch of products meets the same high-quality standards. The high-precision punching and cutting devices further enhance product accuracy, making the M-steel profiles ready for direct assembly without additional processing. This superior quality not only improves the reliability of the end products but also enhances the customer’s market competitiveness.

High Efficiency and Stable Production

Equipped with a high-power servo motor and advanced transmission system, our M-Steel Profile Machine achieves high production efficiency while maintaining stability. The continuous forming process eliminates the need for intermittent operations, significantly increasing output compared to traditional batch processing.

The machine’s stable operation is ensured by its robust structure and intelligent control system. The overload protection, pressure compensation, and temperature control functions prevent equipment breakdowns, minimizing downtime. This high efficiency and stability enable customers to meet tight delivery deadlines, reduce production costs, and improve customer satisfaction.

High Degree of Automation and Easy Operation

The machine features a high degree of automation, integrating automatic uncoiling, leveling, forming, punching, and cutting into a single workflow. Operators only need to input the required production parameters via the user-friendly HMI, and the machine will automatically complete the entire production process. This reduces the need for skilled operators, lowering labor costs and minimizing human errors.

The intelligent control system provides real-time monitoring of the production process, displaying key parameters such as production speed, output, and equipment status. In case of faults, the system automatically diagnoses the problem and displays error messages, enabling quick troubleshooting. The machine also supports remote monitoring and control, allowing for convenient production management and maintenance.

Strong Customization Capabilities

We understand that different industries and projects have unique requirements for M-steel profiles. Therefore, our machine offers strong customization capabilities. We can customize the forming rollers, punching dies, and cutting parameters according to the customer’s specific requirements for profile dimensions, hole patterns, and lengths. Whether it’s a non-standard M-steel profile for a special mechanical component or a customized profile for a large-scale construction project, our professional R&D and engineering teams can provide tailored solutions.

The customization process is streamlined: we work closely with customers to understand their needs, design the customized components using advanced CAD software, and conduct rigorous testing to ensure the solution meets the requirements. This flexibility allows customers to adapt to changing market demands and gain a competitive edge in their respective industries.
