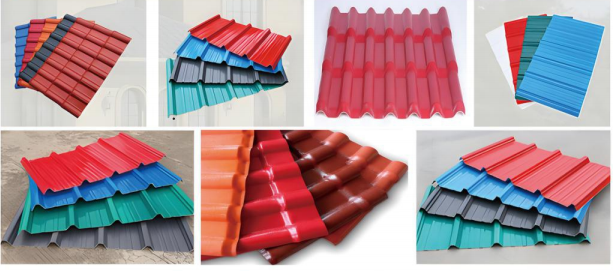

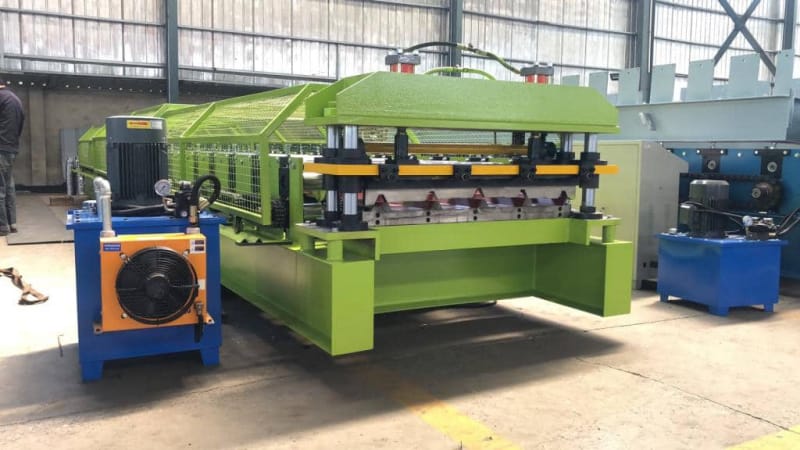

The roof tile forming machine is a core specialized equipment in the building materials industry for producing color steel tiles, antique-style glazed tiles, ridge tiles and other roofing materials. Leveraging advanced cold bending forming, hydraulic control and intelligent CNC technology, it offers distinct advantages over traditional manual forming methods and simple stamping equipment—high efficiency, precise accuracy, strong versatility, and low operational costs—making it perfectly suited for both small-to-medium processing plants and large-scale construction material production lines. The specific benefits are as follows:

High-speed mass production has led to a significant improvement in production efficiency.

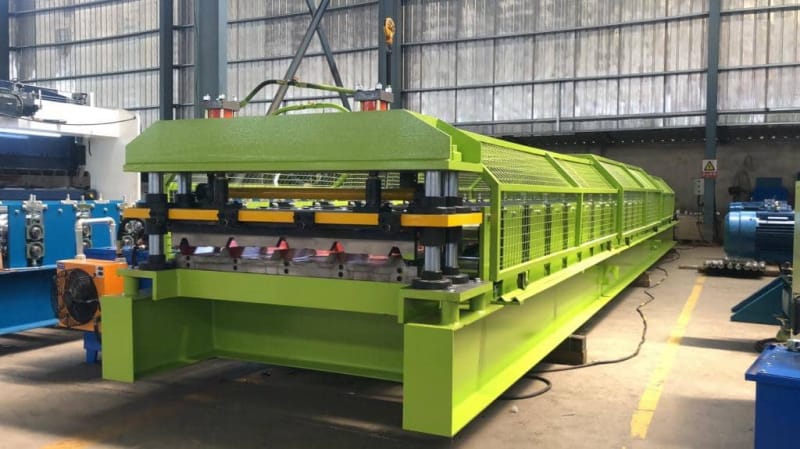

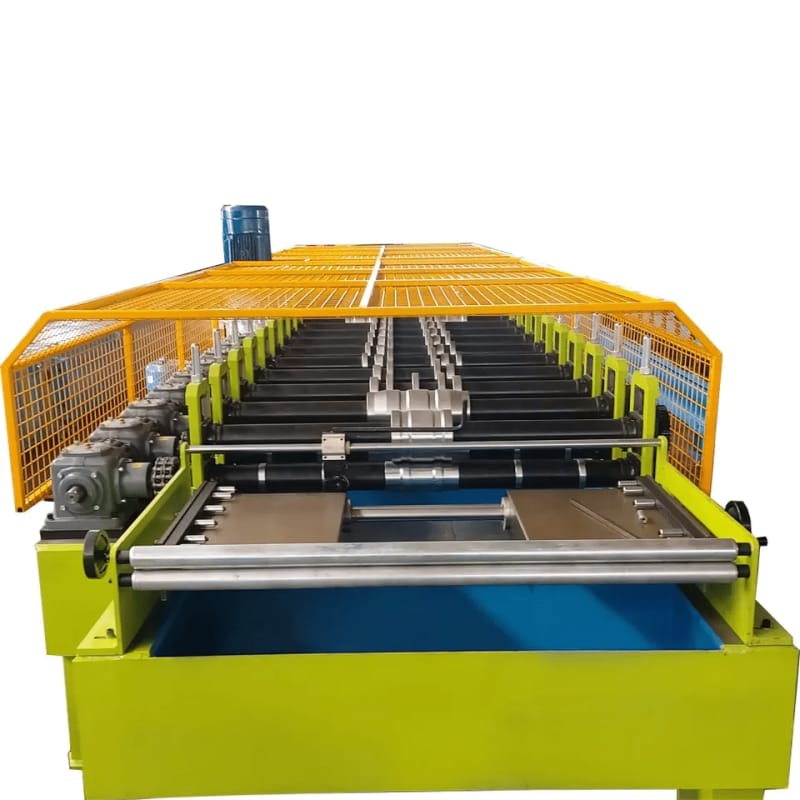

The modern roof tile forming machine employs servo drive technology and a multi-stage continuous rolling molding process, completely overcoming the limitations of traditional equipment’s intermittent operation and achieving a significant improvement in production efficiency. Conventional models can achieve a molding speed of up to 15 meters per minute, while high-end, high-speed models reach up to 120 meters per minute, representing an efficiency increase of over 40% compared to conventional simple equipment. The machine enables uninterrupted continuous production without frequent shutdowns for adjustment; a single unit can meet the daily material demand for roof tiles used in dozens of buildings, making it perfectly suited for batch production scenarios. It integrates automated feeding, online punching, precision cutting, and automatic stacking into a streamlined workflow entirely free from manual intervention, significantly reducing production time.

High-precision molding ensures stable and controllable product quality.

The equipment is equipped with a precision CNC control system and high-precision forming rollers, with the roller clearance accuracy controlled within ±0.1 mm and the product cutting accuracy at fixed length reaching ±1 mm, effectively eliminating issues such as tile distortion, dimensional deviations, and uneven curvature associated with traditional forming processes. Leveraging advanced sheet springback control technology, the equipment produces roof tiles with high density, a robust structure, excellent flatness, well-defined and uniform tile profiles, and exceptional joint compatibility, ensuring both waterproof sealing performance and overall aesthetic quality after installation. Furthermore, standardized mechanical forming eliminates defects caused by manual operation, resulting in highly consistent products with consistently high yield rates.

One device for multiple purposes; flexible production tailored to diverse needs.

The modular and interchangeable structural design constitutes the core competitive advantage of the roof tile forming machine. With exceptional equipment compatibility, the system requires no complete unit replacement—simply by rapidly changing molds and fine-tuning roller parameters, it can produce various mainstream tile types including antique-style glazed tiles, standard color-coated steel tiles, ridge tiles, and double-layer integrated tiles, meeting construction material demands across diverse applications such as traditional Chinese architecture, European-style buildings, industrial plants, and residential homes. Selected double-layer models can simultaneously produce two different tile specifications, enabling a single unit to match the production capacity of two standalone machines. This fundamentally addresses the limitations of conventional equipment characterized by limited functionality and poor model compatibility, significantly enhancing production line flexibility and enabling rapid response to diversified and customized market orders.

With intelligent automation, labor costs are significantly reduced.

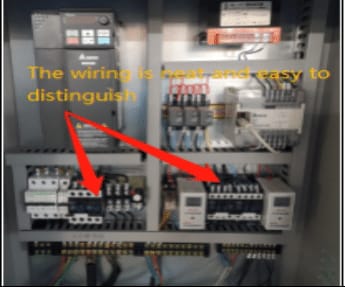

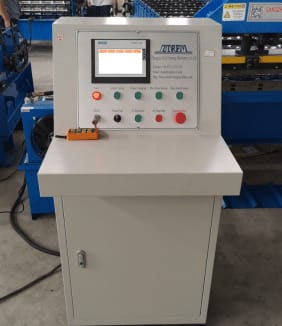

The equipment is equipped with a mature PLC programmable control system and a touch-screen human-machine interface, enabling fully intelligent automated operation across the entire process. It encompasses comprehensive functions including automatic material feeding, intelligent deviation correction, precision punching, fixed-length cutting, automatic counting, fault alarms, and automatic shutdown. The operation mode is simple and user-friendly, featuring a no-skilled-operation design that allows single operators to manage the entire system without requiring specialized technical expertise, thereby reducing labor costs by over 60% compared to traditional equipment. Additionally, the system incorporates built-in intelligent fault diagnosis capabilities that monitor operational status in real time, enable rapid fault localization, minimize troubleshooting time, ensure production continuity, and significantly lower both operational complexity and labor costs.

Energy conservation and reduced consumption lead to lower overall production costs.

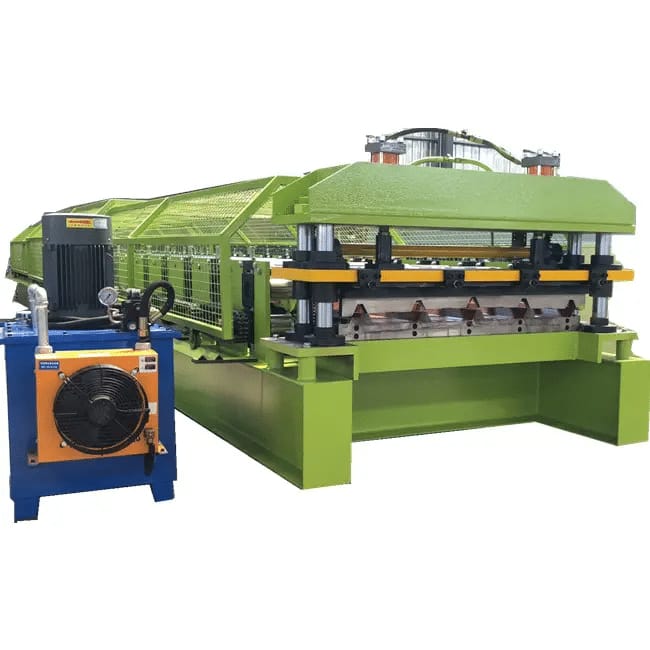

The roof tile forming machine features a low-power design with an integrated system, combined with an optimized hydraulic transmission and servo drive mechanism, ensuring precise power output and minimal energy consumption—its operational electricity usage is significantly lower than that of traditional stamping and forming equipment. In terms of space requirements and equipment investment, the dual-layer integrated model occupies less floor area, saving approximately 50% of workshop space compared to two separate standalone units, thereby effectively reducing factory rental costs and maintenance expenses. Additionally, the equipment achieves extremely high plate utilization during the forming process, with virtually no waste from edges or corners; raw material efficiency far exceeds that of conventional processing methods. This comprehensively lowers overall production costs across energy consumption, space requirements, material usage, and labor expenses, enhancing production profitability.

Durable and robust, with stable performance and low failure rate

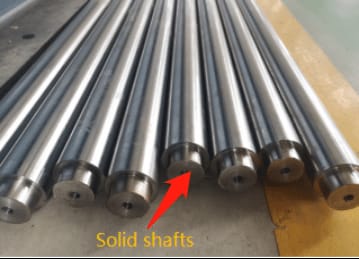

The core forming rollers and transmission components of the equipment are manufactured from high-strength alloy steel and subjected to specialized processes including quenching, hardening, and precision grinding, ensuring exceptional wear resistance and compressive strength. The equipment’s continuous stable operating lifespan exceeds 20,000 hours. The entire structure employs a heavy-duty welded steel construction, offering high rigidity and resistance to deformation, making it well-suited for long-term operation in demanding high-intensity environments. The optimized design significantly reduces operational failure rates, keeping them below 0.3%, thereby substantially lowering maintenance costs, component replacement expenses, and downtime losses. With its extended service life and straightforward operation and maintenance, the equipment delivers outstanding cost-effectiveness over prolonged use.

Highly adaptable and extremely practical for real-world implementation.

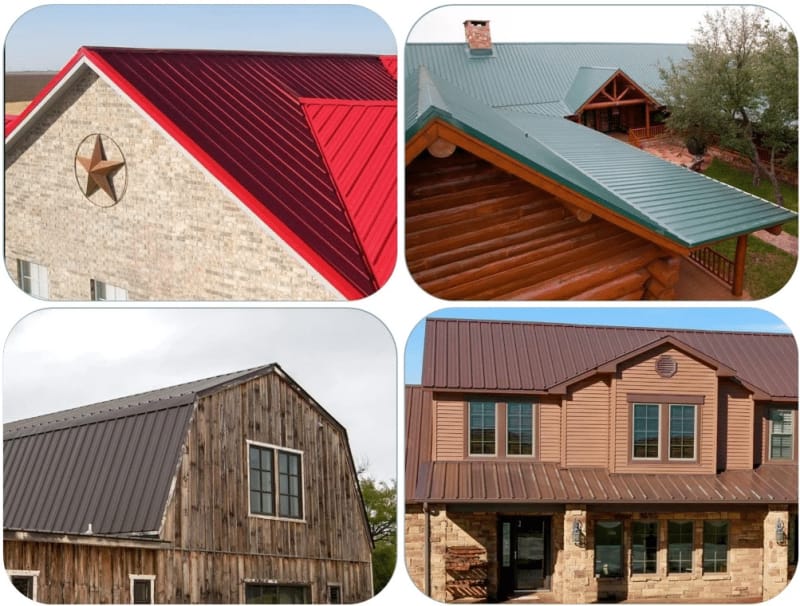

Roof tile forming machines offer a wide range of specifications and models, including cost-effective small-to-medium units suitable for small-scale manufacturing plants, as well as high-speed intelligent production lines designed for large construction material enterprises, catering to the production needs of businesses of all sizes. These machines demonstrate strong adaptability to various sheet materials, processing products such as color-coated steel plates, galvanized sheets, and aluminum alloy plates. The finished tiles exhibit excellent waterproofing, wind resistance, and corrosion resistance, making them widely used in diverse applications including new rural development projects, cultural and tourism heritage buildings, industrial facilities, and urban residential renovations. Their market compatibility and practical applicability far surpass those of traditional forming equipment.
