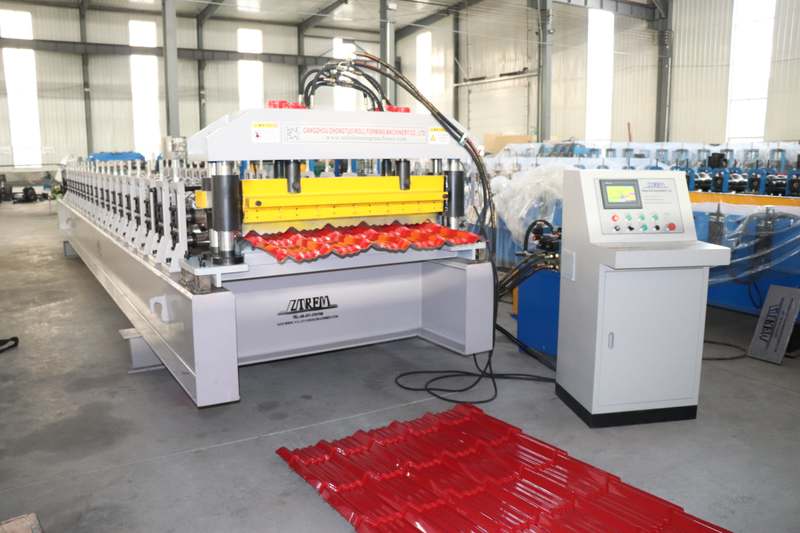

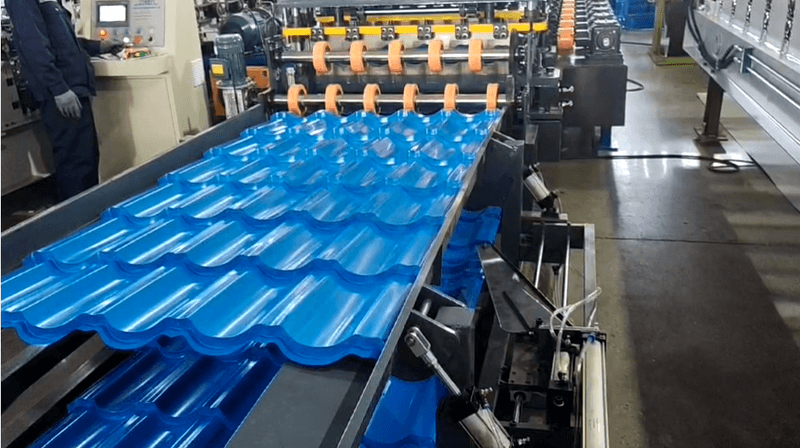

The Most Commonly Used Patterns for Glazed Roof Tile Forming Machines
沧州中拓滚压成型机械有限公司来自中国河北。它是一家致力于设计和制造的制造商。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
如需了解更多信息、交货时间和价格，请给我们发邮件！
The market product lineup comprises four major categories: rounded arc tiles (828/1035), bamboo-joint antique-style tiles (800/840), wide-wave tiles, and specialized niche tiles. All are compatible with 1000 mm-wide color-coated, zinc-plated, or aluminum-magnesium-manganese coated panels, where the numbers indicate the effective coverage width after forming.
The most widely used popular design style in the market (the preferred choice for construction projects, self-built houses, and tourist attractions).
Model 828 (Arc-shaped glazed tile / Feed plate 1035)
Effective coverage: 828 mm; feed length: 1035 mm
Features: Large curved wave patterns and traditional blue tile design, achieving the highest level of antique restoration; smooth wave peaks with excellent waterproof joint sealing.
Adapt to: temples, ancient buildings, cultural tourism sites, villas, and Chinese-style courtyards – the most widely used type of glazed tile nationwide.
Model 840 (bamboo-jointed glazed tiles)
- Effective coverage: 840 mm; feed length: 1000 mm
- Features: Segmented bamboo joint design with strong layering effect, wave height of 28 mm, providing ample three-dimensional visual impact for the roof surface.
- Application: Suitable for self-built houses in new rural areas, resorts, and factory buildings requiring antique-style roofs.

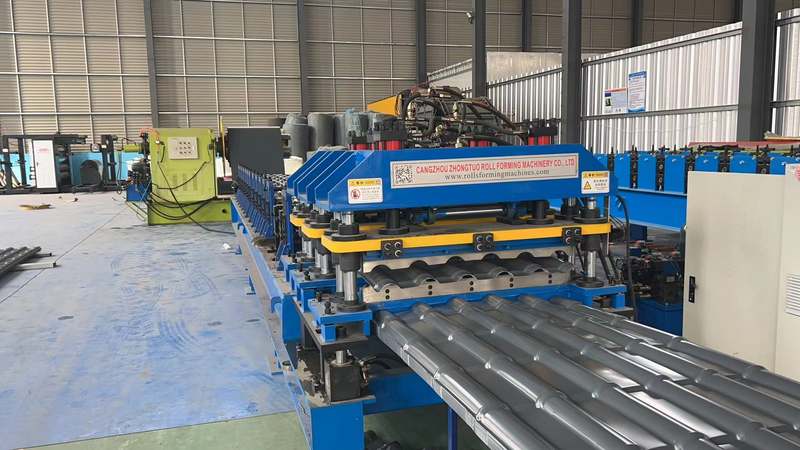

Type 800 (resin-based bamboo-joint tile imitation)
- Effective coverage: 800 mm; feed length: 1000 mm
- Features: Narrow-wave dense bamboo-joint structure mimicking the appearance of synthetic resin tiles, with minimal joint gaps and excellent waterproof performance.
- Applications: High-end villas, antique-style buildings.
Wide-profile design with large waves (suitable for factories and large-scale roofs)
Type 1100 large curved glazed tile
- Effective coverage: 1100 mm; feed length: 1200 mm
- Features: Wide coverage per unit, rapid installation speed, and a grand wave-shaped design, making it ideal for large-scale industrial areas and roof installations in cultural tourism towns.
Type 765 large-wave glazed tile
- It offers effective coverage of 765 mm with a high wave height, excellent wind and pressure resistance, and is widely used in coastal factories and warehouses featuring antique-style roofs.
Type 1000 widened glazed tile
With a wide per-square-watt coverage, it is ideal for large-scale, simple antique-style roofs and offers excellent cost-effectiveness.
Small/Medium-sized versions commonly used in local markets
- Type 990 curved tile:Features a smooth wave pattern, widely used in residential villas and by individual homeowners.
- Model 995: Compliant with National Standard JF35-199-995, specifically designed for high-end aluminum-magnesium-manganese alloy roofs with an antique finish.
- Model 838: Located between the 828 and 840 models, available as a custom version in some southern regions
- Type 750 antique-style tiles: Narrow strips, suitable for small doorheads, pavilions, and covered corridors.
Quick Reference for Selecting a Suitable Pattern Design
- Traditional Chinese architecture, temples, and scenic areas → Type 828 curved tiles
- Rural self-built houses and ordinary villas → 840 bamboo joints and tiles
- Resin-like texture, premium home decor → Model 800
- Large-scale factory buildings; continuous roofs in small towns → 1100 wide tiles
