A shelf column forming machine is a professional cold roll forming machine specially designed for mass production of warehouse shelf uprights, storage rack columns, and supermarket shelf profiles. As the global logistics, warehousing and retail industry continues to expand, high-strength, high-precision storage shelf structures have become standard infrastructure for industrial warehouses, logistics centers, and commercial supermarkets. This automatic roll forming line integrates feeding, leveling, multi-station punching, precise roll forming, fixed-length cutting and automatic stacking to realize one-stop automated production of shelf uprights.

Our warehouse shelf upright forming machine solves the pain points of traditional shelf production, such as low manual efficiency, inconsistent hole spacing and easy deformation of profiles. It can continuously process galvanized steel, cold-rolled steel and other metal materials to produce standard and customized shelf columns with accurate sizes, smooth surfaces and strong bearing capacity. Widely exported to Europe, Southeast Asia, the Middle East, North America and other regions, it is the preferred core equipment for professional shelf manufacturing enterprises.

Core Advantages of Our Shelf Upright Forming Machine

Different from ordinary profile forming equipment, shelf column production has extremely high requirements on punching accuracy, straightness and load-bearing consistency. Our customized storage shelf column roll former has been professionally optimized for shelf industry production standards, with unique competitive advantages:

High Punching & Forming Precision, Strict Standard Compliance

The equipment adopts advanced servo synchronous control system and high-precision alloy forming rollers. The overall dimensional tolerance is controlled within ±0.2mm, and the punching hole position error is less than ±0.1mm. The produced shelf uprights feature uniform C-shaped/U-shaped forming, neat hole openings, no burrs and no bending deformation. All finished products fully meet international warehouse shelf load-bearing standards, ensuring precise assembly and stable load-bearing of shelves, effectively reducing product defective rate.

Integrated Punching & Forming, High Production Efficiency

This fully automatic shelf column making machine integrates hydraulic pre-punching, row punching and continuous roll forming processes. It supports one-time forming of column mounting holes, reinforcing ribs and fixed grooves, with a production speed of 20-35 meters per minute. It can realize 24-hour uninterrupted continuous production, realizing unmanned automatic operation from raw material coil feeding to finished product output. Compared with separate processing equipment, the production efficiency is increased by more than 80%, greatly saving labor and time costs for manufacturers.

Strong Compatibility, Support Diversified Customization

The equipment has super strong profile adaptability, supporting the production of various mainstream shelf upright specifications. It can process raw materials with a thickness of 1.0mm-3.0mm, covering light-duty, medium-duty and heavy-duty warehouse shelf columns. By adjusting molds and system parameters, it can produce standard supermarket shelf columns, industrial storage rack uprights, cantilever shelf profiles and customized special-shaped shelf structures. We support personalized mold development and parameter customization according to customer drawings and market demands to meet diversified production needs.

Reinforced Body Structure, Stable & Durable

The whole machine adopts thickened steel plate integral welding structure with high overall rigidity and strong shock resistance. It can maintain long-term stable high-frequency operation without vibration and displacement. Key wearing parts such as forming rollers and punching dies are made of high-hardness alloy materials and processed by special heat treatment technology, which is wear-resistant and corrosion-resistant, with a service life 2 times longer than ordinary equipment. The modular assembly design simplifies daily maintenance and parts replacement, effectively reducing later operation costs.

Intelligent PLC Control, Easy Operation

Equipped with humanized touch screen PLC intelligent control system, the equipment supports one-key parameter setting, automatic counting, fixed-length cutting and fault alarm. Operators can complete product specification switching and equipment debugging in a few minutes. The system has automatic memory function, which can store multiple sets of production parameters for different profiles, realizing rapid switching of multiple products and improving production flexibility.

主要应用场景

Our high-performance automatic shelf column forming machine is widely used in mass production of various storage and commercial shelf profiles, covering industrial, logistics and commercial retail fields:

Heavy-duty warehouse storage rack uprights for industrial factories

Medium and light-duty shelf columns for logistics distribution centers

Supermarket, convenience store and display shelf profiles

Automated three-dimensional warehouse shelf supporting columns

Custom special-shaped storage shelf and bracket profiles

The shelf columns produced by the equipment have high structural strength and good stability, which can adapt to heavy-load storage environments and long-term use, and are widely recognized by global shelf manufacturers.

Complete Production Process

Our shelf column roll forming production line adopts streamlined and standardized production procedures with stable operation and low failure rate. The whole process is fully automated without manual intervention:

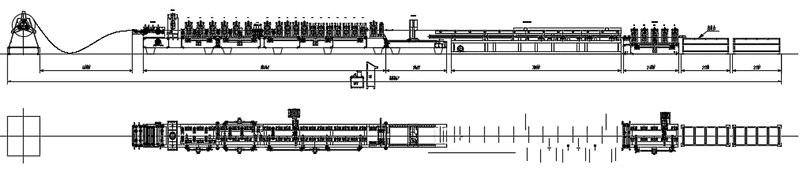

Raw material coil feeding → automatic leveling & straightening → multi-station hydraulic precise punching → rib pressing & edge folding → multi-pass roll forming → servo fixed-length cutting → automatic finished product stacking

The whole production process is digitally controlled with precise parameter matching, which effectively ensures the consistency of batch products, avoids dimensional errors caused by manual operation, and greatly improves the overall qualification rate of shelf products.

Why Choose Our Shelf Column Forming Machine

As a professional manufacturer and exporter of shelf profile cold forming equipment, we have focused on the R&D, design and production of storage shelf forming machines for many years. We have rich project experience in serving global shelf manufacturing enterprises, and always provide customers with high-cost-effective equipment and reliable after-sales services:

Factory Direct Supply: Direct sales from the original factory, no middleman markup, providing competitive ex-factory prices and exclusive customized solutions

Professional Customization: Support non-standard equipment customization and mold development according to customer product drawings and production requirements

Strict Quality Inspection: All equipment undergoes 72-hour continuous operation test and precision debugging before shipment to ensure stable operation after delivery

Global After-Sales Service: Provide overseas installation guidance, professional operation training, remote technical support and long-term maintenance services

Short Delivery Cycle: Standard models are in stock for fast delivery, customized equipment is produced on schedule with quality guaranteed

Professional Shelf Forming Solutions

With the rapid development of global logistics warehousing and commercial retail industry, standardized and high-strength storage shelves have become rigid market demand. Efficient and intelligent shelf column forming equipment is the key for shelf manufacturers to reduce costs and improve market competitiveness.

If you are looking for stable, high-precision and low-maintenance shelf column roll forming machine, please feel free to contact us. We will provide you with detailed equipment parameters, real production videos, professional customized solutions and the most favorable factory price according to your production needs!
