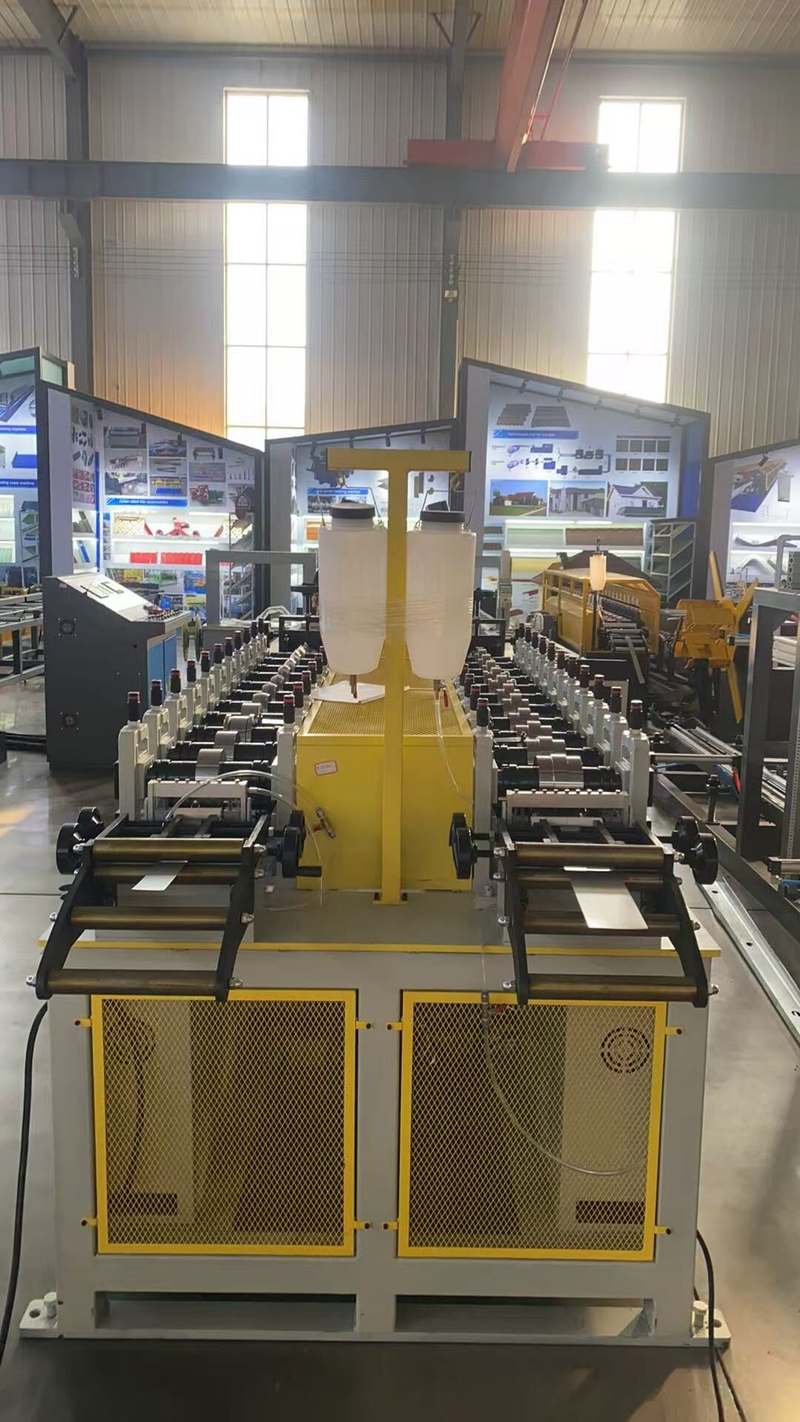

The L-Shaped Keel Roll Forming Machine is a fully automatic, high-precision cold roll forming equipment specially designed for manufacturing L-shaped metal keels — the essential structural components widely used in global building decoration, interior partitioning, ceiling installation, and wall cladding projects. As a core equipment in the building decoration metal forming industry, it adopts advanced servo-controlled continuous cold roll forming technology to process high-quality metal coils, including hot-dip galvanized steel coils, cold-rolled steel coils, color-coated steel coils (PPGI/PPGL), and aluminum coils, into high-strength, dimensionally accurate L-shaped keels with smooth surfaces, neat edges, and strong load-bearing capacity.

L-shaped keels, also known as angle keels or L-angle keels, are characterized by their right-angle structure, which provides excellent stability and support for ceiling panels, wall panels, gypsum boards, and decorative materials. They are lightweight, easy to install, corrosion-resistant, and cost-effective, making them the preferred choice for residential buildings, commercial buildings, office spaces, hotels, and industrial workshops worldwide. Our L-Shaped Keel Roll Forming Machine is engineered to produce standard L-shaped keel profiles (including 25x25mm, 30x30mm, 40x40mm, 50x50mm specifications) with quick parameter adjustment, ensuring compatibility with global building decoration standards and diverse project requirements. It is the ideal production equipment for building decoration material manufacturers, building material suppliers, interior decoration contractors, and export-oriented processing enterprises across the globe.

Core Components of Our L-Shaped Keel Roll Forming Machine

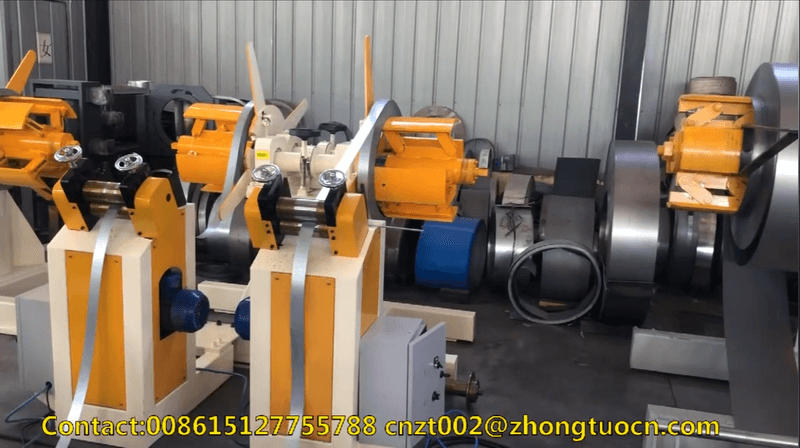

重型液压开卷系统： Built for large-size metal coils used in L-shaped keel production, this system is equipped with a hydraulic expansion uncoiler with a load capacity of 3-8 tons, supporting coil widths ranging from 500-1000mm and material thickness of 0.3-1.0mm. It features automatic hydraulic deviation correction, pressure holding, and anti-slip feeding rollers, paired with a reinforced feeding guide bridge to prevent material wrinkling, scratching, or misalignment during high-speed feeding. It is fully compatible with all common anti-corrosion metal coils for L-shaped keel manufacturing, ensuring smooth and stable feeding for long-term high-intensity production runs.

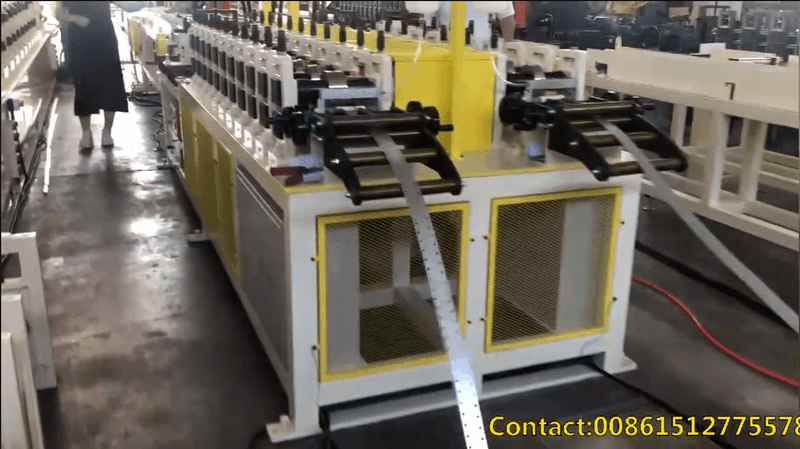

Precision Leveling & Servo Feeding Unit: Equipped with 7-11 groups of high-precision leveling rollers, this unit effectively eliminates curling stress and surface unevenness of raw metal strips, guaranteeing the material is perfectly flat before entering the forming station. It supports adjustable leveling intensity for different material thicknesses, which is critical to ensuring the finished L-shaped keels have uniform thickness, straight right angles, and no warping. The servo-driven precision feeding system ensures accurate feeding length and constant speed, matching the high-speed forming process without slipping or position deviation, and ensuring consistent dimension of each keel.

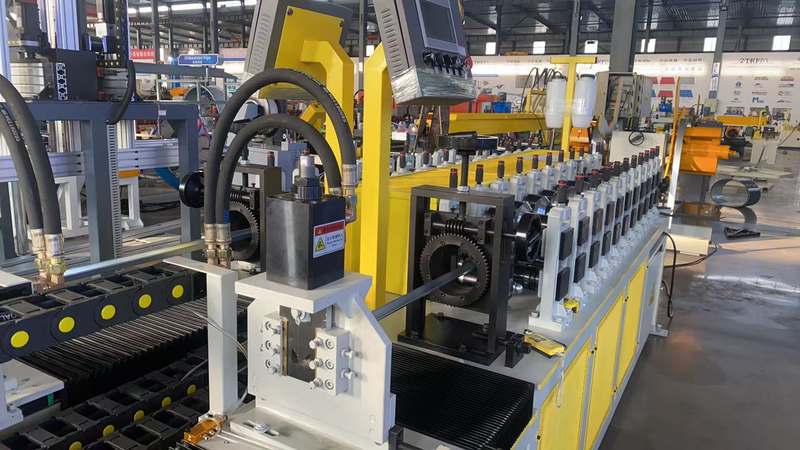

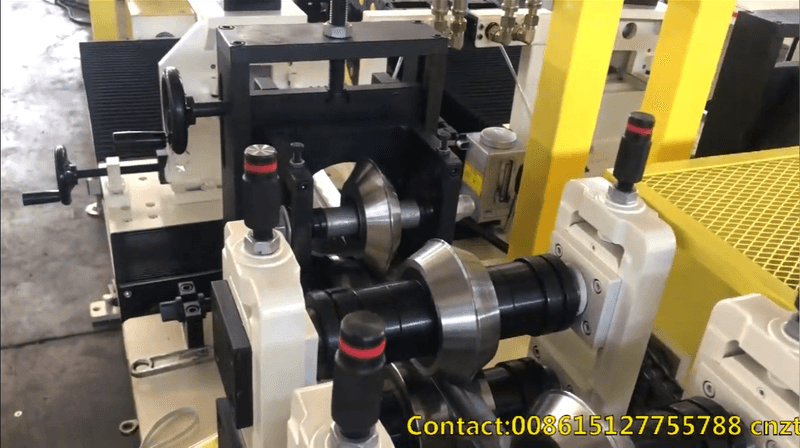

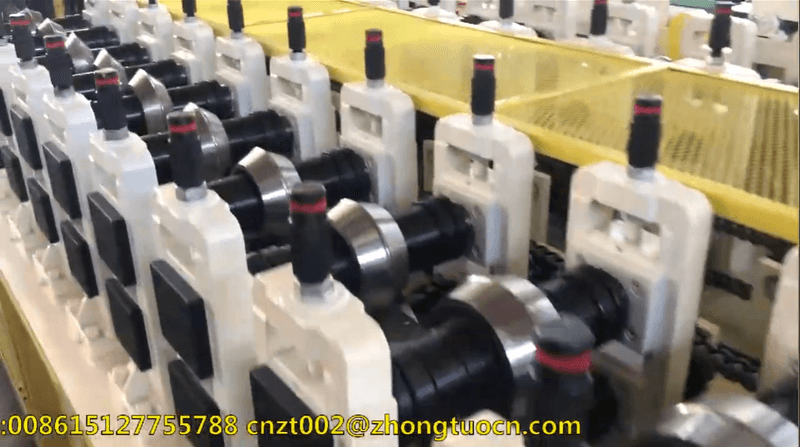

L-Shaped Profile Specialized Forming Main Unit: As the core of the entire machine, the forming unit adopts a rigid thick-walled steel frame with overall stress relief treatment, composed of 12-22 groups of precision forming roller stations. The forming rollers are crafted from high-grade 45# hardened steel or GCr15 bearing steel, processed via precision CNC machining, integral quenching and tempering, and hard chrome plating, with a hardness of HRC 58-62, delivering excellent wear resistance and a service life of over 700,000 meters. Driven by a high-power servo motor and precision gearbox transmission, the rollers are specially designed to form the standard L-shaped right-angle profile in one pass, ensuring consistent angle accuracy (90°±0.5°), smooth edges, and no distortion.

Angle Accuracy & Edge Trimming System: The right-angle accuracy and edge quality are critical to the installation effect and structural stability of L-shaped keels. Our machine is equipped with a precision angle positioning device and edge trimming unit, which strictly controls the right-angle error within ±0.5° and ensures smooth, burr-free edges of the keels. The edge trimming unit can remove burrs and sharp edges, avoiding scratches during installation and improving the safety and appearance of finished products.

High-Precision Flying Shear Cutting System: To match the high-efficiency forming speed, our machine adopts advanced servo flying shear cutting technology, enabling non-stop fixed-length cutting during continuous production. The cutting blades are made of heat-treated high-strength alloy steel, ensuring smooth, burr-free cutting edges and no keel deformation. Cutting accuracy is controlled within ±0.3mm, and the cutting length can be freely adjusted between 0.3-6 meters via the PLC touch screen, adapting to standard installation lengths and customized project requirements for building decoration.

自动卸料和堆垛机制： Designed for lightweight L-shaped keels, this unit features a soft-contact discharge rack and pneumatic stacking device with rubber pads, avoiding surface scratches and edge damage to the finished keels. It automatically arranges and stacks finished products neatly, reducing manual handling labor and product damage, while protecting the anti-corrosion coating integrity and overall product appearance. The stacking height is adjustable, adapting to different storage and transportation needs, and the stacked keels are easy to pack and ship.

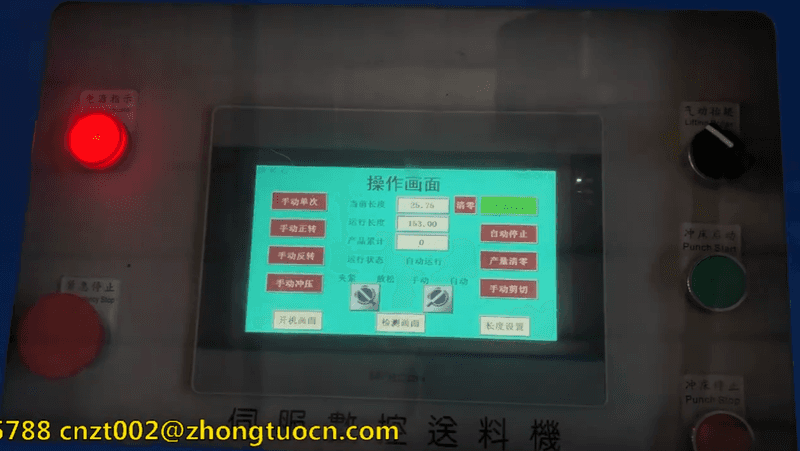

智能 PLC 控制系统： The full production line is controlled by a renowned international brand PLC (Siemens/Mitsubishi/Delta) with a user-friendly large touch screen operation panel, supporting multi-language switching including English, Spanish, Arabic, French, Russian, and Portuguese. It realizes full-process automatic control, with functions such as production counting, fault self-diagnosis, emergency stop, parameter memory, L-shaped keel size adjustment, and production speed regulation. The system is simple to operate, requiring only 1-2 workers to monitor, with stable, low-failure operation for long-term continuous production.

With outstanding advantages ofstandard L-shaped profile forming, high angle accuracy, full automation, perfect coating protection, and easy installation compatibility, our L-Shaped Keel Roll Forming Machine produces high-quality L-shaped keels that feature excellent load-bearing capacity, strong corrosion resistance, neat appearance, and quick installation. These keels are widely used in various building decoration and construction projects across the globe, providing reliable, stable, and efficient structural support for modern interior and exterior decoration.
