This highway guardrail roll forming machine is used to produce double-wave W-beam and triple-wave triple-beam guardrails. Fully automatic and high-precision, it is CE certified and complies with EN 1317 and AASHTO M180 standards.

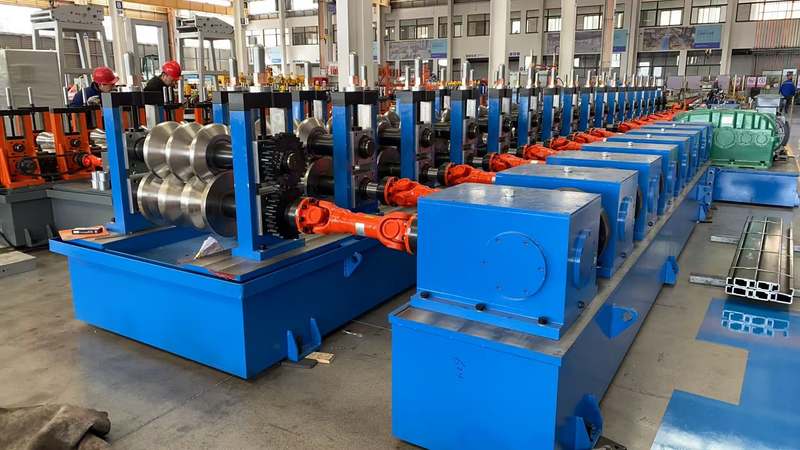

The highway guardrail roll forming machine is a professional automated metal forming production line specifically designed for the production of highway safety guardrail panels. It was developed for the mass production of double-wave W-beam and triple-wave triple-beam crash barriers and is widely used in highway construction, highway reconstruction, rural road safety projects, and transportation infrastructure projects. This highway guardrail forming machine uses advanced cold-rolling forming technology to process hot-dip galvanized steel coils and carbon steel coils into standard road guardrail profiles with smooth surfaces, precise dimensions, and high impact resistance. With high-speed operation, stable operation, and intelligent control, our guardrail roll forming machine helps global transportation facility manufacturers achieve efficient, low-cost continuous production.

Core Advantages of High Speed Guardrail Roll Forming Machine

Different from ordinary low-speed guardrail forming equipment, our high speed guardrail forming machine is upgraded and optimized for large-scale industrial continuous production, with outstanding performance that meets international traffic engineering standards:

Ultra-High Production Efficiency: Designed for high-speed continuous operation, the machine’s forming speed reaches 20-35 meters per minute, far exceeding traditional guardrail equipment. It supports uninterrupted 24-hour production, effectively improving daily output and shortening project delivery cycles for large infrastructure orders.

Dual-Mode Profile Production: This all-in-one equipment supports free switching between 2-wave W beam guardrail and 3-wave thrie beam guardrail production. No need to replace the whole machine mold, only simple parameter adjustment, meeting diverse road safety specification requirements of different countries and regions.

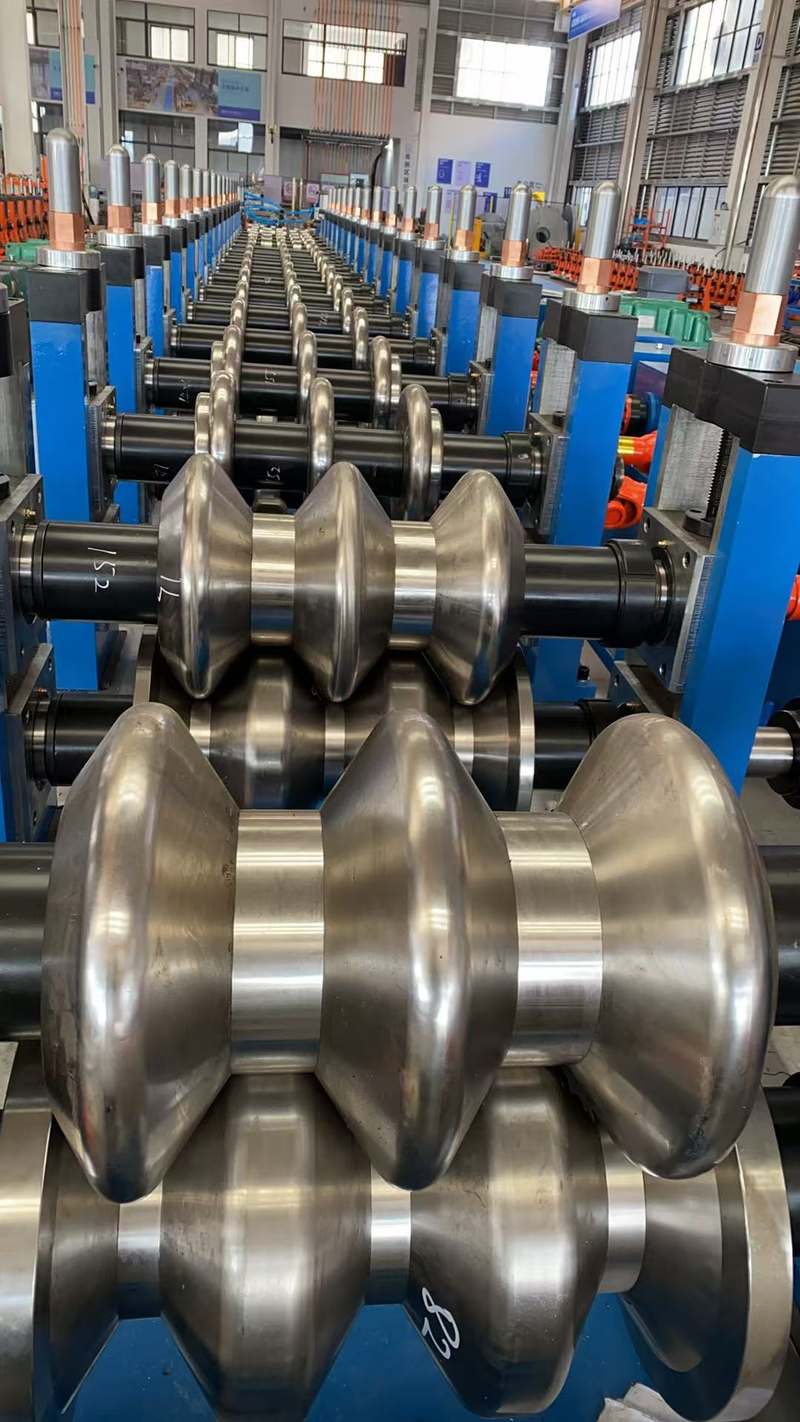

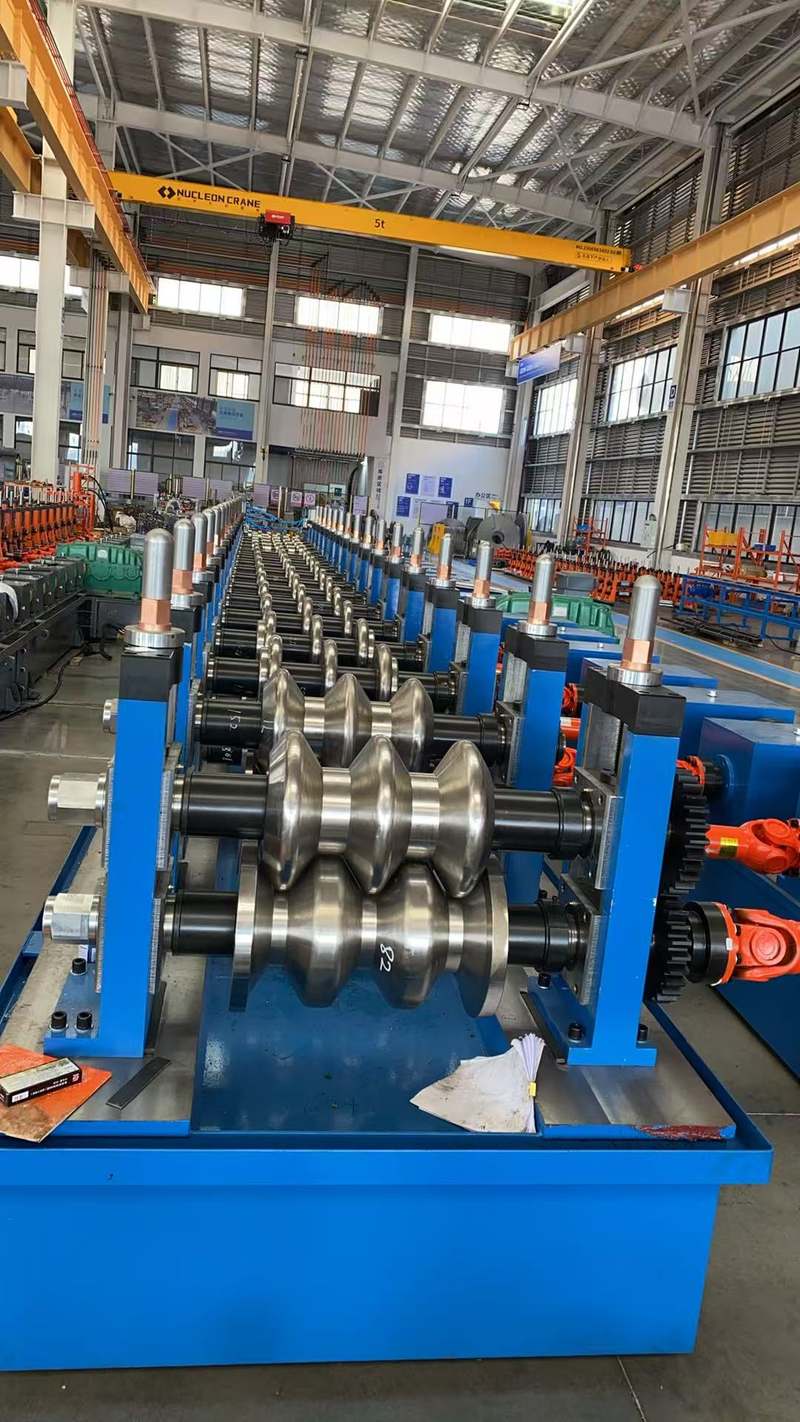

International Standard Precision Forming: Equipped with high-hardness alloy steel forming rollers and precision calibration system. The finished guardrail products fully comply with global authoritative standards including EN 1317 (EU) and AASHTO M180 (North America), with consistent bending radian, uniform hole position and zero surface scratches.

Intelligent PLC Automatic Control: Adopts industrial PLC intelligent control system with touch screen operation. It realizes automatic feeding, leveling, forming, punching, hydraulic fixed-length cutting and discharging. One-key parameter setting reduces manual operation errors and improves production consistency.

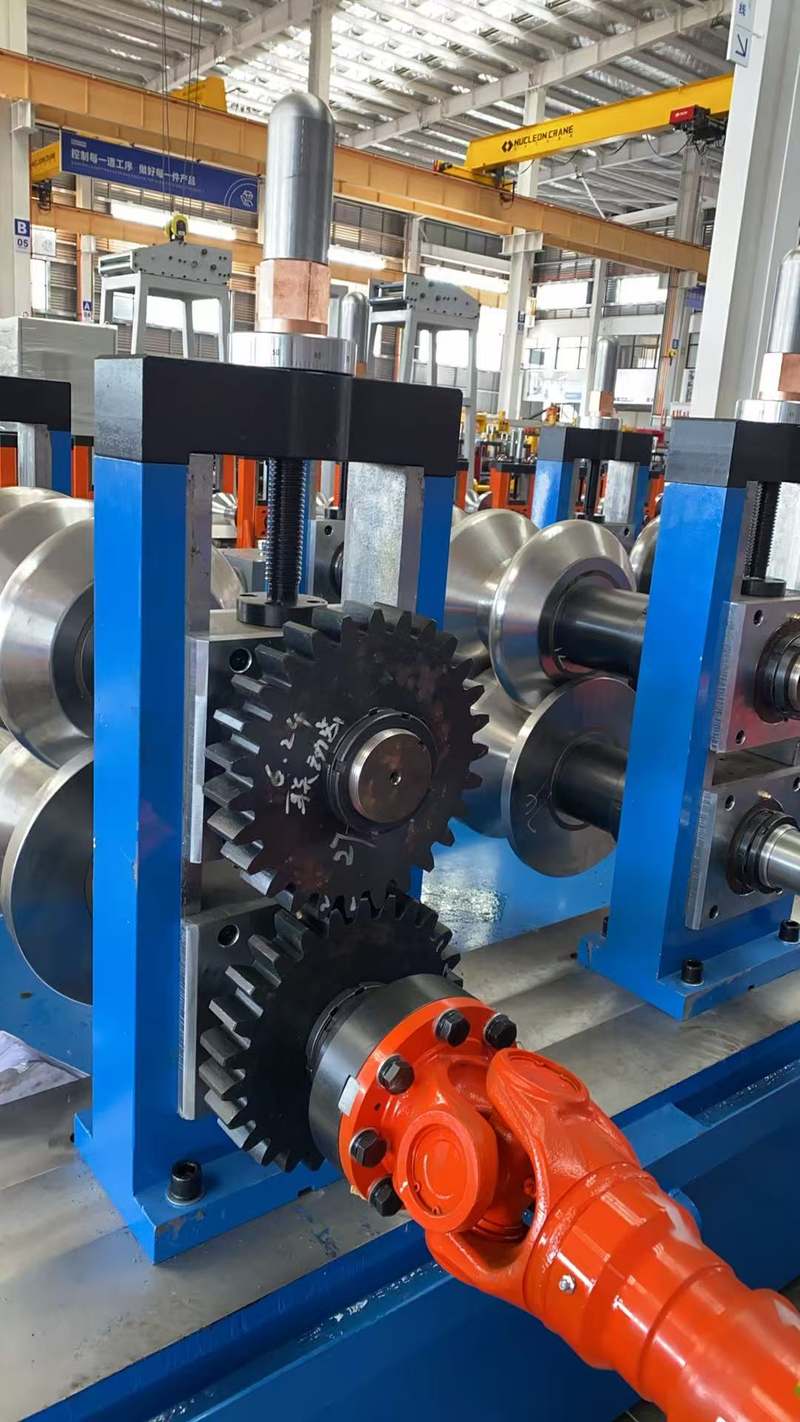

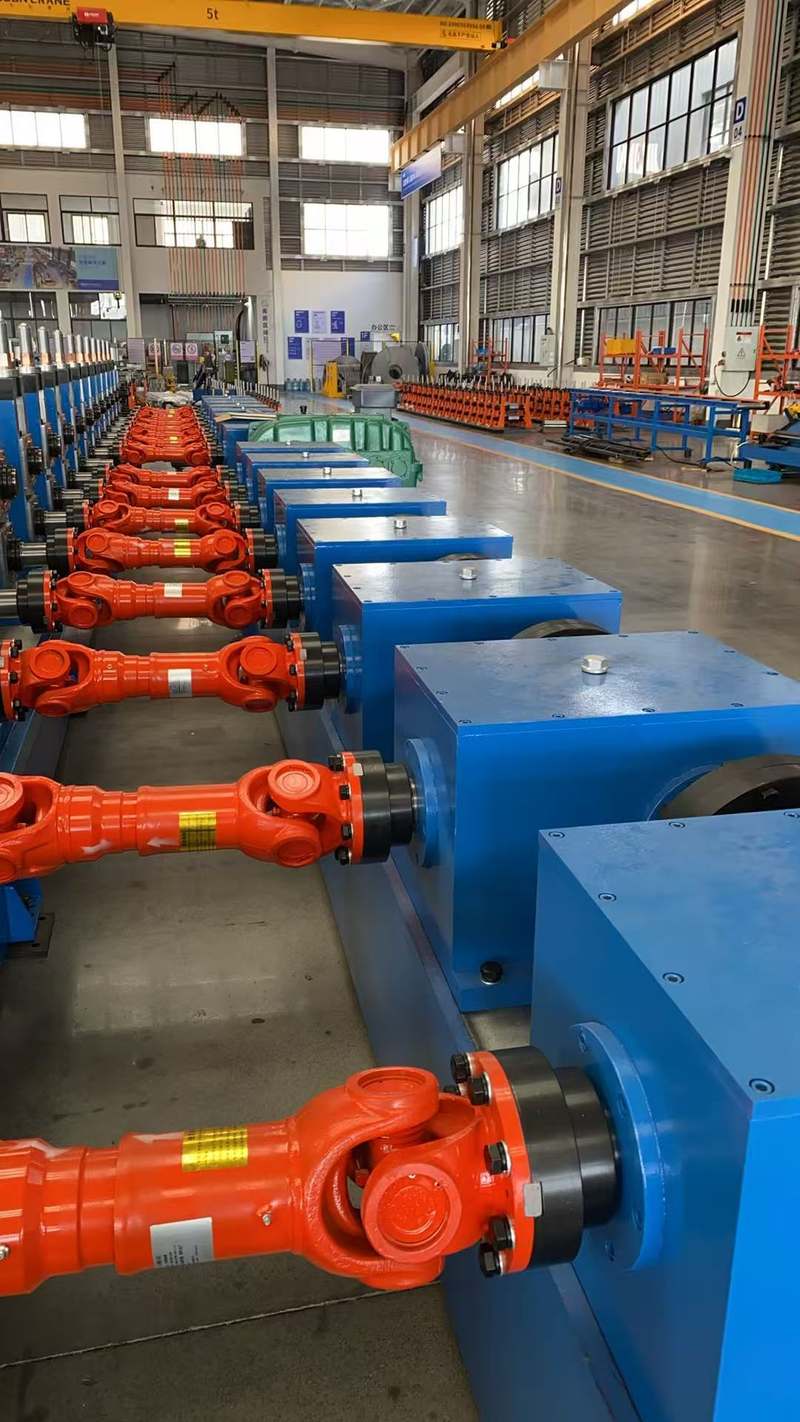

Stable & Durable Structure: The whole machine adopts thickened steel plate integral welding frame, with strong compression resistance and shock resistance. Key transmission parts use high-precision bearings and wear-resistant accessories, effectively reducing failure rate and extending equipment service life.

Low Operation & Maintenance Cost: Simplified mechanical structure design minimizes vulnerable parts. The built-in intelligent fault alarm system can quickly locate abnormal problems, reduce equipment downtime, and greatly save later maintenance and labor costs.

Customizable Functional Design: We support personalized customization of punching holes, profile thickness, production speed and automatic marking system according to customer project needs, adapting to various regional road guardrail specifications.

Complete Technical Specifications

Our standard highway guardrail roll forming machine covers the mainstream specification requirements of global traffic infrastructure projects, with stable and reliable technical parameters:

Applicable Materials: Hot-dip galvanized steel coil, carbon steel coil, color steel coil

Processing Thickness: 2.0mm – 4.0mm

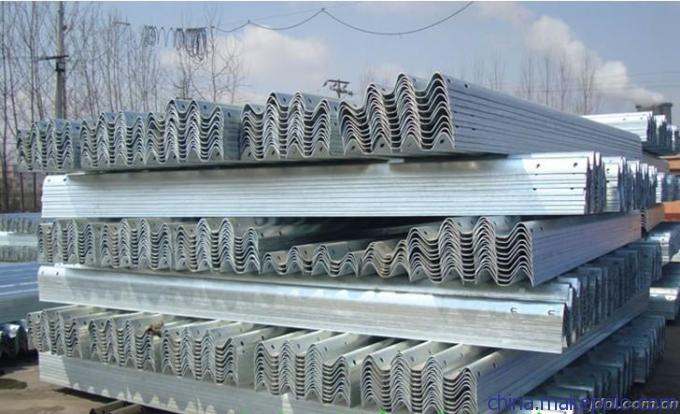

Produced Profiles: 2-wave W beam guardrail, 3-wave thrie beam guardrail

Forming Speed: 20-35m/min

控制系统： PLC full automatic intelligent control + touch screen operation

Punching & Cutting Mode: Automatic hydraulic punching + fixed-length cutting

Profile Tolerance: ±0.5mm (fully compliant with international standards)

Machine Weight: About 6800kg

Power Supply: 380V/50Hz/3Phase (customizable for different countries)

Wide Application Scope

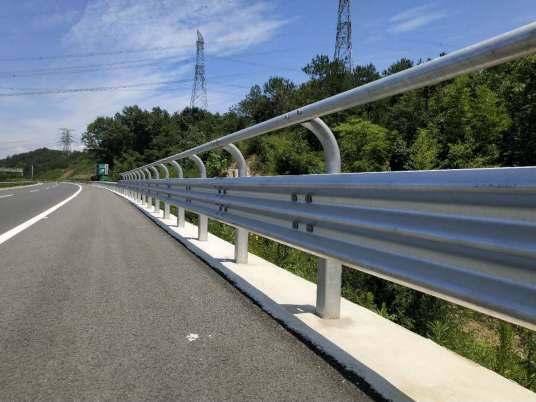

The guardrail products manufactured by our high speed highway guardrail roll forming machine feature high hardness, strong anti-collision performance, corrosion resistance and long service life, which are essential safety facilities for modern traffic engineering. The equipment is widely applicable to multiple scenarios:

National highways and urban expressways safety protection projects

Rural roads, county roads and municipal road renovation projects

Bridge guardrail and road isolation barrier construction

Highway toll station and service area safety protection facilities

Parking lot, scenic area road and factory road safety guardrails

Overseas traffic infrastructure construction and government bidding projects

Why Choose Our Highway Guardrail Forming Machine?

As a professional manufacturer of roll forming equipment, our W beam guardrail making machine has gained wide recognition from global customers with superior quality and perfect service system:

Mature R&D & Manufacturing Experience: We have over 10 years of professional experience in traffic facility roll forming equipment R&D and production. Every machine undergoes strict debugging, load testing and quality inspection before delivery to ensure stable long-term operation.

Strict International Standard Compliance: All equipment and finished products meet CE certification, EN 1317 and AASHTO M180 international standards, fully meeting the quality inspection requirements of European, American, African and Southeast Asian engineering projects.

High Cost Performance: High-speed automated production greatly improves output efficiency and reduces unit production cost. The high yield rate avoids material waste, helping customers gain stronger market competitiveness in local infrastructure bidding projects.

Full-Cycle Global After-Sales Service: We provide one-stop services including scheme customization, factory production guidance, overseas on-site installation and debugging, technical training, and long-term after-sales maintenance. Professional English-speaking technical team supports 24-hour remote after-sales service for global customers.
