As a professional manufacturer and supplier of roll forming machinery, we are dedicated to providing global customers with high-quality, efficient and cost-effective equipment for road safety infrastructure production. Our high speed guardrail forming machine is a specialized cold roll forming equipment designed to meet the growing demand of the global road construction industry, integrating high speed, precision, automation and durability to produce high-standard guardrail profiles. Whether you are engaged in highway construction, urban expressway construction, bridge safety protection or logistics park barrier fabrication, this high speed guardrail forming machine will become your core production tool, helping you improve production efficiency, reduce costs and enhance market competitiveness in the road safety equipment sector.

What Is a High Speed Guardrail Forming Machine?

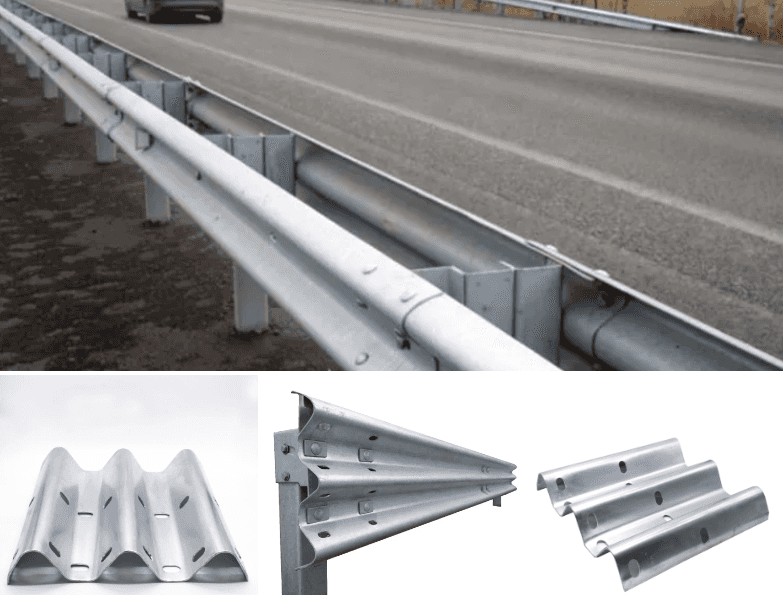

The high speed guardrail forming machine is a professional cold roll forming equipment engineered to produce high-quality road guardrail profiles through continuous, high-speed roll forming of metal coils. As a critical component of road safety infrastructure, guardrails play a vital role in protecting vehicles and pedestrians, reducing traffic accidents and controlling impact energy. Our high speed guardrail forming machine adopts advanced roll forming technology, which can efficiently process metal coils into uniform, high-precision guardrail profiles (including 2-wave and 3-wave W-beam, thrie-beam) with consistent dimensions, smooth surfaces and reliable structural performance, without damaging the material’s surface coating.

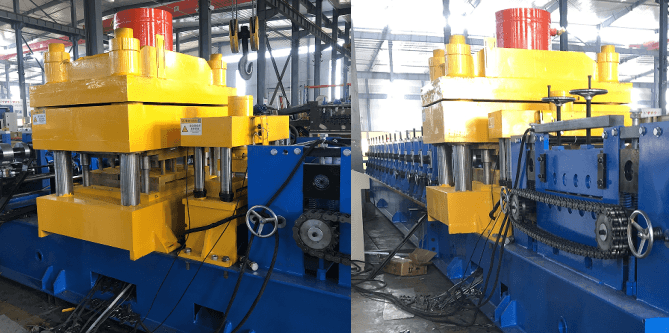

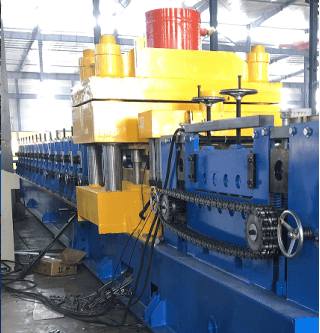

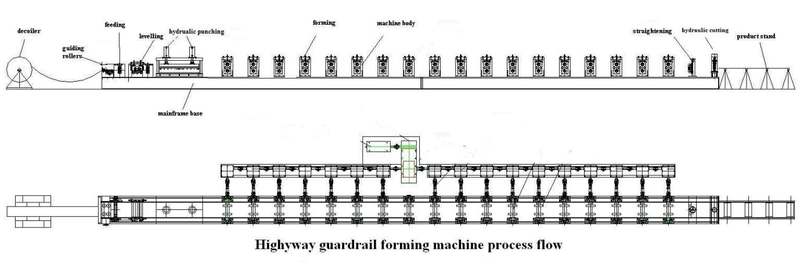

Equipped with an advanced PLC automatic control system, precise hydraulic punching and cutting devices, the machine realizes full-process automation from coil uncoiling, feeding, leveling, punching, forming to fixed-length cutting and stacking. It is widely applicable to process galvanized steel, pre-painted steel, carbon steel coils (complying with ASTM A798, EN 13230-1 and AASHTO M180 standards), producing guardrails of different specifications to meet the diverse needs of various road construction and safety protection projects around the world.

核心功能与竞争优势

Our high speed guardrail forming machine stands out in the global market with its outstanding performance, humanized design and reliable quality, bringing tangible benefits to your production and helping you gain an edge in the competitive road safety equipment market:

High-Speed & Efficient Production: With a maximum forming speed of 10-18 m/min (7-10 m/min in typical production with punching), the machine significantly improves production efficiency compared to traditional guardrail forming equipment. It integrates punching and forming into a single continuous process, eliminating the need for secondary processing and greatly shortening the production cycle, which is ideal for large-scale guardrail manufacturing projects.

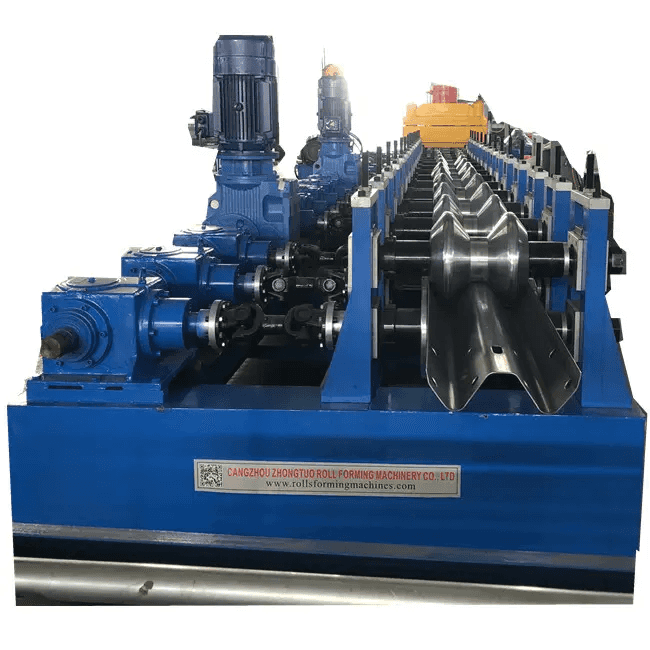

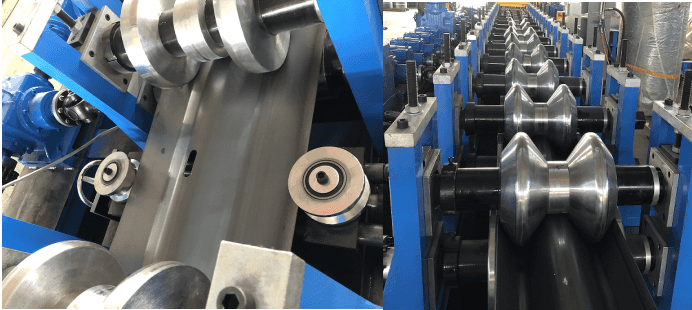

High Precision & Stable Quality: The forming rollers are made of high-quality GCR15 bearing steel, through quenching and tempering treatment and hard chrome plating, ensuring high hardness (HRC 58-62), wear resistance and long service life. The 14-22 integral roller stands precisely shape the guardrail profile, and the servo punching device achieves an accuracy of ±0.1mm, ensuring consistent cross-sectional dimensions, accurate punching positions and smooth surfaces of the formed guardrails, meeting strict international safety standards and reducing material waste.

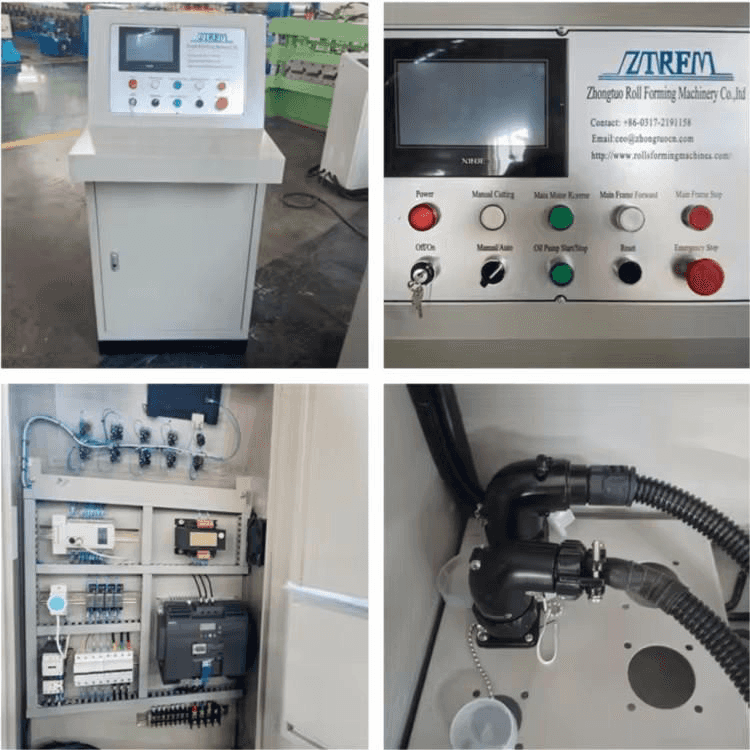

Full-Automatic Intelligent Operation: Adopts PLC touch screen control system, with functions of automatic length setting, counting, fault alarm, parameter storage and job recipe management. Operators only need simple training to master the operation, reducing labor costs and avoiding human errors. The automatic feeding, punching, forming, cutting and stacking system further improves production efficiency and reduces labor intensity, minimizing manual intervention throughout the production process.

Strong Versatility & Adjustable Specifications: The machine can be adjusted to produce 2-wave, 3-wave W-beam and thrie-beam guardrails without replacing the entire roller group, greatly improving production flexibility. It can process guardrails with a material thickness of 1.0-3.0mm, an effective width of 310-432mm, adapting to various road safety design requirements in different countries and regions.

Durable & Stable Performance: The machine frame is made of thickened high-grade structural steel (Q345B, S355JR), through welding and annealing treatment, ensuring strong stability and no deformation during long-term high-speed operation. The hydraulic cutting system adopts high-quality CR12MOV quenched steel blades, ensuring smooth cutting, low noise and long service life, with cutting accuracy up to ±1.5mm for 3m guardrail sections.

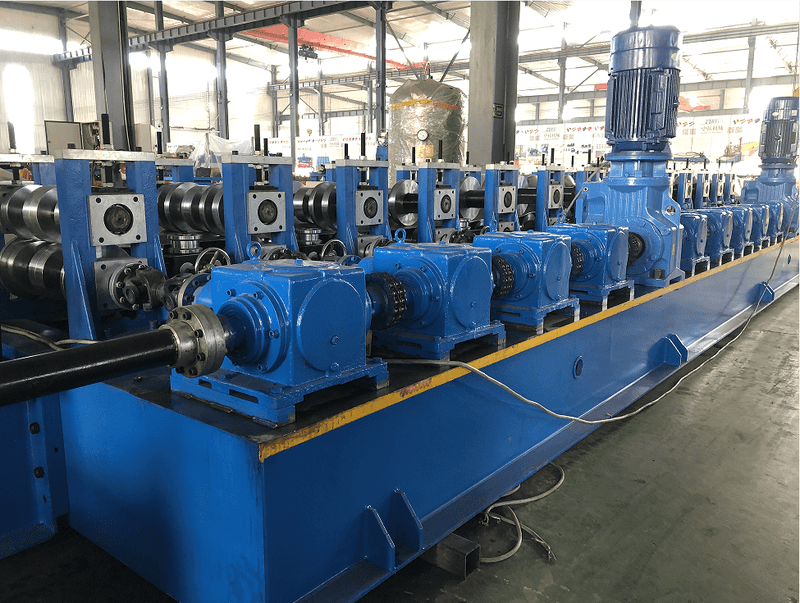

Energy-Saving & Cost-Effective: Equipped with a high-efficiency frequency conversion motor, the machine can adjust the power output according to the production speed, saving energy by 15-20% compared to traditional machines. The hydraulic pre-cutting device reduces scrap and raw material waste by 15% compared to post-cutting systems, maximizing material utilization rate. The integrated design reduces maintenance costs and extends the machine’s service life.

Customizable Solutions & Global Compliance: We provide customized services according to your specific needs, including profile design, material types, production speed, voltage standards and compliance with local safety certifications. Whether you need to adapt to local road safety standards or process special materials, we can tailor the machine to meet your actual production needs, helping you confidently meet the demand from international and domestic buyers.
