A high speed guardrail forming machine is a professional cold roll forming equipment specially designed for mass production of highway safety guardrails. Also known as highway guardrail roll former, it is mainly used for continuous production of W-beam guardrails, Thrie-beam guardrails and other road safety metal profiles. With the continuous construction of global highway, municipal road and traffic safety infrastructure, standardized, high-strength and anti-collision road guardrails are in huge market demand.

Our fully automatic highway guardrail forming machine integrates coil feeding, leveling, punching, continuous roll forming, hydraulic cutting and automatic discharging. It completely solves the problems of low output, unstable size and poor profile uniformity of traditional guardrail production equipment. The finished guardrail products feature high hardness, smooth surface and standard bending radian, fully complying with international road safety standards. This equipment is widely exported to Southeast Asia, Africa, the Middle East, Europe and other regions, and is the preferred production equipment for traffic safety facility manufacturers.

核心产品优势

Road guardrail products have extremely strict requirements on structural strength, dimensional accuracy and batch consistency. Different from ordinary profile forming machines, our road guardrail roll forming machine is professionally optimized for traffic safety facilities production standards, with obvious technical and production advantages:

Ultra-High Forming Precision, Meet Traffic Safety Standards

The equipment adopts high-precision alloy forming rollers and servo tracking control system. The overall dimensional tolerance is controlled within ±0.3mm, ensuring consistent W-beam and three-wave beam radian, uniform plate thickness and flat surface without deformation or burrs. All finished guardrails meet ISO road safety specifications and national highway engineering standards. The precise forming effect ensures stable anti-collision performance and seamless on-site installation, effectively reducing project rework rate.

High-Speed Continuous Production, Greatly Improve Output

As a professional high speed guardrail roll former, this equipment is optimized for high-efficiency batch production. The stable running speed reaches 25-40 meters per minute, supporting 24-hour uninterrupted continuous production. The whole line realizes fully automatic operation from raw material feeding to finished product stacking, without manual intervention in the middle process. Compared with conventional guardrail forming equipment, the production capacity is increased by more than 90%, which can help manufacturers undertake large-scale highway engineering orders and shorten delivery cycles.

Multi-Functional Compatibility, Support Multi-Spec Production

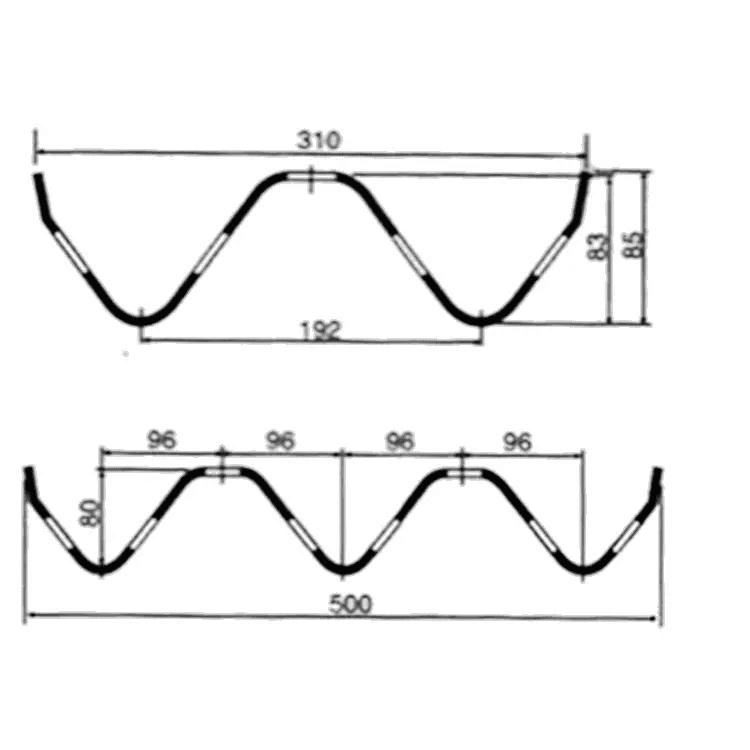

This equipment has strong production flexibility and can realize multi-purpose production by replacing molds and adjusting parameters. It can produce 2-wave W-beam guardrails, 3-wave highway guardrails, curved guardrails and other mainstream road safety profiles. It supports processing of hot-dip galvanized steel, color-coated steel and other raw materials with a thickness of 2.0mm-4.0mm, adapting to different road grade construction requirements. We also provide customized mold development services for special guardrail specifications to meet personalized market demands.

Reinforced Heavy-Duty Body, Stable and Durable

The whole machine adopts thickened heavy-duty steel plate integral welding structure, with high overall rigidity and strong anti-vibration performance. It can maintain stable high-speed operation for a long time without shaking or displacement. The forming rollers and punching dies are made of high-strength alloy materials, which are treated with quenching and wear-resistant processes, featuring long service life and low wear loss. The modular structural design simplifies daily maintenance, greatly reducing later operation and maintenance costs for customers.

Intelligent PLC Control, Simple and Labor-Saving Operation

Equipped with industrial-grade PLC touch screen intelligent control system, the equipment supports one-key start, automatic parameter setting, fixed-length cutting and automatic counting. It can store multiple sets of production parameters for different guardrail specifications, realizing rapid switching of different products. The built-in fault self-diagnosis system can timely alarm and display faults, which is convenient for quick troubleshooting. Ordinary workers can master the operation in a short time, greatly reducing the threshold of equipment use.

广泛的应用场景

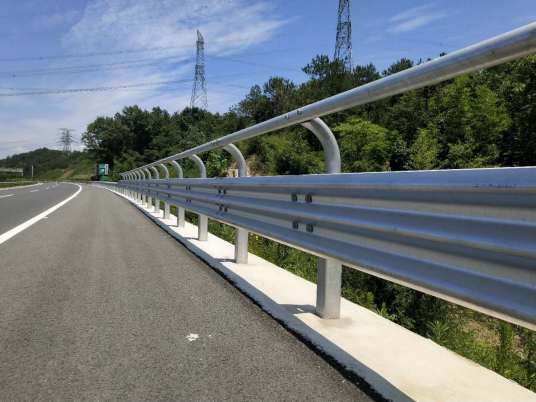

Our high-efficiency automatic highway guardrail forming machine is widely used in the production of various traffic safety guardrail facilities, covering national highways, municipal roads and special road engineering projects:

Expressway W-beam and Thrie-beam safety guardrails

Municipal urban road and suburban highway protective guardrails

Rural highway and township road anti-collision guardrail facilities

Bridge, tunnel and highway special protective guardrails

Custom curved and deformed road safety guardrails for engineering projects

The guardrails produced by the equipment have strong anti-collision resistance, corrosion resistance and weather resistance, adapting to high temperature, heavy rain, strong wind and other harsh outdoor environments, ensuring long-term stable use of road safety facilities.

Standard Production Process

Our high-speed guardrail forming production line adopts standardized automated process flow, with smooth operation and ultra-low failure rate. The whole process realizes unmanned assembly line production:

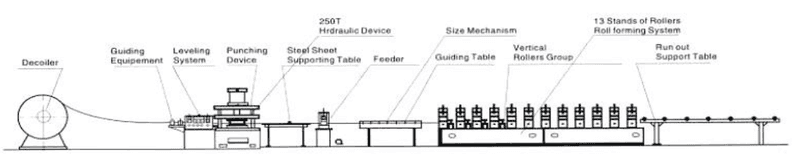

Steel coil automatic feeding → mechanical leveling & straightening → precise hydraulic punching → multi-pass high-speed roll forming → servo fixed-length cutting → automatic material receiving & stacking

The whole production process is digitally controlled with high synchronization and precise parameter matching, which effectively ensures the consistency and stability of each batch of guardrail products and avoids quality differences caused by manual operation errors.

Why Choose Our High Speed Guardrail Forming Machine

We are a professional manufacturer focusing on the R&D and production of traffic safety facility forming equipment. With years of experience in serving global road facility manufacturers, we provide high-quality, high-efficiency and cost-effective roll forming equipment and one-stop solutions for overseas customers:

Factory Direct Sales: No middleman agency fee, providing competitive ex-factory price and exclusive customized production scheme

Strict Quality Control: All equipment undergoes 72-hour high-speed continuous operation test and precision calibration before shipment to ensure stable operation

Customized Service: Support non-standard equipment and mold customization according to customer product drawings and engineering needs

Complete After-Sales System: Provide overseas installation guidance, technical training, remote after-sales support and long-term maintenance service

Guaranteed Delivery: Standard models are in stock, customized equipment is produced on schedule to ensure customer project progress
