Our high-speed corrugated roof panel roll forming machine is a professional, high-efficiency cold roll forming unit specially designed for mass production of high-quality wave-shaped (corrugated) roof panels. As a widely used functional and decorative building material, corrugated roof panels are favored for their excellent waterproof, wind-resistant and load-bearing performance, widely applied in industrial workshops, warehouses, residential buildings, agricultural greenhouses and commercial sheds worldwide. Engineered with high-speed forming technology and intelligent control system, this machine integrates automatic coil uncoiling, precision leveling, corrugated roll forming, fixed-length flying shear cutting and automatic stacking into a seamless workflow, providing a high-speed, high-precision and cost-effective production solution for global building material manufacturers and construction contractors.

核心优势和主要功能

High-Speed Forming Technology, Ultra-Efficient Production

The core highlight of this machine is its high-speed integrated forming system, optimized by professional structural design and high-power transmission components, achieving a stable working speed of 25-40m/min — 30% faster than ordinary corrugated forming machines. It supports 24-hour uninterrupted continuous production, with daily output far exceeding traditional models. The built-in high-precision flying shear cutting function enables fixed-length cutting without stopping the production line, maximizing production efficiency and effectively shortening order delivery cycles, perfectly meeting large-scale batch production demands.

Professional Corrugated Forming, Perfect Wave Shape

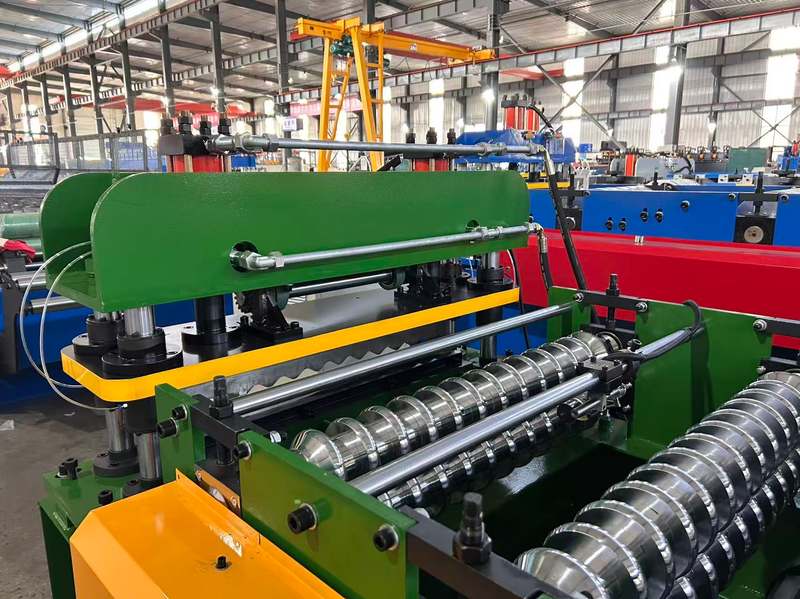

Equipped with a specialized corrugated roller system, professionally designed and calibrated to produce uniform, smooth wave-shaped roof panels with standard wave height and spacing (compatible with global mainstream specifications such as 760mm, 820mm, 840mm). The multi-stage gradual forming process ensures the wave shape is consistent, full and natural, with no wrinkles, cracks or deformation, avoiding the common problem of uneven wave shape and loose structure in ordinary machines. Finished corrugated panels have strong structural rigidity, excellent waterproof performance and aesthetic appearance, adapting to various architectural needs.

高精度控制，产品质量稳定

Driven by imported high-speed servo motors and high-precision positioning encoders, the machine controls product size tolerance within ±0.5mm, ensuring every corrugated panel has consistent wave spacing, wave height, width and thickness. The forming rollers are made of high-grade 45# carbon steel, processed by precision grinding and hard chrome plating, featuring excellent wear resistance and long service life, maintaining stable forming quality even in long-term high-speed operation. The optimized forming route protects the panel surface from scratches, keeping it smooth and intact, greatly improving product qualification rate.

Heavy-Duty Stable Structure, Reliable Operation

Built for long-term high-speed industrial use, the main frame adopts thickened high-strength welded steel plate with overall annealing treatment, featuring high rigidity, excellent shock resistance and zero deformation even under continuous high-load operation. The transmission system uses high-precision gearbox and high-strength chain drive, running smoothly with low noise and minimal wear, ensuring stable operation at high speed. Key electrical components adopt international premium brands such as Siemens and Schneider, guaranteeing low failure rate and reduced downtime.

广泛的兼容性和强大的多功能性

This machine is highly adaptable to various metal coil materials, including color-coated steel, galvanized steel, aluminum-zinc coated steel and aluminum alloy, with a material thickness range of 0.3mm-1.0mm, covering mainstream raw materials for corrugated roof panels in the global market. It supports quick adjustment of wave specifications and panel width, and can produce both single-wave and multi-wave roof panels, adapting to different regional building standards and project-specific needs. It also supports customized wave shape and size design, realizing one machine for multi-purpose use.
