In the global logistics and warehousing industry, the demand for efficient, sturdy, and space-saving storage solutions is growing rapidly. As the core component of storage racks, high-precision shelf columns directly determine the load-bearing capacity, stability, and service life of the entire rack system. As a professional foreign trade company focusing on roll forming equipment, we are committed to providing global customers with reliable, cost-effective shelf column forming machines that integrate advanced technology, stable performance, and easy operation, helping you gain a competitive edge in the fierce storage equipment market.

What Is a Shelf Column Forming Machine?

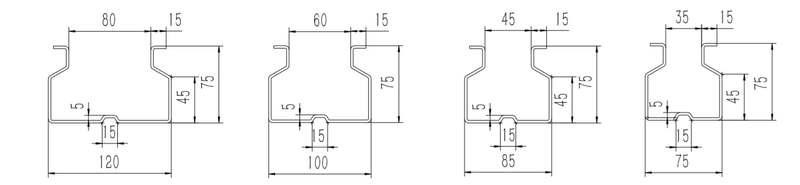

A shelf column forming machine is a specialized roll forming equipment that processes metal coils (such as Q235, Q355, galvanized steel, and stainless steel) into high-precision shelf columns through continuous cold roll forming, punching, notching, cutting, and straightening processes. Shelf columns produced by this machine are widely used as the main load-bearing structure of various storage racks, including heavy-duty pallet racks, medium-duty storage racks, light-duty shelf systems, and automated warehouse racks. Unlike traditional cutting and welding methods, our advanced roll forming technology shapes the metal strip into the desired column profile (such as C-shaped, U-shaped, or custom profiles) in one continuous process, ensuring uniform thickness, precise size, and strong structural strength of the finished product.

Whether you need shelf columns for industrial warehouses, logistics centers, retail stores, or automated storage systems, our machines can be customized to meet your specific production needs, with stable operation, low energy consumption, and minimal material waste, making them the core equipment for modern storage rack manufacturing enterprises.

我司货架立柱成型机的核心优势

Advanced Continuous Roll Forming Technology

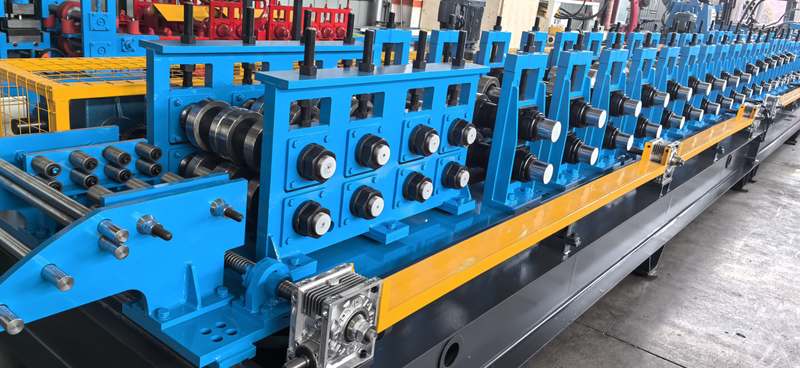

Adopting the latest continuous cold roll forming process, our machines are equipped with 18-28 precision roller stations that gradually bend the metal coil into the standard or custom shelf column profile (C/U/Z shape). The integrated forming system eliminates the need for multiple processing steps, and the interchangeable roller sets allow quick switching between different column specifications—only simple adjustments are required, saving more than 75% of roller replacement time and reducing roller costs by over 55% compared with traditional processes. This not only improves production efficiency but also effectively reduces your overall production costs, while the continuous forming process ensures consistent product quality and reduces material waste by 2-4%.

High Precision & Stable Load-Bearing Performance

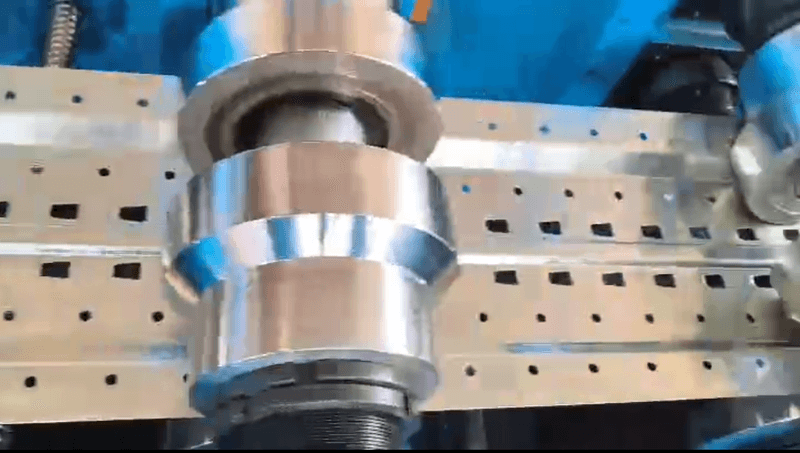

Equipped with a high-precision PLC control system and servo motor adjustment, the machine realizes automatic flexible adjustment of roller position, punching position, notching size, and cutting length, with a dimensional error as small as ±0.5mm. The forming rollers are made of high-wear-resistant GCR15 material,through overall quenching treatment, with a hardness of HRC 58-62, which greatly extends the service life of the equipment and ensures the smooth surface, uniform thickness, and clear edges of the finished shelf columns. The produced columns have strong load-bearing capacity, good straightness, and no deformation, fully meeting international industry standards and can withstand heavy loads for long-term use.

High Efficiency & Energy Saving

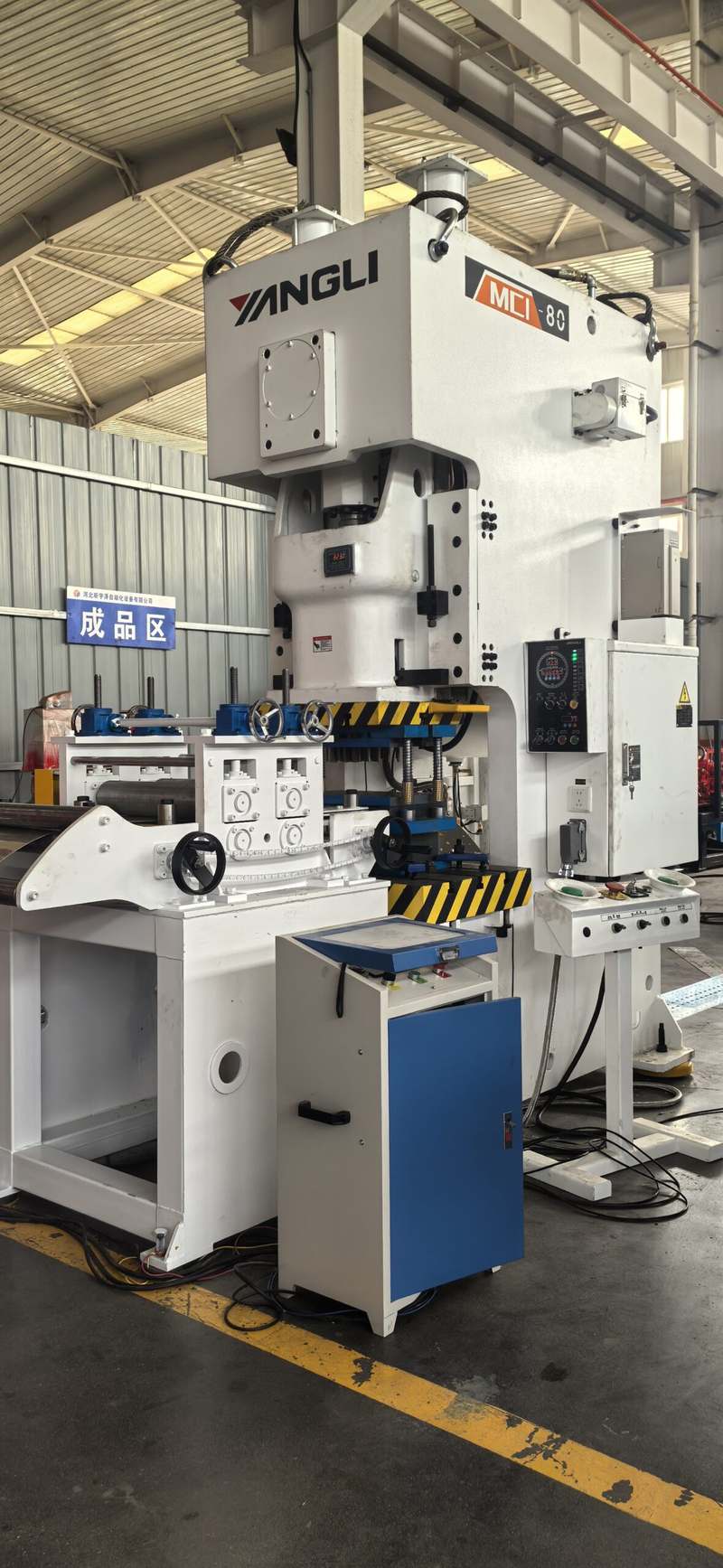

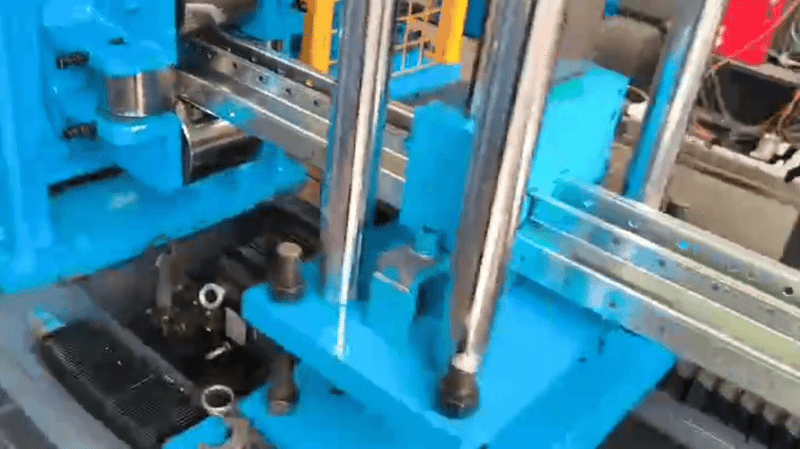

Our shelf column forming machines have a production speed of 3-40 m/min (adjustable according to product specifications), realizing continuous and efficient mass production, which is far higher than the industry average level. The optimized drive system and energy-saving motor design reduce energy consumption by more than 30% compared with traditional machines. The integrated automatic punching, notching, and cutting functions eliminate the need for secondary processing, further improving production efficiency and reducing labor costs by 20%. A single machine can meet the daily production needs of small and medium-sized enterprises, and the production line can be expanded to realize large-scale mass production.

Strong Versatility & Customization

Our machines support a wide range of product specifications, with shelf column thickness ranging from 1.0mm to 6.0mm, width from 50mm to 300mm, and height from 1000mm to 6000mm (customizable). They are compatible with various raw materials such as carbon steel, galvanized steel, and stainless steel coils. We provide OEM/ODM customization services according to your specific needs, including column profile (C/U/Z shape, custom special shapes), punching spacing, notching size, production speed, and additional functions (such as embossing, hole punching for crossbeams), to perfectly match your storage rack production line and market demand. We also offer both standard and custom models to meet different production scales.

Easy Operation & Reliable After-Sales Service

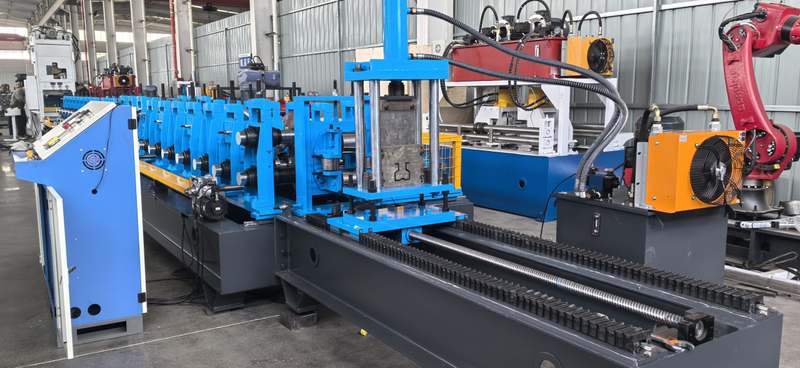

The machine is equipped with an intuitive LCD touch screen man-machine interface, with simple operation steps, supporting both manual and automatic modes—ordinary workers can get started after 1-2 days of training, reducing the difficulty of personnel management. The entire production line is equipped with emergency stop buttons, protective covers, and fault alarm systems, ensuring the safety of operators and equipment. We provide a 1-year quality guarantee, and our professional after-sales team offers 24/7 online guidance, on-site installation, debugging, and maintenance services. We also provide long-term spare parts supply and technical training services to help you maximize the value of the equipment and ensure stable operation of the production line.
