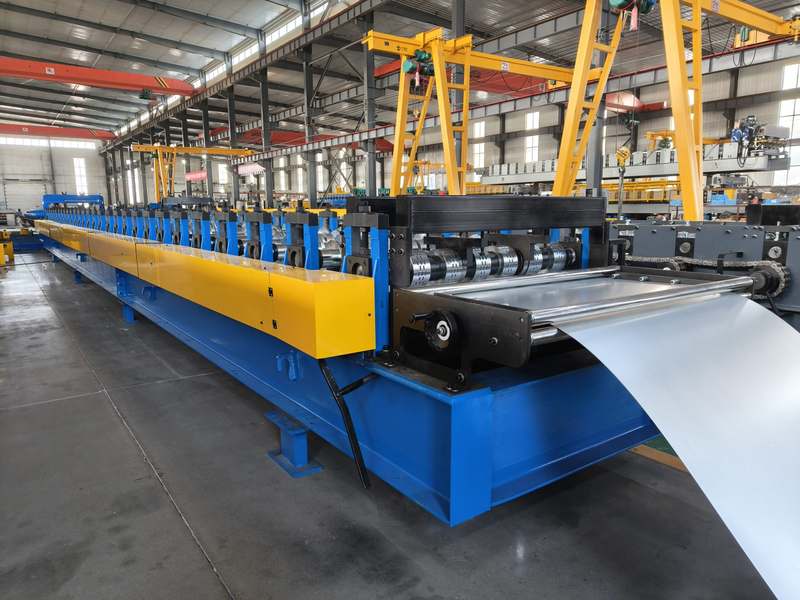

Floor deck roll forming machine is a professional automated cold roll forming equipment dedicated to manufacturing high-strength steel floor deck panels for steel structure buildings. It processes galvanized steel coils, aluzinc steel coils and carbon steel coils into standardized floor deck sheets through precise cold bending and rolling technology. The produced floor decking serves as a permanent concrete formwork for building floors, featuring high bearing capacity, strong stability and excellent seismic performance. This equipment is a core essential machine for modern steel construction material factories, engineering contractors and building structure manufacturers worldwide.

With the rapid development of global modern construction, large-span steel structure buildings have become mainstream in industrial, commercial and public infrastructure projects. Traditional floor formwork solutions are time-consuming, labor-intensive and low in structural stability, unable to meet high-standard engineering requirements. Our high-performance floor deck roll forming machine solves industry pain points perfectly. It supports mass production of various open-type and closed-type floor deck panels, helping overseas customers improve production efficiency, reduce construction costs and obtain high-quality standardized building steel components. As a professional foreign trade machinery supplier, our equipment has been widely exported to Southeast Asia, Africa, the Middle East, Europe and other global markets with stable quality and high cost performance.

Core Advantages of Floor Deck Roll Forming Machine

Different from ordinary roof tile forming machines, our floor deck roll forming machine is specially optimized for heavy-load building floor structural panels. It focuses on molding precision, structural strength and production stability, with multiple competitive advantages suitable for large-scale engineering supporting material production.

1.1 High-precision Molding, Standard Structural Size

The equipment adopts multi-group precision alloy roller sets and imported servo positioning system, with a molding size error controlled within ±1mm. All produced floor deck panels feature neat edges, uniform groove depth and consistent radian, fully complying with international steel structure construction standards. The standardized profile ensures perfect fitting during on-site installation, effectively avoiding installation gaps and structural instability caused by dimensional deviation, and guarantees the overall bearing performance of building floors after concrete pouring.

1.2 High Bearing Capacity Profile, Excellent Engineering Adaptability

Optimized rolling pass design makes the floor deck panel form a scientific ribbed structure. The processed steel deck has strong tensile strength, compression resistance and seismic performance. It can effectively bear the weight of concrete and construction loads during construction, and can be integrated with concrete to form a stable floor system after solidification. It is applicable to high-rise buildings, large-span workshops and heavy-load engineering projects, far superior to traditional temporary formwork in safety and durability.

1.3 Fully Automatic Operation, High Production Efficiency

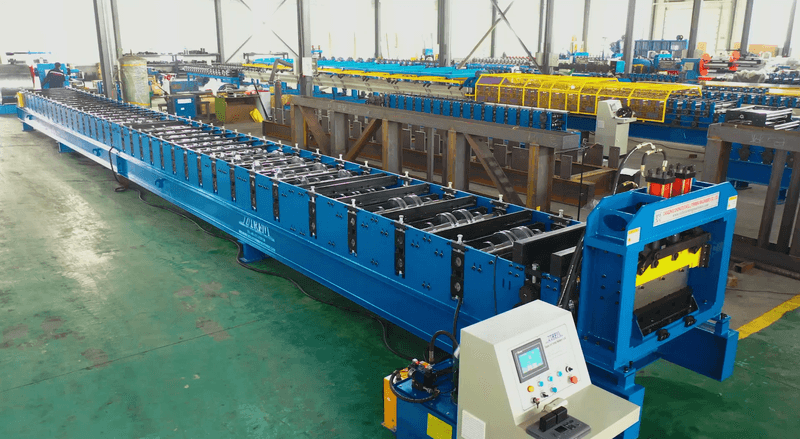

Equipped with intelligent PLC full-automatic control system, the machine realizes one-key unmanned operation covering automatic feeding, leveling, continuous rolling forming, hydraulic fixed-length cutting and finished product output. The production speed can reach 15-20 meters per minute, supporting continuous batch production. Built-in intelligent counting and fault self-checking system monitors equipment operation status in real time, reduces manual intervention, saves labor costs and greatly improves factory production capacity.

1.4 Heavy-duty & Durable Structure, Low Maintenance Cost

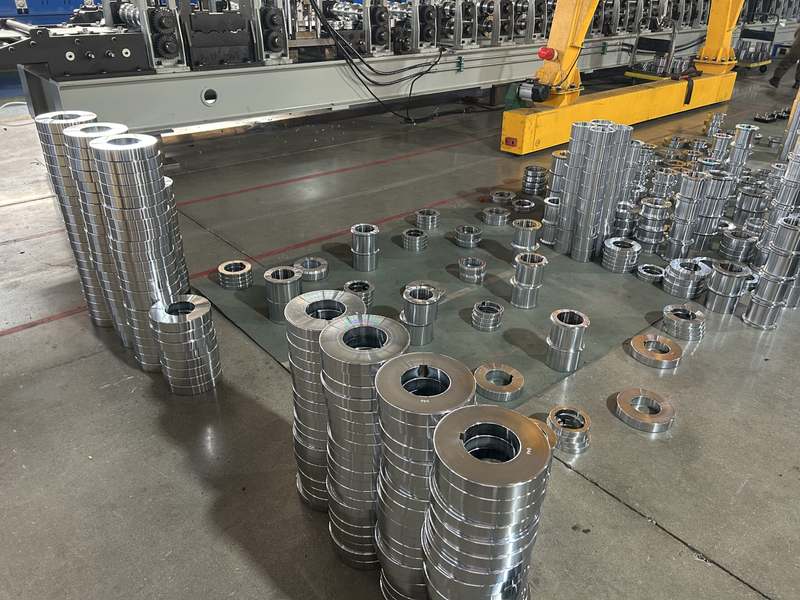

The main fuselage is welded with thickened high-strength steel plates and undergoes high-temperature aging treatment to eliminate internal stress, ensuring no deformation or severe vibration during long-term high-load operation. The forming rollers are made of high-quality alloy steel with hard chrome plating and high-frequency quenching treatment, featuring wear resistance, corrosion resistance and long service life. All wearing parts adopt standardized universal design, with simple disassembly and replacement, low daily maintenance difficulty and operating cost, and the overall equipment service life can exceed 15 years.

1.5 Energy-saving & Eco-friendly, Comply with Global Standards

The equipment is equipped with variable frequency energy-saving motors and optimized transmission structure, which effectively reduces idle power consumption and saves about 20% of electric energy compared with ordinary equipment. The whole production process adopts physical cold bending molding without high-temperature processing, no waste material discharge and low operating noise. It fully meets international environmental protection requirements and green factory certification standards, helping global building materials enterprises achieve low-carbon and environmentally friendly production.

Working Principle & Production Process

The floor deck roll forming machine adopts advanced cold roll forming technology. It uses multi-pass gradual rolling process to flatten and bend metal steel coils into preset floor deck profiles at room temperature, which will not damage the physical properties and surface coating of raw materials. The whole production process is stable and efficient, ensuring uniform structural strength of finished products.

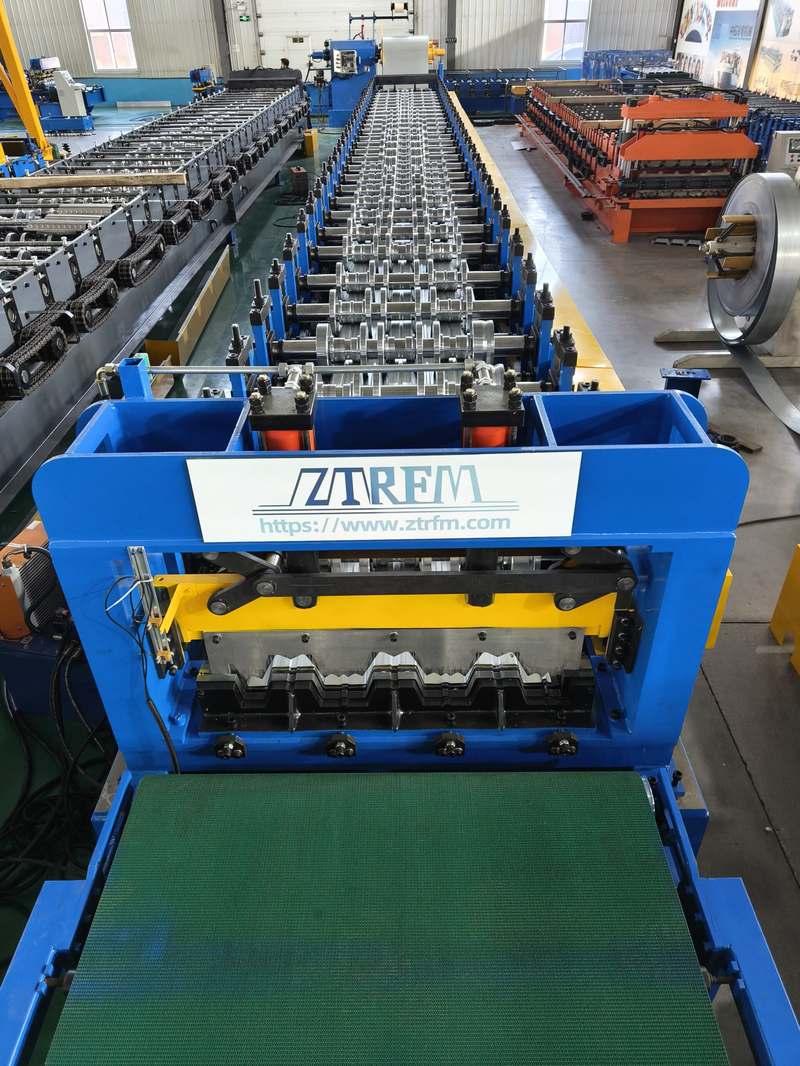

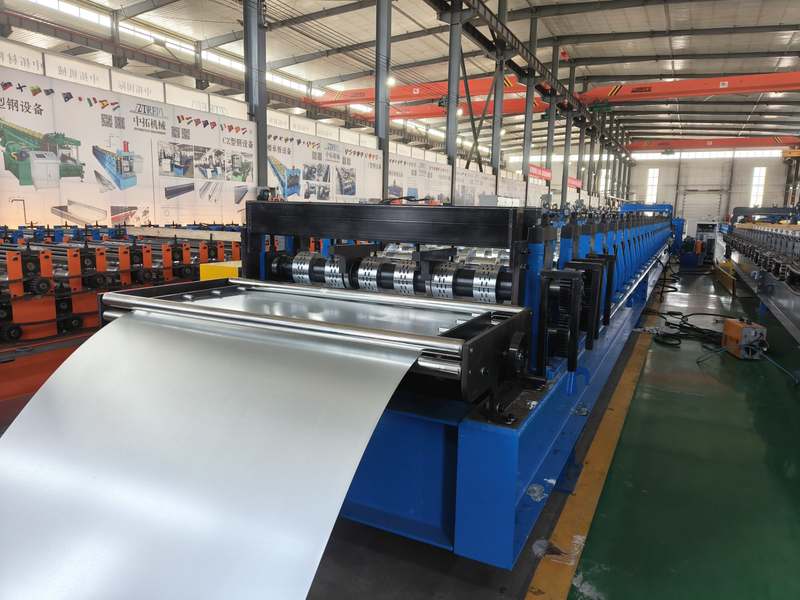

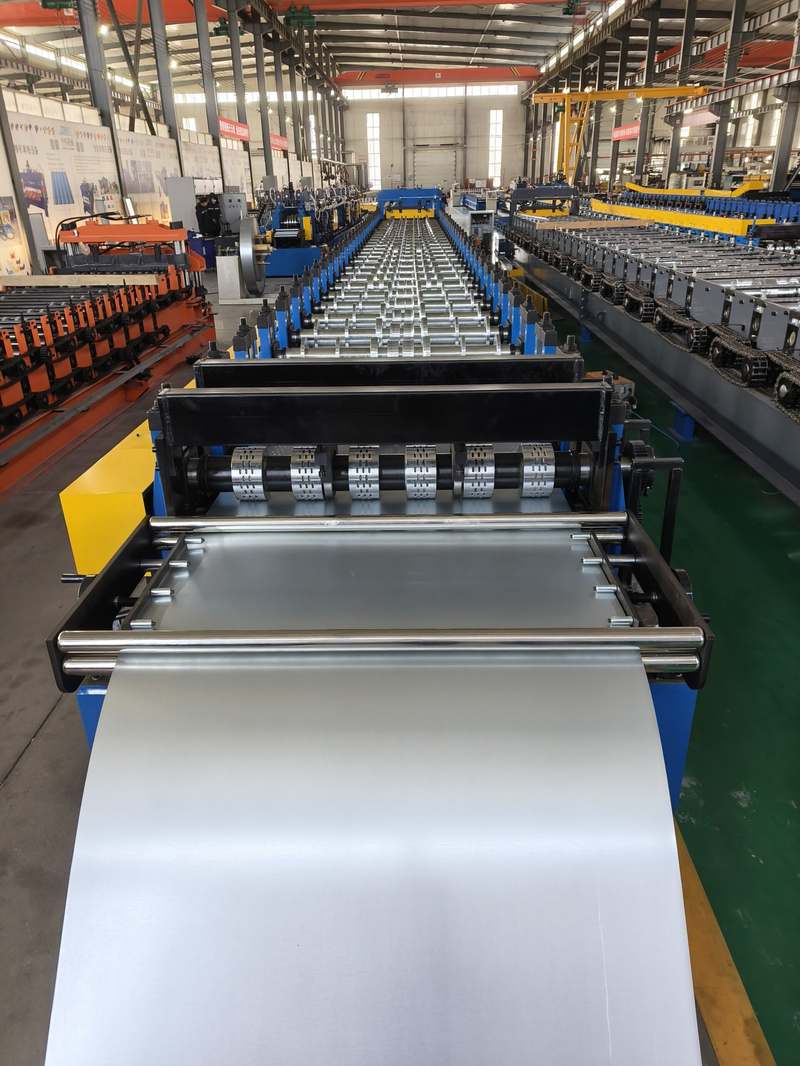

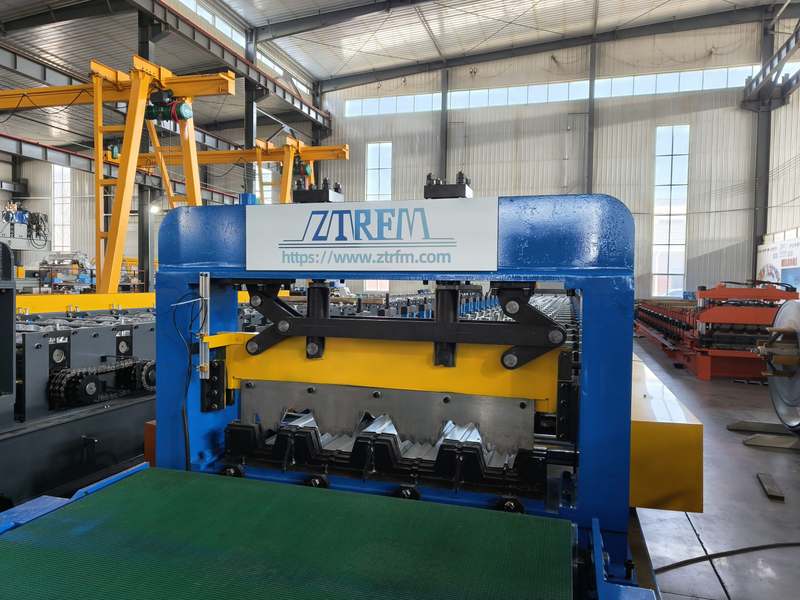

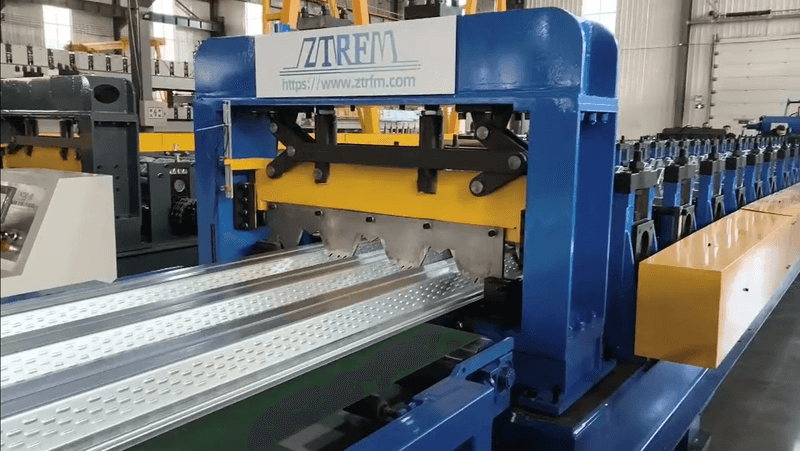

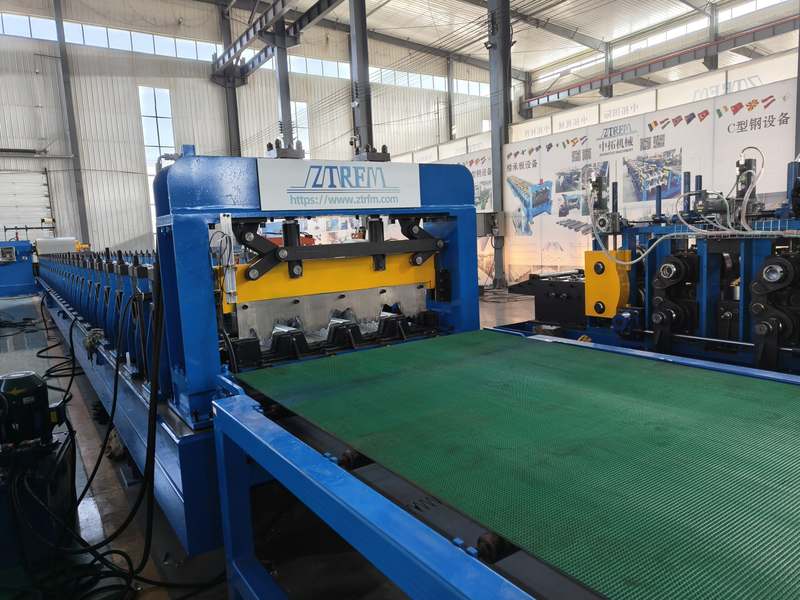

Complete standardized production workflow: First, the steel coil raw material is placed on the automatic uncoiler for stable feeding; the leveling device flattens the curled and uneven steel plate to ensure flat feeding; then multiple groups of precision rollers perform gradual cold bending and rolling to form standard ribbed floor deck structures; finally, the hydraulic cutting system automatically cuts the deck panels according to the customized length, and finished products are output through the discharging platform. The whole process is intelligently controlled with stable molding and ultra-high yield.

Main Technical Parameters (Customizable)

We support personalized customization of multiple floor deck models (open type, closed type, profiled type) and parameters to meet different national construction codes and engineering needs. The conventional core parameters are as follows:

Applicable raw materials: galvanized steel coil, aluzinc steel coil, cold-rolled steel coil

Raw material thickness: 0.7mm-1.6mm (customizable)

Common production models: YX50-338-1000, YX70-305-914, YX65-185-555 closed floor deck

Effective deck width: 555mm-1000mm (customized)

Production speed: 15-20 m/min

Control system: PLC intelligent control + touch screen operation

Cutting precision: ±1mm

Total motor power: 18.5KW-22KW

Overall dimension: 15500mm×1400mm×1300mm

Equipment weight: about 6.5 tons

广泛的应用场景

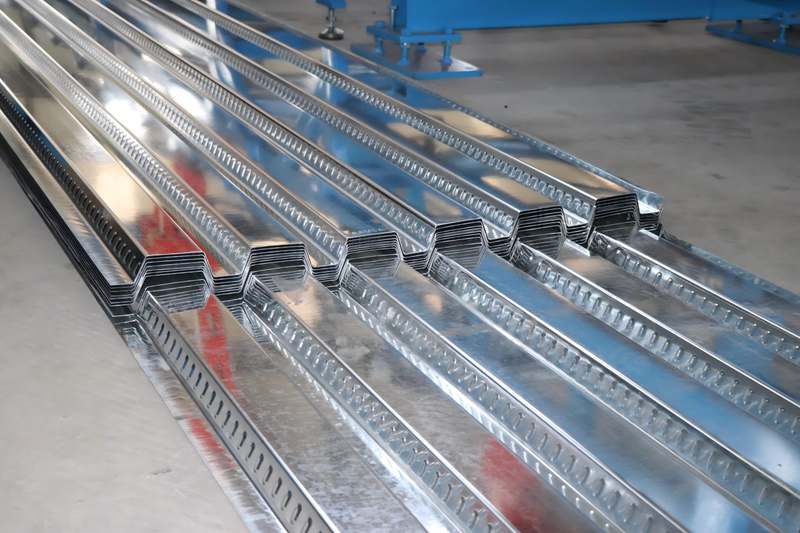

The floor deck panels produced by our equipment have high structural strength, strong seismic resistance and good concrete bonding performance, which are widely used in various large and medium-sized steel structure building projects worldwide:

Industrial buildings: large steel structure workshops, warehouses, logistics parks, factory buildings

Commercial buildings: shopping malls, office buildings, hotels, exhibition centers, commercial complexes

Public infrastructure: airport terminals, railway stations, stadiums, exhibition halls, school buildings, hospitals

High-rise buildings:high-rise residential buildings, urban landmark buildings, comprehensive office buildings

Special engineering: large-span space structures, municipal engineering supporting buildings

Why Choose Our Floor Deck Roll Forming Machine?

5.1 Professional Manufacturing & International Certification

We are a professional roll forming machinery manufacturer with rich overseas export experience. All our floor deck roll forming machines strictly comply with ISO and CE international quality standards, and have passed multiple professional mechanical performance tests. Our equipment has stable operation performance and reliable structural quality, and has been recognized by customers in more than 50 countries and regions, enjoying a good overseas market reputation.

5.2 Full Customization & One-stop Engineering Solution

We do not provide single standardized equipment. According to local building structure standards, engineering load requirements and customer production scale, we provide exclusive model customization, profile adjustment, parameter optimization, production, packaging and export one-stop services. Our professional foreign trade technical team provides whole-process docking to ensure that the equipment perfectly matches the local mainstream floor deck specifications and market demands.

5.3 Complete Global After-sales System

We provide 24-month free warranty and lifelong technical maintenance services for all equipment. We offer 24/7 multilingual remote after-sales support, including equipment commissioning, operational training, fault troubleshooting and daily maintenance guidance. For large engineering order customers, we can provide overseas on-site installation, commissioning and technical training services to completely solve cross-border equipment usage worries.

FAQ

Q1: Can the machine produce different types of floor deck panels?

A1: Yes. Our floor deck roll forming machine supports customized mold replacement and parameter adjustment. It can produce open-type, closed-type and profiled floor deck panels of various mainstream models, meeting the diverse needs of different engineering projects and market sales.

Q2: Is the equipment suitable for novice workers to operate?

A2: The equipment adopts intelligent touch screen integrated operation, with simple and intuitive interface and one-key start function. We will provide complete English operation manuals, operation videos and professional technical training. Novice workers can proficiently master the operation and daily maintenance skills in a short time.

Q3: What is the delivery cycle and export packaging standard?

A3: Standard floor deck forming equipment has a delivery cycle of 12-18 working days; customized special models take 20-28 working days. We adopt steel frame + waterproof tarpaulin + wooden box reinforced packaging, with shockproof and rust-proof treatment, fully adapting to long-distance ocean transportation and cross-border logistics.
