Cut to Length Production Line

In the modern metal processing and manufacturing industry, precision sheet blanking is a fundamental process that determines the quality and efficiency of downstream production. A Cut to Length (CTL) Production Line is a fully automated, integrated coil processing system designed to convert continuous metal coils into flat, dimensionally accurate sheets of preset lengths. By integrating uncoiling, leveling, feeding, precise shearing and automatic stacking into one streamlined workflow, CTL lines have become indispensable core equipment in automotive manufacturing, construction, home appliance production and metal material processing industries, effectively solving the problems of low precision, high material waste and heavy manual labor in traditional sheet cutting processes.

Core Definition and Working Principle

A cut to length production line is a specialized automated production system that processes coiled raw materials (mainly various metal coils) into standard flat sheets according to customized length parameters. Its core working principle relies on synchronous coordination of mechanical transmission, servo control and intelligent detection systems. The whole process realizes continuous and uninterrupted material processing: the raw metal coil is steadily uncoiled, the curved coil material is leveled to eliminate internal stress and surface curvature, the servo feeding system accurately controls the feeding length in real time, and the high-speed shearing mechanism completes fixed-length cutting. Finally, the finished sheets are automatically conveyed, sorted and stacked to obtain flat, neat and dimensionally qualified finished products.

Different from traditional intermittent cutting equipment, modern CTL lines adopt closed-loop servo control logic. The system automatically calibrates feeding errors through real-time length detection sensors, ensuring that the cutting tolerance is controlled within a ultra-fine range. It supports both free-loop flexible operation and tight-line continuous operation modes, which can adapt to high-speed mass production and small-batch customized processing scenarios respectively, achieving a perfect balance between production efficiency and processing accuracy.

Main Structural Components of CTL Production Line

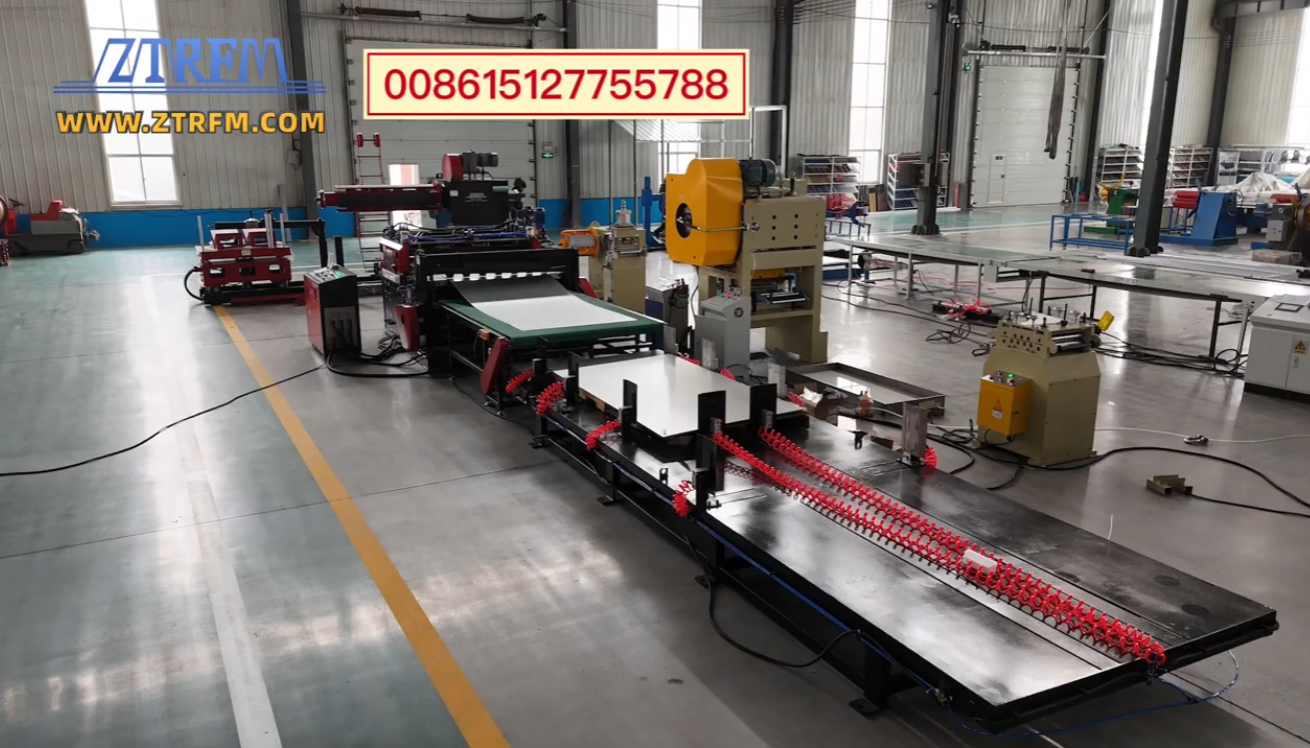

A complete industrial-grade cut to length production line adopts a modular integrated design, with each functional module operating independently and cooperating synchronously. The core components include the following units, which jointly support the stable and efficient operation of the whole line:

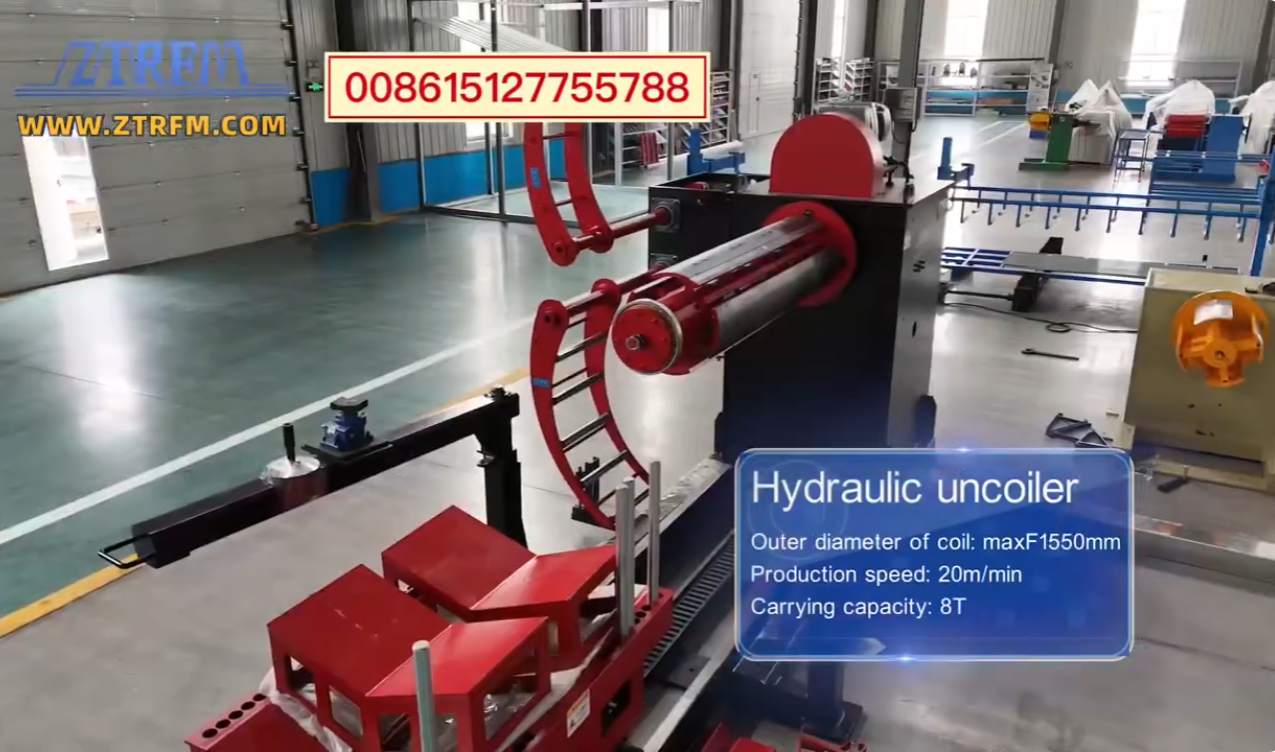

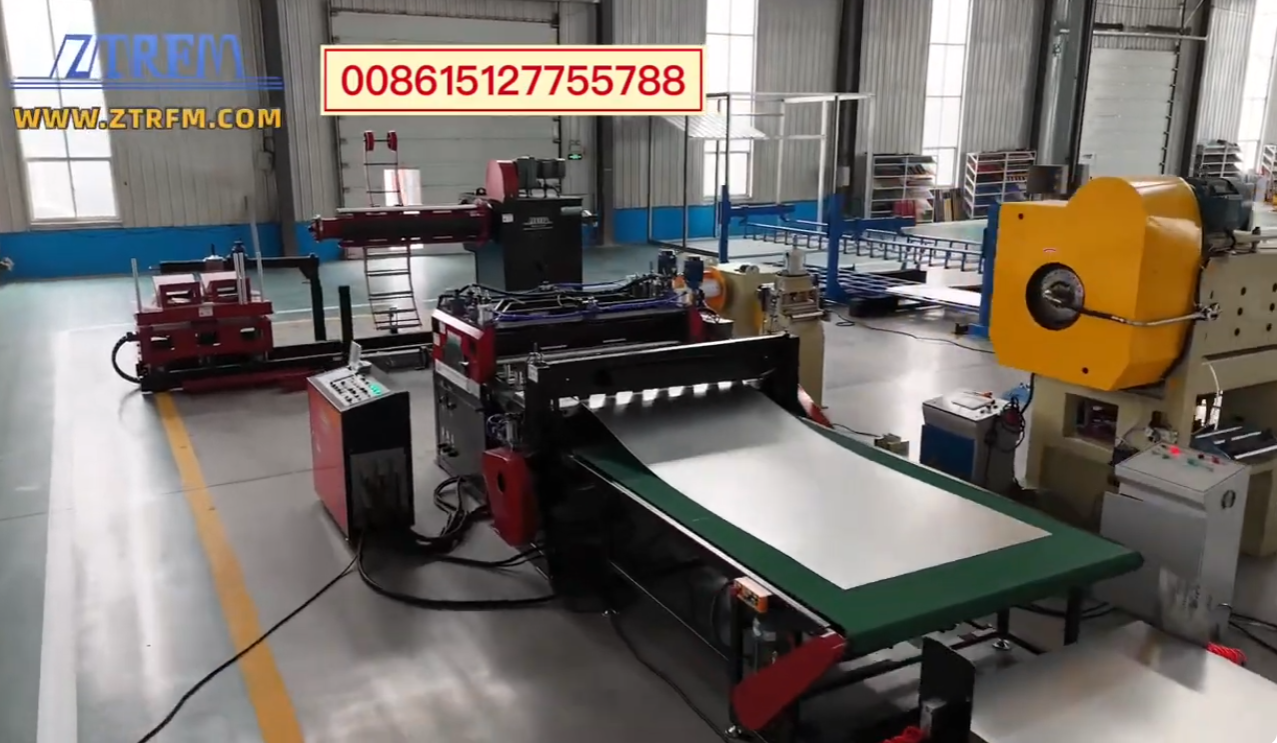

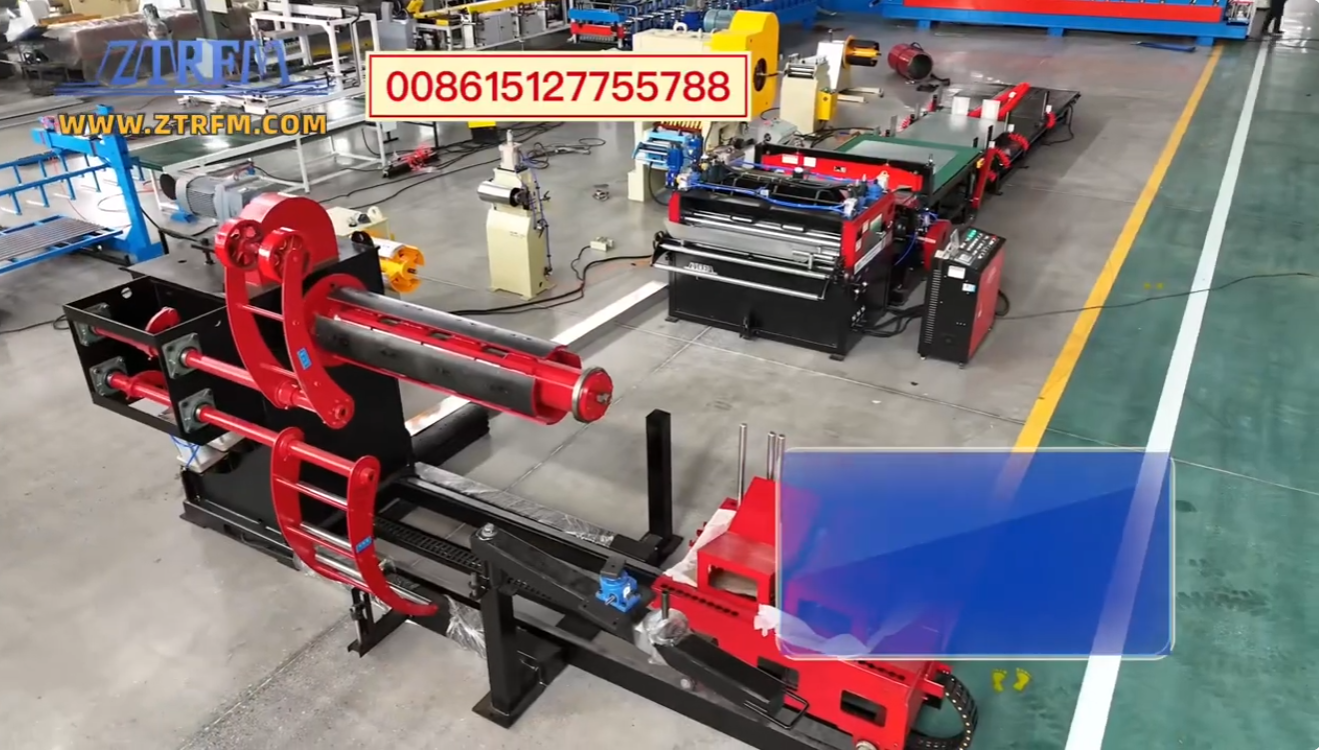

Coil Loading and Uncoiling Unit

This is the starting module of the production line, mainly composed of a coil car and a hydraulic decoiler. The coil car is responsible for automatic loading and positioning of raw material coils, realizing fast and stable coil replacement. The hydraulic decoiler adopts hydraulic tension control technology, which can stably unwind heavy coils (3-30 tons and above) without material deviation or tension fluctuation. It is compatible with various raw materials such as cold-rolled steel, hot-rolled steel, stainless steel, silicon steel and coated sheet metal, providing stable raw material supply for subsequent processing.

Leveling and Straightening Unit

The leveling unit is the key to ensure the flatness of finished sheets. After long-term coiling and storage, metal coils have inherent coil set, crossbow and internal stress. The multi-roller leveling mechanism of CTL line can repeatedly press and straighten the strip material, completely eliminate surface curvature and internal residual stress, and ensure the flatness and flatness consistency of the processed sheets. High-precision models are equipped with fine-tuning leveling rollers, which can meet the ultra-flat processing requirements of high-end industries such as automotive exterior panels and precision electrical appliances.

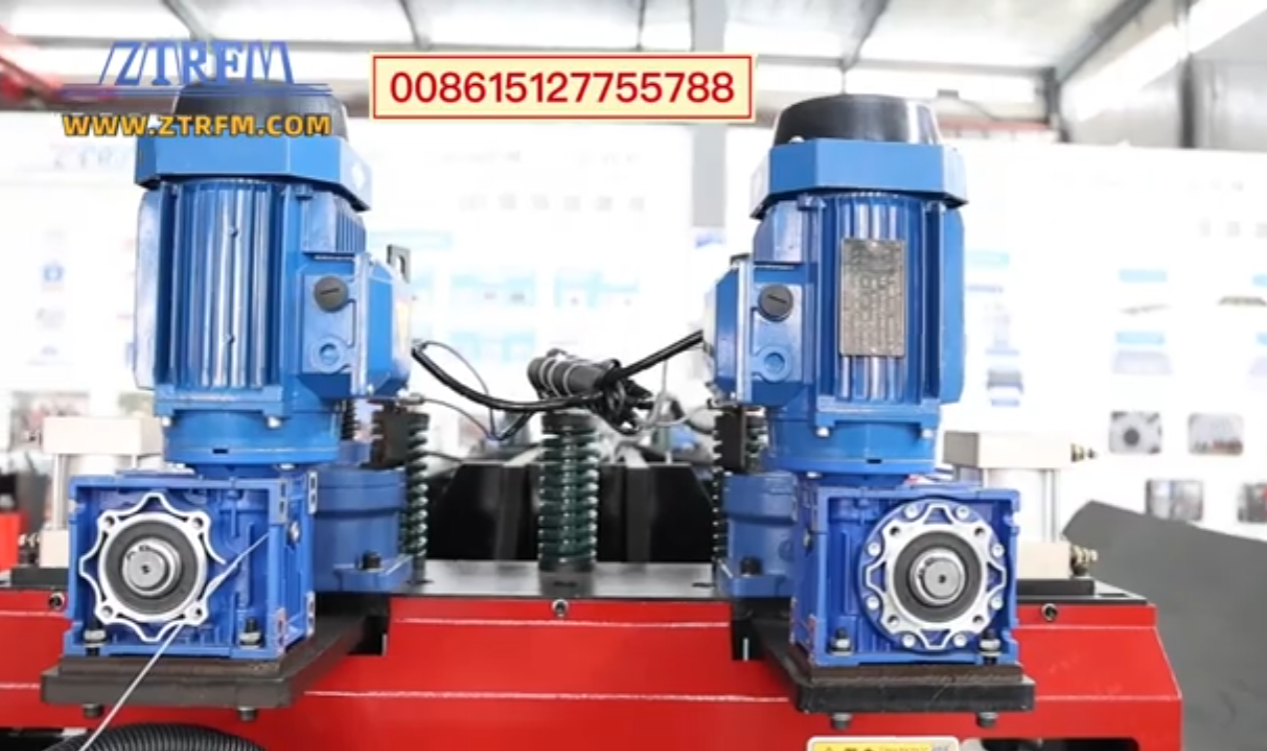

Servo Feeding and Measuring Unit

As the precision control core of the production line, the servo feeding system uses high-precision servo motors and encoder real-time detection technology to accurately control the feeding speed and length. The system supports arbitrary setting of cutting length, and automatically tracks and corrects feeding errors during operation. Compared with traditional mechanical positioning, the servo feeding unit improves the length accuracy by more than 3 times, and can adapt to high-speed feeding of 100-150m/min while maintaining micron-level dimensional tolerance.

High-speed Shearing Unit

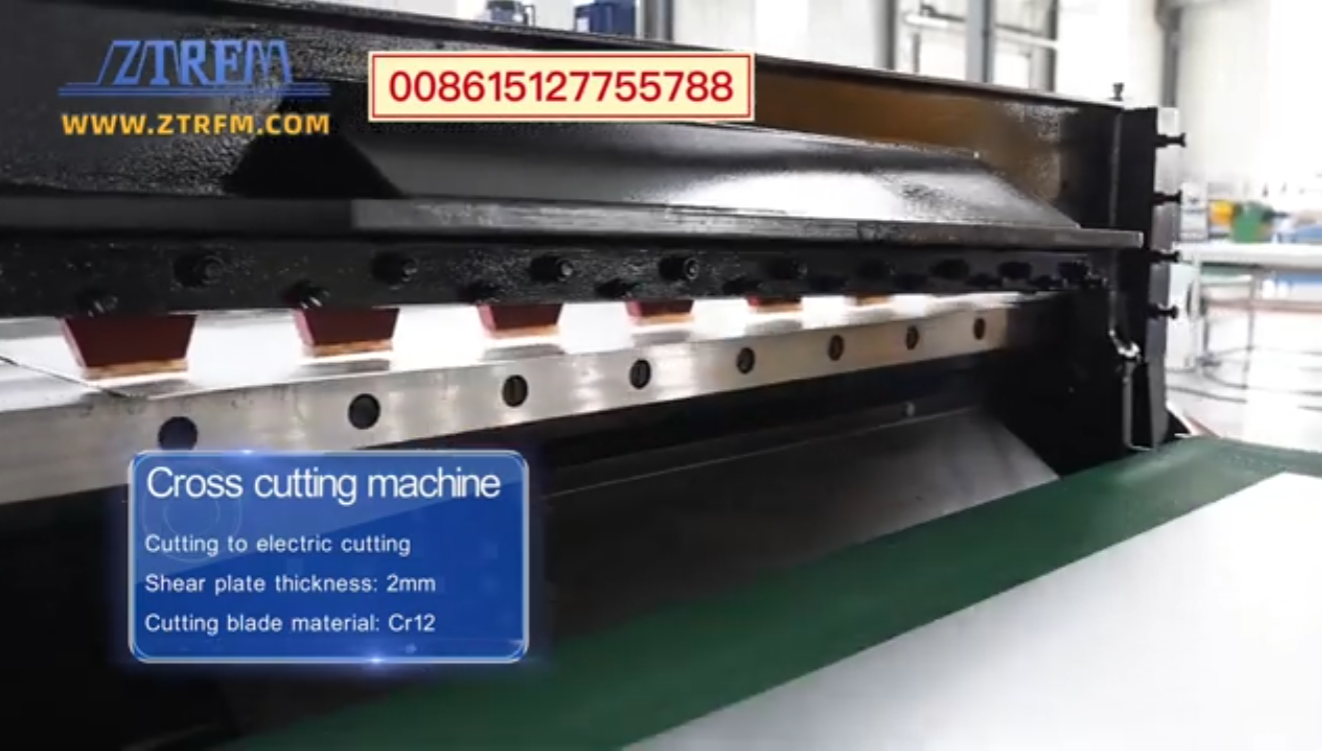

The shearing unit is divided into stationary shear and flying shear according to the operation mode. The stationary shear is suitable for medium and low-speed processing with high precision requirements, while the flying shear can realize non-stop continuous cutting, greatly improving production efficiency. The hydraulic or pneumatic shearing mechanism adopts high-strength alloy cutter heads, which features sharp cutting, neat incision, no burrs and no material deformation. It can stably cut metal sheets of different thicknesses from thin plates to medium-thick plates.

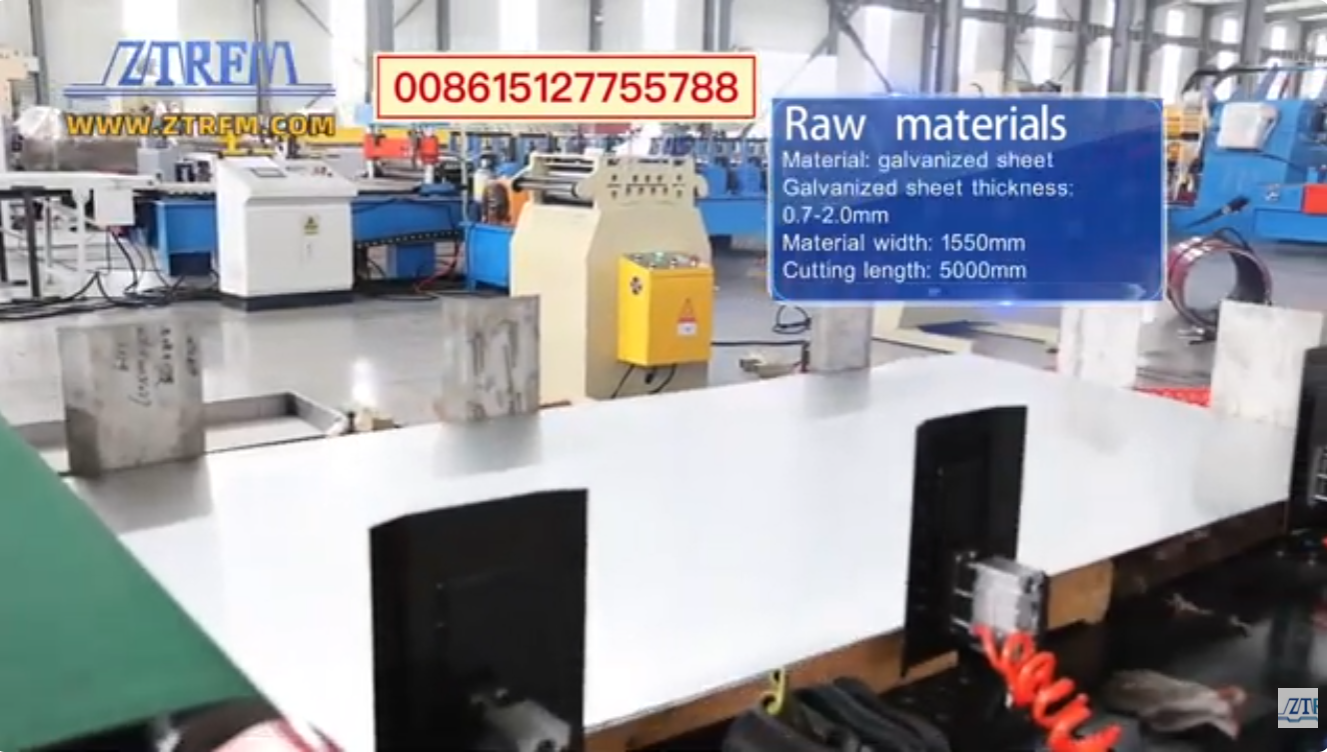

Conveying and Stacking Unit

The finished sheet after cutting is transported to the stacking platform through the conveyor system. The automatic stacking unit is equipped with positioning and sorting devices, which can neatly stack finished sheets according to the set specifications. It effectively avoids sheet scratching, stacking disorder and manual handling damage, reduces manual intervention, and realizes automatic finished product collection, laying a foundation for subsequent packaging and warehousing.

Key Technical Advantages

High Processing Precision and Stable Quality

Benefiting from the closed-loop servo control system and high-precision detection devices, the cut to length production line achieves extremely high dimensional accuracy and flatness of finished products. The length error is controlled within ±0.5mm, and the sheet flatness meets national and international industrial standards. The consistent processing quality effectively avoids defective products caused by manual operation errors, and provides reliable raw materials for downstream stamping, bending, welding and other processes.

High Production Efficiency and Low Energy Consumption

The integrated continuous processing mode of CTL line eliminates the intermediate handling and positioning links of traditional segmented processing. The flying shear continuous production mode can realize uninterrupted cutting, with the production efficiency 2-4 times higher than that of traditional single-piece cutting equipment. At the same time, the optimized hydraulic and electrical control system reduces idle energy consumption, and the overall energy utilization rate of the equipment is significantly improved, meeting the energy-saving and efficient production requirements of modern factories.

Wide Versatility and Flexible Customization

The production line has strong material adaptability, covering carbon steel, stainless steel, aluminum alloy, tinplate, silicon steel and various coated metal materials. It can flexibly switch processing specifications of different sheet widths, thicknesses and cutting lengths through parameter setting on the human-machine interface. It can meet the dual production needs of large-scale standardized mass production and multi-variety small-batch customized processing, with extremely high production flexibility.

High Automation and Low Labor Cost

The modern CTL production line is equipped with PLC intelligent control system, realizing one-key start, automatic feeding, automatic cutting, automatic stacking and fault self-detection. The whole production process basically does not need manual intervention, which greatly reduces the labor intensity and labor cost. The intelligent fault early warning function can timely detect equipment abnormalities, reduce downtime and improve the overall operational stability of the production line.

Industrial Application Scenarios

With its excellent processing performance, cut to length production lines are widely used in various fields of metal manufacturing and industrial production, covering almost all industries that need flat metal sheet raw materials.

In the automotive manufacturing industry, CTL lines process high-precision steel and aluminum sheets for automotive body panels, chassis parts and interior accessories, meeting the strict dimensional and surface quality requirements of automotive parts. In the home appliance industry, they are used for processing shell sheets of refrigerators, air conditioners, washing machines and other equipment, ensuring the consistency of appliance shell specifications.

In the construction and building materials industry, the production line processes color-coated steel sheets, galvanized sheets and stainless steel sheets for building decoration, roofing and enclosure structures. In the electrical and electronic industry, it provides high-precision silicon steel sheets for transformers and motor equipment, and thin metal sheets for precision electronic accessories. In addition, it is also widely used in metal container processing, hardware manufacturing, new energy equipment and other fields, becoming a key equipment to support the development of the metal processing industry.

Development Trends of Modern CTL Production Lines

With the continuous upgrading of industrial intelligent manufacturing, cut to length production lines are developing towards intelligence, high speed, environmental protection and integration. On the one hand, intelligent upgrading is accelerated: more production lines are equipped with IoT remote monitoring, data statistics and intelligent scheduling functions, which can realize real-time monitoring of production data, equipment operation status and processing quality, and support digital factory management.

On the other hand, high-speed and ultra-precision processing technology is continuously optimized. The new generation of flying shear CTL lines further improve the operating speed while ensuring accuracy, and can meet the ultra-high precision processing needs of aerospace, new energy and other high-end fields. In addition, green and environmental protection design has become an important development direction. The optimized mechanical structure reduces noise and vibration during operation, and the closed-loop material processing mode minimizes material waste, realizing energy-saving, environmental protection and efficient production.

结论

As a key integrated processing equipment in the metal manufacturing industry, the cut to length production line realizes the efficient and precise conversion from metal coils to standard flat sheets through modular design, servo precision control and automated continuous production. It has irreplaceable advantages in improving production efficiency, ensuring product quality, reducing production costs and realizing intelligent production. With the continuous progress of manufacturing technology, CTL production lines will continue to iterate and upgrade, adapt to the increasingly stringent production standards of various industries, and provide strong technical and equipment support for the high-quality development of the global metal processing and manufacturing industry.
