The cable tray cover plate serves as a core component of cable tray systems, primarily functioning to prevent dust ingress and interference, protect internal cables, and enhance the safety and compliance of electrical installation. In large-scale projects such as photovoltaic energy systems, industrial facilities, rail transit systems, and data centers, the delivery speed, dimensional accuracy, and cutting surface smoothness of these covers directly impact overall project timelines and construction quality. Traditional production methods predominantly employ an intermittent process involving “pre-molding followed by fixed-length cutting,” which suffers from frequent stoppages, low production efficiency, burr formation on cuts, significant length variations, and inability for continuous mass production. The precision cutting cable tray forming machine, a specialized automated equipment equipped with a servo-driven tracking cutting system, enables uninterrupted operation throughout the entire workflow—including roll pressing, online leveling, continuous material feeding, dynamic cutting, and automatic discharge—making it the primary intelligent solution for high-precision cable tray cover plate manufacturing in modern production facilities.

Key features of the device: Following and cutting technology, overcoming traditional production bottlenecks

Unlike conventional stop-and-cut forming machines, the core advantage of the chase-cut cover plate tray forming machine lies in its servo-driven dynamic chasing cutting capability and continuous production without shutdown. Traditional equipment requires stopping the machine, locking the gauge, performing cutting, and restarting after each cover plate production cycle; this frequent start-stop operation not only wears out the motor and hydraulic components but also leads to material waste and production rhythm delays, making it ill-suited for mass production demands. In contrast, the chase-cut system employs servo-driven tracking technology, enabling the cutting tool holder to move synchronously with the sheet’s speed and perform dynamic cutting during uniform roller pressing, eliminating the need for deceleration or shutdown throughout the entire process.

The synchronous following cutting process thoroughly addresses numerous challenges associated with traditional methods: uninterrupted cutting, continuous operation of the entire production line, and significantly enhanced production capacity; synchronized cutting ensures uniform length for each cover plate, with dimensional deviations controlled within ±0.5 mm; high-speed cutting produces flat, smooth cuts free from deformation or burrs, eliminating the need for manual secondary grinding or edge trimming, enabling direct installation of finished products onto bridge tray bodies. Additionally, the equipment perfectly accommodates both trough-type and tray-type bridge tray specifications, delivering high fit accuracy for cover plates and precise snap-fit compatibility, effectively resolving engineering issues such as significant gaps and poor fit during on-site installation.

Overall structural configuration: meticulously engineered for stable performance under mass production conditions

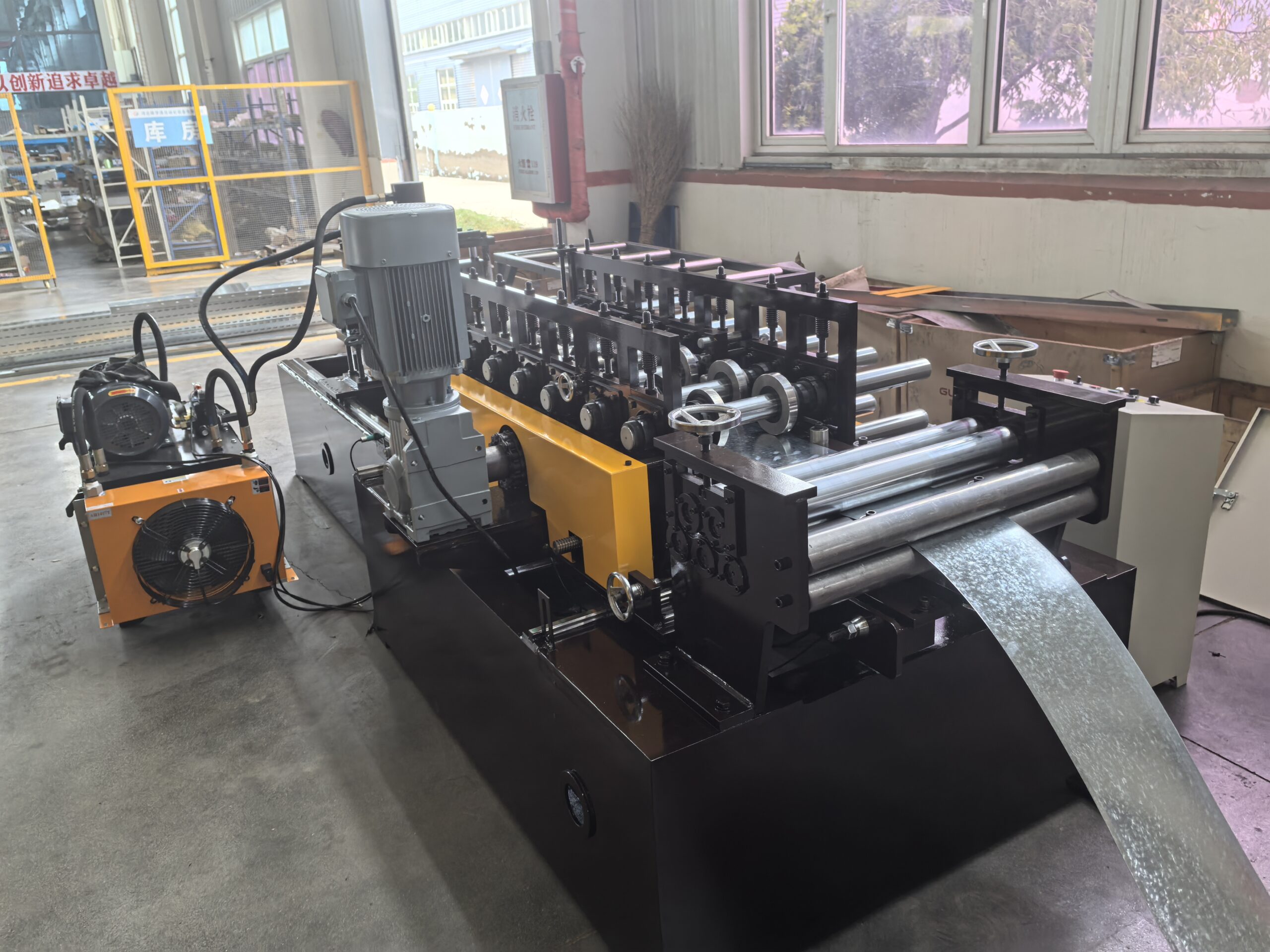

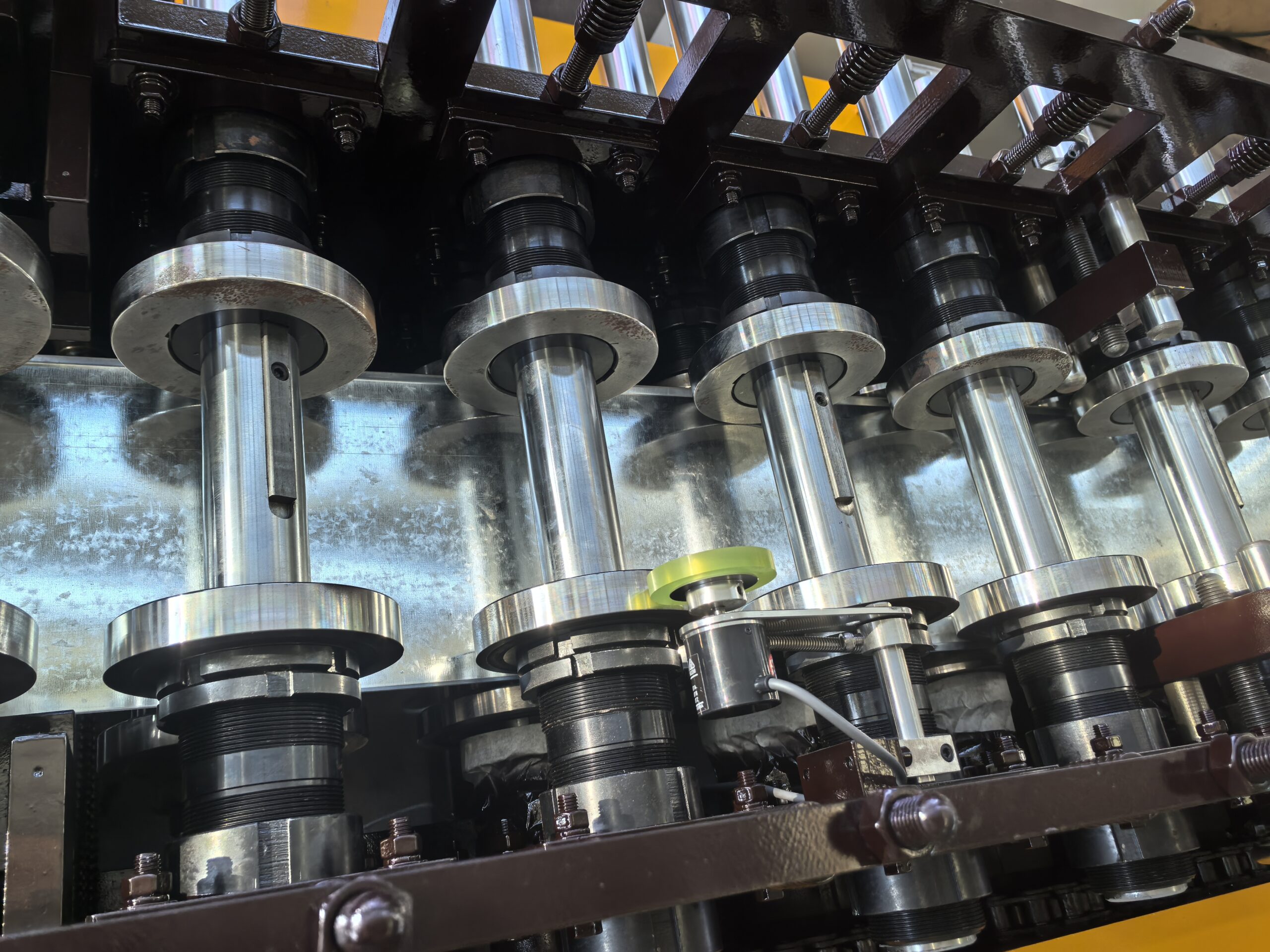

The equipment features a heavy-duty integrated welded frame subjected to aging stress relief treatment, ensuring high structural rigidity and excellent vibration resistance. It remains stable during prolonged high-speed continuous operation without deformation or vibration, providing a reliable foundation for high-precision cutting and forming processes. The forming roller assembly is constructed from high-chromium alloy steel with high-frequency quenching treatment, offering superior hardness, wear resistance, and corrosion resistance. It is compatible with various raw materials including galvanized sheets, cold-rolled steel plates, aluminum sheets, and stainless steel plates, suitable for common thicknesses ranging from 0.8 mm to 2.0 mm, and capable of producing bridge tray covers in all specifications from 100 mm to 600 mm, demonstrating exceptional versatility.

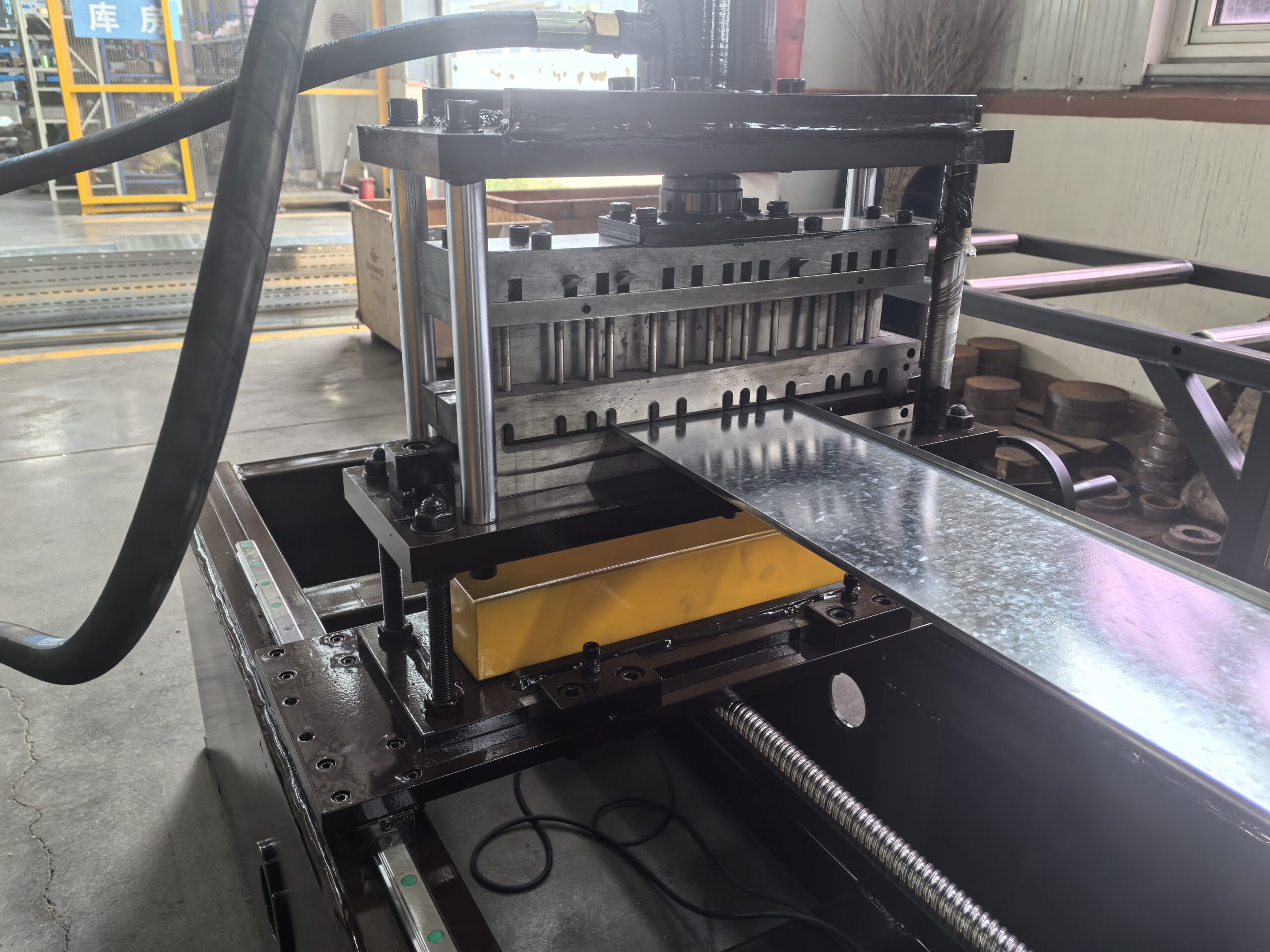

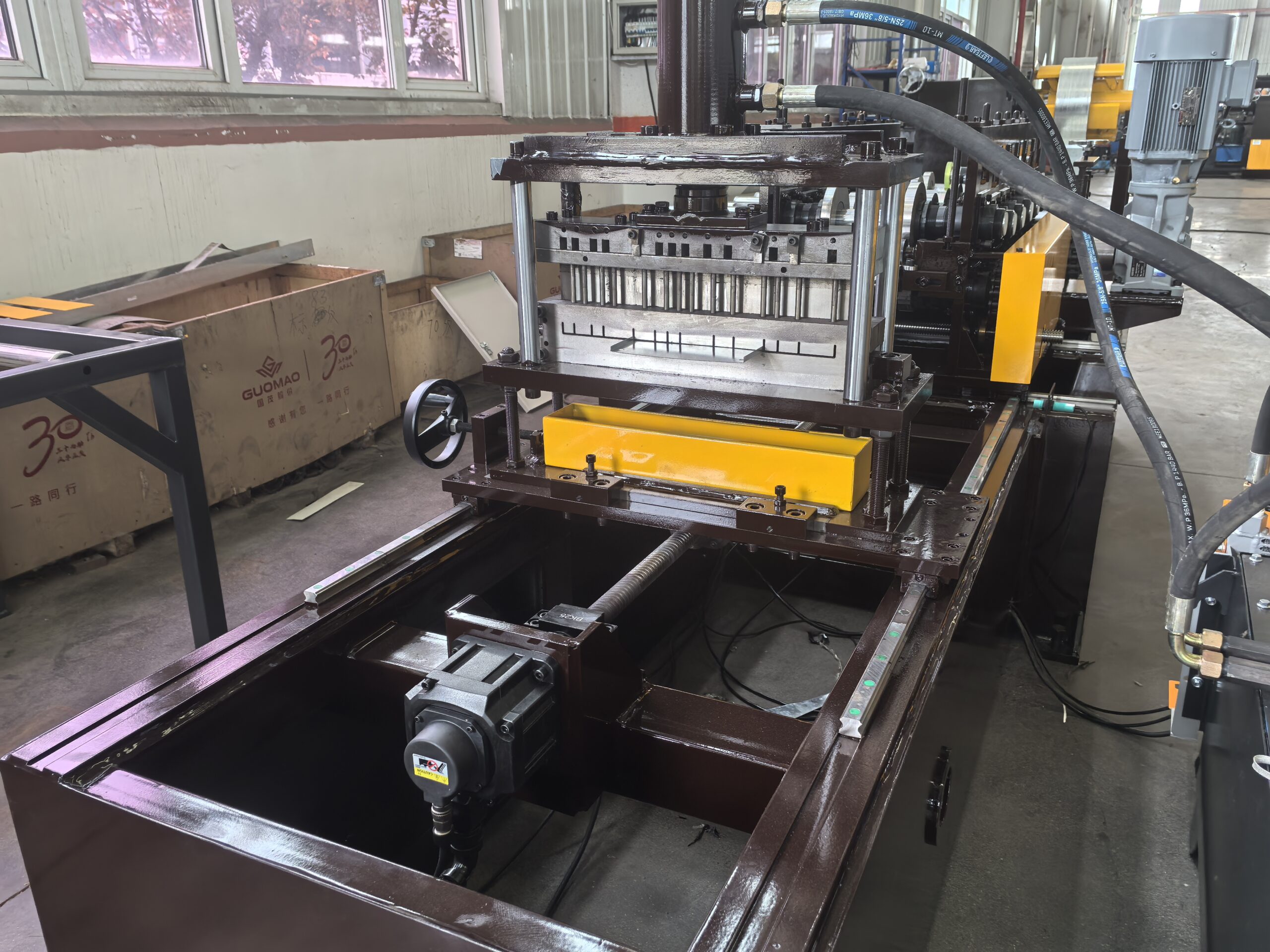

The core servo cutting system is a device-specific core configuration, featuring a high-precision servo motor and an intelligent CNC control system that ensures precise speed measurement and rapid response. It dynamically adjusts the cutting position and speed in real time to match the material feed rate, effectively eliminating issues such as length deviations, beveled edges, and chipping during high-speed production. The hydraulic cutting unit employs a quiet, energy-efficient hydraulic station with stable pressure, responsive operation, sufficient cutting force, and low noise levels, making it ideal for long-term, high-frequency cutting applications with low failure rates and extended service life.

The equipment is equipped with an integrated intelligent control system featuring an industrial PLC and a high-definition touch screen, enabling visual parameter configuration. Operators can directly input cover plate length, production quantity, forming speed, and cutting compensation parameters, allowing the system to automatically adapt throughout the entire production process. The device includes functions such as automatic counting, fault self-diagnosis, parameter memory retention, overspeed protection, and emergency shutdown; it supports both Chinese and English operation interfaces for quick user familiarity, effectively reducing human operational errors and aligning with standardized factory production management requirements. Additionally, it incorporates multiple safety safeguards to prevent issues like material jamming or incorrect cuts, ensuring safe and stable production line operation.

Standardized production process: fully automated assembly line with no need for secondary processing

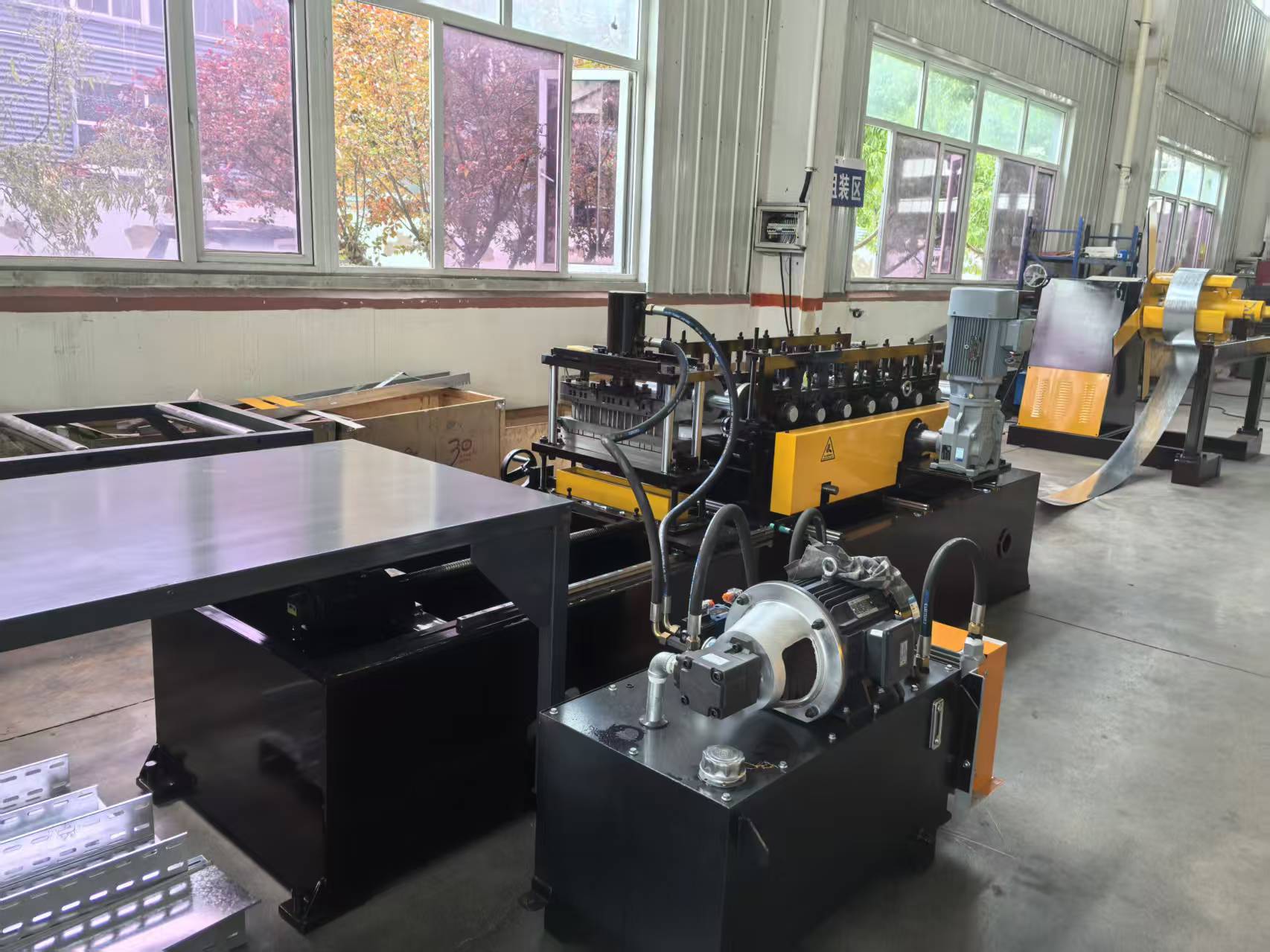

The cutting and covering plate cable tray forming machine employs a continuous closed-loop automated production process, enabling one-step formation of finished plates from raw coil materials without any manual intervention throughout the entire workflow. The procedure is streamlined and highly efficient: coil unwinding and material feeding → automatic leveling → servo-controlled uniform feeding → multiple precision roller pressing stages → dynamic servo-based cutting → automatic material discharge and stacking.

The unwinding mechanism smoothly releases the sheet material, while the leveling device corrects bending and surface irregularities to ensure uniform flatness; the servo feeding system delivers sheets with precise and constant speed, working in conjunction with multiple sets of progressive forming rollers to achieve accurate shaping of cover plate curvature, edge folding, and snap-fit positions—resulting in well-defined profiles, crack-free bends, and consistent curvature. During continuous sheet advancement, the tracking cutting system monitors material displacement in real time for precise dynamic cutting at specified lengths. The finished products are then automatically discharged and neatly stacked, exhibiting flat surfaces without deformation, smooth cuts, and uniform dimensions, eliminating the need for secondary processing such as grinding, trimming, or alignment, enabling direct entry into galvanizing or spray coating processes or immediate shipment from the factory, thereby significantly reducing production cycle time.

Product Compatibility and Application Scenarios: Fully compatible with various engineering requirements

This equipment is specifically developed for the specialized production of cable tray covers, compatible with all standard trough-type and tray-type cable trays available on the market. It also supports customized manufacturing of non-standard covers featuring pressure ribs, folded edges, waterproof designs, or sealed configurations, meeting diverse construction requirements. Widely used in mechanical and electrical installations for residential buildings, commercial complexes, and residential power distribution systems, as well as in photovoltaic power plants, energy storage facilities, and wind power projects, it is equally suitable for industrial applications requiring high standards and stringent protection measures, such as chemical plants, wastewater treatment plants, rail transit systems, tunnels, and data centers.

The device is compatible with various manufacturing enterprises, whether handling small-batch, multi-specification custom orders from small and medium-sized processing plants or large-scale standardized production orders from major cable tray manufacturers. It can be integrated with cable tray forming machines to enable simultaneous mass production of both the main body and cover plates, thereby enhancing the production line configuration and significantly improving overall supply capacity.

Core Value of the Device: Enhancing Quality and Efficiency, and Optimizing the Intelligent Cable Tray Production Line

The cable tray industry faces increasingly fierce competition, with customers demanding higher standards for product precision, delivery speed, and finished product appearance. Traditional intermittent cover plate manufacturing equipment suffers from low efficiency, high defect rates, and elevated labor costs, making them inadequate for modern production needs. The cutting cover plate cable tray forming machine addresses these challenges effectively through its core advantages: continuous cutting operation, high precision, high production capacity, minimal waste, and elimination of secondary processing requirements.

In terms of production efficiency, continuous uninterrupted operation achieves a capacity increase of over 40% compared to traditional equipment, significantly enhancing order delivery efficiency. Regarding product quality, the servo-driven tracking-cutting process ensures consistent finished products with zero errors and no burrs, effectively boosting market competitiveness and meeting high-end engineering bidding standards. In terms of production costs, the highly automated equipment allows single-person operation, substantially reducing labor expenses while maximizing sheet utilization and minimizing waste, resulting in significant long-term cost savings.

As the core specialized equipment for cable tray production lines, the cutting cover plate cable tray forming machine features a stable structure, simple operation, easy maintenance, and broad adaptability. It is the preferred choice for cable tray manufacturers seeking to upgrade production lines, enhance product portfolios, boost mass production capabilities, and secure market advantages, driving the industry toward fully intelligent, efficient, and standardized manufacturing.
