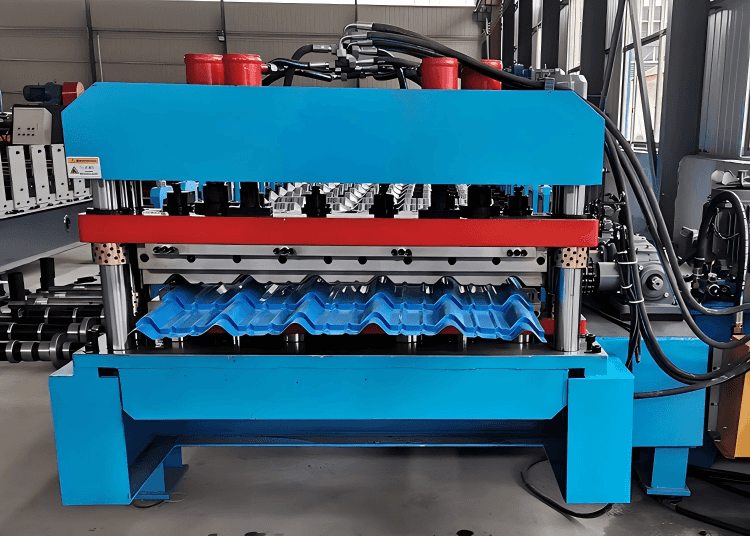

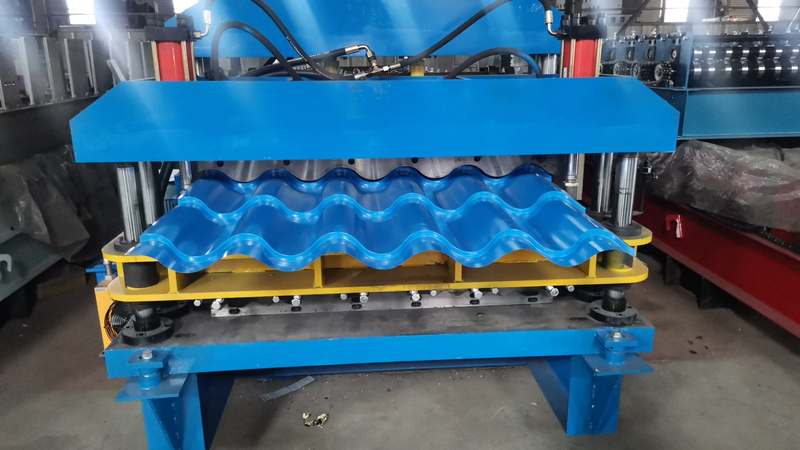

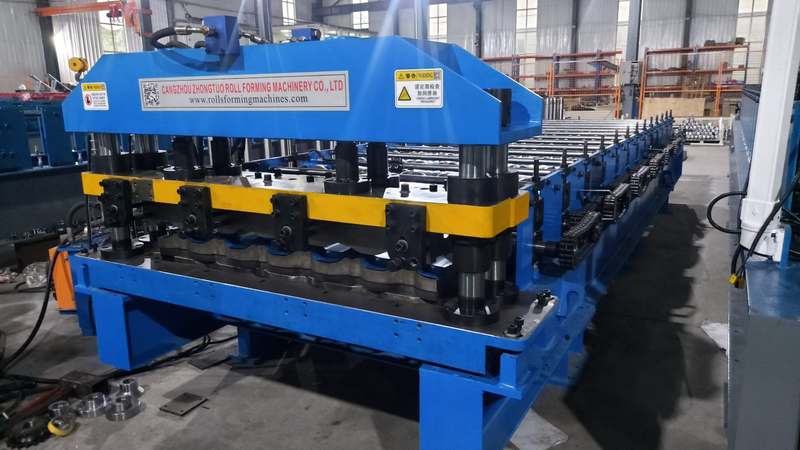

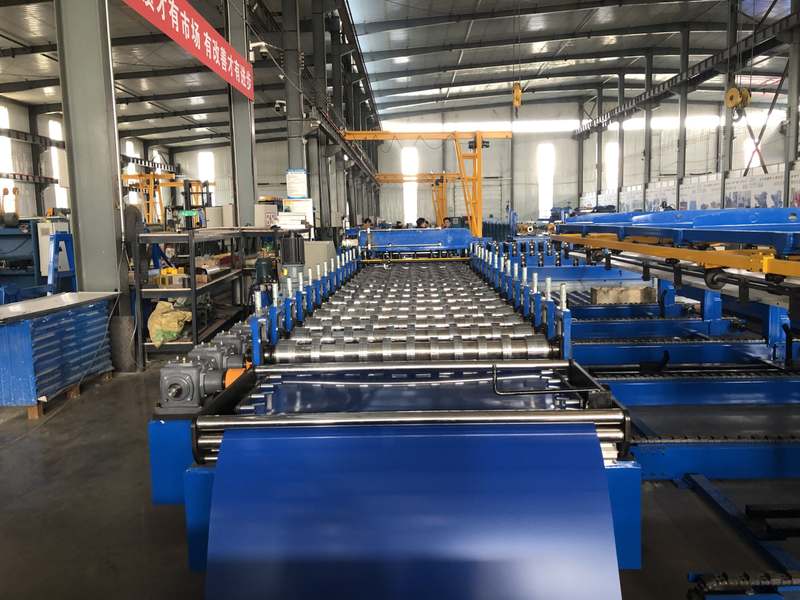

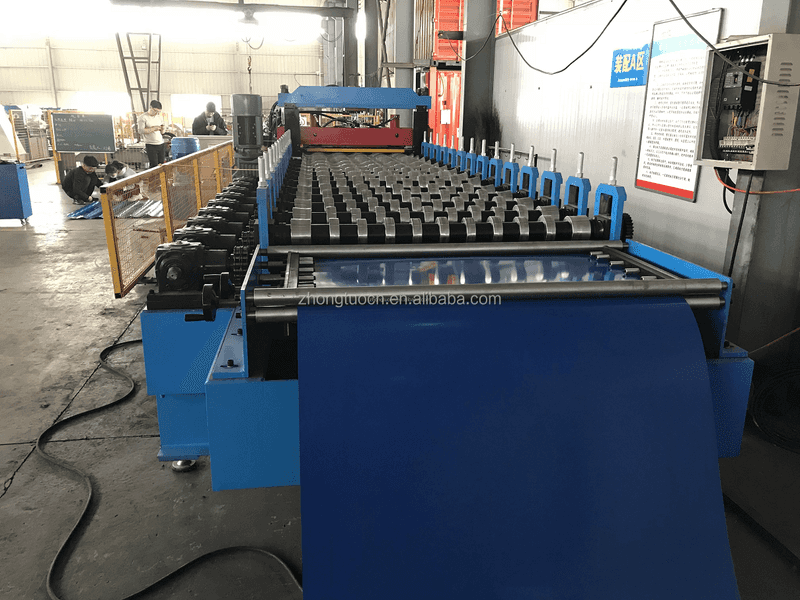

Cold bending forming machine for glass roof tiles (the mainstream choice in industry and commonly used for export)：This machine processes galvanized steel plates, zinc-coated sheets, aluminum-magnesium-manganese alloys, and stainless steel, producing antique-style bamboo-joint curved tiles through rolling; it is commonly referred to in the market as a glazed tile forming machine.

Glass roof  Tile Machine: Classified by Number of Body Layers/Integrated Model Type

Single-layer glazed tile forming machine

A single-forming track produces only one type of tile at a time, featuring compact size and low cost, making it suitable for small-scale manufacturing plants. Main models: 828,840,800,765, and 1100 arc tile machines.

Double-layer integrated glazed tile manufacturing machine (multi-functional device)

Two independent track layers for upper and lower sections, producing two tile types simultaneously – doubling production capacity while saving factory space.

Glass-Plated Tile Machine: Classified by finished tile shapes and models (mainstream standard models)

828 Arc glazed tile machine:Classic antique-style curved tiles with a peak height of 23 mm, ideal for ancient buildings, scenic pavilions, and villas, featuring aesthetically pleasing joint transitions.

The 840 Bamboo Joint Glazed Tile Machine produces tiles with segmented bamboo-joint patterns that mimic the texture of traditional ceramic tiles, making it most widely used in new rural areas and antique-style streets.

The 800 series resin-based glazed tile machine produces tiles with smooth undulations, resembling PVC resin tiles in appearance, ideal for lightweight roofs on industrial plants and residential buildings.

Model 1100 Elliptical Arc Glazed Tile Machine:Features wide-format large arcs, specifically designed for export to overseas markets (Russia, Southeast Asia).

Model 765/1025 Western-style glazed tile machine produces small-sized S-shaped tiles specifically designed for European villa roofs.

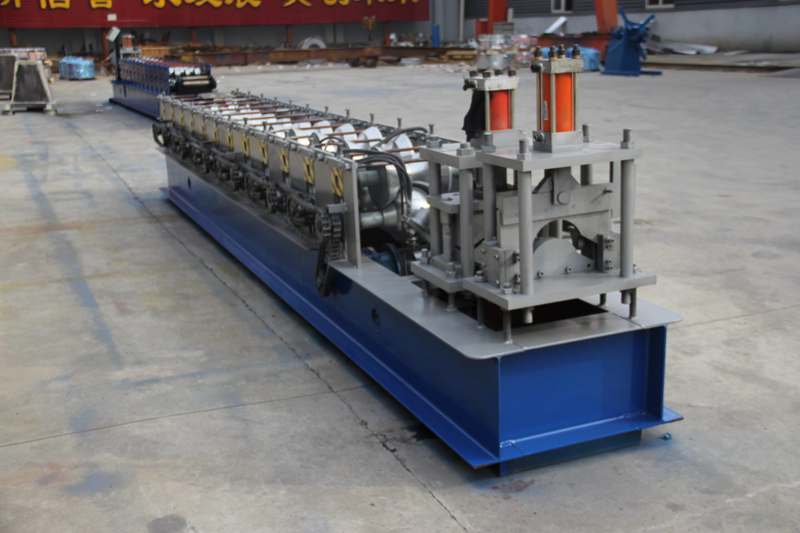

Integrated small-part molding machines including ridge tile machines, eave tile machines, and main/vertical ridge accessory molding machines, designed specifically for producing antique-style components.

Classified by Production Speed/Configuration Level

Standard model: chain drive with a conventional motor, featuring a forming speed of 3–6 m/min, suitable for small-batch civilian orders.

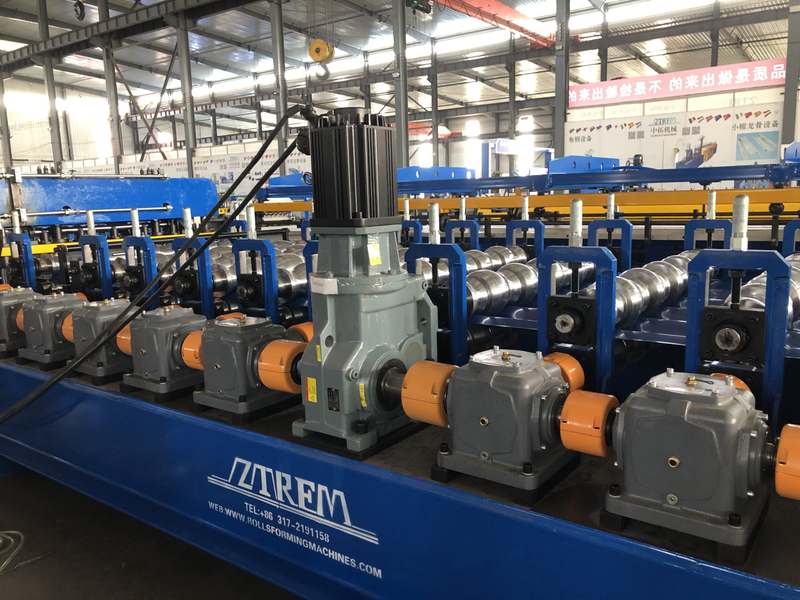

High-speed, high-performance glazed tile machine featuring gear transmission, thickened rollers, and servo-controlled fixed-length cutting with a speed of 8–12 m/min, capable of processing stainless steel and thick aluminum plates, specifically designed for large-scale manufacturing plants and export applications.

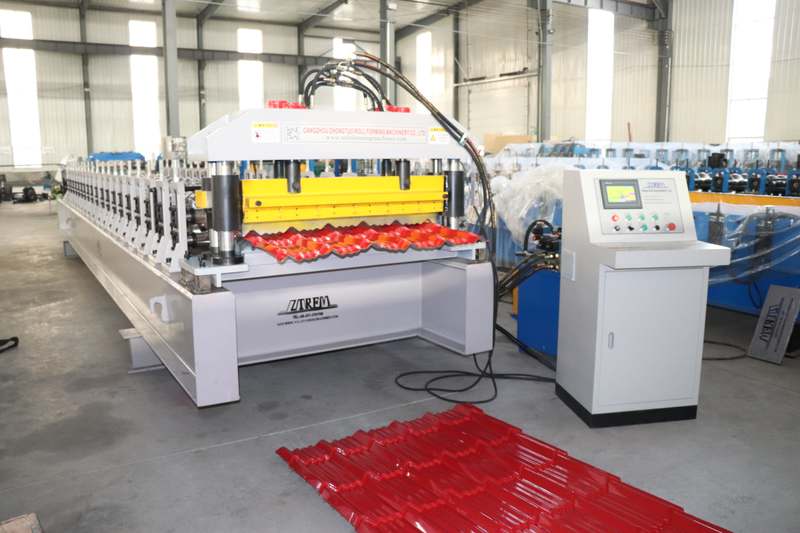

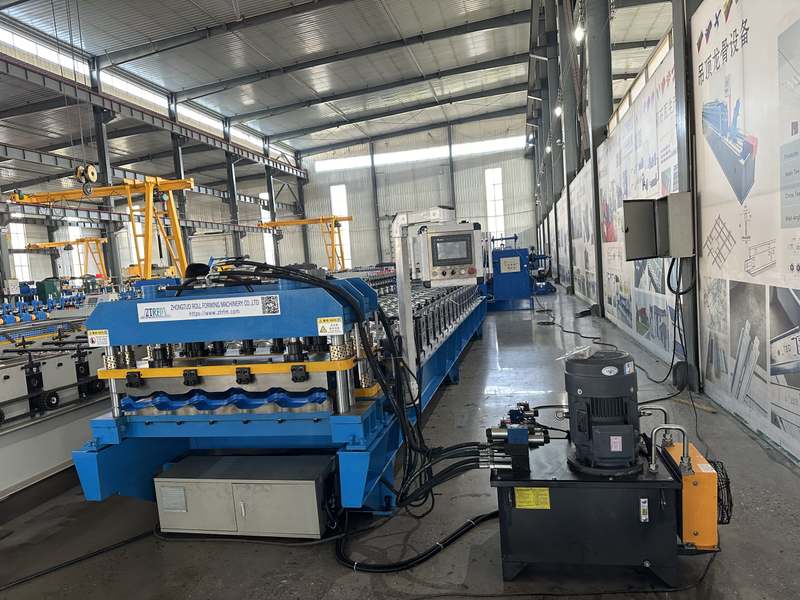

A fully automated high-end integrated system featuring automatic feeding, hydraulic cutting, automated stacking, and a PLC touch screen, requiring no human intervention throughout the entire operation.

Classified by the forming and cutting positions

Front-cutting glazed tile machine features a cutting mechanism at the forming front end, with a compact body that occupies minimal space, low cost, and compatibility with thin materials.

Post-cutting glazed tile machine: The tiles are cut after complete formation, resulting in higher surface flatness; specifically designed for thick plates and stainless steel, offering superior forming accuracy.

Classified according to the type of raw material sheets used for adaptation.

Standard color steel specialized glazed tile machine with conventional roller hardness, suitable for 0.3–0.8 mm colored-coated coils and galvanized coils.

Specialized model for stainless steel/magnesium-aluminum-manganese alloys: The rollers feature hardened bearing steel with thickened sections and reinforced load-bearing shafts, capable of processing stainless steel and magnesium-aluminum-manganese alloy plates ranging from 0.6 to 1.2 mm in thickness.

Quick Selection Summary

Small-scale manufacturing plants; single-type tiles → single-layer 828/840 molding machines.

Assemble roof tiles and wall panels simultaneously using the 840/900 double-layer machine.

processed stainless steel, thick aluminum plates, suitable for large-scale exports → high-speed gear-driven cutting machines.
