In infrastructure sectors such as power engineering, intelligent building systems, rail transit, and data centers, cable trays serve as essential components for ensuring orderly cable installation, safety protection, and convenient operation and maintenance. With the scaling up and standardization of the infrastructure industry, traditional production methods involving manual welding and segmented bending can no longer meet the demands for high precision, efficiency, and cost-effectiveness. As specialized automated cold-bending equipment, cable tray forming machines enable one-step continuous processing of metal coils, making them the core intelligent solution for manufacturers to achieve large-scale production and enhance product quality, and are widely used in the standardized manufacturing of various metal cable trays.

Core Definitions and Operating Principles of the Device

The cable tray forming machine, also known as the cable tray rolling forming machine, is an integrated automated production line designed based on cold bending and progressive deformation technology. It eliminates the need for high-temperature processing; by applying sequential pressure from multiple sets of precision rollers, it continuously processes metal sheets such as galvanized steel strips, stainless steel strips, and aluminum alloy strips into various standard cable tray profiles—including trough-type, ladder-type, and tray-type configurations—without requiring any secondary welding or shaping steps, producing finished components in a single operation.

Its core working principle is metal progressive plastic deformation: a flat metal coil is fed into the equipment via a feeding system and passes sequentially through multiple sets of orderly arranged forming rollers. Each set of rollers applies a preset bending angle corresponding to the cross-sectional dimensions of the cable tray, gradually altering the sheet’s shape to prevent deformation and cracking caused by single-bending operations. Through precise mechanical configuration and a servo control system, the curvature, side length, and hole diameter height of each cable tray segment are maintained consistently. After forming, the sheets undergo precision cutting and automatic material collection, enabling fully automated production that effectively preserves the original structural strength of the metal material while enhancing product durability.

The overall structure of the device and its core components

The fully automated cable tray forming machine features a modular integrated structure, with each unit working in synergy to form a complete automated production chain. Its core components include six major systems: feeding, leveling, punching, forming, cutting, and control, offering a compact design with strong interconnectivity.

Decoiler andfeeding unit

As the feeding end of the production line, it primarily handles metal steel coils, delivering raw materials at a constant speed via an automatic unwinding mechanism. Capable of accommodating coils with varying weights and widths, it ensures stable feeding without deviation, provides reliable material supply for continuous production, and effectively eliminates the delays and misalignments associated with manual feeding.

Leveling Unit

Equipped with multiple sets of high-precision leveling rollers, this system corrects issues such as warping, wrinkling, and deformation that occur during sheet material transportation and storage, restoring curved metal sheets to a flat surface and completely eliminating the impact of material deformation on subsequent forming accuracy. It serves as the critical component ensuring cable tray flatness.

Servo punching unit

Using servo-driven precision feeding combined with specialized punching dies, the system can perform accurate punching of connection and mounting holes online according to cable tray installation standards. The hole spacing and diameter can be freely adjusted via the control system to meet various cable tray specifications. Compared to manual drilling, this method offers higher accuracy and greater efficiency while effectively preventing issues such as hole misalignment and excessive burr formation.

Rolling forming

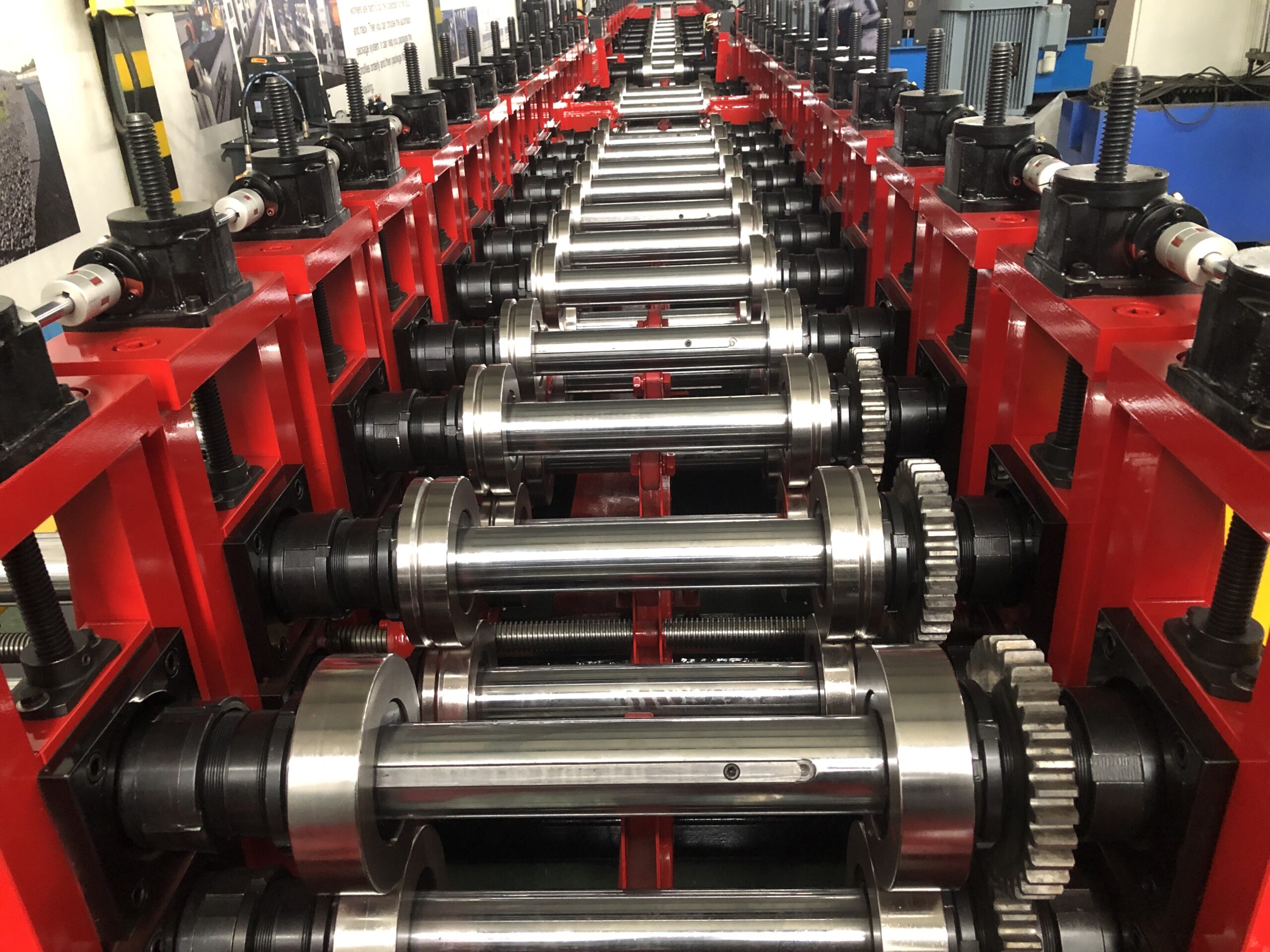

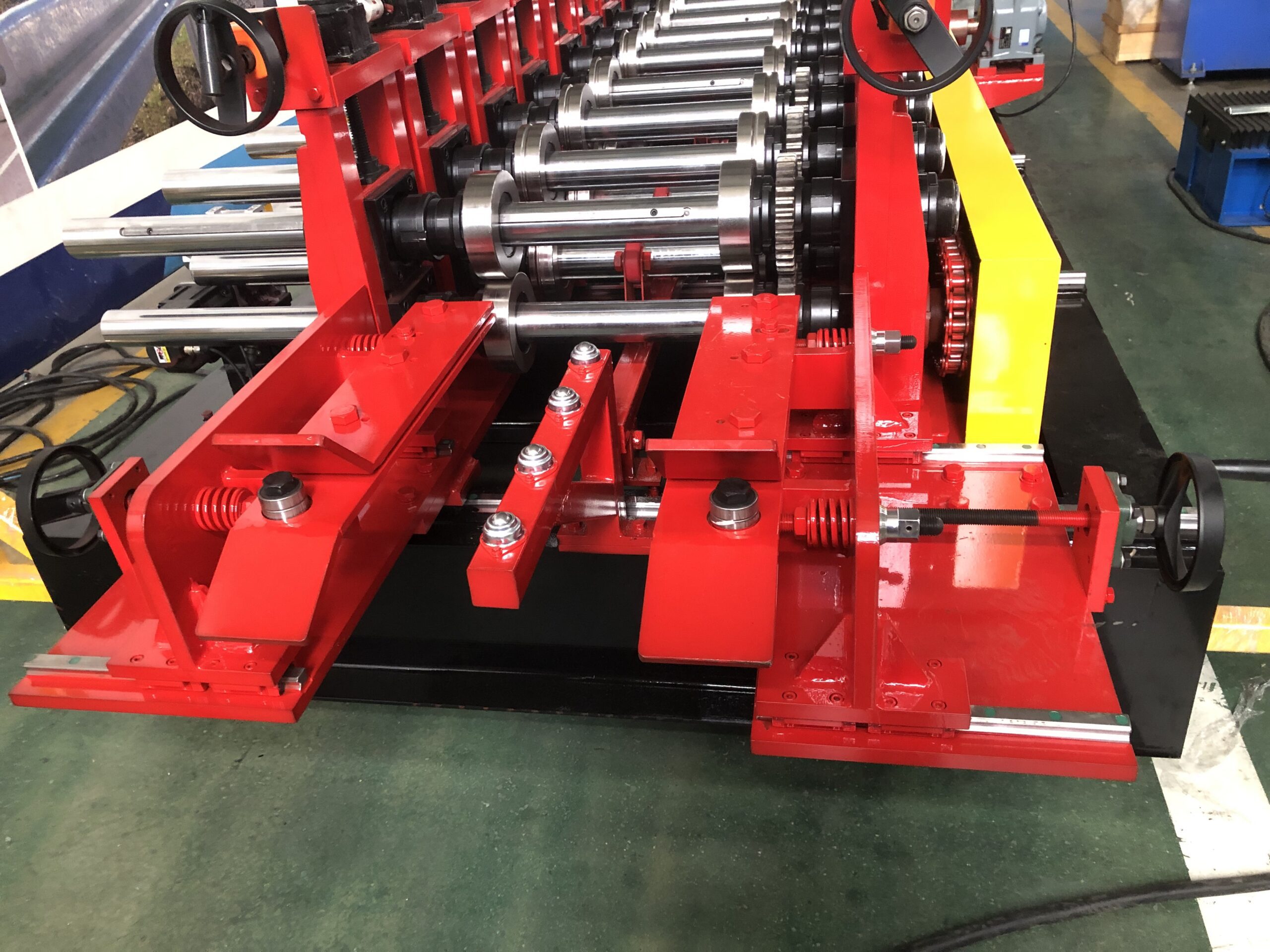

As the core working unit of the equipment, it is equipped with 12–20 sets of high-precision forming roller stations featuring a modular adjustable roller design. Without requiring roller replacement, various types of cable trays with base widths ranging from 100 mm to 860 mm and groove depths from 50 mm to 200 mm can be produced simply by adjusting parameters, meeting the production requirements of most engineering applications with exceptional versatility.

Fixed-length Cutting Unit

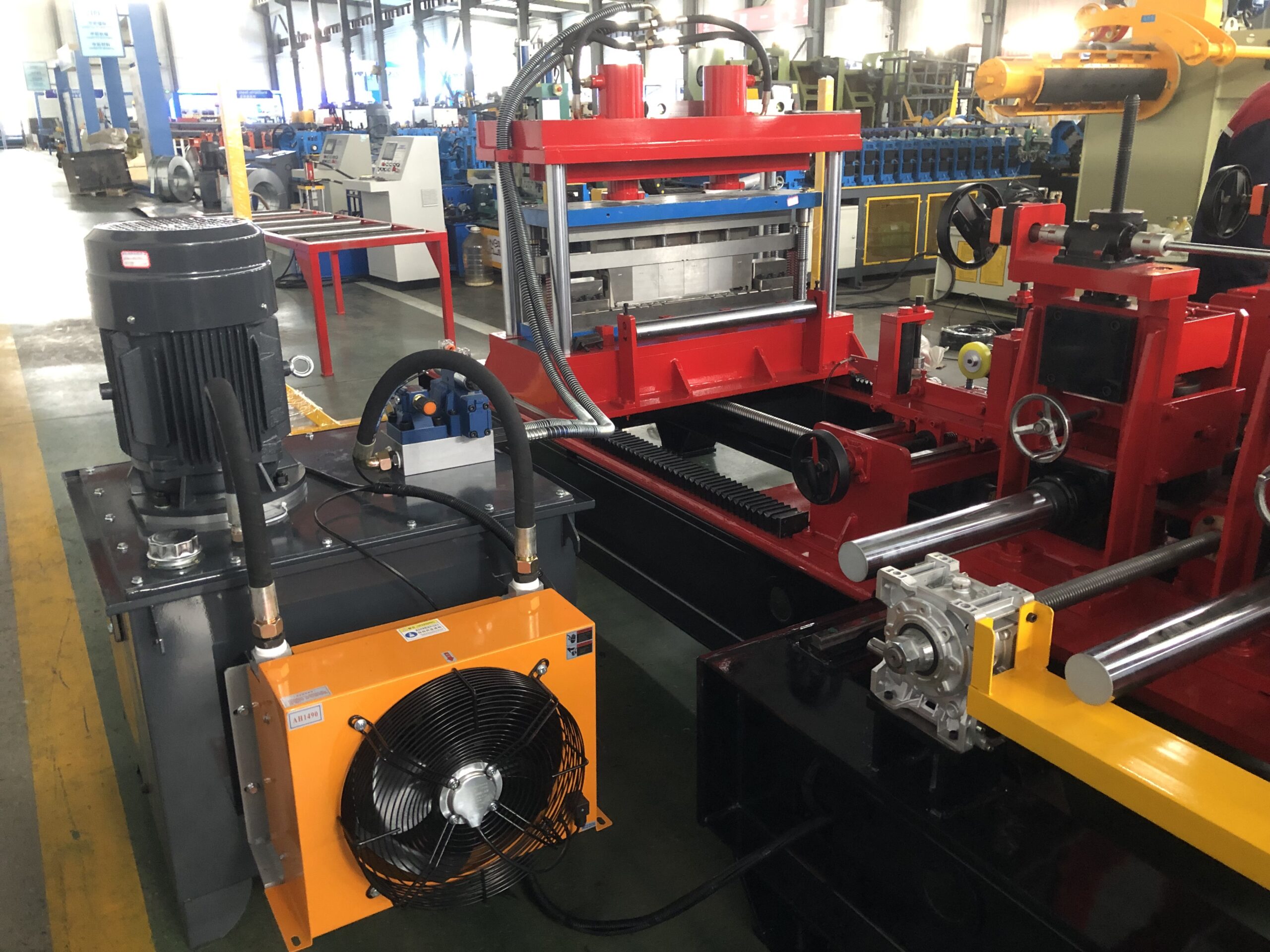

Equipped with a hydraulic flying shear cutting mechanism, it supports online dynamic fixed-length cutting and allows presetting of cable tray lengths according to production requirements. The cutting process requires no machine shutdown, enabling continuous production. The cut edges are smooth without burrs or deformation, with dimensional errors strictly controlled within minimal limits, ensuring standardized dimensions for each finished cable tray.

Intelligent Electronic Control System

Centered around a PLC (Programmable Logic Controller) and equipped with a touch-sensitive control panel, the system integrates comprehensive functions including speed regulation, specification switching, fault alarms, and counting statistics. Operators can directly configure production parameters on the panel, enabling the equipment to automatically complete the entire operational process. Additionally, it features overload protection and automatic deviation correction capabilities, significantly reducing equipment failure rates.

Standardized Production Process Procedures

The cable tray forming machine employs an integrated continuous production process with fully automated closed-loop operation, requiring no manual intervention. The standard production procedure is clear and sequential: coil unwinding → plate leveling → servo-driven feeding → online punching → multi-roll rolling forming → precise length-cutting → automatic material collection and stacking. The entire process is completed in a single step, eliminating intermediate transfer or secondary processing steps.

Based on different production modes, the equipment is categorized into low-speed punching mode and high-speed forming mode: the precision production with punching capability operates at 2.5–5 meters per minute, suitable for manufacturing high-precision finished cable trays with pre-defined hole positions; the non-punching pure forming high-speed mode achieves a conventional production speed of 12 meters per minute, while advanced models can reach up to 18–20 meters per minute for high-volume production, meeting both small-to-medium batch customization requirements and large-scale supply needs for major engineering projects.

Key Performance Advantages of the Device

High molding accuracy and excellent product consistency:The equipment utilizes precisely calibrated roller ratios and a servo control system, ensuring fully standardized mechanical operations throughout the process. The cross-sectional dimensions, bending angles, and hole spacing of cable trays exhibit minimal deviations, while finished products demonstrate outstanding flatness and straightness. This completely resolves issues associated with inconsistent quality and poor adaptability in traditional manual production methods, fully complying with national standards for power cable tray manufacturing.

High level of automation and outstanding production efficiency:The entire process features integrated automated production, eliminating manual intervention from raw material feeding to finished product discharge, with a single machine capable of replacing multiple workers. It also supports rapid specification switching—no mold replacement or equipment disassembly required—allowing one-click parameter adjustment for manufacturing various types of cable trays, significantly reducing production changeover time and enhancing output capacity.

High material utilization rate and low production costs: The cold bending process is a waste-free manufacturing method, generating minimal scrap only during the cutting stage. Compared to traditional bending or welding processes, it achieves a material utilization rate improvement of over 95%. Additionally, the equipment exhibits low energy consumption and a low failure rate, effectively reducing both raw material costs and labor-related maintenance expenses for enterprises.

The finished products exhibit stable quality and high structural strength: the cold bending progressive forming process preserves the internal microstructure of metal sheets, resulting in flexible bending sections with excellent toughness and crack resistance. The overall structure is robust, offering superior load-bearing capacity, corrosion resistance, and deformation resistance compared to traditional manufacturing methods, along with a longer service life.

Versatile and highly adaptable: Capable of processing various common cable tray materials such as galvanized steel, stainless steel, and aluminum alloy, compatible with multiple tray types including trough, ladder, enclosed, and open-hole designs. A single system meets production requirements for cable trays in diverse applications including civil buildings, industrial plants, power infrastructure, and data centers.

主要应用场景

The standardized cable tray products manufactured by cable tray forming machines are widely applicable to various infrastructure cable installation projects. In the civil construction sector, they facilitate organized installation of power and low-voltage cables in commercial complexes, office buildings, and residential communities; in industrial applications, they provide protective installation solutions for power cables and control cables in factory workshops, chemical plants, metallurgical facilities, and other industrial settings; in critical infrastructure projects, they meet stringent requirements for high-standard, large-scale cable tray deployments in rail transit systems, municipal engineering projects, photovoltaic and wind power installations, large-scale power plants, and data centers, making them indispensable core production equipment in the cable tray manufacturing industry.

Key points for the daily maintenance and care of equipment

To ensure long-term stable operation of the equipment, extend its service life, and maintain production accuracy, routine maintenance is essential. First, regularly inspect the wear conditions of all forming rollers and punching dies, promptly remove surface impurities and oil stains, and replace severely worn components to prevent interference with forming precision. Second, regularly lubricate moving parts such as transmission chains, bearings, and guide rails to reduce mechanical wear and ensure smooth operation. Third, clean dust from the electrical control system daily and check that circuit connections are secure to prevent faults. Fourth, periodically calibrate setting length and punching accuracy to correct operational deviations. Fifth, after equipment shutdown, promptly clear waste materials and debris from the machine body to maintain cleanliness and provide effective dust protection.

Industry Development Trends

With advancements in intelligent manufacturing and industrial automation, cable tray forming machines are evolving towards higher speed, greater intelligence, integration, and flexibility. Traditional single-function devices are being progressively replaced by multifunctional integrated production lines. Modern equipment features intelligent monitoring, automatic error correction, data analytics, and remote maintenance capabilities, enabling real-time tracking of production accuracy, output efficiency, and operational status. Furthermore, improvements in flexible manufacturing technologies have enabled these machines to accommodate a wider range of custom-shaped and tailored tray designs, better meeting the diversified and high-quality supply demands of the infrastructure sector while driving standardized, intelligent, and scalable transformation across the tray manufacturing industry.

E后记

The cable tray forming machine, with its core advantages of high precision, high efficiency, low energy consumption, and strong versatility, has revolutionized the traditional cable tray production model and become a pivotal piece of equipment in the industry. It not only significantly enhances the standardized quality and production efficiency of cable trays while reducing manufacturing costs for enterprises, but also provides reliable solutions for various power infrastructure projects and intelligent building initiatives. Amid ongoing upgrades in the infrastructure sector and the rapid adoption of smart manufacturing technologies, these high-performance, intelligent cable tray forming machines will continue to drive high-quality development in the industry, offering vast market potential.
