Cable Tray Forming Machine: The Ultimate Buying Guide for Electrical Manufacturers
沧州中拓滚压成型机械有限公司来自中国河北。它是一家致力于设计和制造的制造商。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
不同类型的冷弯成型机。我们是一家历史悠久的工厂，自 2006 年以来一直从事冷弯成型机的设计和制造。我们能生产的机器包括：屋面瓦成型机、CZ 檩条成型机、轻钢龙骨成型机、金属压花机、门系统成型机、天花板系统成型机、高频焊管机、分切生产线、定长切割生产线、货架系统成型机、地板装饰板成型机、彩石瓦生产线、热贴膜机等。
如需了解更多信息、交货时间和价格，请给我们发邮件！
A cable tray forming machine is a core cold roll forming equipment designed for mass production of standard cable trays, including ladder trays, trough trays, and perforated cable trays. It processes galvanized steel, aluminum zinc steel, and stainless steel coils into finished cable trays through automatic feeding, punching, multi-pass rolling, and fixed-length cutting.
For electrical equipment manufacturers, construction material suppliers, and metal profile processing factories, a high-performance cable tray roll forming system directly improves production efficiency, ensures consistent product precision, and reduces overall manufacturing costs. This guide covers working principles, core advantages, key features, common machine types, selection tips, and daily maintenance tips to help global buyers make reliable purchasing decisions.
What Is a Cable Tray Forming Machine & How Does It Work?

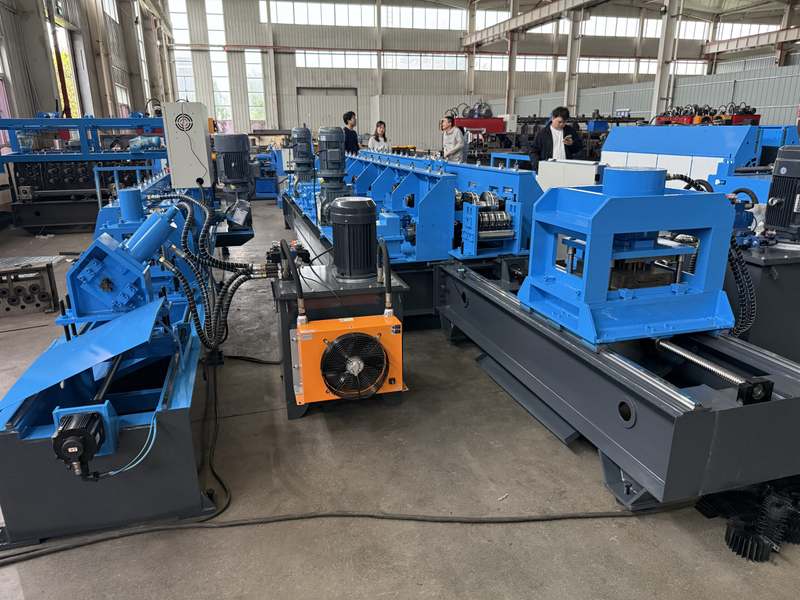

A cable tray forming machine is a fully automated industrial production line that integrates mechanical, hydraulic, and PLC control systems. Unlike traditional manual or semi-automatic processing methods, the automated production line completes all procedures from raw coil feeding to finished product output in one continuous process.
Standard working flow of the machine:
- Material Uncoiling: The hydraulic uncoiler steadily releases steel coils to ensure flat and tension-balanced material feeding.
- Leveling & Feeding: The leveling device corrects steel plate deformation, and the servo feeding system delivers precise material length for subsequent processing.

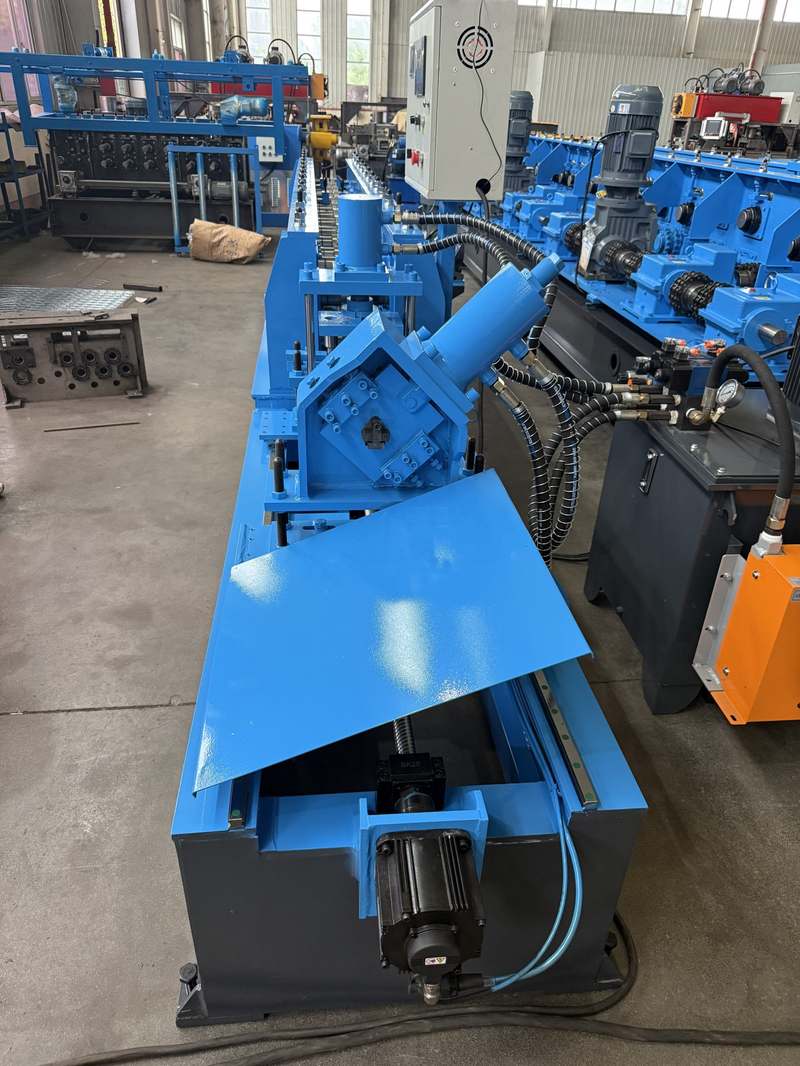

- 液压冲孔： The integrated punching unit finishes mounting holes and connection hole processing in one step, matching global cable tray installation standards.
- Multi-pass Roll Forming: Groups of precision rollers gradually bend and shape the steel plate to form standard cable tray profiles, avoiding torsion and edge warping.

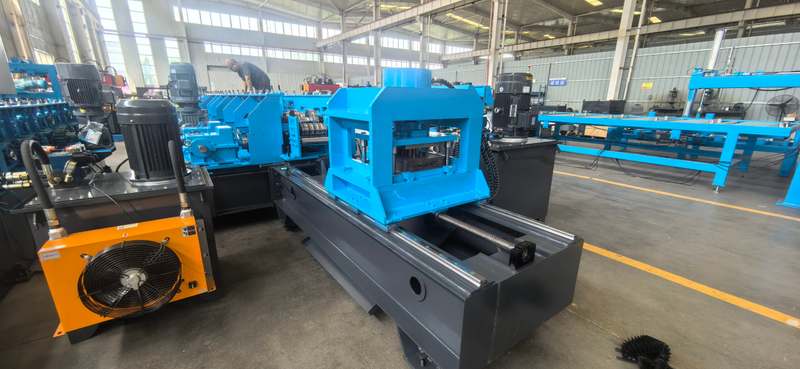

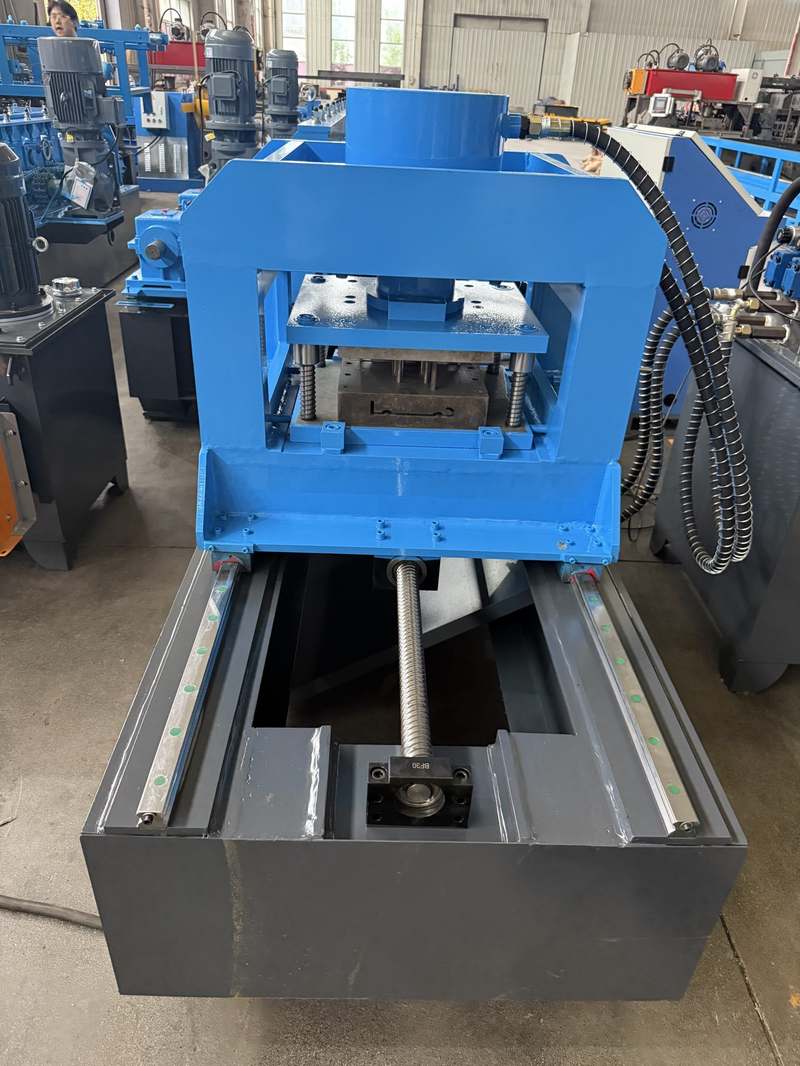

- Fixed-length Cutting: The hydraulic cutting system performs seamless cutting according to customized length, with smooth incision and no burrs.
- Finished Product Output: Finished cable trays are automatically stacked, realizing unmanned continuous production.
Core Advantages of Automatic Cable Tray Forming Machine
Compared with traditional separate processing equipment, modern automatic cable tray forming machine has obvious competitive advantages for industrial mass production:
High Production Efficiency
The continuous production speed can reach 15–25 meters per minute, realizing one-time forming without secondary processing. It saves more than 60% of labor costs and greatly shortens the production cycle of cable tray products.
Stable Product Precision & Consistency
Adopting PLC servo precision control, the dimensional error of tray width, height, and hole position is controlled within ±0.5mm. All finished products meet international electrical installation standards, which is conducive to large-scale batch sales and engineering supporting projects.
广泛的材料和规格兼容性
The machine supports processing of galvanized steel, galvalume steel, stainless steel, and aluminum sheets. By adjusting roller gaps and parameter settings, it can produce various specifications of trough-type, ladder-type, and large-span cable trays to meet commercial buildings, industrial plants, and municipal engineering needs.
Low Operation & Maintenance Cost
The whole machine adopts thickened welded steel frame and high-hardness alloy rollers, with strong wear resistance and long service life. The integrated hydraulic and electrical system has low failure rate, reducing later maintenance and replacement costs.
Intelligent & Easy Operation
Equipped with a human-machine touch screen interface, operators can set production length, quantity, and punching parameters with one click. The system supports automatic counting, fault alarm, and emergency stop functions, effectively reducing operational risks.
Common Types of Cable Tray Roll Forming Machines
According to production functions and product types, cable tray forming equipment is mainly divided into three categories, suitable for different market demands:
Trough Cable Tray Forming Machine
Specialized in producing closed trough cable trays, widely used in indoor office buildings, data centers, and precision electrical workshops. The finished products have good dustproof, anti-interference, and cable protection performance.

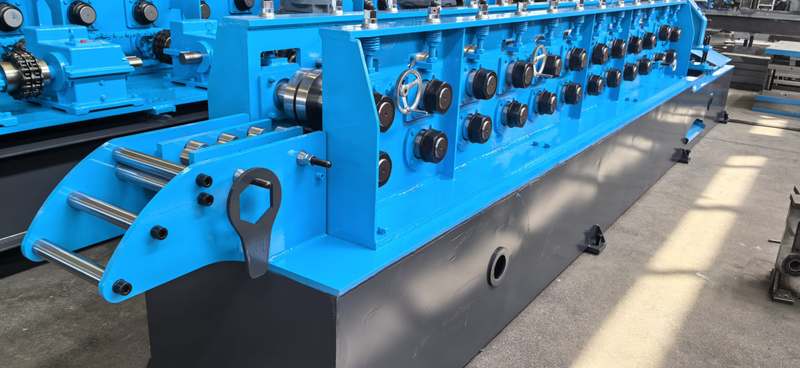

Ladder Cable Tray Forming Machine
Designed for ventilated ladder cable trays, suitable for large industrial plants, power engineering, and outdoor overhead wiring. The products feature strong heat dissipation and high load-bearing capacity.
Multi-functional Integrated Forming Machine
It can switch between multiple cable tray specifications and produce both trough and ladder types by replacing simple molds. It is the best choice for manufacturers with diversified product lines and flexible order demands.
Key Technical Parameters Global Buyers Focus On
When purchasing a cable tray roll former, international customers usually focus on the following core parameters to match local production and engineering standards:
Processing material thickness: 0.8mm–2.5mm adjustable
Production speed: 15–25m/min (adjustable frequency conversion)
Forming precision: Dimensional tolerance ≤ ±0.5mm
Control system: PLC full automatic control, servo fixed-length cutting
Main motor power: 15KW–30KW (customized)
Applicable materials: Galvanized steel, galvalume steel, stainless steel
Custom function: Automatic punching, embossing, hole spacing customization
Common Equipment Problems & Professional Solutions
In long-term continuous operation, cable tray forming machines may have minor failures. Timely maintenance can ensure stable production and extend equipment life:
Product forming distortion & size deviation
Causes: Asymmetric roller gaps, loose positioning brackets, or uneven feeding tension.
Solutions: Recalibrate the horizontal level of each group of forming rollers, adjust feeding tension, and clean roller surface attachments to ensure uniform stress during material forming.
Hydraulic punching weak & burrs on incision
Causes: Aging hydraulic seal, insufficient system pressure, or worn punching/cutting dies.
Solutions: Replace aging hydraulic accessories, adjust system pressure to standard value, polish or replace worn dies to ensure smooth incision.
Machine vibration & abnormal noise
Causes: Lack of bearing lubrication, loose transmission chains, or unstable foundation.
Solutions: Add special lubricating grease, tension transmission parts, fix foundation bolts, and eliminate mechanical jitter.
Daily Maintenance Tips to Extend Machine Service Life
Scientific daily maintenance can keep the cable tray forming machine in optimal working condition and reduce downtime losses:
- Clean the roller surface and hydraulic system dust regularly every day to avoid hard impurities scratching the steel plate and wearing the molds.
- Check the tightness of electrical wiring and hydraulic joints weekly to prevent oil leakage and poor signal contact.
- Lubricate bearings, gears, and transmission chains regularly to avoid dry friction and accelerated wear.
- Replace hydraulic oil and filter elements every 6–12 months to ensure the cleanliness and working efficiency of the hydraulic system.
- Perform parameter calibration and equipment debugging monthly to guarantee long-term production precision stability.
为什么选择我们的电缆桥架成型机？
We focus on the R&D and manufacturing of cold roll forming equipment for more than 20 years, providing professional custom cable tray forming solutions for global electrical metal processing enterprises. Our equipment has passed CE certification and meets European, Southeast Asian, Middle Eastern, and African engineering production standards.
Our core strengths:
- Customized machine models and production lines according to customer’s tray specifications and factory scale
- High-precision roller processing technology, stable operation, and low failure rate
- Full set of after-sales services: overseas installation guidance, technical training, and long-term spare parts supply
- Cost-effective integrated production line, helping customers improve product competitiveness and expand local market share
