As a professional manufacturer and exporter of cold roll forming equipment with over 20 years of experience, we are dedicated to providing high-quality cable tray forming solutions for global electrical engineering, steel structure and power equipment industries. With the global boom in industrialization, urbanization and renewable energy construction, cable trays have become the core carrier for safe cable laying in power plants, industrial workshops, commercial complexes, high-rise buildings, subway projects and municipal facilities, and the demand for high-efficiency, high-precision cable tray forming machines is growing rapidly worldwide.

Our Cable Tray Forming Machine is independently developed and upgraded based on global market demand and international standards, integrating advanced roll forming technology, intelligent CNC control and heavy-duty structural design. We have passed ISO9001 quality management system certification and EU CE certification (in line with EN 61537:2007 standard), and won honors such as “Alibaba Global Premium Supplier” and “SEAISI High-Quality Supplier”. Our equipment is tailored for overseas cable tray manufacturers, electrical engineering contractors and steel structure enterprises, perfectly solving the pain points of traditional equipment and helping you seize business opportunities in the global electrical engineering market.

为什么选择我们的电缆桥架成型机？

High-Precision Forming, Comply with Global Standards

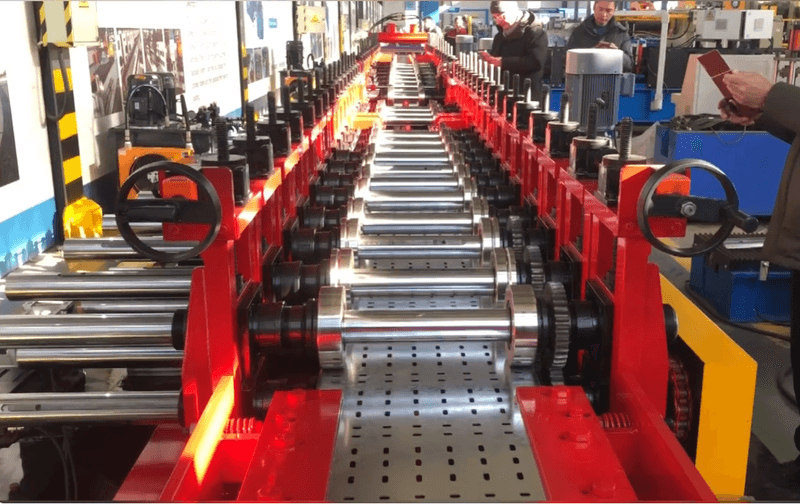

Precision is the core of cable tray quality, directly related to the safety of cable laying and long-term operation. Our machine is equipped with imported high-performance PLC control system and servo motor precise positioning system, achieving a dimensional accuracy of ±0.05mm, which is far higher than industry standards. The forming rollers are made of high-quality GCr15 bearing steel, processed by high-frequency quenching and precision grinding, ensuring smooth surface, uniform force application and no scratches on the tray surface. The 30-40 passes of progressive roll forming process optimizes the section structure, enhancing load-bearing capacity, compression resistance and impact resistance, fully complying with ANSI, DIN, IEC and EN 61537:2007 standards, with a product qualification rate of up to 99.8%. It fully meets the safety and quality requirements of European, American, Southeast Asian and Middle Eastern markets.

Multi-Type & Multi-Specification, Flexible Customization

We understand the diverse needs of global projects, so our machine supports the production of all common types of cable trays, including ladder-type, trough-type, tray-type, mesh-type and custom-shaped cable trays. It is compatible with various raw materials such as cold-rolled steel, hot-rolled steel, galvanized steel, color-coated steel and aluminum alloy, with a processing thickness range of 0.6-2.5mm and a forming width range of 100-1100mm, covering most conventional size requirements. The quick mold adjustment system allows flexible switching between different specifications within 15-25 minutes, and we provide OEM/ODM customization services according to customer drawings and project needs, realizing one machine for multiple uses and meeting diversified order demands.

Fully Automatic Production, High Efficiency & Cost Saving

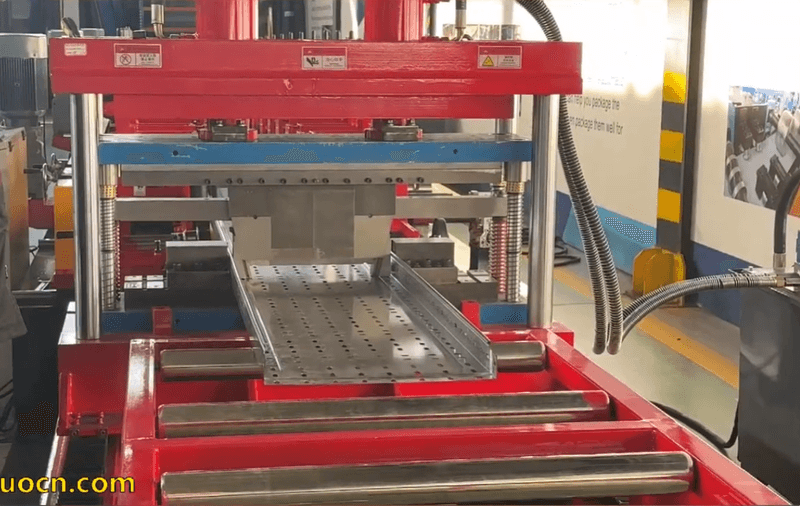

Aiming at large-scale production needs, our cable tray forming machine achieves a stable forming speed of 15-35 meters per minute, and the online punching speed can reach 8-12 meters per minute, balancing efficiency and quality. The fully automatic integrated production line covers the entire process from coil uncoiling, leveling, punching (mounting holes, ventilation holes), roll forming, fixed-length hydraulic cutting to automatic stacking, realizing unmanned continuous production. Only 1-2 operators are needed for supervision, reducing labor costs by more than 60% compared with traditional manual processing. The high-capacity coil support (5-15 tons) reduces coil replacement frequency, ensuring production continuity and helping you complete large-order delivery on time.

Anti-Corrosion & Durable, Adapt to Harsh Environments

Cable trays are often used in complex environments such as coastal areas, high-humidity industrial workshops and outdoor municipal facilities, so anti-corrosion performance is crucial. Our machine is specially designed with anti-scratch protection: forming rollers and conveying parts are wrapped with wear-resistant polyurethane soft layer to avoid damaging the anti-corrosion coating of raw materials. It is highly compatible with galvanized steel and aluminum-zinc-magnesium steel coils, ensuring the finished cable trays have excellent rust resistance, moisture resistance and salt spray resistance, with a service life of up to 25 years, reducing later maintenance costs and meeting the long-term operation needs of harsh environments.

Heavy-Duty Structure, Low Maintenance Cost

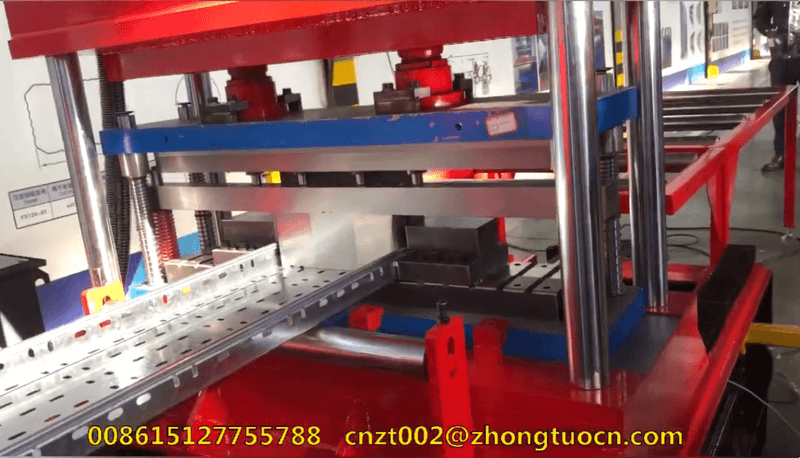

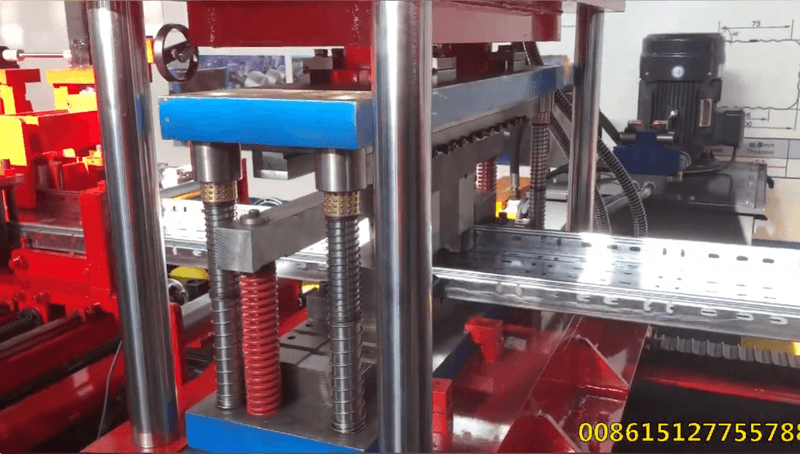

The whole machine adopts an integrated thick steel plate welded frame, processed by overall stress relief annealing treatment, with ultra-strong rigidity and stability, no vibration or deformation during long-term high-speed operation, and a service life of more than 15 years. Key components (forming rollers, punching dies, cutting blades) are made of wear-resistant alloy materials, with long service life and low failure rate. The intelligent fault diagnosis system can timely alarm and display fault points, making maintenance simple and quick. All components adopt international universal standards, so spare parts can be easily purchased globally, minimizing equipment downtime and production costs.

User-Friendly & Safe, Eco-Friendly Production

Designed for global operators, the machine is equipped with a large-size color touch screen with an intuitive interface and one-key operation. Operators can master equipment operation, parameter adjustment and mold switching without professional technical training, reducing training costs. In terms of safety, it is equipped with fully enclosed protective covers, emergency stop buttons and safety interlock devices, fully complying with EU CE safety standards (MD, LVD, EMC directives) to protect operators’ personal safety. Adopting cold roll forming process, no high-temperature heating, no waste gas or pollution, energy-saving and environmental protection; the material utilization rate is up to 98.5%, minimizing raw material waste, in line with global green development trends.

Our Strength & Comprehensive After-Sales Service

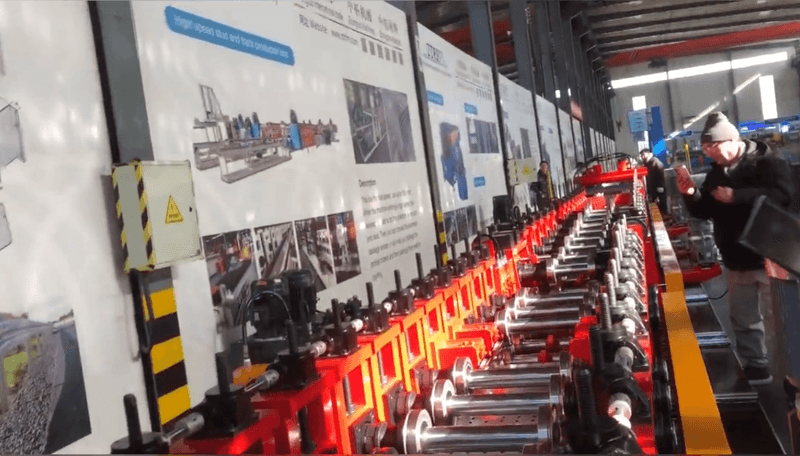

With a production base of over 30,000 square meters and nearly 300 employees, we have strong R&D and production capacity, with an annual output of over 1,000 sets of cold roll forming equipment. Our Cable Tray Forming Machine has passed CE, ISO9001 and other international certifications, and can be smoothly exported to more than 70 countries and regions around the world. We provide one-stop export supporting services, including moisture-proof, shock-proof and anti-corrosion wooden case packaging, professional shipping arrangement, complete customs declaration documents and multilingual technical manuals, ensuring safe and fast delivery to your factory.

We provide 24-hour online global technical support, free remote installation and commissioning, professional operator training and lifelong spare parts supply. Our professional after-sales team has rich experience in overseas electrical equipment service, and can provide 72-hour emergency response support, quickly solving various problems encountered in production and ensuring the stable operation of your production line. We have served many well-known global enterprises, including Russian cablemanufacturers and Indonesian data center projects, winning unanimous trust and praise.

As a reliable partner in the global cable tray manufacturing industry, we are committed to providing you with high-quality equipment, competitive prices and thoughtful services. Whether you are a large-scale cable tray manufacturer or a medium-sized processing enterprise, whether you need standard equipment or customized solutions, we can meet your needs and help you enhance market competitiveness in the global electrical engineering field.
