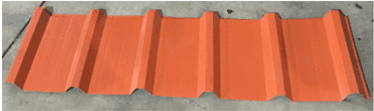

In the global construction industry’s pursuit of safety, efficiency, and durability, trapezoidal roof panels have emerged as the preferred roofing solution for industrial plants, warehouses, logistics centers, large-scale commercial complexes, and convention centers. Their unique trapezoidal cross-section delivers exceptional load-bearing capacity, superior waterproofing, and a sleek, modern aesthetic. The quality of these panels directly determines the lifespan and safety of building roofs, with the trapezoidal roof panel forming machine serving as the core equipment that ensures this reliability.

Our trapezoidal roof panel forming machine, built on decades of industry expertise, is engineered for mass production of premium trapezoidal roofing systems. Whether processing high-strength panels tailored to diverse regional climates or custom profiles meeting varied architectural specifications, it maintains precise forming precision. With consistent performance and high production efficiency, this solution delivers reliable manufacturing capabilities for global construction firms and panel manufacturers, enabling the creation of roofing systems that harmonize safety standards with functional aesthetics.

Core Advantages: Six Key Features Define High-Standard Trapezoidal Roof Panel Forming

With cutting-edge R&D and extensive market experience, our trapezoidal roof panel forming machines excel in precision, efficiency, adaptability, and durability, fully meeting the stringent requirements of global clients.

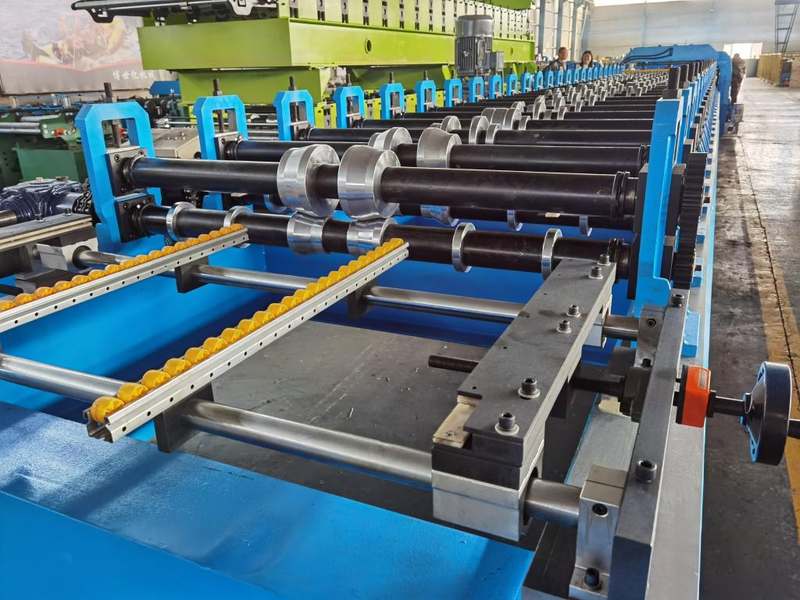

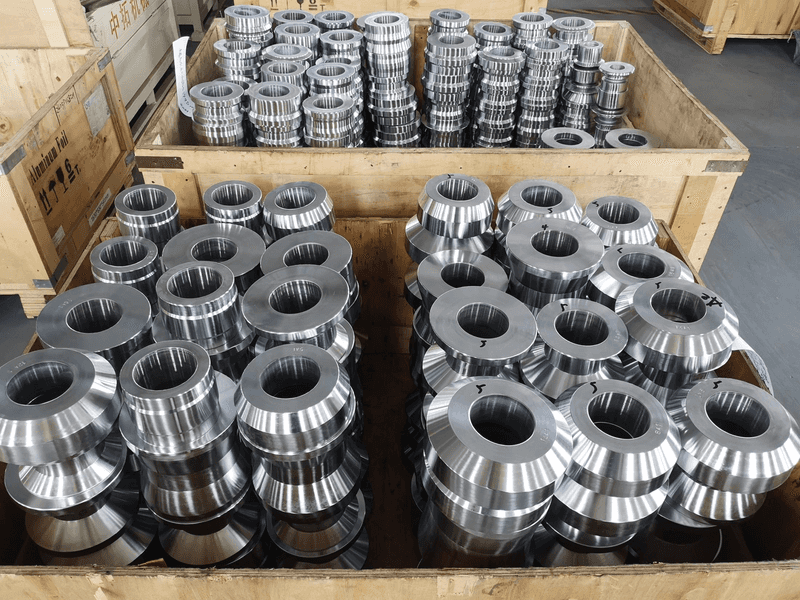

Precision Forming Technology for Roof Safety: Utilizing multi-pass progressive roller forming technology with a 45# steel forming shaft that undergoes tempering treatment, the surface is hardened to HR55°-58°. This ensures trapezoidal roof panels with precise cross-sections and dimensions, maintaining wave height and pitch within ±0.3mm and straightness error ≤1mm/m. The unique trapezoidal structure is formed in a single process without secondary machining, significantly enhancing compressive strength and deformation resistance. Tests confirm its ability to withstand extreme weather conditions like strong winds, heavy rain, and snow accumulation, while offering excellent waterproofing and sealing to eliminate leakage risks. A surface protection device prevents scratches during forming, ensuring the finished product maintains its aesthetic quality.

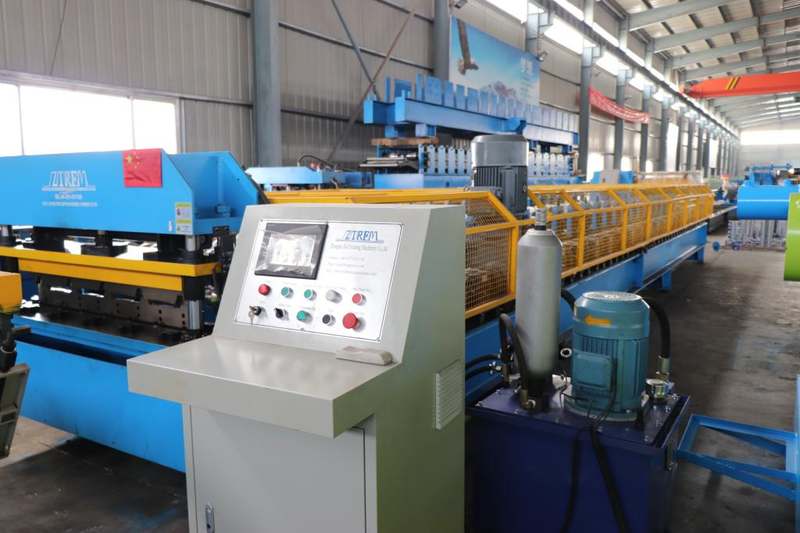

High-efficiency production performance with reduced overall production costs: Featuring high-power variable frequency motors and precision transmission systems, the equipment achieves a maximum production speed of 55 meters per minute, with a daily output exceeding 3,500 meters per unit. It supports 24/7 continuous operation, perfectly meeting the batch supply demands of large-scale construction projects. Equipped with an intelligent PLC control system and a 12-inch color touchscreen interface, it enables memory of multiple process parameters and one-touch switching. The system supports automatic length-cutting, counting, and stacking, offering simple and convenient operation. Only 1-2 operators are required to manage the entire production line, significantly reducing labor and management costs.

Versatile Adaptability for All Building Scenarios: Featuring exceptional compatibility with profiles and materials, this system enables precision fabrication of trapezoidal roof panels in various specifications. It accommodates wave heights from 25mm to 75mm and effective widths ranging from 600mm to 1200mm, meeting diverse roof design requirements for different spans and load capacities. Capable of processing metal materials including galvanized sheets (0.3mm-1.2mm thickness), color-coated panels, aluminum sheets, and stainless steel sheets, it caters to both heavy-duty industrial factory roofs and lightweight storage or temporary structures. The system supports customized die development, allowing precise production of specialized trapezoidal profiles according to client drawings to fulfill personalized architectural design needs.

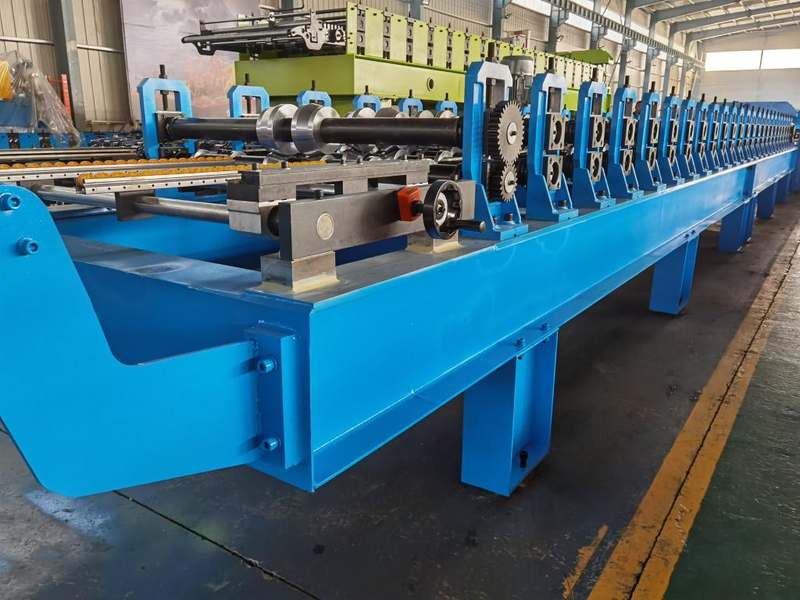

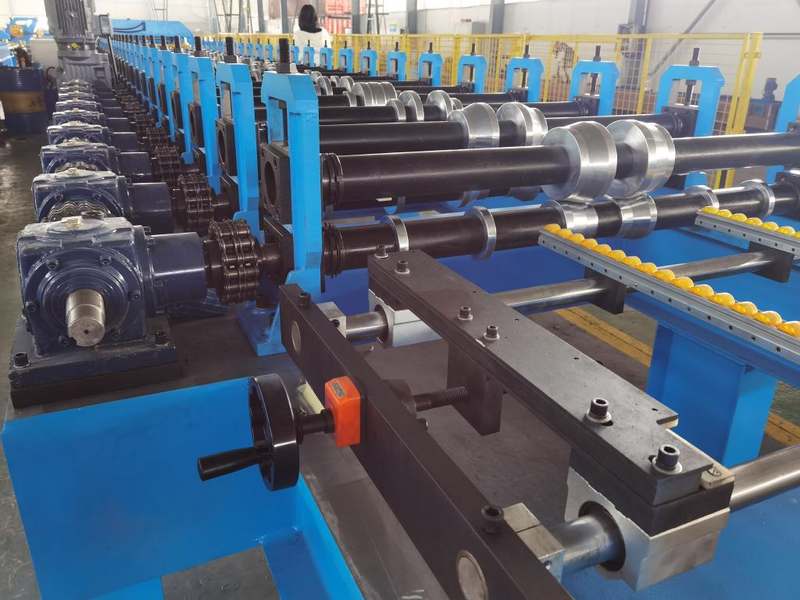

Robust structural design ensures long-term stability: The machine body is fabricated from 280# I-beam steel through integral welding, featuring a 18mm-thick central plate and reinforced H-beam base. Aging treatment eliminates welding internal stresses, guaranteeing deformation-free operation and consistent precision during high-intensity continuous use. Core transmission components utilize precision gearboxes with universal joint couplings for high-efficiency, low-wear operation. The cutting die, made of Cr12MoV high-strength alloy and vacuum-hardened, produces smooth, burr-free cuts with a service life exceeding 800,000 cycles—far surpassing industry averages. Electrostatic spray coating provides corrosion resistance, enabling operation in harsh environments like high-temperature, high-humidity, and dusty workshops while reducing maintenance frequency and operational costs.

Intelligent Safety Protection for Enhanced Operational Safety: Featuring multiple intelligent safety protection designs, the equipment is equipped with emergency shutdown buttons, overload protection, leakage protection, and material shortage alarms. When abnormal operating conditions occur, the system automatically stops and triggers alerts to maximize safety for both operators and equipment. The enclosed housing design effectively prevents metal chips from splashing during processing. An automatic lubrication system provides scheduled maintenance for core transmission components, reducing wear and extending equipment lifespan. Some models support remote monitoring and fault diagnosis functions, enabling real-time operational status tracking and rapid fault resolution.

Mobile Flexibility Design for Diverse Construction Scenarios: To address the needs of distributed building projects and old house renovation projects, we introduce a portable trapezoidal roof panel forming machine. Compact and lightweight with mobile casters and lifting mechanisms, this equipment can be directly transported to construction sites for on-site processing, reducing transportation costs and deformation losses of finished panels while significantly improving construction efficiency. For large-scale panel manufacturers, we provide customized fully automated production line services, enabling end-to-end automation from raw material uncoiling, leveling, forming, cutting, stacking to packaging. This enhances production intelligence and capacity.

International Market Recognition: Exporting to the World, Building a Reputation of Quality

With outstanding quality and performance, our trapezoidal roof panel forming machines have obtained multiple international certifications including CE and ISO9001. Exported to over 50 countries and regions across Europe, the Americas, Asia, Africa, and Oceania, we have become long-term partners for numerous renowned global construction companies and panel manufacturers, successfully supporting the implementation of multiple large-scale construction projects.
