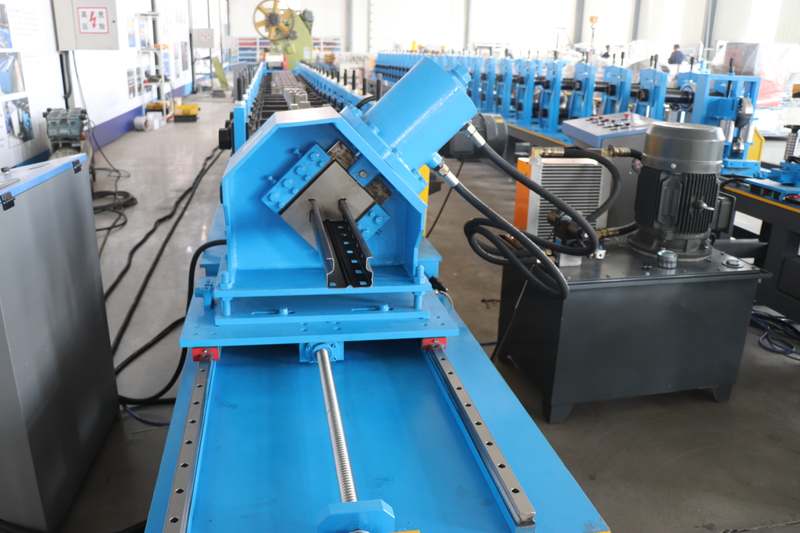

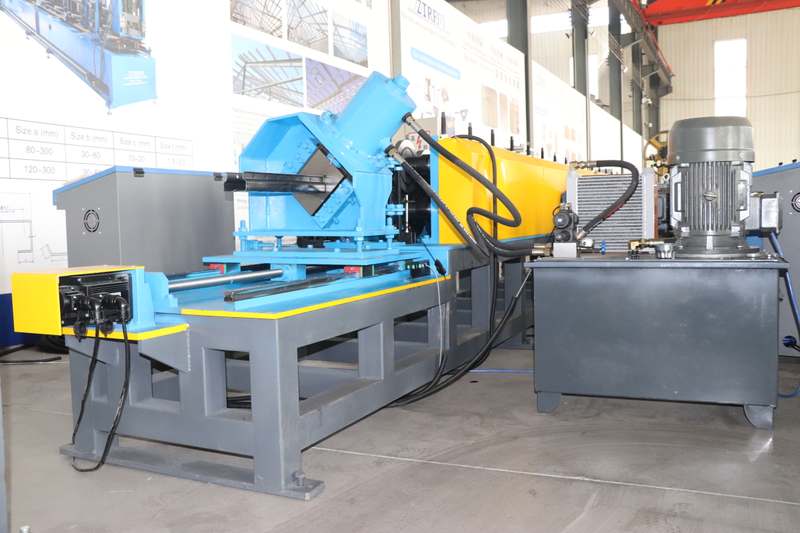

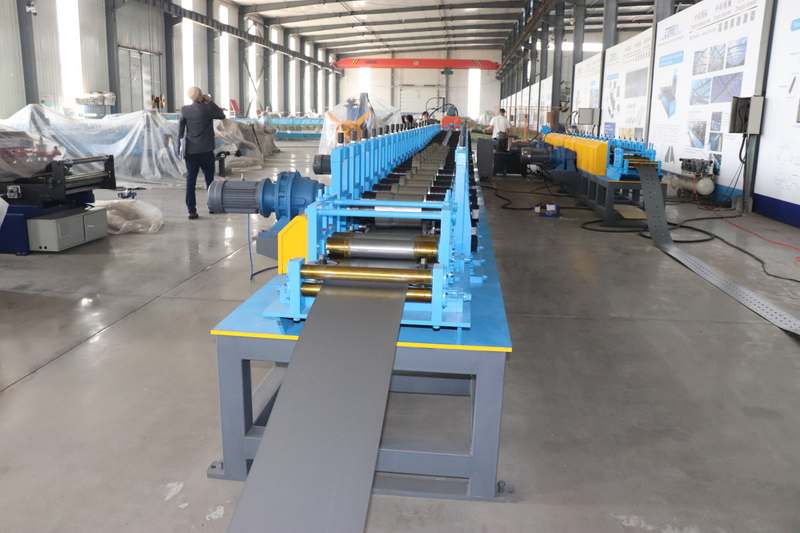

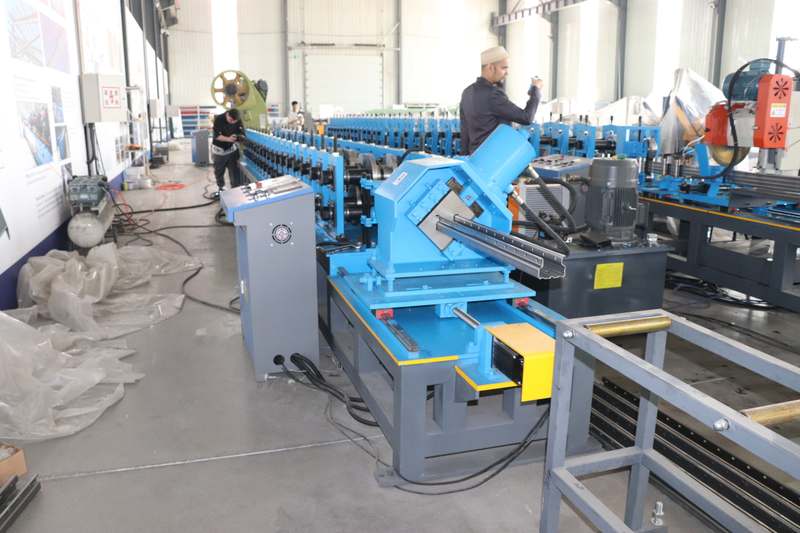

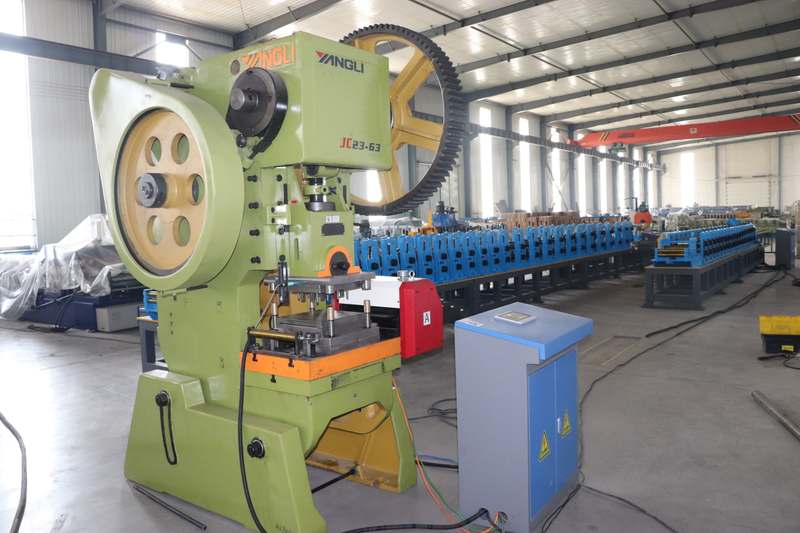

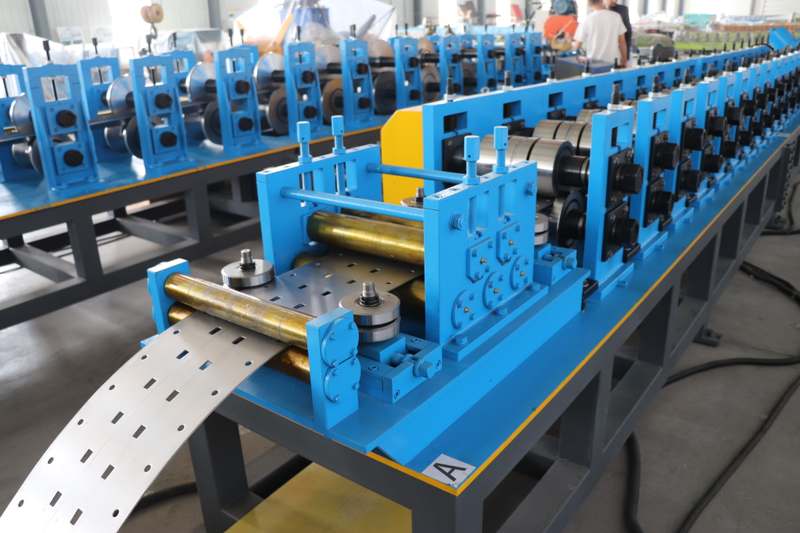

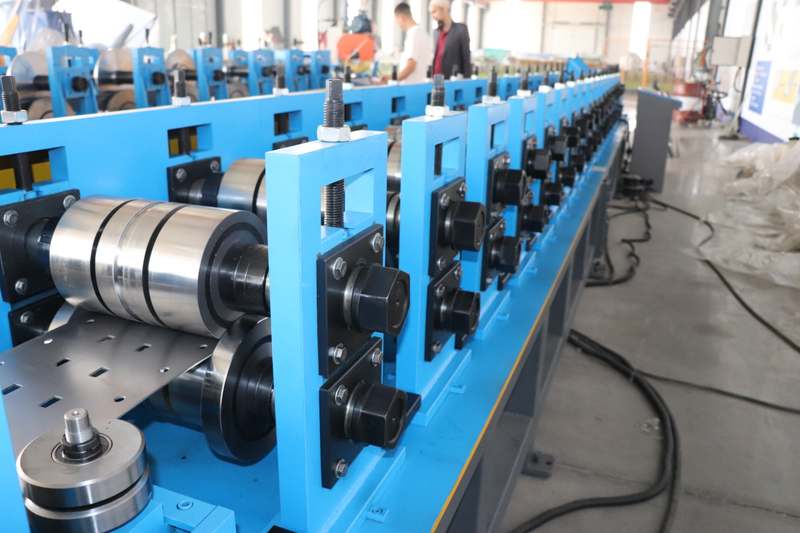

The Shelf Upright Roll Forming Machine is a fully automatic, high-efficiency cold roll forming equipment specially designed for manufacturing core structural components of storage shelving systems — shelf uprights (vertical supports). As a key production equipment in the global warehousing and logistics industry, it adopts advanced servo control, precision progressive roll forming, and on-line flying punching/hole-drilling technology to process high-quality metal coils (hot-dip galvanized steel, cold-rolled steel, stainless steel) into high-strength, corrosion-resistant, and dimensionally accurate shelf uprights, which are widely used in warehouse pallet racks, retail display shelves, industrial storage racks, supermarket shelving, and modular storage systems worldwide.

Core Advantages of Our Shelf Upright Roll Forming Machine

Compatibilidad con múltiples tipos: una sola máquina para múltiples usos

Our Shelf Upright Roll Forming Machine supports the production of all core shelf upright types, including L-shape (light-capacity), C-shape (medium-capacity), Omega-type (heavy-duty), and custom-shaped uprights for special shelving systems, eliminating the need for separate equipment for different upright types. It can quickly switch between types by adjusting parameters via the PLC touch screen or replacing partial roller modules, with automatic adjustment reducing changeover time to 5-10 minutes, reducing customers’ early equipment investment costs, saving workshop space, and improving production flexibility. This multi-purpose design meets diverse project needs of the global shelving industry, from light-duty retail display shelves to heavy-duty warehouse pallet racks and industrial storage systems.

Eficiencia de producción extremadamente alta, capacidad a gran escala

Equipped with a high-performance servo drive system and optimized progressive forming process, our shelf upright machine offers three tiers of production speed to meet different needs: high-speed lines reaching up to 30 m/min (perfect for high-volume industrial suppliers), medium-speed lines operating at 10-20 m/min (balancing cost and output), and entry-level lines with reliable production at 3-5 m/min for smaller operations. The fully automatic workflow (uncoiling, leveling, punching, forming, cutting, stacking) eliminates manual intervention in all links, significantly reducing labor costs and shortening production cycles. Similar to the high-efficiency production lines used in leading shelving equipment manufacturers, our machine can increase daily output by 60% compared with traditional semi-automatic models, even improving efficiency by 300% for multi-model production, easily meeting the mass production demands of large shelf manufacturers, bulk export orders, and shelving project supporting.

Alta precisión y calidad estable; cumplimiento de las normas internacionales

Adopting precision servo control technology, CNC-machined roller sets, and automatic deviation correction system, the machine strictly controls the dimensional error (±0.3mm), punching accuracy (±0.1mm), and straightness of finished shelf uprights within international high-standard ranges. The high-strength forming process, combined with reinforcement rib design, ensures the uprights have excellent load-bearing capacity and stability, complying with international shelving industry standards such as ASTM, CE, and ISO 9001. The finished products fully comply with EU MD 2006/42/EC mechanical directive and LVD 2014/35/EU low voltage directive, helping customers pass project acceptance smoothly and enhance market competitiveness in global markets such as Europe, North America, Southeast Asia, and South America.

Alta resistencia y durabilidad, larga vida útil

Shelf uprights need to bear long-term heavy loads and resist harsh warehouse environments (humidity, dust, corrosion), so their strength and durability are critical. Our machine adopts high-strength forming technology and uses high-quality wear-resistant forming rollers, which can fully exert the mechanical properties of raw materials, making the finished uprights have strong impact resistance and deformation resistance. The machine’s forming process minimizes friction between the material and rollers, effectively protecting the anti-corrosion coating of galvanized or cold-rolled steel materials, ensuring the uprights have excellent anti-rust and anti-corrosion performance, with a service life of up to 20-25 years, even in humid warehouses and coastal areas. The key wearing parts have a long service life, reducing the frequency of replacement and maintenance costs, and laser welding technology for rollers further extends their service life.

Compatibilidad versátil: se adapta a múltiples materiales y especificaciones

This machine supports processing a variety of high-quality metal materials for shelf uprights, including hot-dip galvanized steel (excellent corrosion resistance, suitable for outdoor and humid warehouse shelving), cold-rolled steel (cost-effective, suitable for general indoor shelving), stainless steel (extreme corrosion resistance, suitable for food, pharmaceutical, and chemical storage shelving), and Q355B high-strength steel (high load-bearing capacity, suitable for heavy-duty warehouse pallet racks). The applicable material thickness ranges from 1.0-3.5mm, and it can produce standard shelf upright sizes (width 100-500mm, height 50-300mm, including standard profiles like C76.2X41.3X1.5-2.0) and customized specifications, adapting to different project requirements and budget needs worldwide. It is compatible with all common shelving beam sizes and types, ensuring seamless integration with shelving systems.

Estructura robusta y duradera, con bajos costes de averías y mantenimiento

The machine’s main frame is made of thick-walled high-strength steel with integrated welding and overall stress relief treatment, ensuring no vibration or deformation during long-term high-intensity operation. All key wearing parts, such as forming rollers, punching dies, and cutting blades, are made of top-grade wear-resistant alloy materials — laser welding technology is adopted for rollers, extending their service life to over 2000 hours, reducing equipment downtime by 60%. The equipment features a simple daily maintenance process, with clear lubrication points and easily accessible components, lowering downtime and overall maintenance costs, making it suitable for continuous large-scale production. Similar to high-quality shelving production equipment, our machine has a low failure rate, ensuring stable production for customers, even for customized orders for global clients.

Fácil instalación y manejo, bajo requerimiento de mano de obra

Our Shelf Upright Roll Forming Machine features a user-friendly PLC control system with a large touch screen, allowing operators to complete parameter setting, type switching, and start-stop control with simple operations — no professional technical skills are required. The system’s fault self-diagnosis function can quickly locate and prompt equipment faults, reducing maintenance time and difficulty. The fully automatic production line requires only 1-2 workers to monitor, significantly reducing labor costs and training costs for customers. Additionally, the machine has a compact layout, with a footprint of about 18m×3m, suitable for small and medium-sized workshops, making it accessible for manufacturers of all sizes, from small-scale local suppliers to large export-oriented enterprises.
