Rack Upright Roll Forming Machine

Discover our rack upright roll forming machine for efficient, high-precision storage rack column manufacturing. Customizable, automated, and built for heavy-duty racking systems.

What Is a Rack Upright Roll Forming Machine?

A rack upright roll forming machine is a fully automated production line designed to manufacture storage rack uprights (columns)​ used in warehouse racking, pallet racks, and industrial shelving systems. It transforms steel coils into high-strength, precisely perforated upright profiles through continuous cold roll forming, inline punching, and cutting processes .

This equipment is essential for racking manufacturers who require consistent dimensional accuracy, high production efficiency, and low labor costs.

How Does the Rack Upright Roll Forming Machine Work?

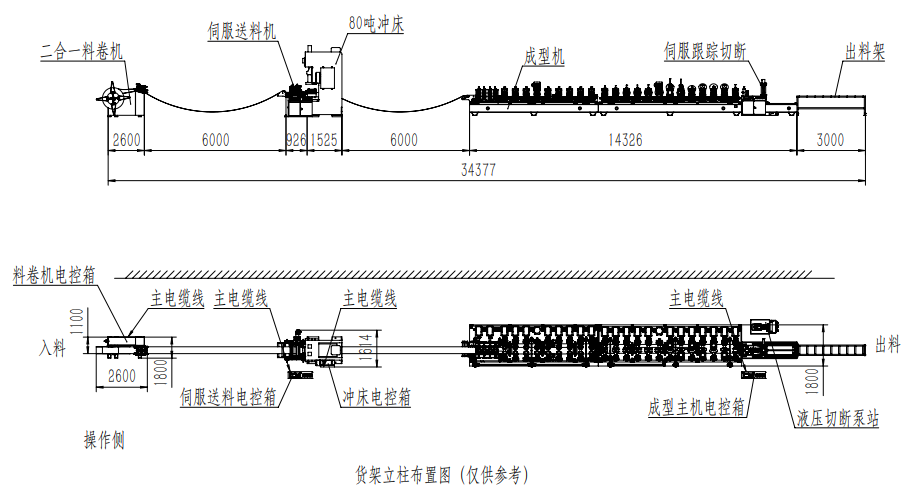

The machine operates through a synchronized, continuous workflow:

Hydraulic Decoiler​ – Uncoils galvanized or cold-rolled steel strips

Leveling Device​ – Ensures flatness and removes coil stress

Servo Feeding System​ – Controls material advancement with high precision

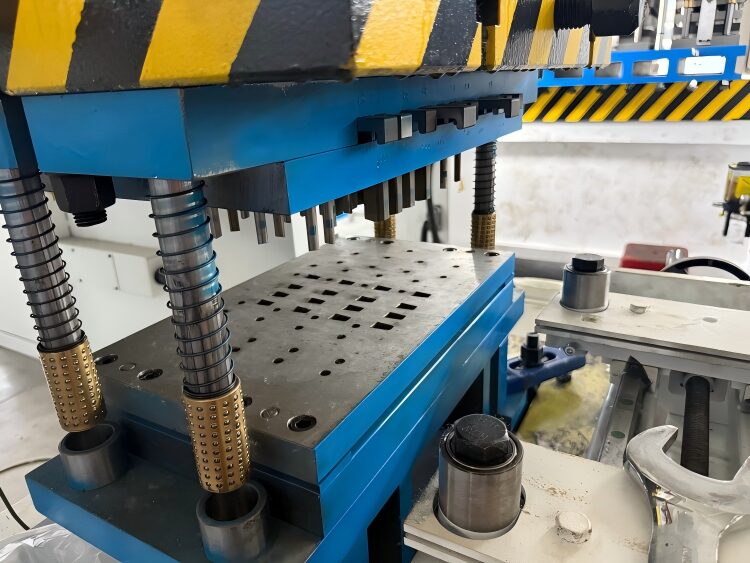

Hydraulic Punching Station​ – Punches diamond, round, or custom holes for beam connections

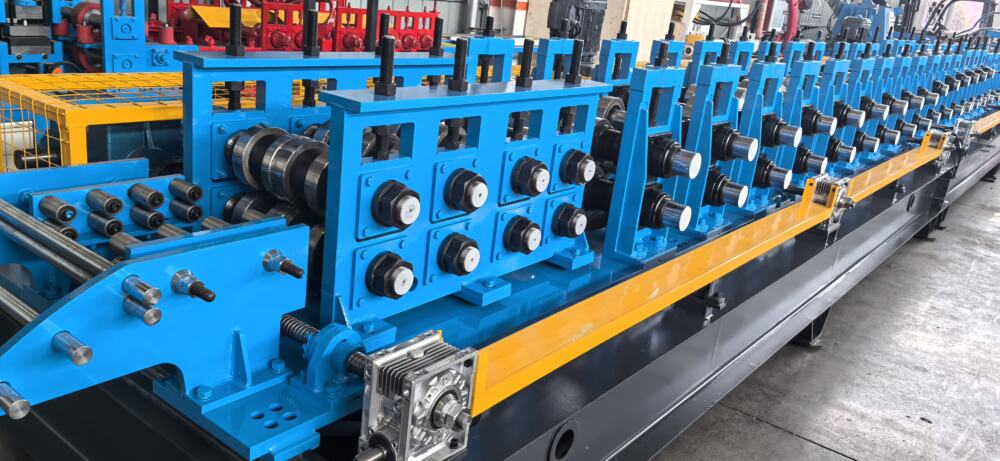

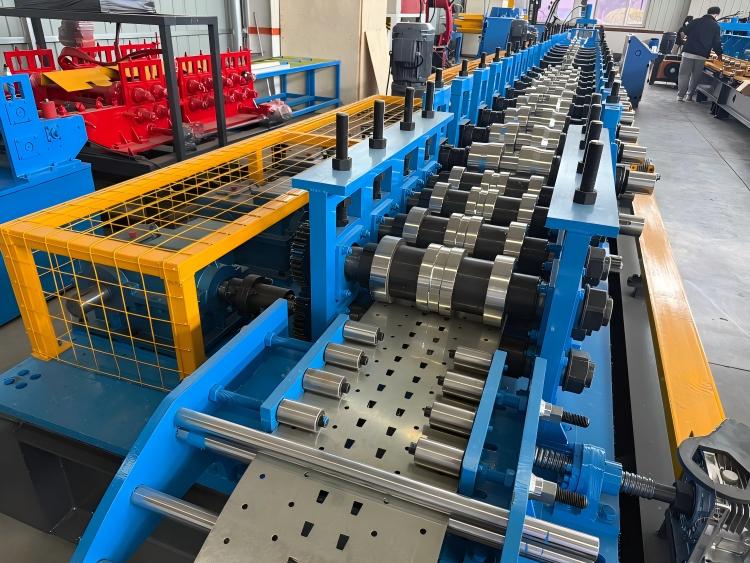

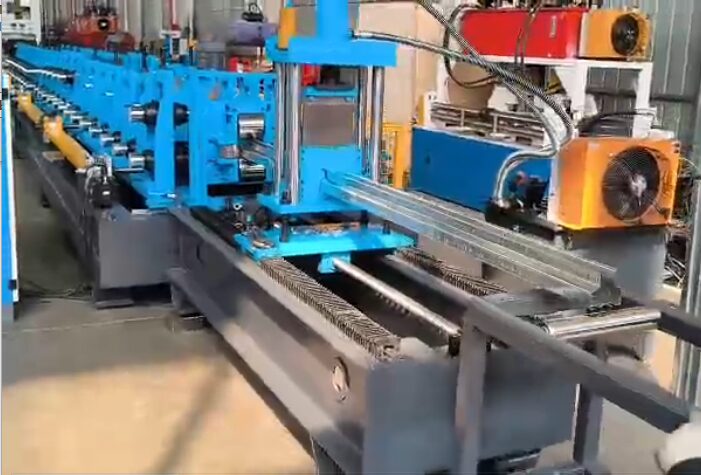

Roll Forming Unit​ – Gradually shapes the strip into C-type, Ω-type, or custom upright profiles using 18–26 forming stations

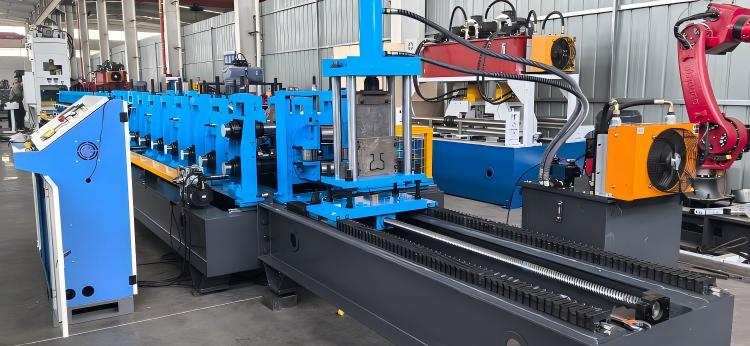

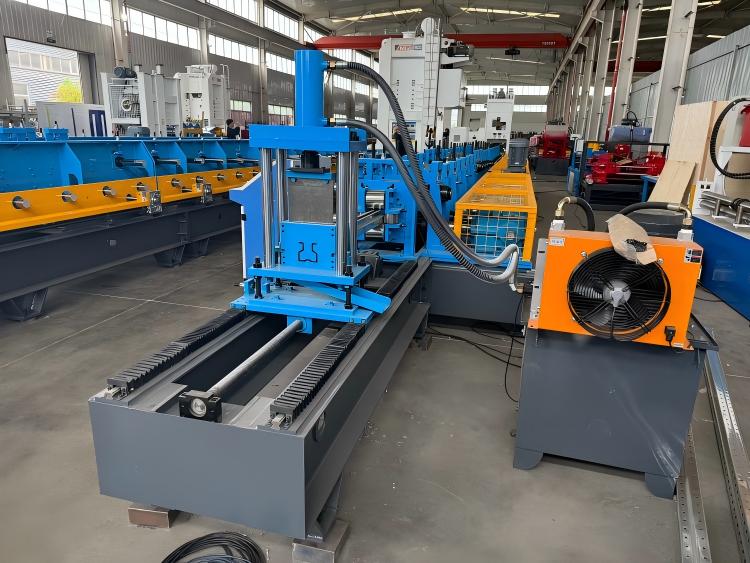

Flying Cut-off System​ – Cuts profiles to length without stopping the line

Output Table​ – Collects finished rack uprights

This integrated process ensures high-speed production (10–20 m/min)​ with tight tolerances (±0.5 mm for punching, ±1 mm for length) .

Key Features of Our Rack Upright Roll Forming Machine

High Precision Forming​

Rollers made of Cr12MoV or 45# steel with heat treatment (HRC 58–62) ensure long service life and consistent profile accuracy .

Fully Automated PLC Control​

Mitsubishi, Siemens, or Delta PLC with touchscreen interface for easy parameter setting and real-time monitoring .

Flexible Punching System​

Servo-driven hydraulic punching allows quick changeover for different hole patterns and spacings .

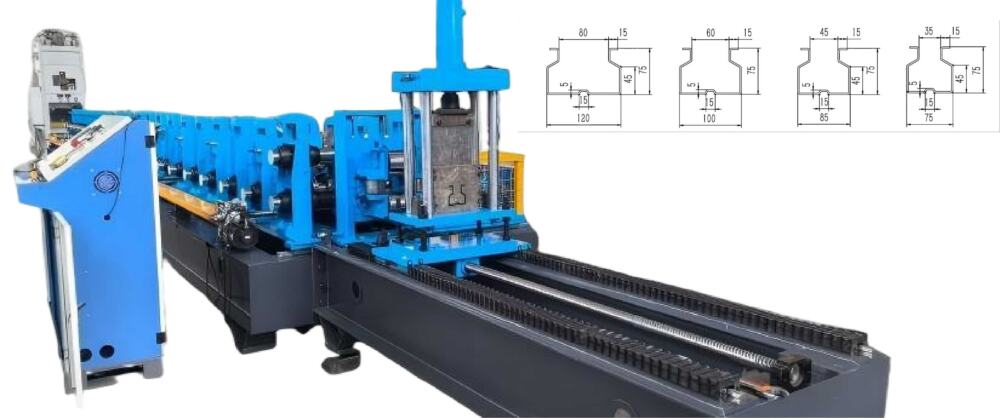

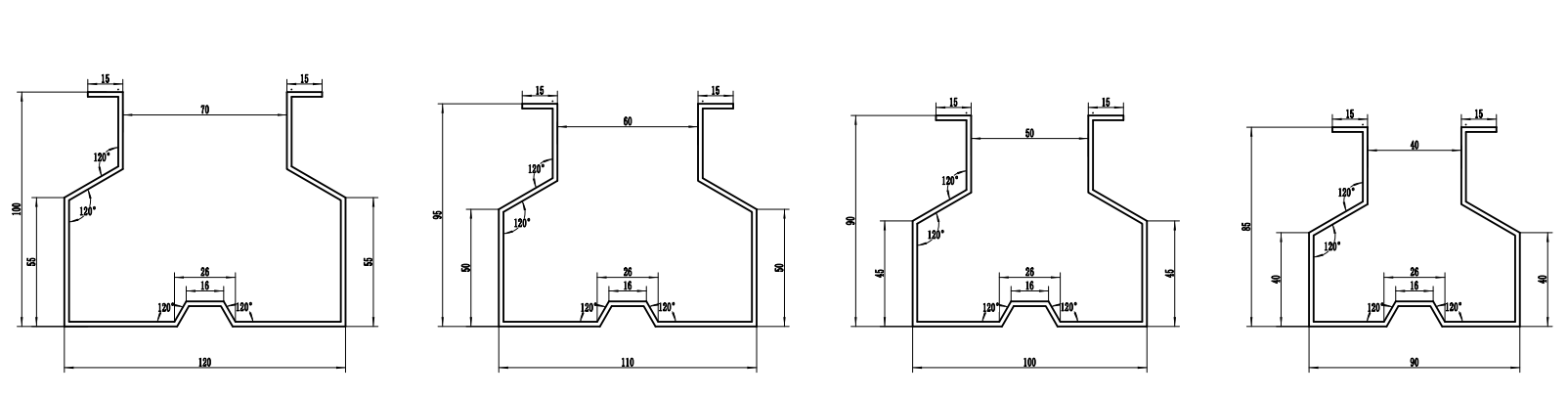

Customizable Profiles​

Supports material thickness from 1.5 mm to 4.0 mm, suitable for light, medium, and heavy-duty racking uprights .

Heavy-Duty Frame​

Stress-relieved welded structure guarantees stability during high-speed continuous operation .

Technical Parameters (Reference Configuration)

Parameters can be tailored according to your profile drawings and production requirements.

Applications of Rack Upright Roll Forming Machine

Our storage rack column roll forming machine​ is widely used for producing uprights in:

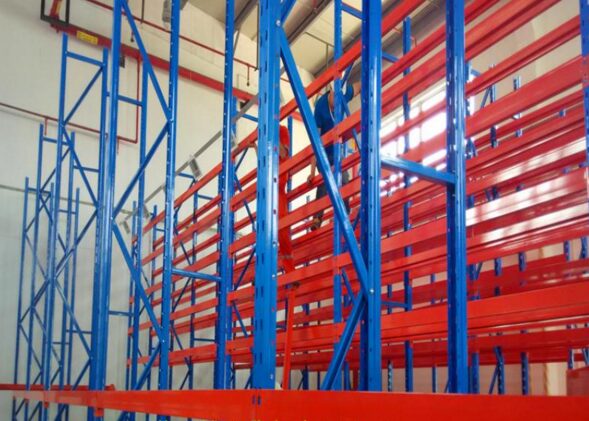

Heavy-duty pallet racking systems​

Drive-in and push-back racks​

Cantilever racking systems​

Retail shelving and display racks​

Industrial warehouse storage systems​

The produced uprights are compatible with various beam types, including box beams, step beams, and Z beams .

Why Choose Our Rack Upright Roll Forming Machine?

As a professional cold roll forming machine manufacturer, we provide:

Tailor-Made Solutions​ – Machines designed according to your upright profile drawings

Fast Changeover Design​ – Quick roller and punching die changes for multi-size production

Global Standard Compliance​ – CE and ISO certified manufacturing process

Overseas Installation & Training​ – On-site support and 12-month warranty

Competitive Factory Price​ – Direct supply from our manufacturing facility

We have successfully delivered rack upright roll forming lines​ to customers in Europe, North America, Southeast Asia, and the Middle East.

Frequently Asked Questions

Q1: Can one machine produce different upright sizes?​

Yes. With adjustable rollers and modular punching dies, our machine can produce various upright widths and hole patterns by simply changing parameters or tooling .

Q2: What is the typical lead time?​

Standard machines require 30–45 working days; fully customized lines may take 60 working days​ depending on specifications .

Q3: Do you provide profile design assistance?​

Absolutely. Our engineers can help optimize your upright profile for better load capacity and production efficiency.

Conclusión

Investing in a rack upright roll forming machine​ is the most efficient way to scale your storage rack manufacturing business. With high automation, precision, and flexibility, our machines help you reduce labor costs, minimize material waste, and deliver superior racking components to your clients worldwide.
