In the global modern construction industry, floor decking sheets are the core load-bearing component of steel structure buildings, widely applied in high-rise commercial buildings, industrial workshops, warehouses, multi-storey residential buildings and large-span venues. As a key material that combines load-bearing capacity, fire resistance and quick construction, galvanized steel floor decking has gradually replaced traditional concrete slabs, becoming the first choice for efficient and economical construction. For steel structure material manufacturers, a professional heavy-duty floor decking roll forming machine is the core equipment to realize large-scale, high-standard production and gain an edge in the global market.

We are a professional foreign trade supplier specializing in R&D, manufacturing and global export of metal cold roll forming machinery, with rich experience in steel structure construction equipment. Our floor decking roll forming machine is specially developed for the production of high-quality floor decking sheets, breaking through the bottlenecks of traditional equipment such as unstable forming, low load-bearing performance, slow production speed and high material waste. Fully compliant with steel structure construction standards in Europe, North America, Southeast Asia, the Middle East, Africa and South America, this machine helps global customers improve production efficiency, ensure product quality and reduce comprehensive production costs.

Core Advantages & Unique Features

Heavy-Duty Ribbed Forming, Superior Load-Bearing Performance

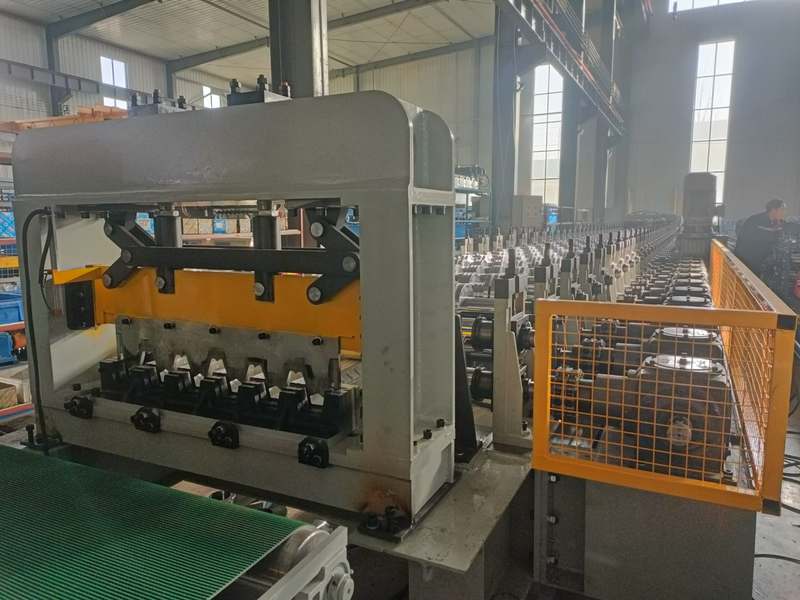

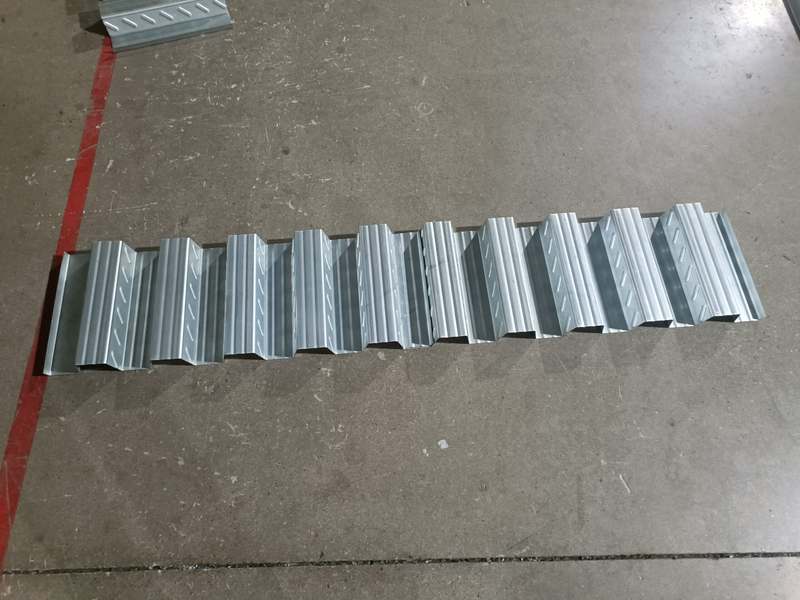

The core advantage of this machine lies in its professional ribbed forming system, which is scientifically designed to produce standard dovetail, open-type and closed-type floor decking profiles. Adopting multi-pass progressive rolling forming technology, it accurately shapes the rib height, rib spacing and bottom width, ensuring the finished sheets have uniform stress distribution and strong load-bearing capacity.

The forming roll set is forged from high-grade Cr12MoV alloy steel, treated with overall quenching, tempering and precision grinding, with a surface hardness of HRC 60-65, featuring excellent wear resistance and compression resistance. It can stably process thick steel plates with a thickness of 0.7mm-3.0mm, avoiding rib collapse or deformation during production. The finished floor decking sheets have a firm structure, can bear heavy loads of concrete and construction equipment, and fully meet the load-bearing requirements of high-rise and large-span steel structure buildings.

High-Precision Forming, Perfect Installation Fit

Dimensional consistency is crucial for the on-site installation of floor decking sheets. Our machine is equipped with a high-precision PLC servo positioning system and online real-time monitoring device, strictly controlling the dimensional tolerance of finished sheets to ensure quick and accurate splicing.

The length error of finished floor decking is controlled within ±0.2mm, rib height and width error within ±0.1mm, and the flatness error is less than 0.3mm per meter. The hydraulic flying cutting system ensures neat, burr-free cutting openings without deformation, and the precision leveling device eliminates internal stress of raw materials, making the finished sheets flat and straight, no warping or twisting. This high precision greatly improves on-site installation efficiency and reduces installation labor costs.

High-Speed Automatic Production, Maximize Production Capacity

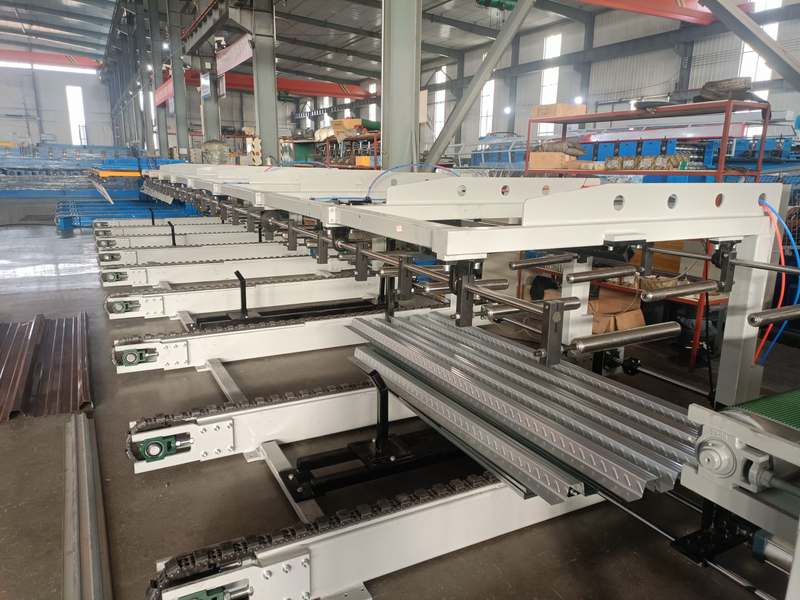

This machine realizes a full-process automatic integrated production line, covering automatic uncoiling, hydraulic leveling, precision feeding, roll forming, fixed-length flying cutting, embossing (optional) and automatic stacking. The whole process is seamlessly linked, no manual handling is required, and the production efficiency is greatly improved compared with traditional processing modes.

Equipped with a high-power heavy-duty servo motor and stable transmission system, the forming speed can be flexibly adjusted between 10-30 meters per minute, supporting 24-hour uninterrupted stable operation. A single machine can produce 5000-12000 meters of qualified floor decking sheets per day, easily coping with large-scale urgent project orders. The user-friendly touch screen control panel with full English interface supports one-key parameter setting, automatic counting and fault alarm, only requiring 1-2 workers for routine monitoring, reducing labor input by more than 70%.

Robust & Durable Structure, Long Service Life & Low Maintenance

To adapt to long-term high-load heavy-duty production, the whole machine adopts an extra-thick H-shaped steel frame, with integrated welding and stress relief annealing treatment, featuring ultra-high rigidity and low vibration. It remains stable and deformation-free during continuous high-intensity operation, ensuring consistent forming accuracy and prolonging the service life of core components.

All key electrical components, bearings, hydraulic valves and cutting blades are selected from internationally renowned brands such as Siemens, Omron and Schneider, with an extremely low failure rate. The modular design makes daily maintenance and vulnerable parts replacement simple and fast, without professional maintenance personnel. Compared with ordinary forming machines, it reduces maintenance time and cost by 40%, and the service life can reach more than 15 years under normal maintenance, bringing long-term stable returns for manufacturers.

Wide Compatibility & Flexible Customization

To adapt to the diverse needs of the global market, our floor decking roll forming machine offers strong compatibility and personalized customization options. It can process various metal coils including hot-dip galvanized steel, cold-rolled steel, weather-resistant steel and aluminum alloy, with a thickness range of 0.7mm-3.0mm, covering conventional floor decking effective widths of 600mm-1250mm.

We can customize forming rolls according to customer-specified floor decking profiles and specifications, including non-standard dovetail, open-type and closed-type profiles, adapting to different national engineering standards. The machine is equipped with a quick roll adjustment function, enabling fast switching between different specifications without disassembling the entire roll set, improving production flexibility and adapting to both small-batch customized orders and large-scale mass production.

Energy-Saving & Safe Operation, Comply with Global Standards

The machine is equipped with a variable frequency energy-saving control system, which automatically adjusts power output according to production load, reducing power consumption by 20%-25% compared with ordinary fixed-speed forming machines, in line with global green production requirements. The full-covered safety guard and safety interlock device effectively prevent accidental injuries during operation, and the running noise is controlled below 75dB, complying with international occupational health and safety standards.

The continuous coil processing mode improves material utilization rate to more than 97%, minimizing leftover materials and reducing production waste. The closed dust-proof structure reduces metal dust emission, creating a safer and more eco-friendly production environment for operators.
