01.Classification of Floor Deck Roll Forming Machine

The floor bearing plate, also known as profiled steel plate or steel bearing plate, is the core material for floor construction in steel structure buildings. The industry primarily classifies it based on "plate configuration and forming process," dividing it into three main types: open-type, concave (swallow-tail) type, and closed-type. Each type exhibits significant differences in performance and application scenarios. The specific classifications and characteristics are as follows:

Máquina Perfiladora de Tarima

Máquina Perfiladora de Tarima

02. Classification of Floor Deck Roll Forming Machine

The floor bearing plate, also known as profiled steel plate or steel bearing plate, is the core material for floor construction in steel structure buildings. The industry primarily classifies it based on "plate configuration and forming process," dividing it into three main types: open-type, concave (swallow-tail) type, and closed-type. Each type exhibits significant differences in performance and application scenarios. The specific classifications and characteristics are as follows:

Máquina Perfiladora de Tarima

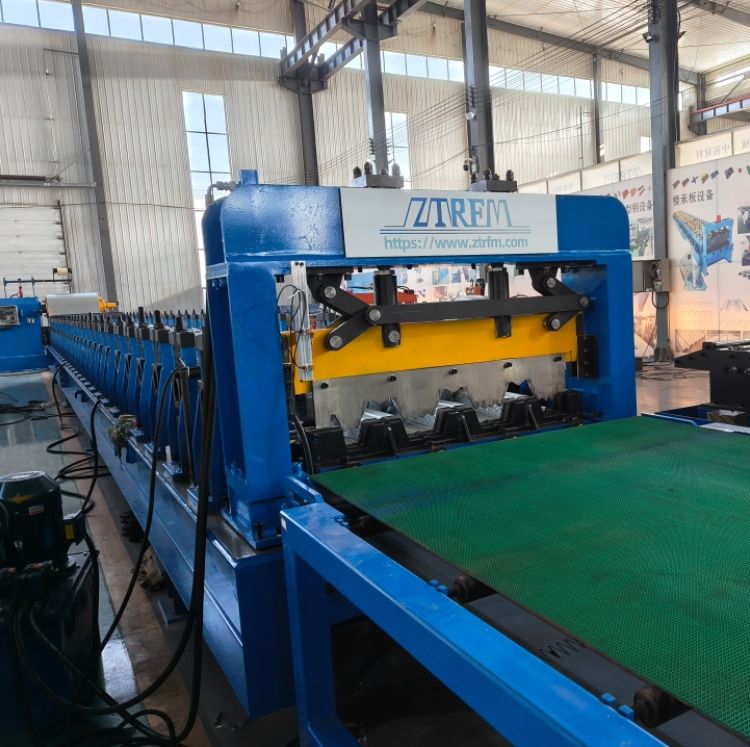

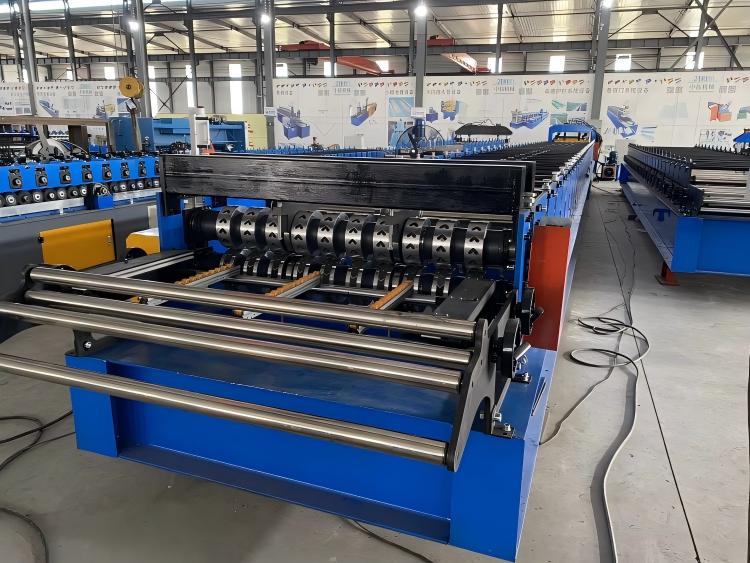

Description:A floor deck forming machine is a specialized roll forming equipment designed to manufacture high-quality steel floor deck panels for modern steel structure buildings. Widely used in commercial buildings, industrial factories, high-rise apartments, and bridge construction projects, this automated machine continuously processes galvanized steel coils into standardized, high-strength floor deck sheets with precise dimensions and stable performance. As a core construction machinery for building flooring systems, our floor deck roll forming machine integrates automatic feeding, rolling forming, leveling, punching, cutting, and discharging, helping global construction manufacturers achieve high-efficiency and low-cost steel deck production.

What Is a Floor Deck Forming Machine?

A floor deck forming machine is a custom cold roll forming system tailored for steel floor deck production. Different from ordinary metal rolling equipment, it is professionally optimized for the mechanical properties and structural standards of building floor slabs. The machine processes hot-dip galvanized steel sheets, galvanized aluminum zinc sheets, and other raw materials into various types of floor deck panels, including closed-type, open-type, and ribbed floor decks.

All production procedures are fully automated without manual secondary processing. The finished floor deck products feature strong bearing capacity, good seismic performance, lightweight, and high rigidity, which can effectively shorten the construction cycle and reduce concrete usage, making them the preferred material for modern building floor bearing systems.

Core Technical Parameters of Our Floor Deck Forming Machine

We strictly follow international construction machinery manufacturing standards to configure every component of the floor deck forming machine, ensuring stable operation, high precision, and long service life. The core parameters support customized production to meet different national building standards and project requirements:

Applicable Raw Materials: Hot-dip galvanized steel coil, galvalume steel coil, color steel coil; material thickness 0.8mm-1.5mm

Forming Speed: 8-15m/min (adjustable according to panel specifications)

Forming Precision: Dimension error ≤±0.5mm, flatness error ≤0.3mm/m

Main Motor Power: 15KW-22KW (customized for different models)

Control System: Full-automatic PLC intelligent control, touch screen operation, support for parameter memory and one-key start

Cutting System: Hydraulic automatic cutting, no burrs, no deformation of finished products

Machine Weight: 3.5-6 tons; overall dimension: 8500mm×1200mm×1500mm

Key Advantages of Our Floor Deck Roll Forming Machine

In the global construction machinery market, our floor deck forming machine stands out with high automation, stable quality, low energy consumption, and strong compatibility, solving the core pain points of low efficiency, poor precision, and high failure rate of traditional equipment for overseas buyers.

3.1 High Automation & Labor Saving

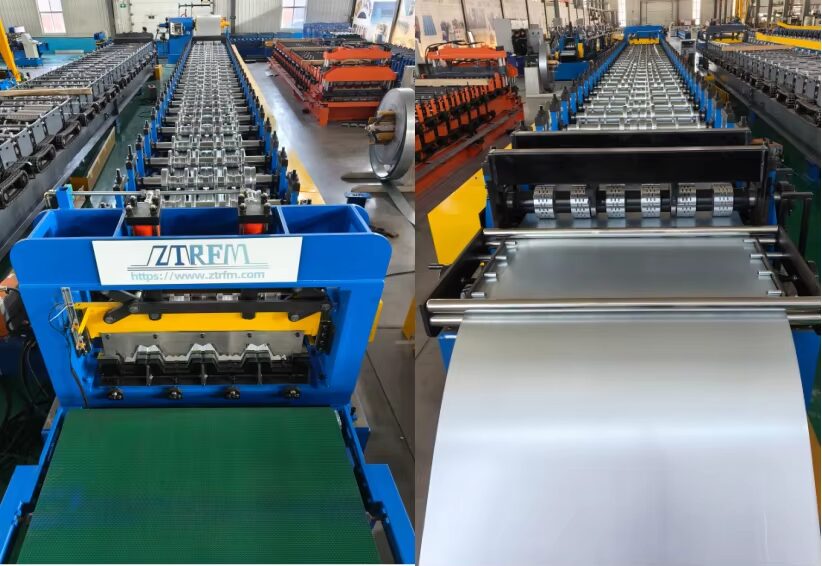

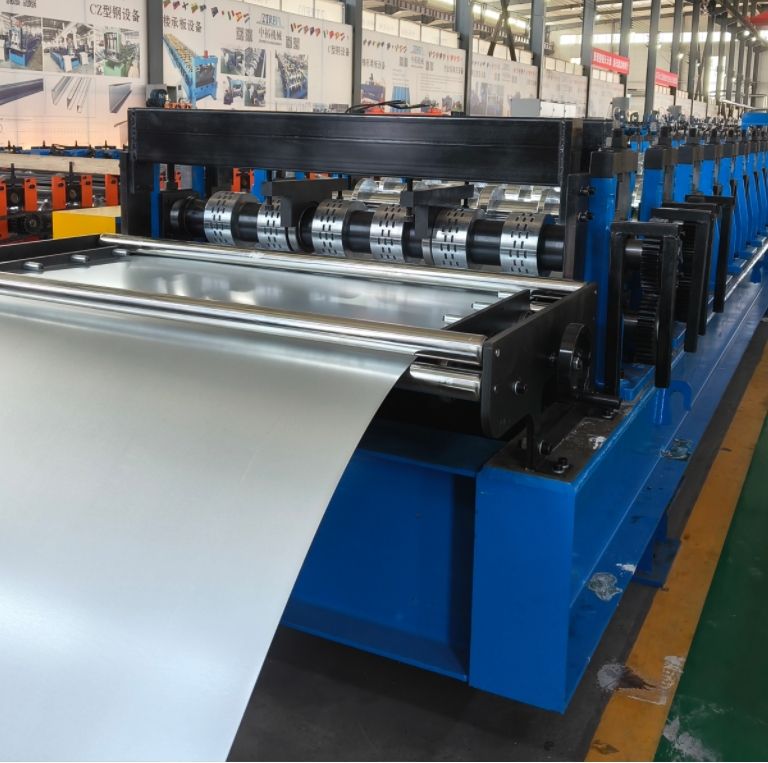

The machine adopts an integrated automatic production line, realizing automatic coil feeding, guiding, rolling, punching, fixed-length cutting, and finished product discharging. Only 1-2 workers are required to complete the entire production process, greatly reducing labor costs and improving production efficiency, which is very suitable for large-scale industrial production.

3.2 Stable Forming Quality & High Precision

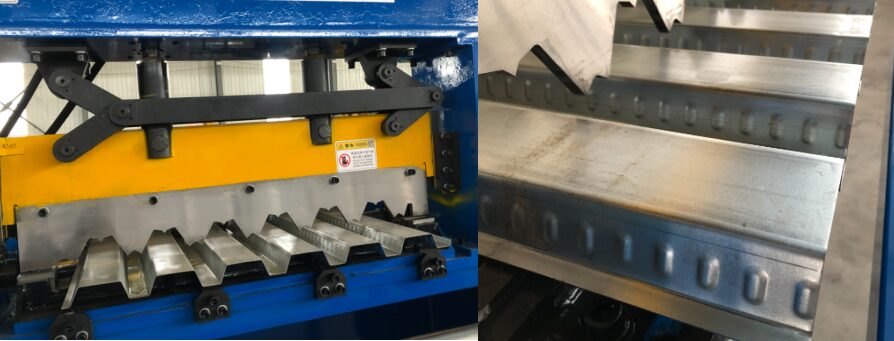

Equipped with high-precision alloy forming rollers and thickened wall plates, the equipment runs stably without vibration and deviation. The finished floor deck panels have uniform ripples, smooth surfaces, and accurate sizes, fully complying with EU, Southeast Asian, Middle Eastern, and other international building construction standards, with zero rejection rate in normal production.

3.3 Strong Customization & Wide Application

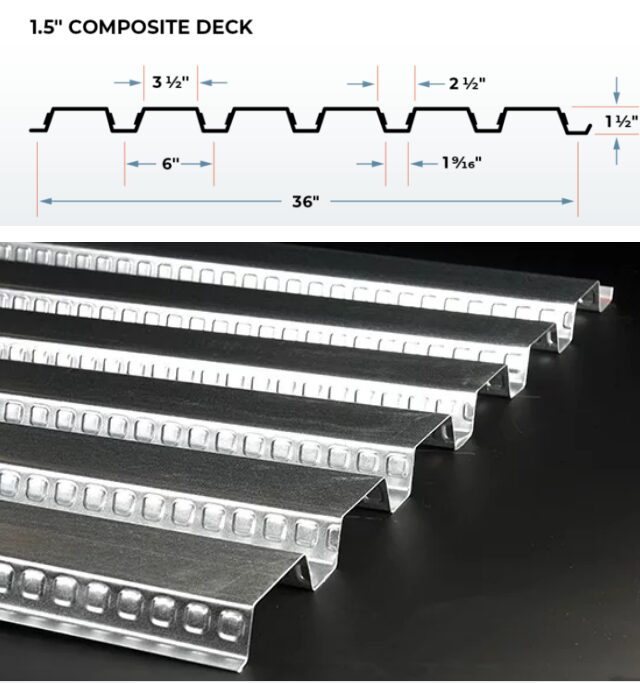

We support personalized customization of floor deck forming machines, including adjusting panel width, height, rib spacing, and punching holes. It can produce YX51-342-1025, YX76-305-915, closed floor decks, and other common models, covering most civil and industrial building floor system needs worldwide.

3.4 Durable & Low Maintenance Cost

The main body of the machine adopts thickened steel plate welding and anti-rust spray treatment, with wear-resistant and pressure-resistant rollers. The core electrical components adopt international famous brands, with low failure rate and long service life of more than 15 years. Regular maintenance is simple and low-cost, effectively reducing the later operation cost for customers.

3.5 Energy Saving & Environmental Protection

The optimized power system reduces idle energy consumption by 20% compared with traditional equipment. The whole production process is noise-controlled and dust-free, meeting international environmental protection standards, and can adapt to the strict environmental inspection requirements of European and American markets.

Main Applications of Floor Deck Panels

The floor deck panels produced by our forming machine have excellent structural performance and are widely used in various steel structure construction projects around the world:

High-rise residential buildings, office buildings, and commercial plazas

Large industrial factories, warehouses, and logistics parks

Steel structure villas and prefabricated buildings

Bridge decks, subway platforms, and municipal engineering projects

Large stadiums, exhibition halls, and public buildings

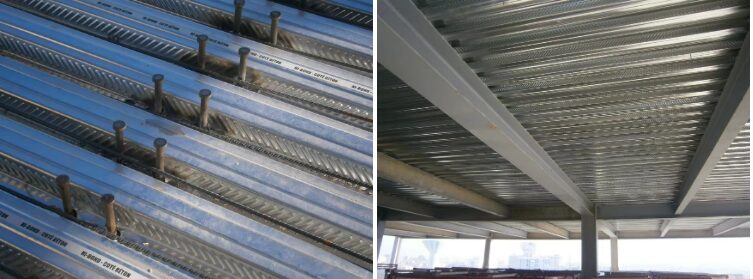

The steel floor deck can be used as a permanent formwork, which can bear the weight of wet concrete and construction loads during construction. After the concrete is solidified, it forms a composite floor slab with steel and concrete, significantly improving the overall structural strength and seismic resistance of the building.

Common FAQs About Floor Deck Forming Machine

5.1 Can the machine produce multiple types of floor decks?

Yes. Our floor deck forming machine supports personalized customization. We can adjust the roller mold and production parameters according to customer needs to produce open, closed, and profiled floor deck panels of different specifications, realizing one machine with multiple functions.

5.2 What is the delivery cycle and after-sales service?

We provide one-year free warranty, lifelong technical support, overseas installation and commissioning guidance, and spare parts supply services to ensure customers’ trouble-free use.

5.3 Is the equipment suitable for local voltage and standards?

We can adjust the voltage, frequency, and control system configuration according to the customer’s local national standards (EU, US, Southeast Asia, Africa, etc.), and provide CE certification and relevant qualification documents to meet local market access requirements.

5.4 How to ensure the long-term stable operation of the machine?

We will provide a complete operation manual, maintenance guide, and professional video teaching. The core components are equipped with brand warranties, and we provide regular remote after-sales follow-up to guide customers in daily maintenance and fault troubleshooting.

Why Choose Our Floor Deck Forming Machine?

As a professional manufacturer of roll forming machinery with more than 20 years of export experience, we have been focusing on the R&D, production, and customization of floor deck forming machines. We have passed CE, ISO and other international certifications, and our equipment has been exported to more than 60 countries and regions such as Europe, America, Southeast Asia, the Middle East, and Africa, winning unanimous recognition from overseas customers.

We abandon rough manufacturing processes and always adhere to high-standard production. From raw material procurement to factory inspection, every link is strictly controlled to ensure that each piece of equipment has stable performance, precise workmanship, and high cost performance. While providing standardized equipment, we support exclusive customized solutions according to customers’ project budgets and production needs, helping customers maximize production benefits.

Final Words

A high-quality floor deck forming machine is the key to efficient production of building steel floor decks. Our fully automatic floor deck roll forming machine has the advantages of high efficiency, high precision, low consumption, and easy operation, which can help global construction material manufacturers quickly occupy the market and gain competitive advantages. If you need customized equipment parameters, factory quotations, or technical solutions, please feel free tocontact us for free consultation!
