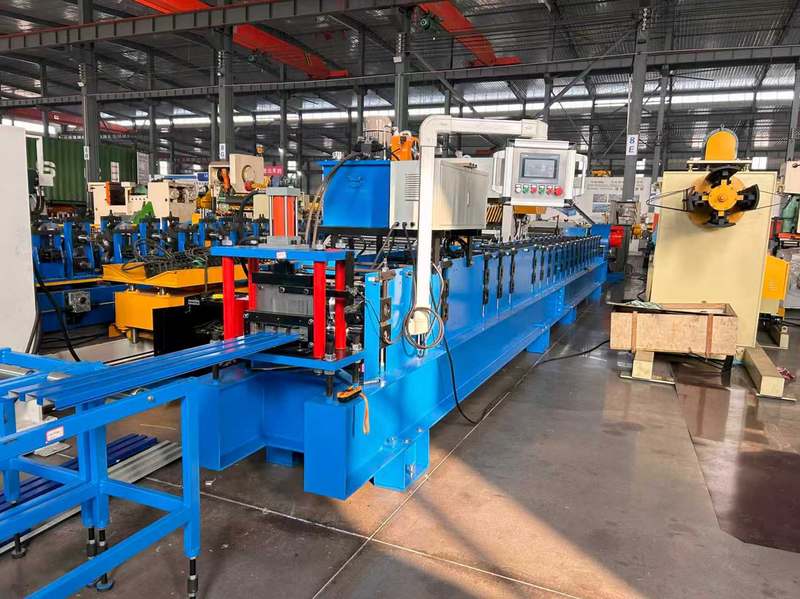

The Exterior Wall Panel Roll Forming Machine is a professional automated production equipment designed specifically for manufacturing exterior wall cladding panels—key components that enhance the aesthetics, durability, and energy efficiency of modern building facades. As a core device in the contemporary construction materials manufacturing industry, it adopts advanced cold roll forming technology to process metal coils (such as aluminum coils, galvanized steel coils, color-coated steel coils) into high-precision, weather-resistant exterior wall panels of various styles and specifications. Widely recognized and adopted in global commercial, residential, and industrial construction projects, this machine plays an irreplaceable role in upgrading building facades and improving construction efficiency.

Its working principle is based on continuous cold roll forming without high-temperature processing, which avoids material deformation and performance degradation caused by heat treatment. The entire production process follows a seamless automated workflow: starting with steel coil loading, followed by uncoiling, precision leveling, step-by-step roll forming, decorative embossing (optional), fixed-length cutting, and finally outputting finished exterior wall panels. This continuous production mode ensures consistent product quality, high production efficiency, and cost-effectiveness, making it the preferred equipment for building materials manufacturers, construction companies, and distributors worldwide.

El equipo se compone principalmente de las siguientes piezas clave:

Sistema de carga y desenrollado de bobinas: This system is responsible for stably supporting and smoothly uncoiling metal coils of different materials and specifications. Key components include a heavy-duty coil rack, hydraulic uncoiler, feeding guide bridge, and anti-loosening pressure rollers. Designed with strong compatibility, it can adapt to various coil specifications (width: 300-1200mm, weight: 1-6 tons) commonly used in the international building materials market, ensuring stable feeding, reducing material waste, and adapting to aluminum, steel, and other common exterior panel materials.

Dispositivo de nivelación de precisión: Equipped with 7-11 high-precision leveling rollers, this device eliminates curling stress and surface unevenness of the metal coil, ensuring the metal strip is flat and smooth before forming. It supports adjustable leveling intensity to adapt to metal strips of different thicknesses (0.3-2.0mm), which is crucial for ensuring the flatness and aesthetic appearance of the final exterior wall panels.

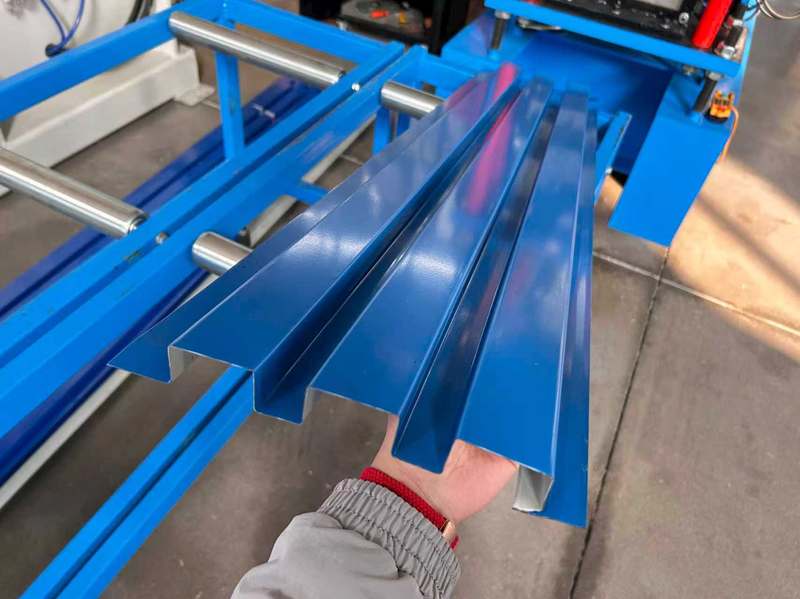

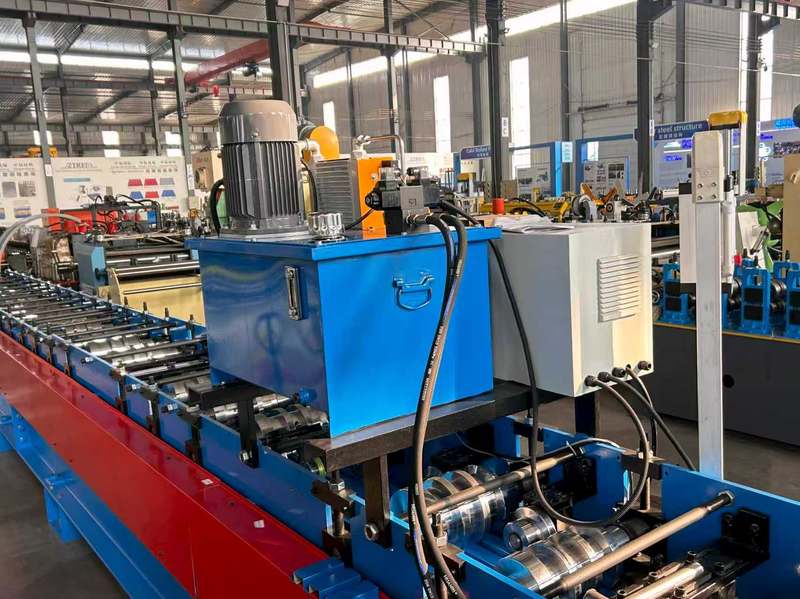

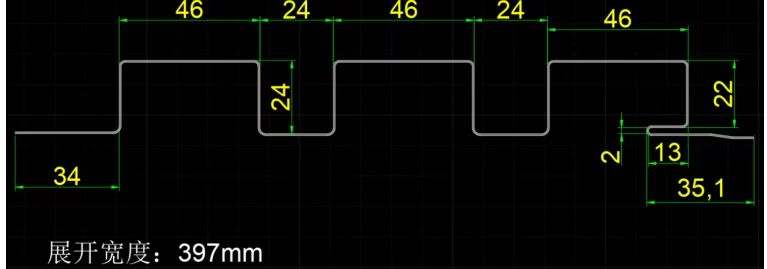

Unidad principal de formación: As the core of the machine, the main forming unit transforms flat metal strips into exterior wall panels of specific cross-sectional shapes (such as corrugated, sandwich, decorative groove, or custom profiles) through a series of sequentially arranged forming roller groups. It consists of 12-24 independent forming frames, each equipped with forming rollers made of high-quality alloy steel (after quenching and tempering treatment, with high wear resistance and shape retention). Driven by a high-power servo motor, the unit ensures synchronous operation of all forming frames, achieving precise control of the forming process. The modular design allows for quick replacement of forming rollers, enabling the production of exterior wall panels of different styles and specifications to meet diverse architectural design needs.

Optional Decorative Embossing System: To enhance the aesthetic appeal of exterior wall panels, the machine can be equipped with a synchronous embossing system. Adopting precision embossing rollers, it can press various decorative patterns (wood grain, stone grain, texture patterns) on the surface of the forming panel with high clarity and consistency, without affecting the structural strength of the panel. The embossing patterns can be customized according to customer needs and regional architectural styles, making the exterior wall panels more competitive in the market.

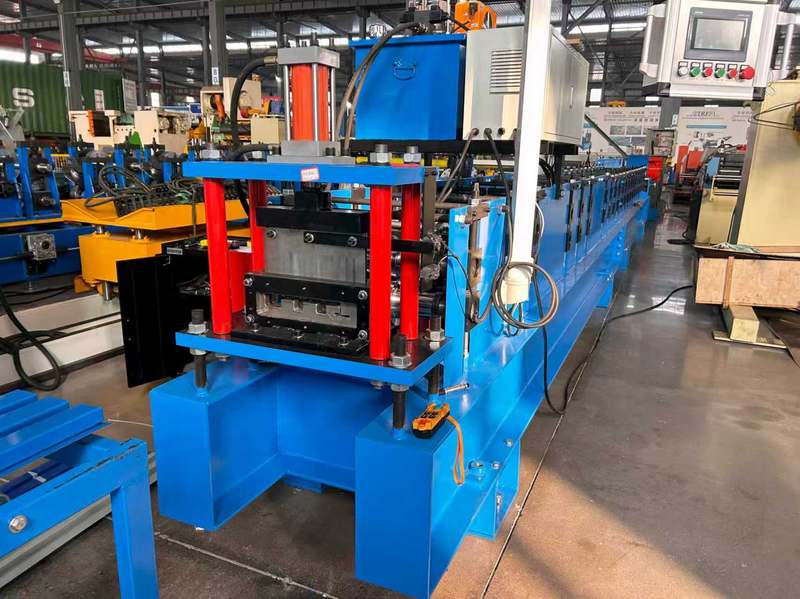

Sistema de corte de longitud fija: This system cuts the continuously formed exterior wall panels into fixed-length finished products according to preset dimensions. Adopting advanced flying saw cutting technology, it can achieve high-speed and high-precision cutting (cutting accuracy ±0.5mm) without stopping the production line, ensuring smooth cutting surfaces, no burrs, and no deformation. For special needs, shear cutting or stamping cutting modes can also be configured. Key components include a servo-driven flying saw, length measurement sensor, and automatic control system.

Mecanismo de descarga y apilado: Used to stably receive the cut finished exterior wall panels and complete automatic stacking or conveying. Common types include inclined discharge racks, belt conveyors, and automatic stacking robots. The mechanism is designed according to the length, width, and weight of the exterior wall panels, ensuring safe and efficient discharging, reducing manual labor, and avoiding surface scratches of the panels during stacking.

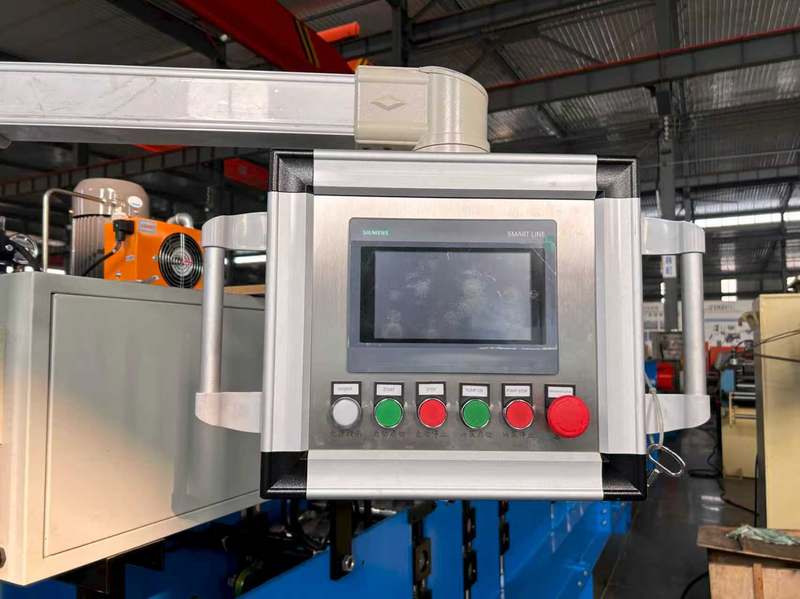

Sistema de control eléctrico inteligente: As the “brain” of the entire production line, it controls all links such as motor start-stop, speed regulation, forming synchronization, embossing parameter setting, cutting length adjustment, and production counting. Equipped with PLC from international mainstream brands (Siemens, Mitsubishi), a touch-screen HMI (human-machine interface), and high-precision sensors, the system supports multi-language switching (English, Spanish, Arabic, French, etc.) and is easy to operate. It also has fault alarm and self-diagnosis functions, helping operators quickly solve problems and ensure continuous production.

Core Advantages of Our Exterior Wall Panel Roll Forming Machine

High Efficiency & Mass Production Capacity

Our Exterior Wall Panel Roll Forming Machine is equipped with a high-performance servo drive system and optimized forming process, enabling a maximum production speed of 15-28 meters per minute, which is 40% higher than traditional equipment. For large-scale construction projects (such as residential communities, commercial plazas), this high-efficiency production capacity can significantly shorten the production cycle, quickly meet the large demand for exterior wall panels, ensure on-time delivery of projects, and help you seize more market opportunities in the global building materials market.

Superior Precision & Aesthetic Quality

Precision and aesthetics are the core competitiveness of our equipment. Adopting advanced numerical control technology and precision-machined forming rollers, the machine can strictly control the dimensional error of exterior wall panels within ±0.5mm and the flatness error within 1.5mm/m. The produced exterior wall panels have uniform cross-sections, smooth surfaces, and clear decorative patterns (if equipped with an embossing system), fully complying with international building material standards (such as CE, ASTM). Whether it is a modern minimalist style or a classic decorative style, our equipment can ensure stable product quality and aesthetic consistency, enhancing your brand reputation in the international market.

Strong Versatility & Flexible Customization

To meet the diverse needs of global customers for different styles of exterior wall panels, our machine adopts a modular design. By replacing the forming roller set (which can be completed in 30 minutes by professional technicians) and adjusting parameters through the touch screen, it can produce exterior wall panels of different cross-sectional shapes (corrugated, sandwich, decorative groove) and specifications (length: 2-12 meters, width: 300-1200mm). In addition, we provide personalized customization services according to customer-specific requirements, such as customizing embossing patterns, panel thickness, and color, developing exclusive forming solutions to help you meet the personalized needs of different regional architectural markets and improve market competitiveness.

Energy Saving & Cost-Effective

In response to the global call for energy conservation and environmental protection, our Exterior Wall Panel Roll Forming Machine integrates a series of energy-saving technologies. The optimized transmission system reduces energy loss, and the servo drive system adjusts power output according to production needs, saving 25%-35% of energy compared with traditional equipment. At the same time, the full-automatic production mode reduces manual operation, lowers labor costs, and the high-precision forming process reduces material waste (waste rate ≤1%), effectively reducing your overall production costs and improving economic benefits. In addition, the produced exterior wall panels have good thermal insulation and energy-saving performance, helping end customers reduce building energy consumption.
