As global transportation infrastructure continues to upgrade, especially with the rapid development of high-grade highways, expressways, and heavy-traffic routes, the demand for high-performance road safety protection systems has never been higher. Among various guardrail solutions, three-wave guardrails stand out for their superior impact resistance and energy absorption capabilities, making them the preferred choice for high-risk sections such as mountainous highways, long-span bridges, and central medians of expressways. As the core production equipment for these critical safety components, our high-speed three-wave highway guardrail forming machine is engineered to redefine efficiency and precision in the manufacturing process, playing a pivotal role in enhancing road safety, ensuring project durability, and reducing long-term maintenance costs.

Características del producto

High-Speed Integrated Forming for Three-Wave Specifics

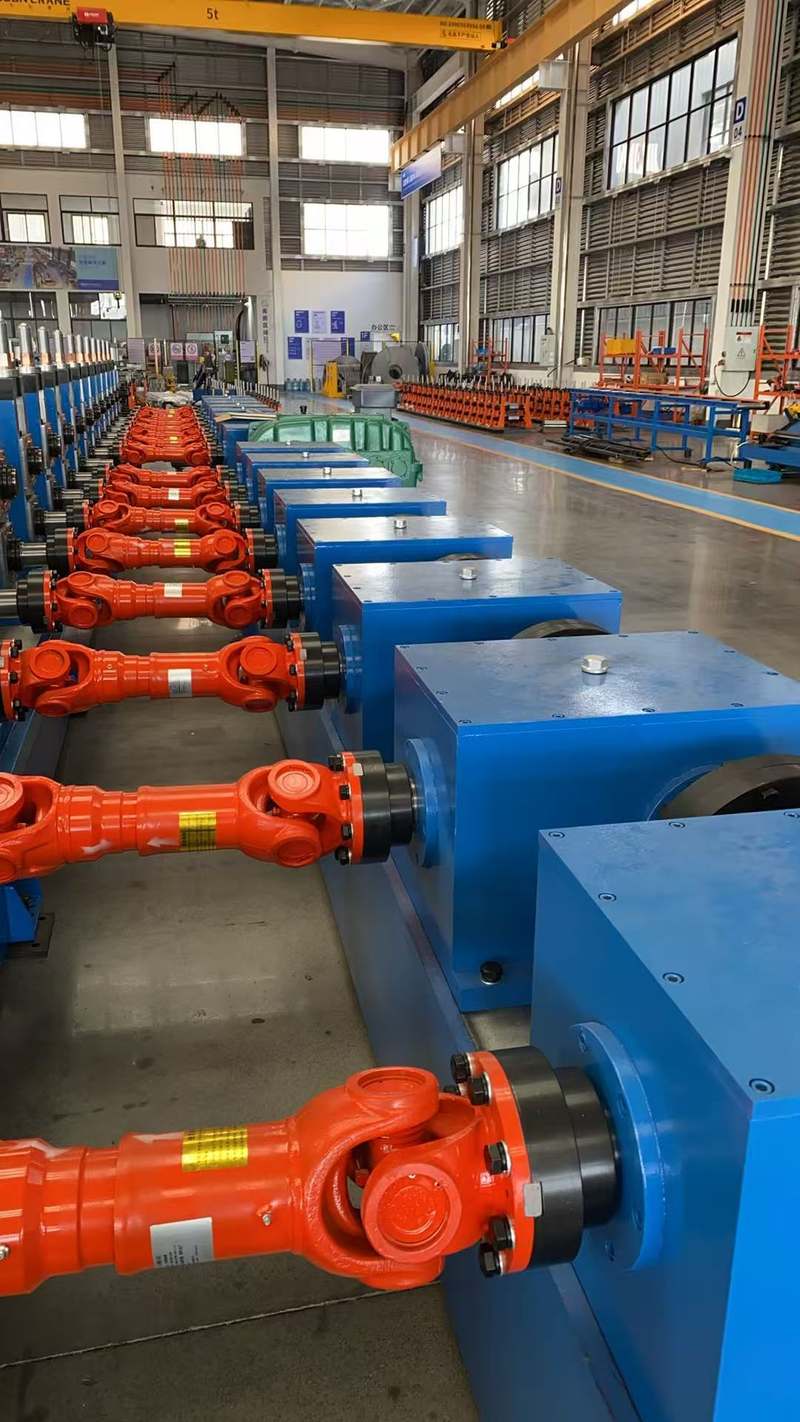

Our high-speed three-wave guardrail forming machine features a streamlined integrated production line, seamlessly combining automatic feeding, precision leveling, multi-pass rolling forming, online punching (for bolt holes), and fixed-length cutting into a single operation. Equipped with a high-torque servo drive system and optimized roller design, the machine achieves a forming speed of up to 30 meters per minute—25% higher than conventional three-wave forming equipment. This high-efficiency performance ensures it can meet the large-volume production demands of large-scale highway projects. Unlike traditional segmented production methods that require multiple machines and manual handling, our integrated solution eliminates intermediate links, reduces labor input by over 50%, and minimizes material waste caused by repeated positioning, significantly lowering production costs.

Precision Control for Superior Crashworthiness

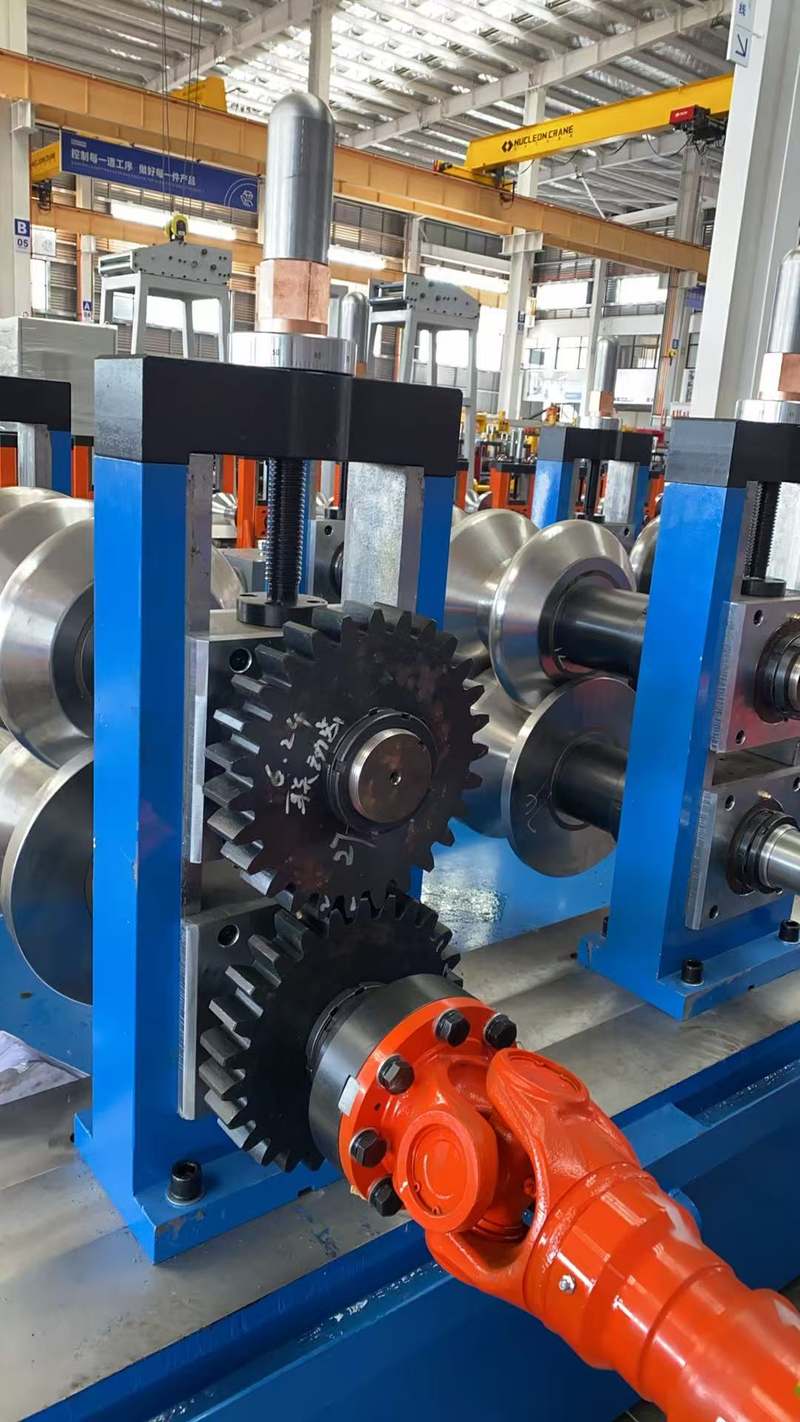

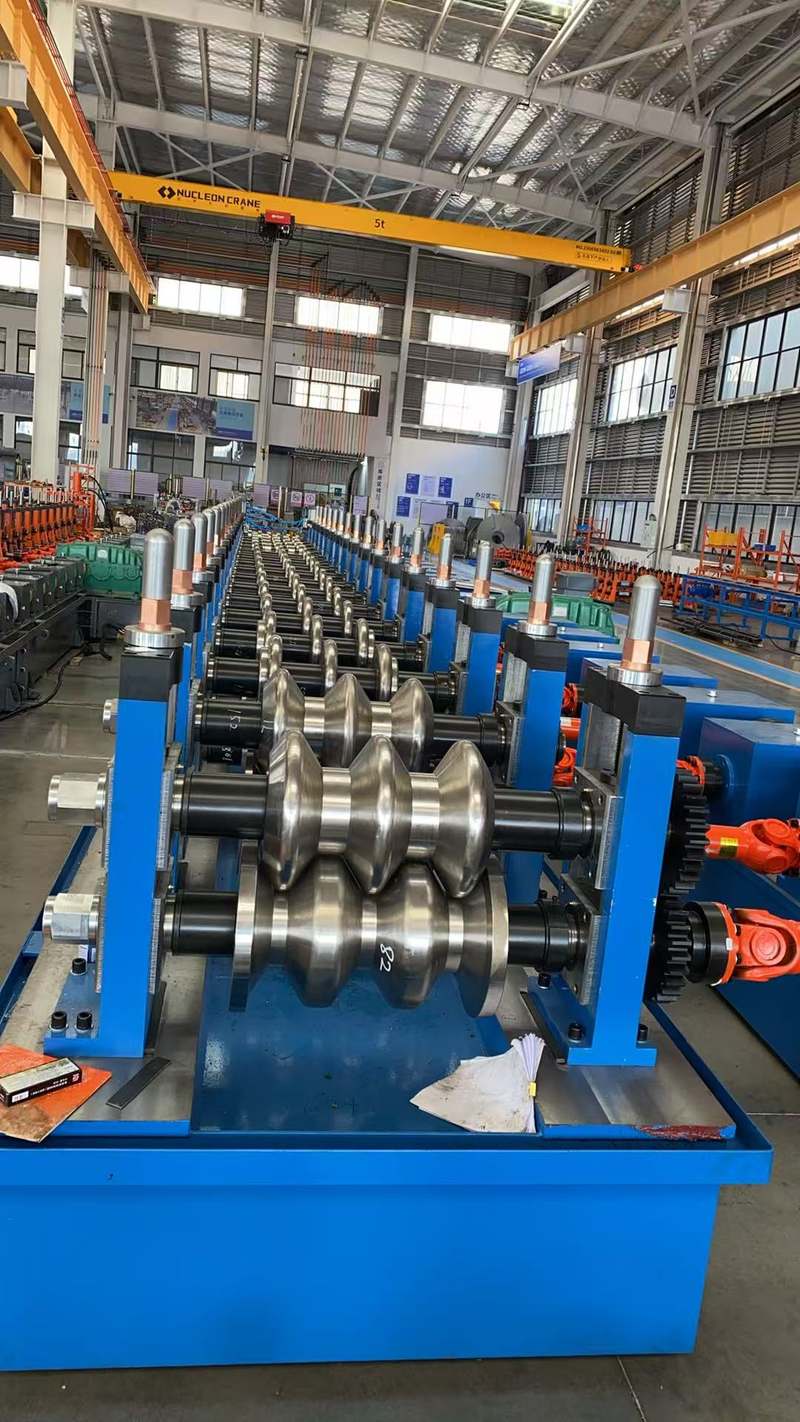

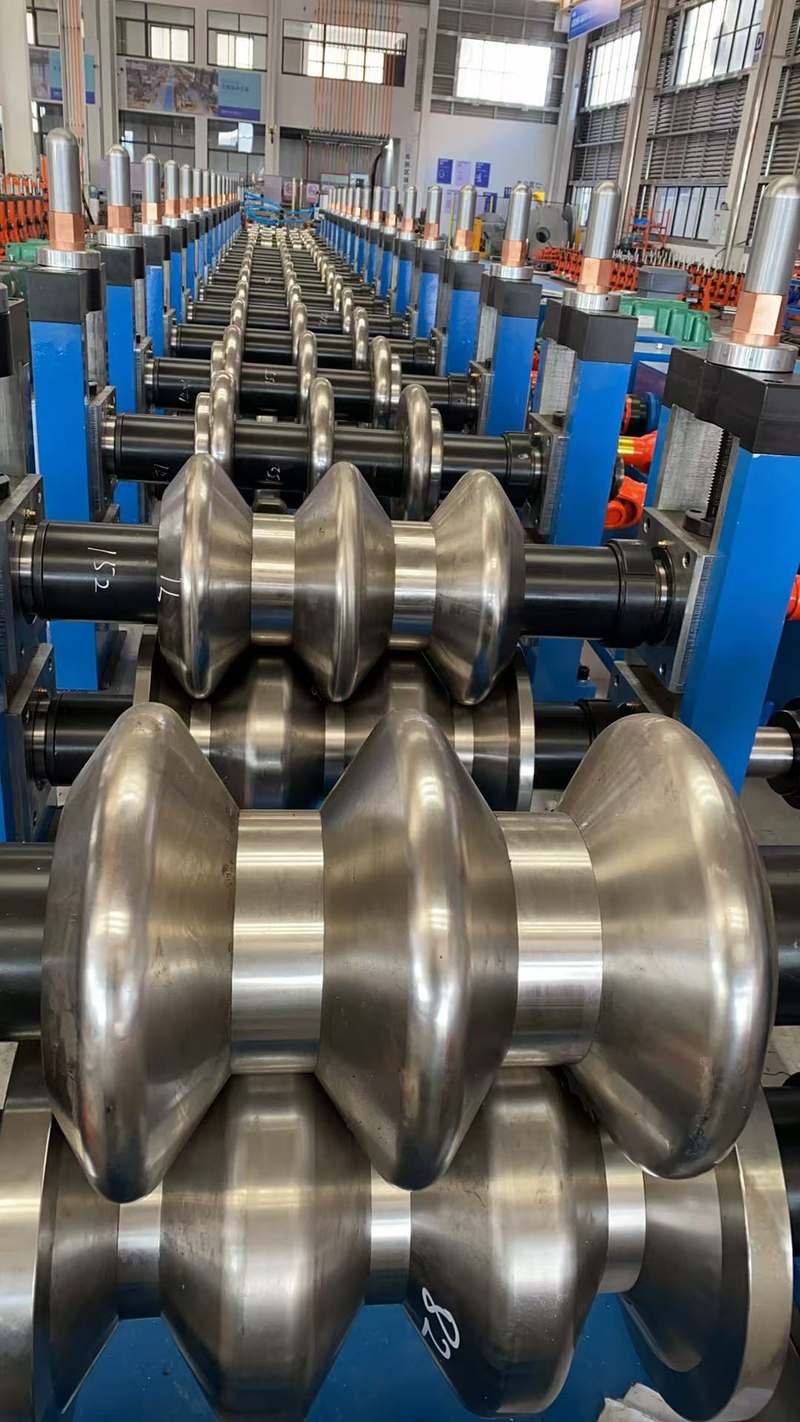

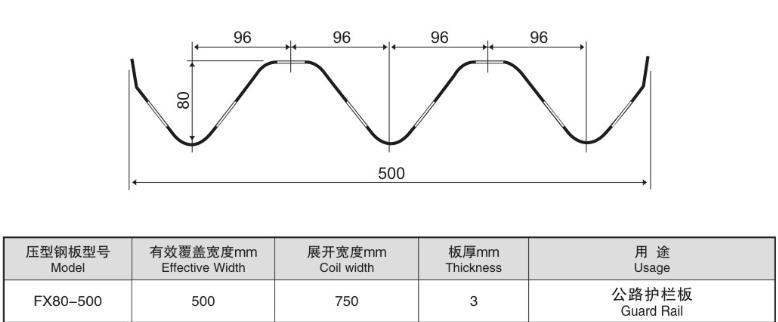

Targeting the complex cross-sectional structure of three-wave guardrails (typical specification: 4320mm×506mm×85mm×3/4mm), the machine adopts advanced multi-point precision positioning sensors and a digital control system, ensuring the dimensional tolerance of the finished panels is strictly controlled within ±0.2mm. The rolling forming rollers are crafted from high-quality alloy steel (S355J2 grade) through precision forging and heat treatment, ensuring uniform stress distribution during the forming process and avoiding defects such as wrinkles, cracks, or uneven wave crests. Additionally, the intelligent online detection system real-time monitors key indicators including panel thickness, flatness, and wave shape, automatically adjusting process parameters to maintain consistent product quality—critical for passing EN 1317 crash tests (such as H4b level with 724kJ energy absorption requirement) .

Robust Structure for Continuous Heavy-Duty Operation

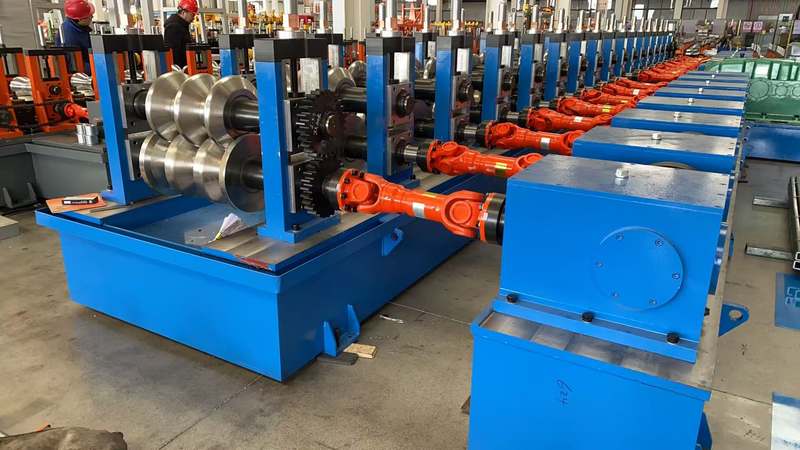

The main frame of the machine is constructed with thick-walled rectangular steel pipes, undergoing high-temperature quenching and tempering treatment to achieve exceptional rigidity and deformation resistance—essential for handling the higher forming forces required for three-wave guardrails. Key components such as bearings, gears, and cutting tools are sourced from renowned international brands, ensuring reliable operation even under 24/7 continuous working conditions. The machine is specifically designed to process high-strength steel sheets (including hot-rolled, cold-rolled, and galvanized steel) with thicknesses ranging from 3.0mm to 4.0mm and widths from 480mm to 520mm—perfectly matching the raw material requirements for standard three-wave guardrails . With proper maintenance, the machine maintains stable performance for over 15 years, even in harsh industrial environments such as dusty workshops and coastal high-humidity areas.

Funcionamiento inteligente y diseño que ahorra energía

The machine is equipped with a user-friendly touchscreen control interface, allowing operators to complete parameter setting, production monitoring, and fault diagnosis with simple clicks. The built-in process parameter database covers all common three-wave guardrail specifications and international standards (EN 1317, AASHTO), enabling quick setup and reducing the learning curve for new operators. In terms of energy conservation, the machine adopts an intelligent power-saving mode that automatically reduces power consumption during idling, achieving an energy-saving effect of up to 25% compared to traditional hydraulic-driven equipment. The low-noise design (below 75dB) also creates a more comfortable working environment.

Customized Solutions for Global Standards

We recognize that three-wave guardrail requirements vary across regions and projects. Our professional R&D team provides tailored solutions, including custom mold design for non-standard three-wave sizes, as well as adjustable punching positions to match different installation standards. Additionally, we offer flexible configuration options such as automatic stacking devices, galvanizing pre-treatment systems, and online powder coating lines, forming a complete production chain from raw materials to finished, corrosion-resistant guardrails. The machine’s modular design facilitates easy maintenance and future upgrades, ensuring it can adapt to evolving safety standards (such as the 2023 revised EN 1317 requirements for electric vehicle collisions) .

Ámbitos de aplicación

High-Grade Highways & Expressways

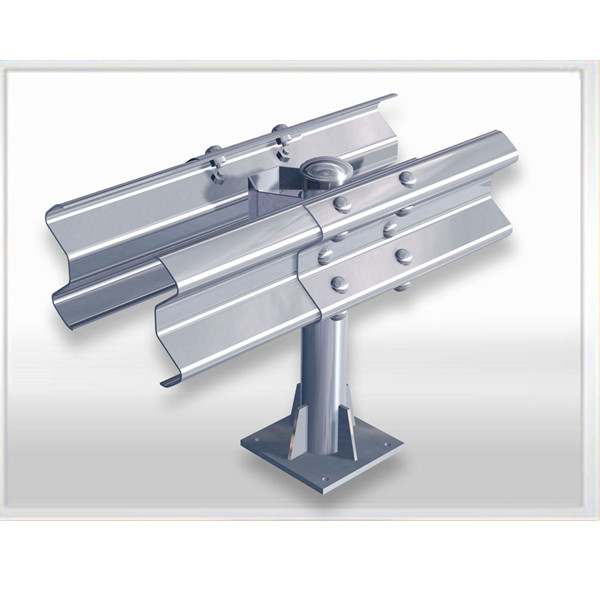

The three-wave guardrails produced by our machine are widely used in the construction and renovation of high-grade highways, expressways, and national trunk roads. Their unique three-wave structure provides 50% higher impact resistance and energy absorption capacity compared to traditional W-beam guardrails, effectively containing heavy vehicles (up to 38 tons) and preventing them from crossing the central divider or falling off cliffs. In key projects such as mountainous expressways in Southeast Asia and intercity expressways in Africa, our equipment has delivered stable, high-quality guardrail panels, ensuring the safety and smooth progress of these infrastructure projects .

Critical Traffic Sections & Bridges

In high-risk traffic sections such as sharp bends, steep slopes, tunnel entrances, and long-span bridges, three-wave guardrails are indispensable. Our machine’s products provide reliable protection for these areas, withstanding extreme collision forces and reducing accident severity. For bridge guardrails, the precision-manufactured three-wave panels ensure seamless connection with bridge structures, avoiding resonance and structural damage caused by vehicle impacts. In coastal highway projects, the machine can process galvanized steel sheets with high corrosion resistance (zinc coating thickness ≥85μm), extending the service life of guardrails in high-humidity, salt-spray environments .

Industrial & Logistics Infrastructure

Beyond public highways, our three-wave guardrail forming machine also serves industrial and logistics needs. In large industrial parks, ports, and logistics centers with heavy truck traffic, three-wave guardrails are used to separate pedestrian and vehicle areas, protect critical equipment, and define traffic routes. The high-strength guardrails produced by our machine can withstand repeated impacts from heavy-duty vehicles, ensuring long-term safety and reducing maintenance costs. They are also widely used in large parking lots and toll stations to guide traffic and prevent collisions.
