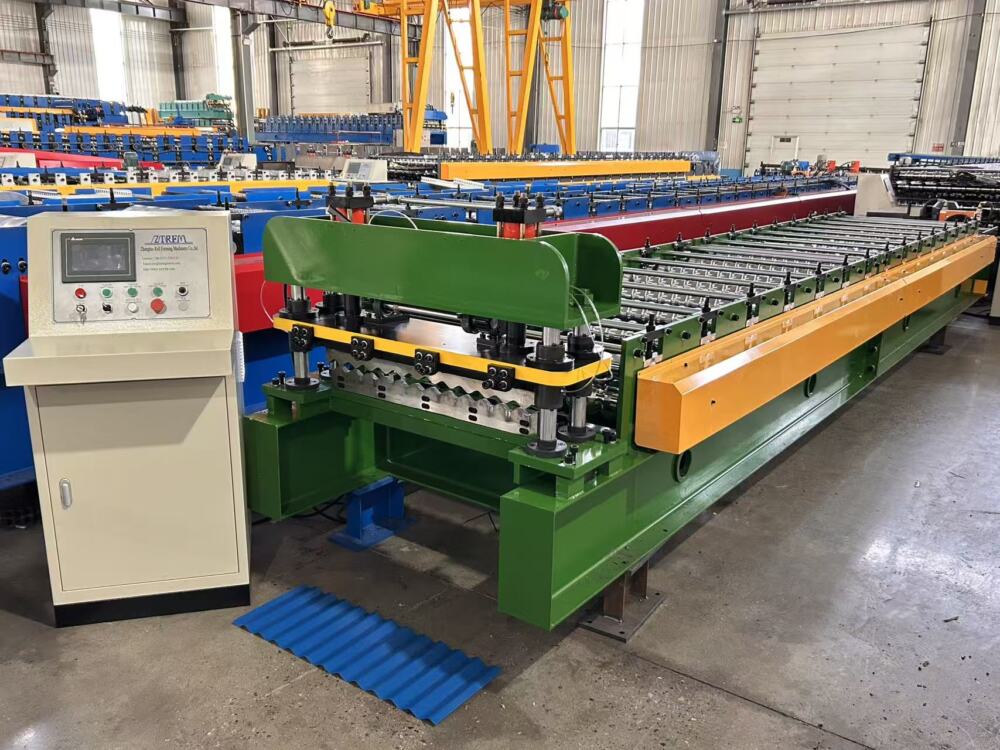

Description:Corrugated Roof Tile Forming Machine is a professional cold roll forming equipment designed for manufacturing high-precision curved metal roof tiles. Also known as barrel corrugated roll forming machine or roof curving forming machine, it integrates feeding, continuous arc bending, profile forming, fixed-length cutting and automatic discharging into one fully automated workflow. Ideal for producing arched roof panels for industrial plants, warehouse canopies, stadiums, parking lots and modern architectural buildings, this machine helps builders and metal fabricators create aesthetic, wind-resistant and durable curved roofing solutions with zero secondary processing.

What Is an Arc Roof Tile Forming Machine?

Different from ordinary flat roof tile roll forming machines, the arc roof tile forming machine adopts progressive cold bending and hydraulic arching technology to process flat galvanized steel, color steel and aluminum coils into smooth, uniform curved roof tiles. It features adjustable arc radius and stable forming performance, effectively solving the problems of uneven curvature, surface wrinkles and indentations caused by traditional manual bending or secondary processing.

Equipped with a full PLC automatic control system, the machine realizes one-time forming from raw material feeding to finished product output. The whole production process is automated, which greatly improves production efficiency and ensures consistent product precision for large-scale roofing engineering projects.

Core Advantages of Our Arc Roof Tile Forming Machine

High-Precision Arc Forming, No Secondary Correction

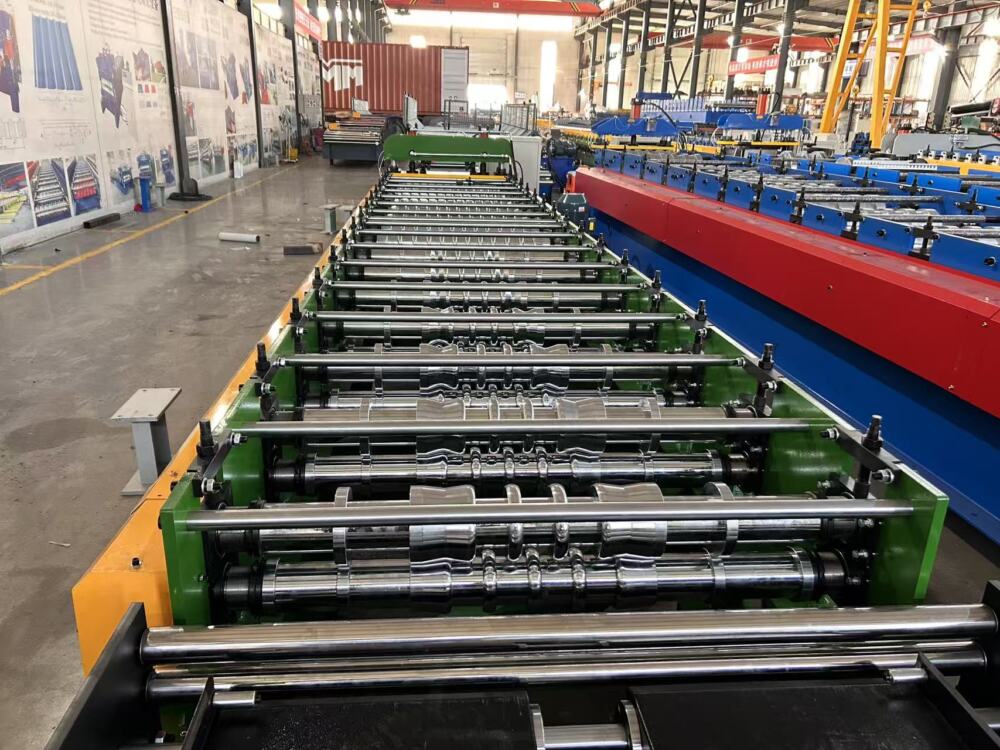

The machine is equipped with customized high-hardness alloy roller groups. Through multi-stage gradual cold bending molding, the processed roof tiles feature smooth surface, uniform radian and no deformation. The arc radius can be customized from R500mm to R2000mm, meeting diverse curved roof design requirements of different architectural styles. All finished tiles can be directly installed after cutting without manual correction or reprocessing.

Fully Automatic Operation & High Production Efficiency

Adopting mature PLC intelligent control system and frequency conversion speed regulation technology, the equipment supports automatic feeding, fixed-length counting, precise cutting and automatic discharging. The production speed can reach 12-15 meters per minute, with stable operation and low failure rate. One worker can complete the whole production process, saving labor costs and improving overall production capacity for metal roofing manufacturers.

Wide Material & Application Compatibility

This curved roof tile forming machine is compatible with multiple raw materials, including color coated steel coils, galvanized steel coils, aluminum magnesium manganese plates and other common roofing metal materials. The finished arc roof tiles are widely applicable for large-span buildings: industrial workshops, logistics warehouses, outdoor parking sheds, sports venues, exhibition halls, rural greenhouse canopies and landscape architecture curved roofs.

Durable Structure & Low Maintenance Cost

The main frame adopts thickened steel plate welding and integral stress relief treatment, which is firm and stable without long-term operation deformation. Key transmission parts are equipped with wear-resistant accessories, and the hydraulic system adopts high-quality components to ensure stable pressure and long service life. The modular design makes daily maintenance and parts replacement more convenient, effectively reducing later operation and maintenance costs.

Excellent Roofing Performance of Finished Products

The arc-shaped roof tiles produced by this machine have good aerodynamic performance, strong wind resistance and drainage capacity. The seamless splicing design effectively avoids water leakage, and the overall structural strength is higher than ordinary flat roof panels. It can adapt to various harsh weather conditions such as strong wind, heavy rain and snow, greatly extending the service life of the building roof.

Complete Machine Configuration & Working Principle

Standard Machine Composition

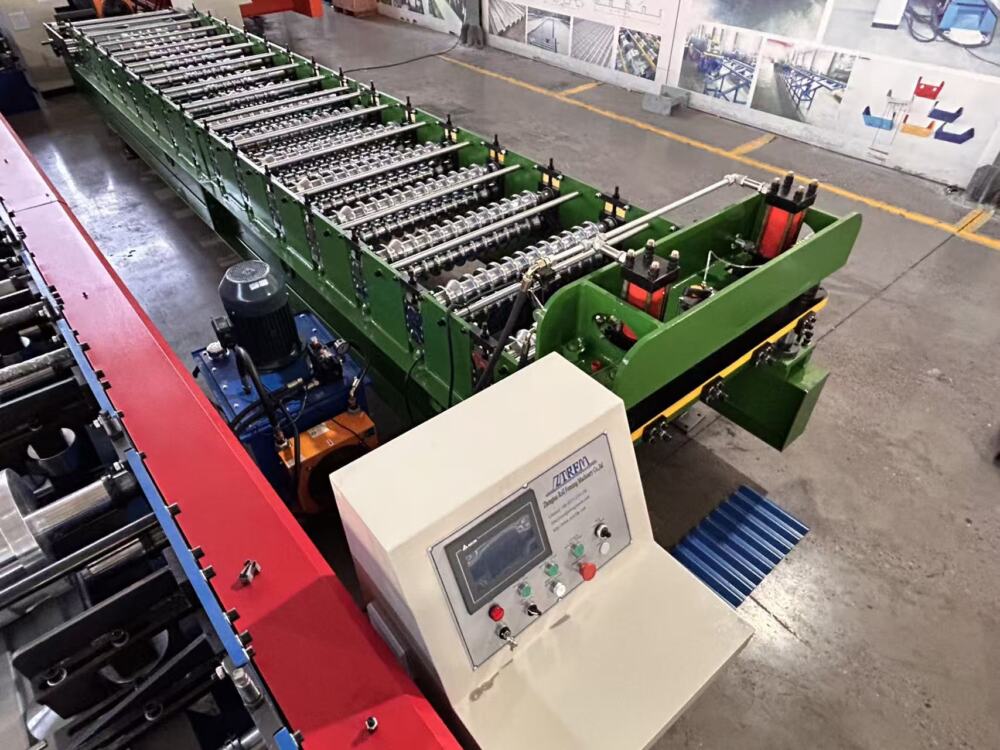

A complete arc roof tile forming machine set includes: automatic hydraulic decoiler, material guiding device, multi-roll forming system, hydraulic arc bending device, PLC control cabinet, hydraulic cutting system and automatic discharging table. All supporting devices are reasonably matched to ensure continuous and stable production.

Working Process

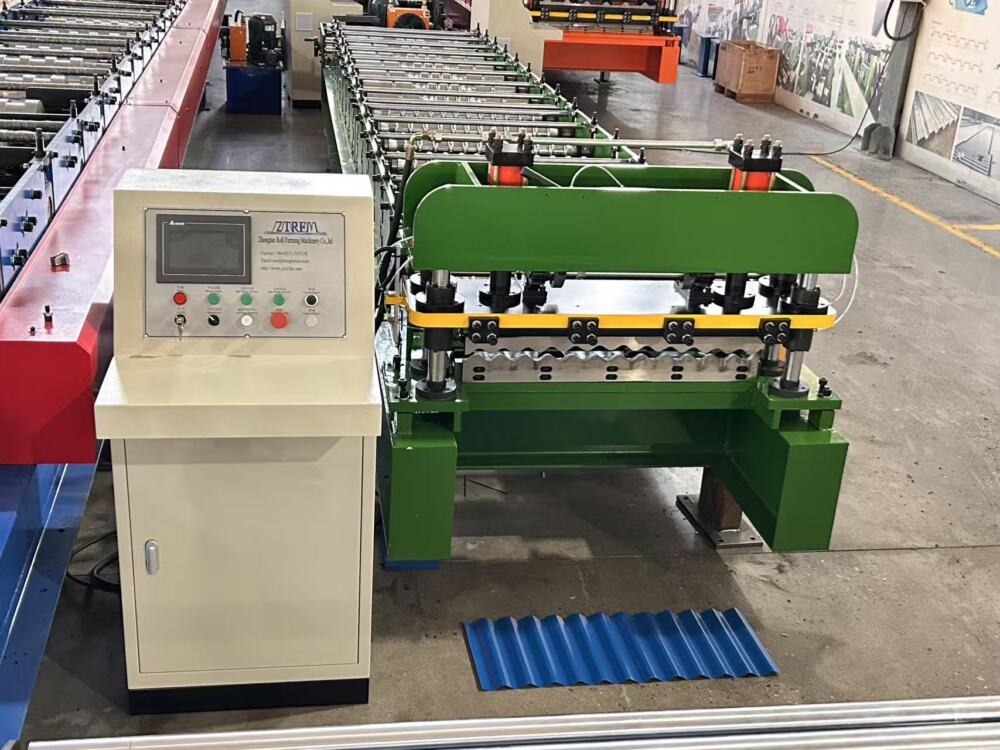

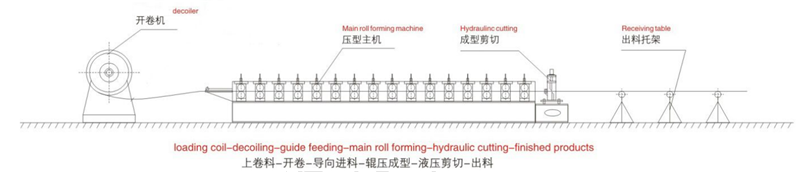

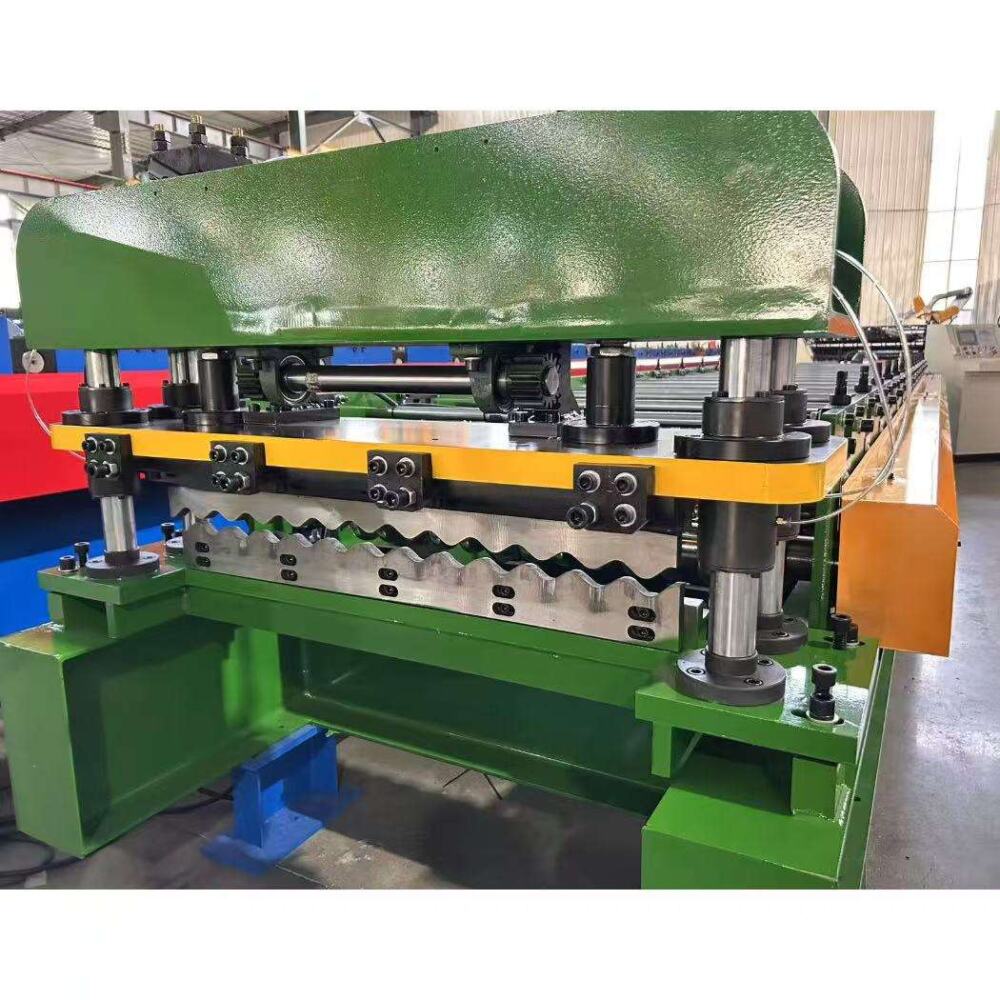

First, the flat metal coil is released by the decoiler and sent to the material guiding system for straightening and positioning. Then the material enters the multi-stage roller forming area for gradual profile calibration. After the basic tile profile is formed, the hydraulic arching device performs precise curved bending according to the preset arc radius. Finally, the CNC system controls fixed-length cutting, and the finished arc roof tiles are automatically output. The whole process is completed in one time with high molding consistency.

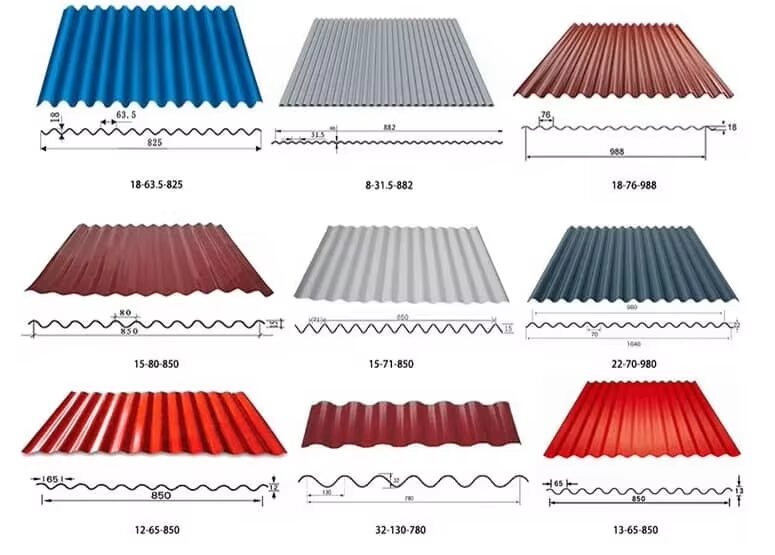

Technical Parameters (Customizable)

Applicable Materials: Color steel coil, galvanized steel coil, aluminum coil

Material Thickness: 0.3-0.8mm (customized)

Forming Speed: 12-15 m/min

Arc Radius Range: R500-R2000mm adjustable

Control System: PLC full automatic control

Main Power: 22KW-30KW (optional)

Cutting Mode: Corte hidráulico automático de longitud fija

Machine Weight: About 3.5-5 tons

Why Choose Our Arc Roof Tile Forming Machine?

As a professional roll forming machine manufacturer with years of R&D and production experience, we focus on providing cost-effective metal roofing equipment for global customers. All our arc roof tile forming machines adopt standardized production processes and strict quality inspection procedures.

We support full customization: machine size, forming profile, arc range and working speed can be adjusted according to customer’s actual production needs. Meanwhile, we provide one-stop services including pre-sales technical solution design, on-site installation debugging, operator training and after-sales lifelong maintenance, helping customers quickly put into production and gain market advantages.

FAQ

Q1: Can the machine produce different arc degrees?

Yes. The arc radius is adjustable via the PLC control panel, and we can customize special arc forming parameters according to your project requirements.

Q2: Is the machine suitable for small batch production?

Absolutely. The equipment features flexible operation, fast debugging and low startup cost, which is suitable for both small-batch customized production and large-scale mass production.

Q3: What is the after-sales service guarantee?

We provide 1-year free warranty, lifelong technical support and spare parts supply service, and support overseas door-to-door installation and debugging services.

Final Words

With the increasing demand for personalized and large-span curved architectural roofs, automatic arc roof tile forming machines have become essential core equipment for modern metal roofing processing enterprises. Our machines combine high precision, high efficiency and low energy consumption, helping global customers create high-quality curved roof products and win more engineering orders.
