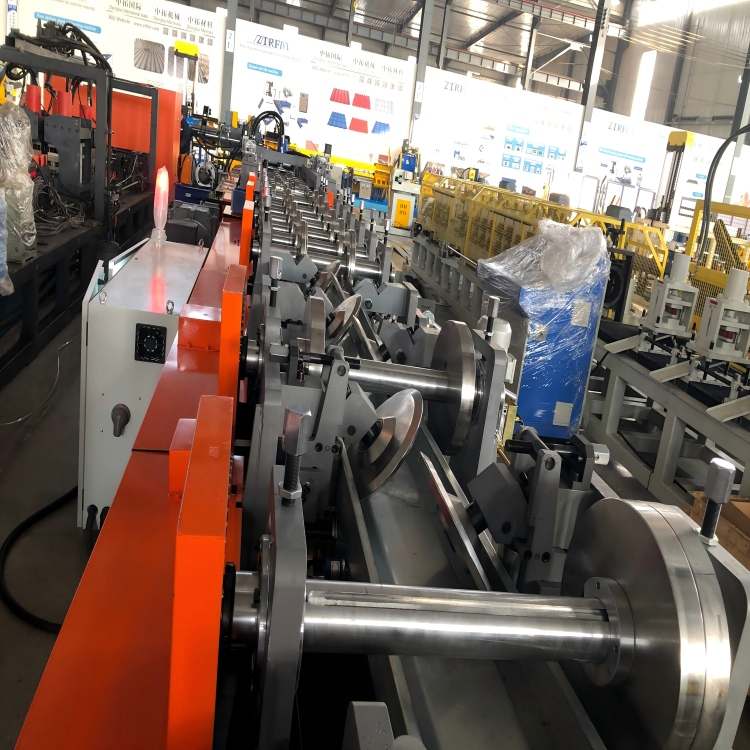

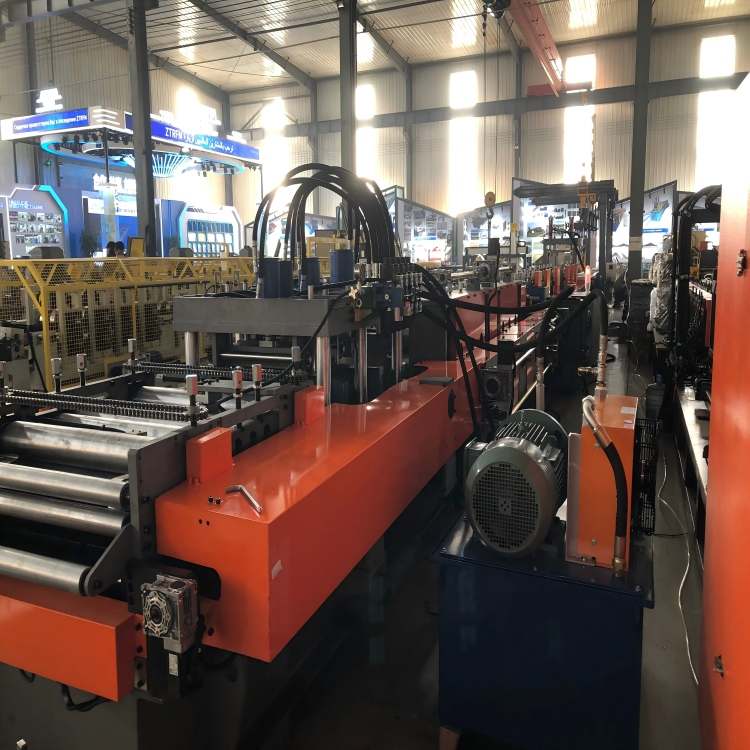

The M section forming machine is a professional cold roll forming equipment specially developed for mass production of high-strength M-shaped steel purlins. As essential core equipment for modern steel structure manufacturing, this M purlin roll forming machine processes galvanized steel coils, cold-rolled steel coils and alloy steel strips into standard M-section steel profiles with high rigidity and strong load-bearing capacity. Featuring automatic feeding, leveling, continuous forming, hydraulic fixed-length cutting and intelligent discharging, the fully automated production line effectively meets the strict profile standards of large-span industrial workshops, logistics warehouses, and heavy-duty steel structure projects. With stable performance and high production accuracy, our M section forming equipment helps global steel processing manufacturers improve product quality and production efficiency significantly.

Core Features of M Section Forming Machine

Our upgraded automatic M section forming machine is uniquely optimized for heavy-load steel structure production, solving common defects of traditional M purlin equipment such as profile distortion, insufficient rigidity and low precision. It possesses core competitive advantages suitable for long-term industrial batch production:

High Rigidity & Precision Forming: Equipped with high-hardness alloy steel forming rollers after precision grinding and heat treatment. The machine ensures uniform bending angle, flat section surface and precise dimension tolerance of finished M-section steel. All profiles feature high structural rigidity and strong pressure resistance, fully complying with international steel structure engineering standards.

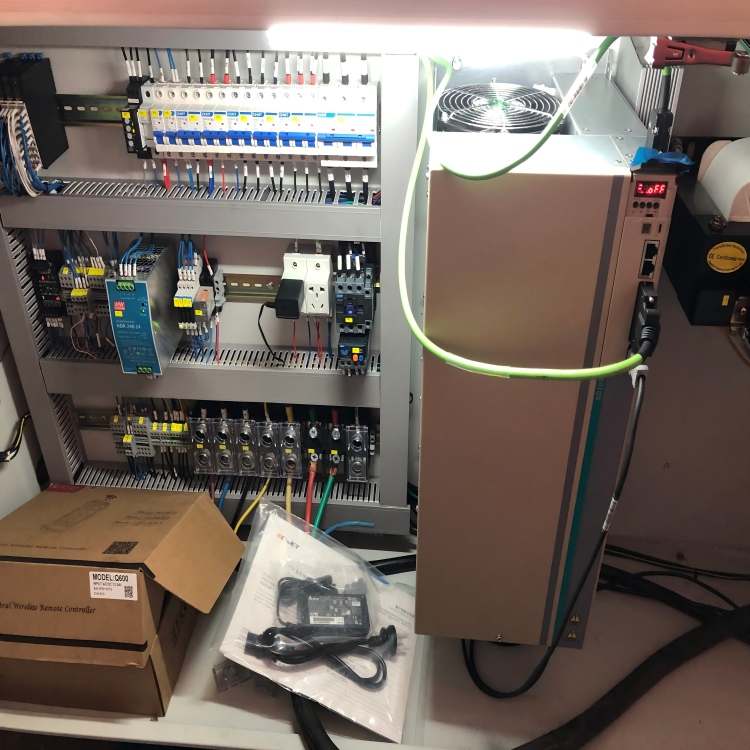

Full Automatic Intelligent Adjustment: Adopts advanced PLC industrial control system with touch screen one-key operation. It supports automatic adjustment of M purlin height, flange width and thickness parameters without manual die replacement. Intelligent parameter memory function ensures consistent product batch quality and greatly saves mold replacement and debugging time.

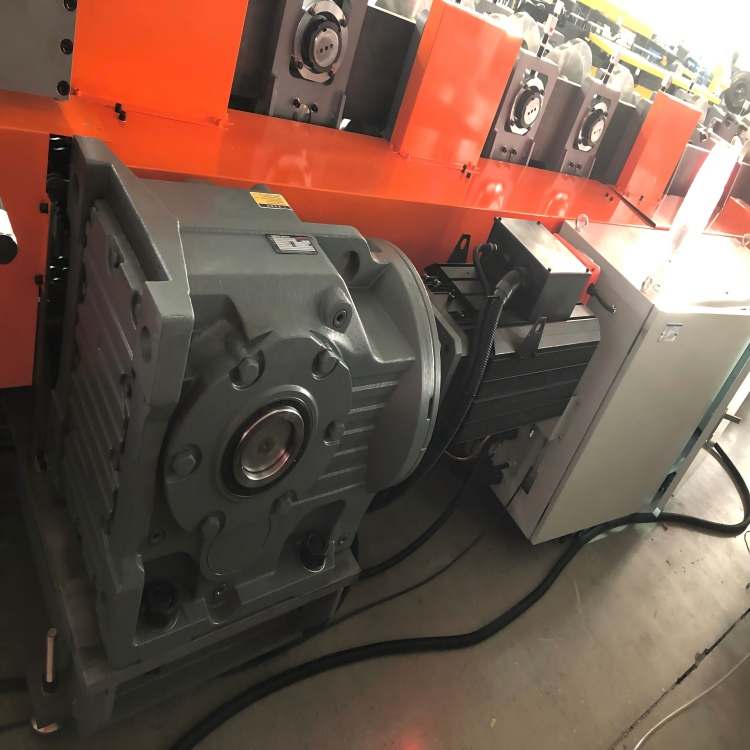

Stable Continuous Operation: The whole machine adopts thickened integral welded steel frame structure with excellent shock resistance and deformation resistance. Core transmission components use high-precision wear-resistant accessories, supporting 24-hour uninterrupted stable operation, effectively adapting to high-intensity industrial production demands.

High Production Efficiency: The stable forming speed reaches 12-20 meters per minute, realizing integrated continuous production from raw material feeding to finished product discharging. Compared with traditional semi-automatic equipment, the production efficiency is increased by over 35%, perfectly meeting large-scale order delivery requirements.

Low Failure Rate & Easy Maintenance: Adopts modular standardized mechanical structure design with fewer vulnerable parts. Built-in intelligent fault diagnosis and alarm system can quickly locate abnormal faults, reduce equipment downtime, and lower daily maintenance and labor costs.

Material Protection & Durable Output: Optimized roller gap and balanced pressure design avoid surface scratches, coating peeling and material deformation during forming. Finished M steel profiles maintain complete surface texture and long-term corrosion resistance.

Flexible Customization Compatibility: Supports personalized customization of processing thickness, profile specifications, punching functions and production speed, adapting to M-section steel standards of different countries and diverse heavy-duty engineering project needs.

Standard Technical Specifications

Our M purlin roll forming machine covers mainstream global M-section steel production specifications, with stable and reliable technical parameters for various steel structure production scenarios:

Applicable Raw Materials: Galvanized steel coil, cold-rolled steel coil, carbon steel coil

Processing Thickness: 1.8mm – 3.5mm

Forming Specification: Customizable standard M section steel sizes

Forming Speed: 12-20 m/min

Control System: PLC full automatic intelligent control + touch screen operation

Processing Procedure: Automatic feeding → leveling → roll forming → hydraulic cutting → discharging

Forming Tolerance: ±0.4mm, high dimensional consistency

Machine Weight: About 6000kg

Power Supply: 380V/50Hz/3Phase (customizable for global voltage standards)

Machine Structure: Heavy-duty integral welded steel frame, anti-vibration design

Main Application Scenarios

M-section steel produced by our high-performance M section forming machine boasts outstanding load-bearing capacity, stable structural performance and strong seismic resistance, which is an indispensable key component for heavy-duty steel structure engineering. The equipment is widely used in global construction and industrial fields:

Large-span industrial steel structure workshops and factory buildings

Heavy-duty logistics warehouses, storage bases and freight terminals

Large-scale commercial buildings, exhibition centers and stadiums

Bridge auxiliary structures and large infrastructure support projects

Prefabricated steel structure buildings and modular construction projects

Mining engineering supporting structures and heavy industrial equipment bases

Why Choose Our M Section Forming Machine?

As a professional manufacturer of steel profile roll forming equipment, our M section steel making machine has gained wide recognition from global customers with superior quality, stable performance and comprehensive service advantages:

Professional R&D and Manufacturing Experience: We have over 10 years of focused experience in heavy-duty steel roll forming equipment R&D and production. Every machine undergoes strict load testing, precision debugging and quality inspection before delivery to ensure long-term stable industrial operation.

Superior Structural Performance of Finished Products: Precision forming technology ensures M purlins with uniform stress distribution, high overall structural stability and strong load-bearing capacity. The finished products fully meet the high-standard requirements of heavy-duty engineering projects and have strong market competitiveness.

High Cost-Effective Production: Full-automatic unmanned operation reduces labor input and human error. High yield rate avoids raw material waste, and low failure rate minimizes equipment maintenance costs, helping customers reduce comprehensive production costs and improve profit margins.

Global Standard Compliance & Complete After-Sales Service: Our equipment conforms to CE international certification standards and global steel structure manufacturing specifications. We provide one-stop services including project solution customization, factory technical training, overseas on-site installation and debugging, and 24-hour English remote after-sales support.

Custom & OEM Service

Different regions and engineering projects have personalized requirements for M-section steel specifications. We provide flexible OEM and customized services for M section forming machines. Whether you need to adjust profile dimensions, add automatic punching and marking functions, upgrade intelligent monitoring systems, or customize full-process automated production lines, our professional technical team can design exclusive targeted solutions according to your actual production and project demands.

Final Words

High-quality M section forming equipment is the core guarantee for producing high-strength steel structure purlins. Our automatic M purlin roll forming machine adheres to the design concepts of heavy-duty resistance, high precision, high efficiency and energy saving, helping global steel processing enterprises produce qualified engineering profiles and expand market share. If you are looking for a reliable M section forming machine supplier and professional customized production solution, welcome to contact us for free technical parameters and latest factory quotation.
